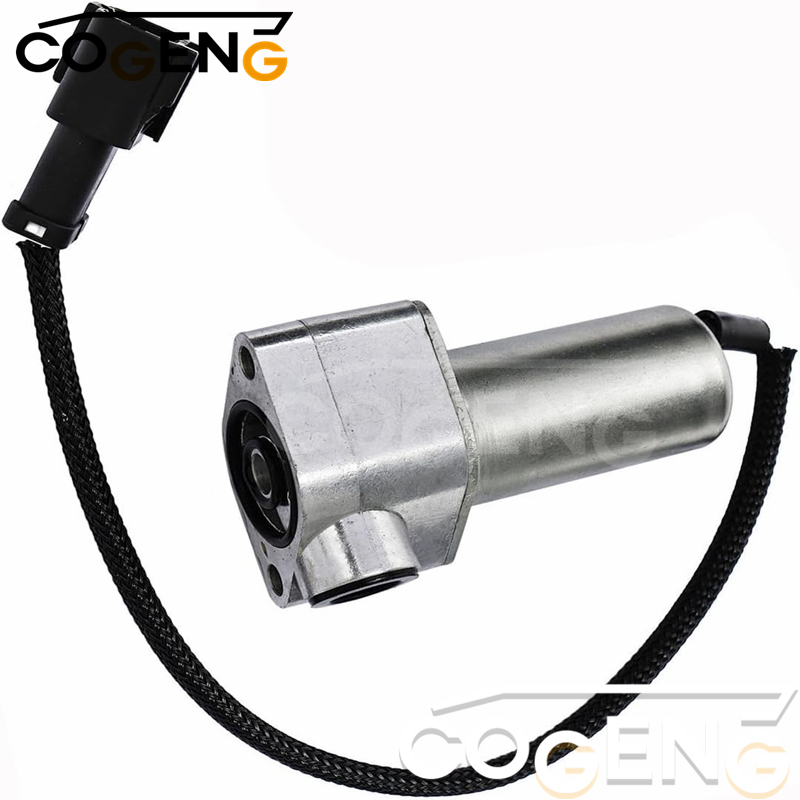

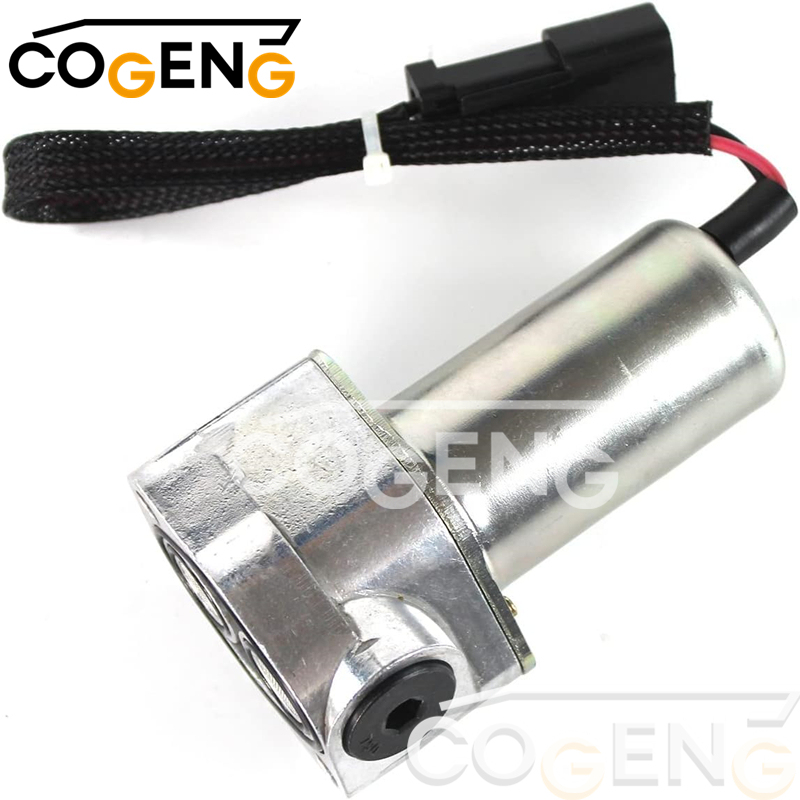

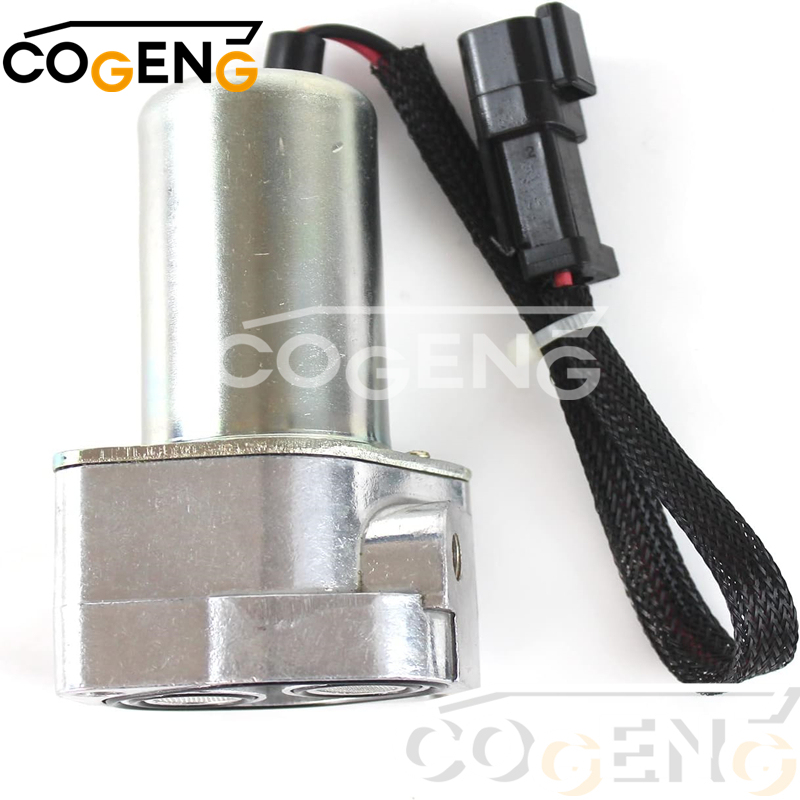

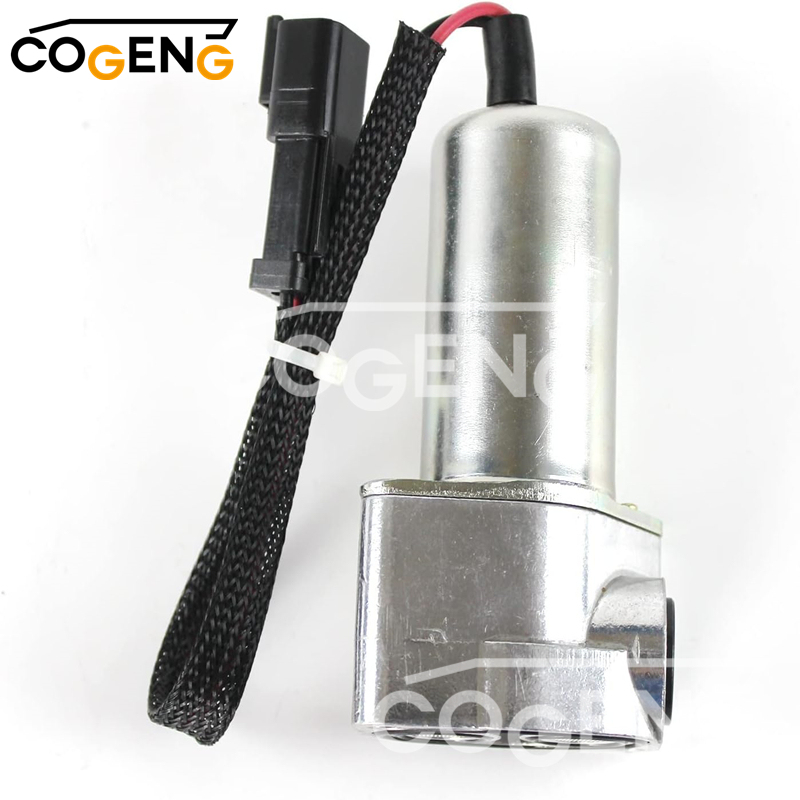

| Parameter | 702-21-07610 | 702-21-07630 |
|---|---|---|
| COGENG Part Number | 702-21-07610 | 702-21-07630 |
| OEM Equivalent | Komatsu 702-21-07610 | Komatsu 702-21-07630 |
| Product Type | Hydraulic Solenoid Valve | Hydraulic Solenoid Valve |
| Voltage | 24V DC | 24V DC |
| Set Includes | 1 valve | 1 valve |
| Brand | 702-21-07610 | 702-21-07630 |
|---|---|---|
| COGENG | 702-21-07610 | 702-21-07630 |
| Komatsu | 702-21-07610 | 702-21-07630 |
| Interchange | 702-21-07611, 702-21-07612 | 702-21-07631, 702-21-07632 |
| Parameter | Specification |
|---|---|
| Voltage Rating | 24V DC (Komatsu standard) |
| Current Draw | 0.8 - 1.2 A @ 24V DC |
| Coil Resistance | 20 - 28 Ω @ 20°C |
| Duty Cycle | 100% continuous rating |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP67 (dust-tight, waterproof) |
| Electrical Connection | Deutsch DT type (2-pin) |
| Surge Protection | Built-in suppression diode |
| Parameter | Specification |
|---|---|
| Valve Type | 3-way / 2-position pilot solenoid |
| Maximum Operating Pressure | 350 bar (5,075 psi) |
| Pilot Pressure Range | 10 - 30 bar (145 - 435 psi) |
| Flow Capacity | Up to 20 L/min (5.3 GPM) |
| Response Time (On) | ≤ 50 ms |
| Response Time (Off) | ≤ 40 ms |
| Leakage (Internal) | ≤ 5 drops/min @ rated pressure |
| Fluid Compatibility | Mineral oil, synthetic hydraulic fluids |
| Parameter | 702-21-07610 | 702-21-07630 |
|---|---|---|
| Valve Body Material | High-strength steel | High-strength steel |
| Surface Finish | Zinc-nickel plating | Zinc-nickel plating |
| Seal Material | HNBR | HNBR |
| Mounting Interface | Komatsu standard | Komatsu standard |
| Weight (each) | 0.40 kg (0.88 lbs) | 0.40 kg (0.88 lbs) |

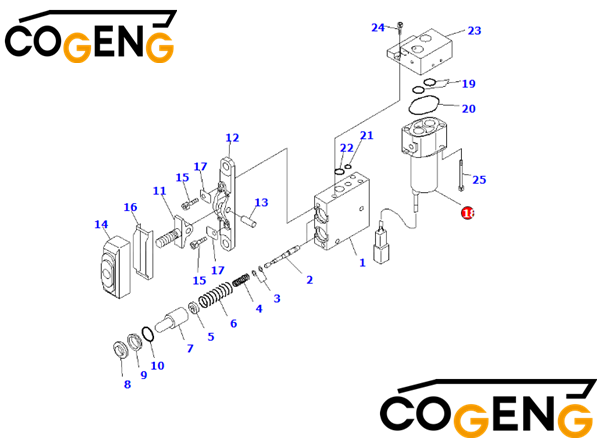

| № | Number | Name | Qty |
| 702-16-04290 | Valve, Pilot | 1 | |
| 1 | • Valve Body | 1 | |
| 2 | • Valve | 2 | |
| 3 | 702-16-51140 | • Shim, T=0.30mm | 2 |
| 4 | 702-16-54550 | • Spring | 2 |
| 5 | 702-16-54571 | • Retainer | 2 |
| 6 | 702-16-54560 | • Spring | 2 |
| 7 | 702-16-53170 | • Piston | 2 |
| 8 | 702-16-51270 | • Seal | 2 |
| 9 | 702-16-54580 | • Collar | 2 |
| 10 | 702-16-54590 | • O-ring | 2 |
| 11 | • Lever | 1 | |
| 12 | • Plate | 1 | |
| 13 | • Shaft | 1 | |
| 14 | 702-16-54641 | • Boot | 1 |
| 15 | 01252-30625 | • Bolt | 2 |
| 16 | 702-16-54660 | • Plate | 1 |
| 17 | 702-16-54650 | • Plate | 2 |
| 18 | 702-21-07610 | • Valve, Solenoid | 1 |
| 19 | 700-22-11410 | • O-ring | 2 |
| 20 | 702-21-39450 | • O-ring | 1 |
| 21 | 07000-11008 | • O-ring | 1 |
| 22 | 07000-12012 | • O-ring | 1 |
| 23 | • Body | 1 | |
| 24 | 01252-60612 | • Bolt, Hexagon Socket Head | 3 |
| 25 | 203-60-62220 | • Bolt | 2 |
Q: Are 702-21-07610 and 702-21-07630 interchangeable?
A: These two solenoid valves are often used together on the same pilot control manifold but may have different internal flow characteristics or connector orientations. Always verify the specific location (e.g., boom up vs. arm in) before replacement. Purchasing them as a matched pair ensures complete pilot circuit reliability.
Q: What Komatsu excavator models use the 702-21-07610 and 702-21-07630 valves?
A: These valves are widely used across Komatsu PC series excavators including PC200-7, PC200-8, PC220-7, PC300-7, PC350-7, and PC400-7 models. They control pilot oil flow to the main control valve for smooth implement operation.
