| Specification Category | Technical Specifications |
|---|---|
| Compatible Equipment Models | Komatsu PC120-6, PC100-6, PC200-6, PC220-6, PC240-8K, PC290-8K |
| Compatible Engines | 4D102, 6D102 Series |
| COGENG Part Number | CG-KOM-SV-38 |
| Replaces OEM Part Number | 702-21-07010 |
| Product Type | Electro-Hydraulic Solenoid Valve |
| Operating Voltage | 12V/24V DC |
| Maximum Operating Pressure | 380 Bar (5,500 PSI) |
| Flow Capacity | 20-50 L/min (5.3-13.2 GPM) |
| Fluid Compatibility | Mineral-based, synthetic, and bio-degradable hydraulic oils (ISO VG 32-68) |
| Temperature Range | -40°C to 120°C |
| Electrical Protection | IP67 Sealed Connectors |
| Quality Assurance | 100% Pressure, Performance, and Leak Testing |
| Warranty | 3,000-Hour Warranty |

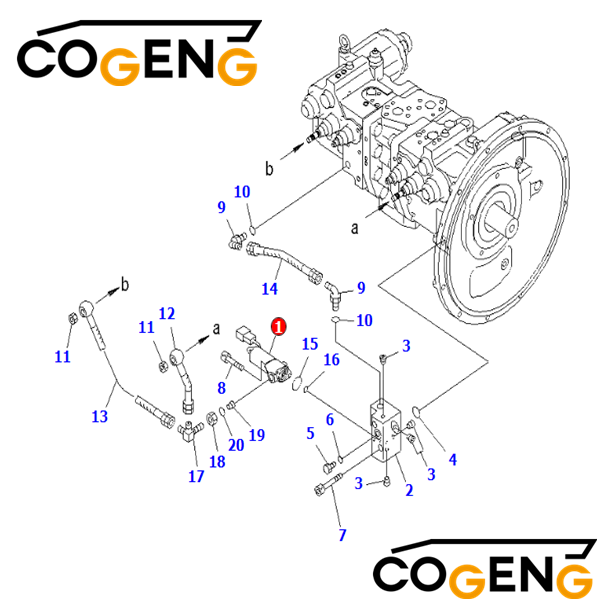

| № | Number | Name | Qty |
| 708-2L-00440 | PUMP ASS'Y | 1 | |
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1600-41A0 T0 Y1600-50A0. | |||
| 1 | 702-21-07010 | • SOLENOID VALVE ASS'Y | 1 |
| 708-2L-04280 | • BLOCK ASS'Y | 1 | |
| 2 | •• BLOCK | 1 | |
| 3 | •• PLUG | 4 | |
| 4 | 708-2L-23970 | •• O-RING | 1 |
| 5 | 07040-11007 | • PLUG | 1 |
| 6 | 708-2L-23920 | • O-RING | 1 |
| 7 | 01252-30865 | • BOLT | 2 |
| 8 | 203-60-62220 | • BOLT | 2 |
| 9 | 07235-10210 | • ELBOW | 2 |
| 10 | 708-2L-23950 | • O-RING | 2 |
| 11 | 01582-11008 | • NUT | 2 |
| 12 | 708-2L-29410 | • HOSE | 1 |
| 13 | 708-2L-29420 | • HOSE | 1 |
| 14 | 708-2L-29430 | • HOSE | 1 |
| 15 | 708-2L-23960 | • O-RING | 2 |
| 16 | 07000-B2011 | • O-RING | 2 |
| 17 | 708-2L-29450 | • ELBOW | 1 |
| 18 | 01583-51408 | • NUT | 1 |
| 19 | 708-2L-29460 | • ORIFICE | 1 |
| 20 | 708-2L-23950 | • O-RING | 1 |
Q: What Komatsu models does the 702-21-07010 solenoid valve fit?
A: This universal solenoid valve is commonly used across various Komatsu equipment including PC200, PC220, PC300 series excavators and D65, D85 series dozers. Please verify the OEM part number 702-21-07010 in your parts manual or on your existing valve to confirm exact fitment.
Q: Is this COGENG valve the same quality as the Komatsu OEM 702-21-07010?
A: Yes, COGENG valves are manufactured to strict OEM specifications for form, fit, and function. Each valve undergoes rigorous testing to ensure reliable hydraulic control and long service life in demanding construction environments.
