| Parameter | Specification |
|---|---|
| COGENG Part Number | PS-KOM-3140-10505 |
| Replaces OEM Numbers | 6732-81-3140 08073-10505 |

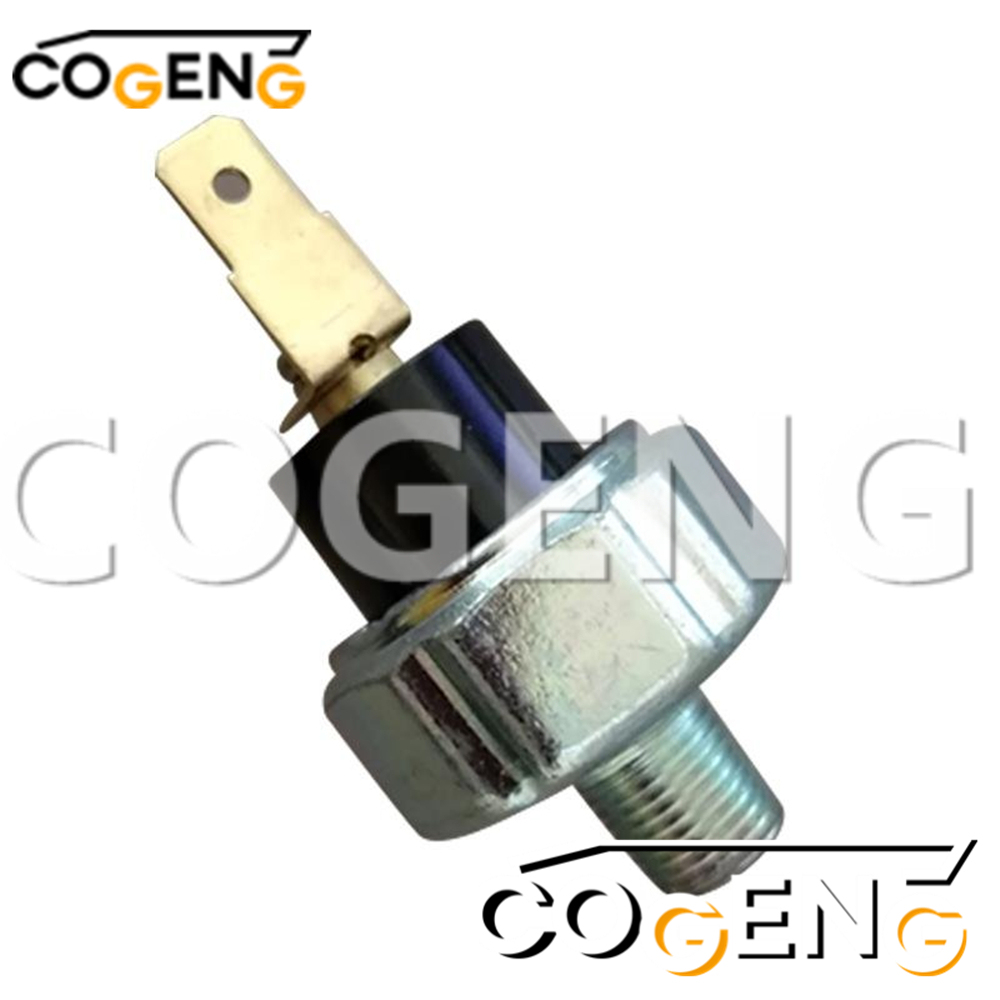

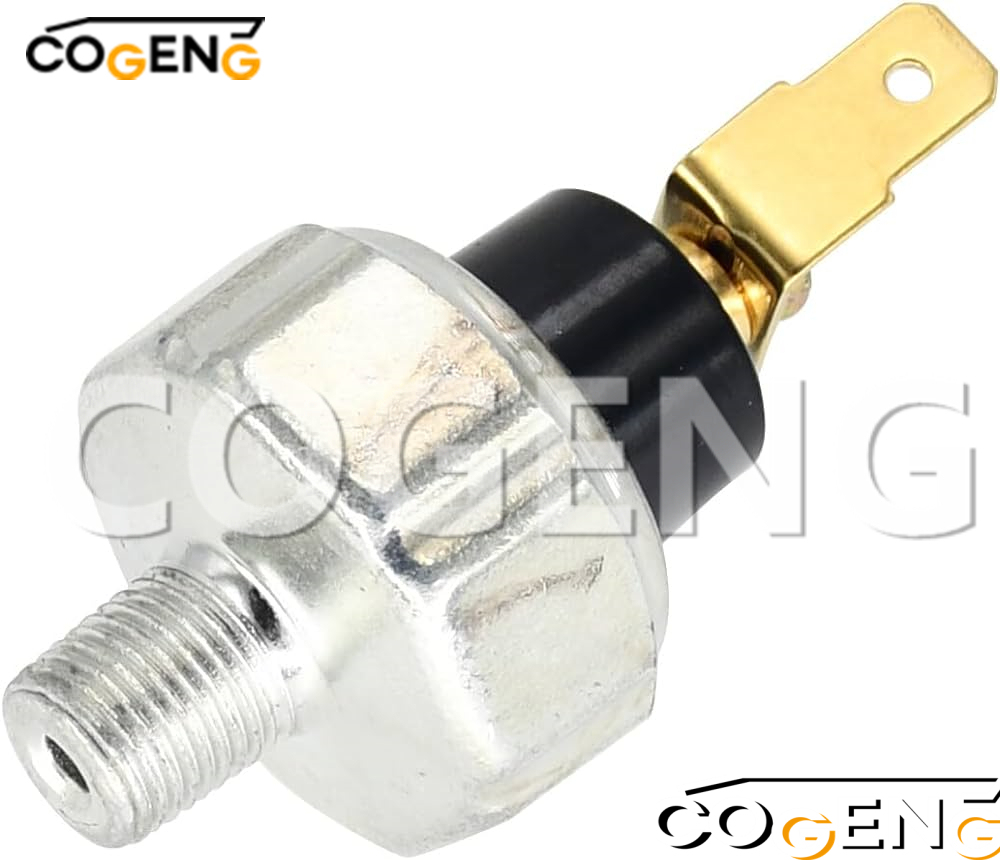

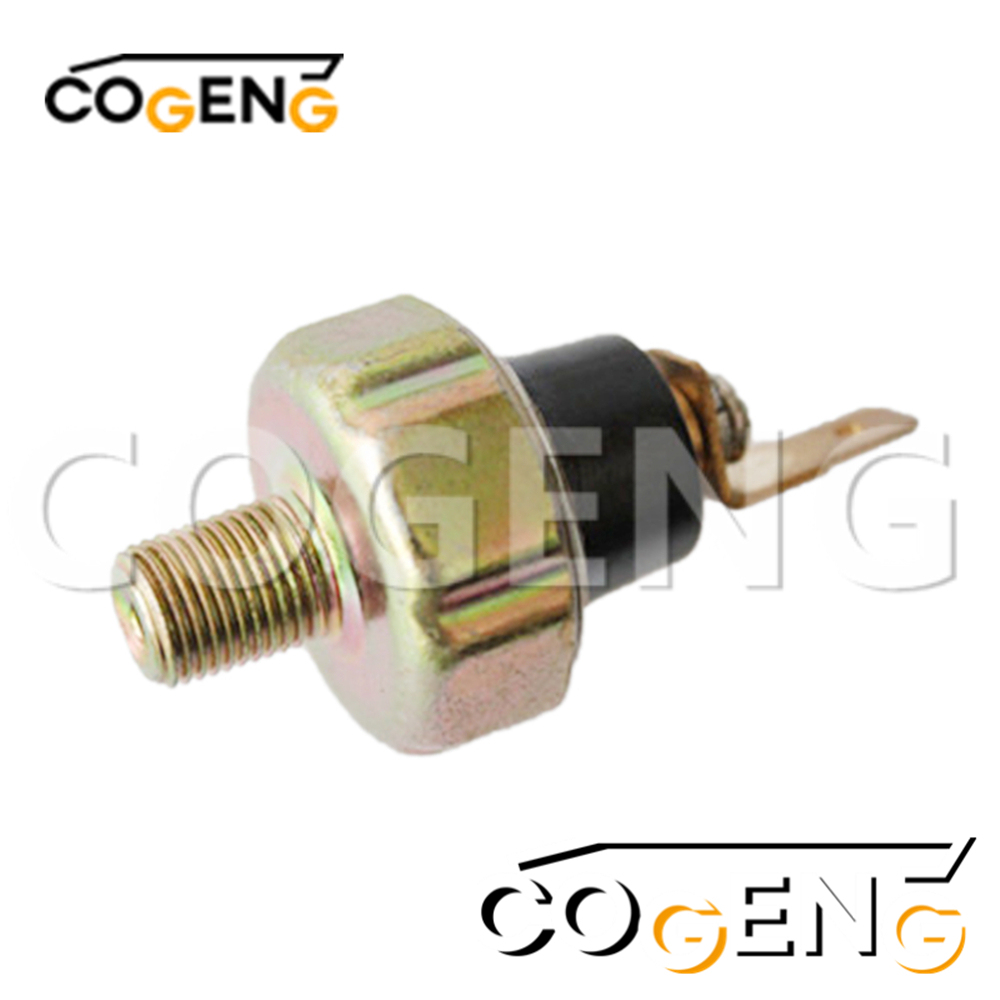

| Sensor Type | Engine Oil Pressure Sensor |

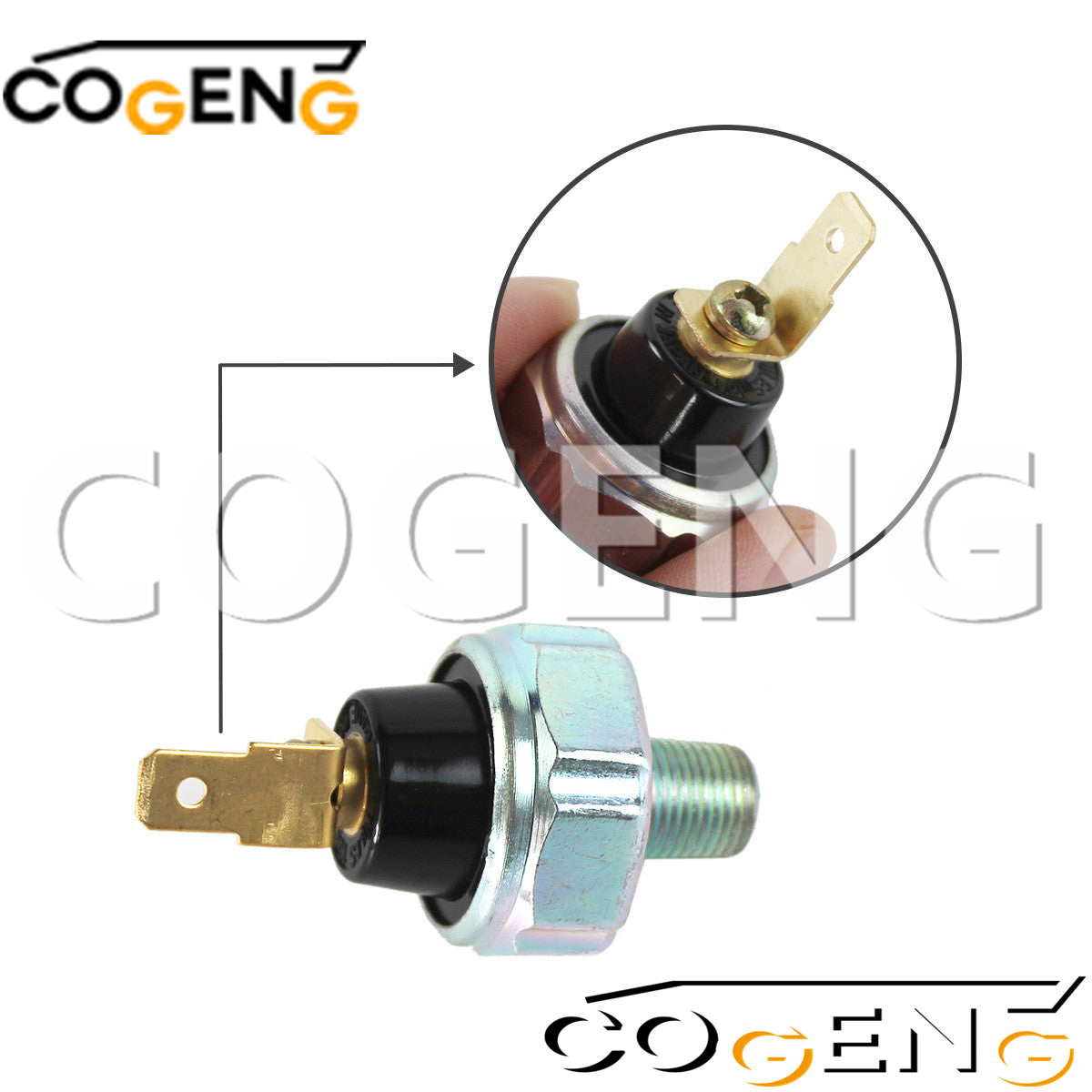

| Electrical Connection | OEM 2-pin Weatherproof Connector |
| Thread Size | 1/8" NPT (Standard) |
| Pressure Range | 0-10 Bar (0-150 PSI) |
| Operating Temperature | -40°C to +135°C |
| Accuracy | ±1.5% Full Scale |
| Body Material | Brass with Anti-Corrosion Coating |
| Seal Type | Integrated Copper Washer |
| Output Signal | Variable Resistance (OEM Compatible) |
| Quality Standard | ISO 9001 |

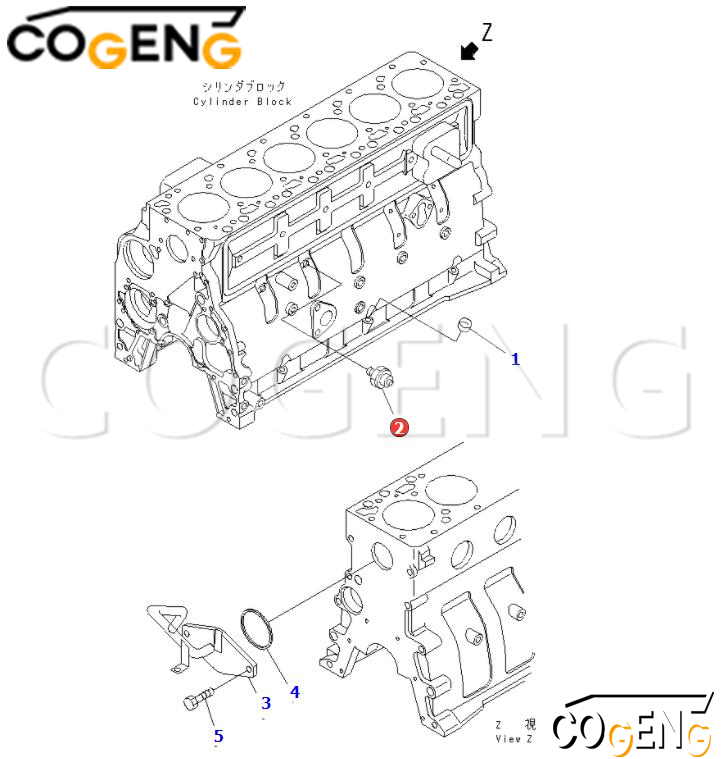

| NO | Number | Name | Qty |
| 1 | 6732-21-5530 | PLUG | 2 |
| 2 | 6732-81-3140 | Engine Oil Pressure Sensor | 1 |
| 3 | 6735-61-6120 | TUBE | 1 |
| 4 | 6735-61-6140 | SEAL | 1 |
| 5 | 01435-01225 | BOLT | 2 |
Locate and disconnect electrical connector from old sensor
Use appropriate wrench to unscrew old sensor
Clean threads in engine block sensor port
Install new COGENG sensor with integrated copper washer
Hand-tighten, then torque to 10-15 Nm
Reconnect electrical connector securely
Start engine and check for oil leaks
Verify proper gauge operation
