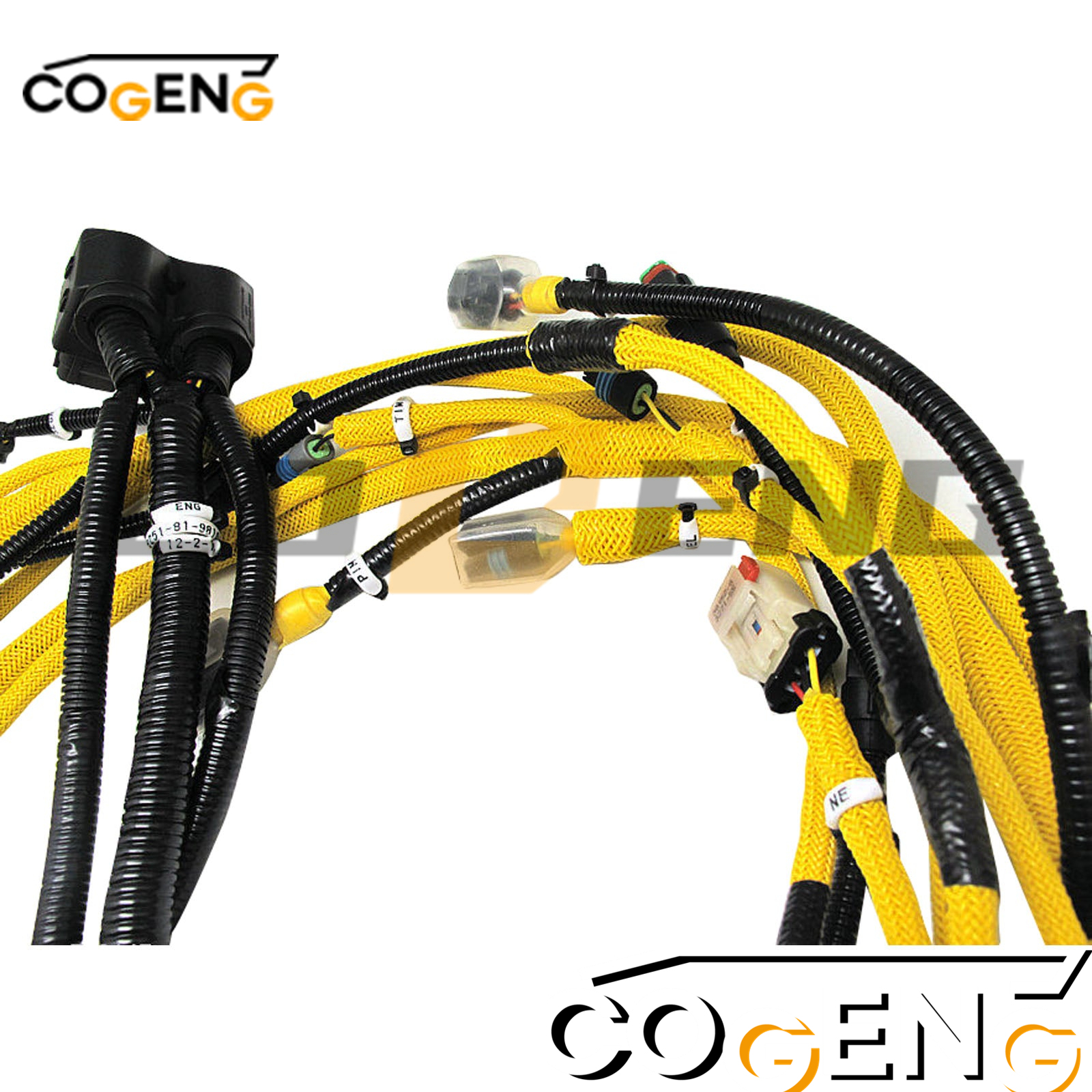

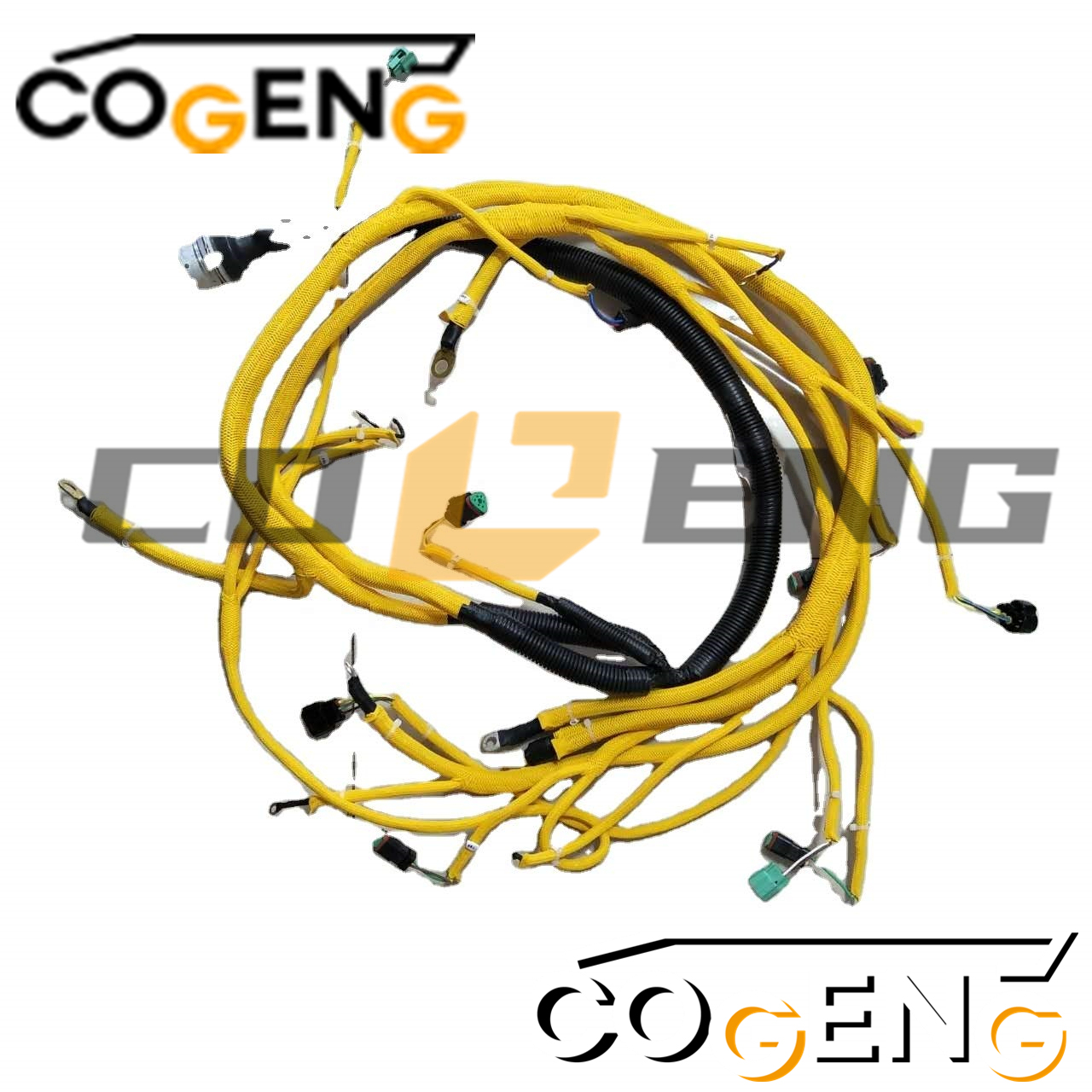

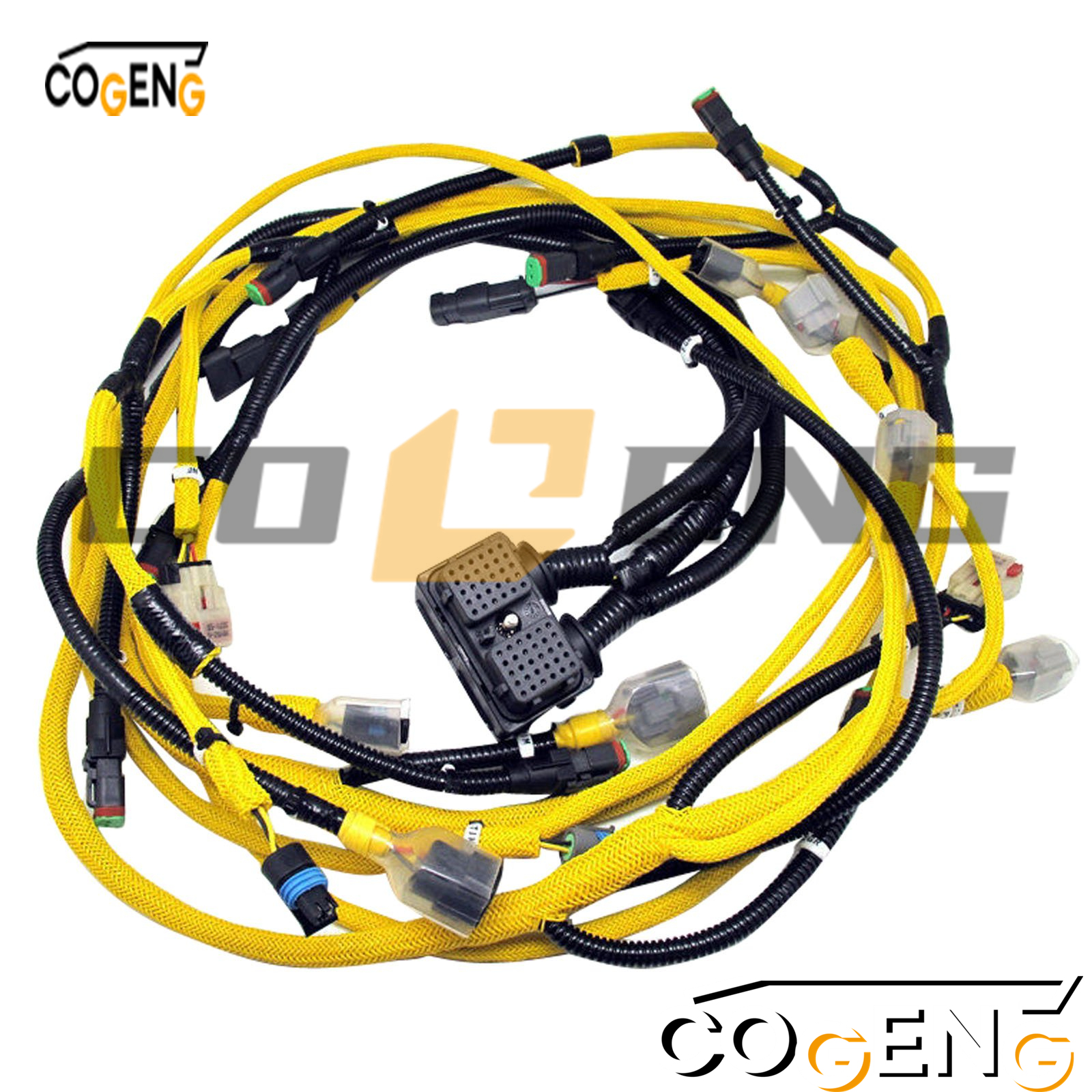

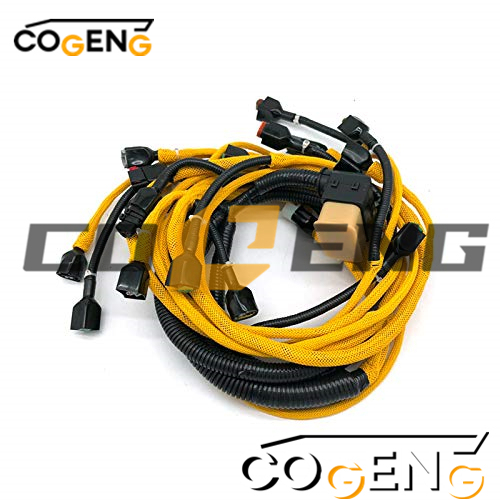

6251-81-9810 Komatsu Wiring Harness
Product name: Komatsu Wiring Harness
Part No: 6251-81-9810 6251819810
Model Number:For PC400 PC450 WA480-6 WA480-6 SAA6D125E-5E-01 SAA6D125E-5D-01 SAA6D125E-5C-02 SAA6D125E-5F
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification |
Details |
| COGENG Part Number |
CG-WH-KOM-69810 |
| OEM Part Numbers |
6251-81-9810, 6251819810 |
| Application |
Main Wiring Harness Assembly |
| Compatible Models |
Komatsu PC400, PC450 excavators; WA480-6 wheel loader |
| Compatible Engine |
SAA6D125E-5E-01 |
| Temperature Rating |
-40°C to +125°C (standard), -40°C to +150°C (engine bay) |
| Wire Construction |
Cross-linked polyethylene insulation, tinned copper conductors |
| Connector Types |
Sumitomo, Yazaki, and Deutsch OEM equivalents |
| Environmental Rating |
IP67 connectors, corrosion-resistant terminals |
| Quality Standards |
ISO 9001:2015 with IATF 16949 automotive-grade processes |
| Testing Protocol |
100% continuity, hi-pot testing, and circuit validation |
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
6251-81-9810 |
WIRING HARNESS |
1 |
| 2 |
6251-81-9730 |
BRACKET |
1 |
|
6251-81-9290 |
BRACKET |
1 |
| 3 |
01436-01015 |
BOLT |
1 |
| 4 |
01436-01030 |
BOLT |
1 |
| 5 |
6144-11-5630 |
SPACER |
2 |
| 6 |
600-051-2280 |
CLIP |
2 |
| 7 |
01435-01055 |
BOLT |
2 |
| 8 |
01643-31032 |
WASHER |
2 |
| 9 |
6218-81-8440 |
CLAMP |
2 |
| 10 |
01435-01025 |
BOLT |
1 |
| 11 |
6218-81-8490 |
BAND |
2 |
| 12 |
421-01-41251 |
BRACKET |
1 |
| 13 |
01435-01020 |
BOLT |
1 |
| 14 |
6218-81-8440 |
CLAMP |
1 |
| 15 |
600-051-2280 |
CLIP |
1 |
| 16 |
01435-01025 |
BOLT |
1 |
| 17 |
01643-31032 |
WASHER |
1 |
| 18 |
6218-81-8490 |
BAND |
1 |
| 19 |
6144-11-5630 |
SPACER |
1 |
| 20 |
6218-81-8440 |
CLAMP |
1 |
| 21 |
01435-01065 |
BOLT |
1 |
| 22 |
6218-81-8490 |
BAND |
1 |
| 23 |
6218-81-8490 |
BAND |
2 |
| 24 |
6251-81-9270 |
BRACKET |
1 |
| 25 |
01435-01020 |
BOLT |
3 |
| 26 |
6218-81-8440 |
CLAMP |
1 |
| 27 |
600-051-2200 |
CLIP |
1 |
| 28 |
01643-31032 |
WASHER |
1 |
| 29 |
6218-81-8490 |
BAND |
1 |
| 30 |
6251-81-9660 |
BRACKET |
1 |
| 31 |
01435-01090 |
BOLT |
1 |
| 32 |
6218-81-8440 |
CLAMP |
1 |
| 33 |
600-051-2180 |
CLIP |
1 |
| 34 |
01435-01020 |
BOLT |
1 |
| 35 |
01643-31032 |
WASHER |
1 |
| 36 |
6218-81-8490 |
BAND |
1 |
| 37 |
421-62-11940 |
PLATE |
1 |
| 38 |
01435-01020 |
BOLT |
1 |
| 39 |
01643-31032 |
WASHER |
1 |
| 40 |
600-051-2180 |
CLIP |
1 |
|
600-051-2140 |
CLIP |
1 |
| 41 |
01436-01070 |
BOLT |
1 |
|
01435-01070 |
BOLT |
1 |
| 42 |
01643-31032 |
WASHER |
1 |
| 43 |
08193-20010 |
CLIP |
1 |
| 44 |
600-051-2140 |
CLIP |
1 |
|
600-051-2180 |
CLIP |
1 |
| 45 |
01436-01065 |
BOLT |
1 |
| 46 |
01643-31032 |
WASHER |
1 |
| 47 |
6144-11-5630 |
SPACER |
1 |
| 48 |
600-051-2140 |
CLIP |
2 |
| 49 |
01435-01055 |
BOLT |
1 |
| 50 |
01435-01020 |
BOLT |
1 |
| 51 |
01643-31032 |
WASHER |
2 |
Installation decomposition diagram
