| Category | Specification |
|---|---|
| COGENG Part Number | CG-HIT-4658146 |
| OEM Reference | 4658146 |
| Compatible Models | ZX250-3, AXIS240LC-3, AXIS190W-3 |
| Machine Weight Range | 19-25 Ton Excavators |
| Configuration Support | Crawler & Wheeled Models |
| Series Coverage | ZX Series & AXIS Series |
| Wire Insulation | Oil-Resistant XLPE |
| Connector Rating | IP67 (Waterproof & Dustproof) |
| Temperature Range | -40°C to 125°C |
| Voltage Rating | 24V DC System |
| Quality Validation | 100% Cross-Model Testing |
| Warranty Coverage | 18-Month Limited Warranty |

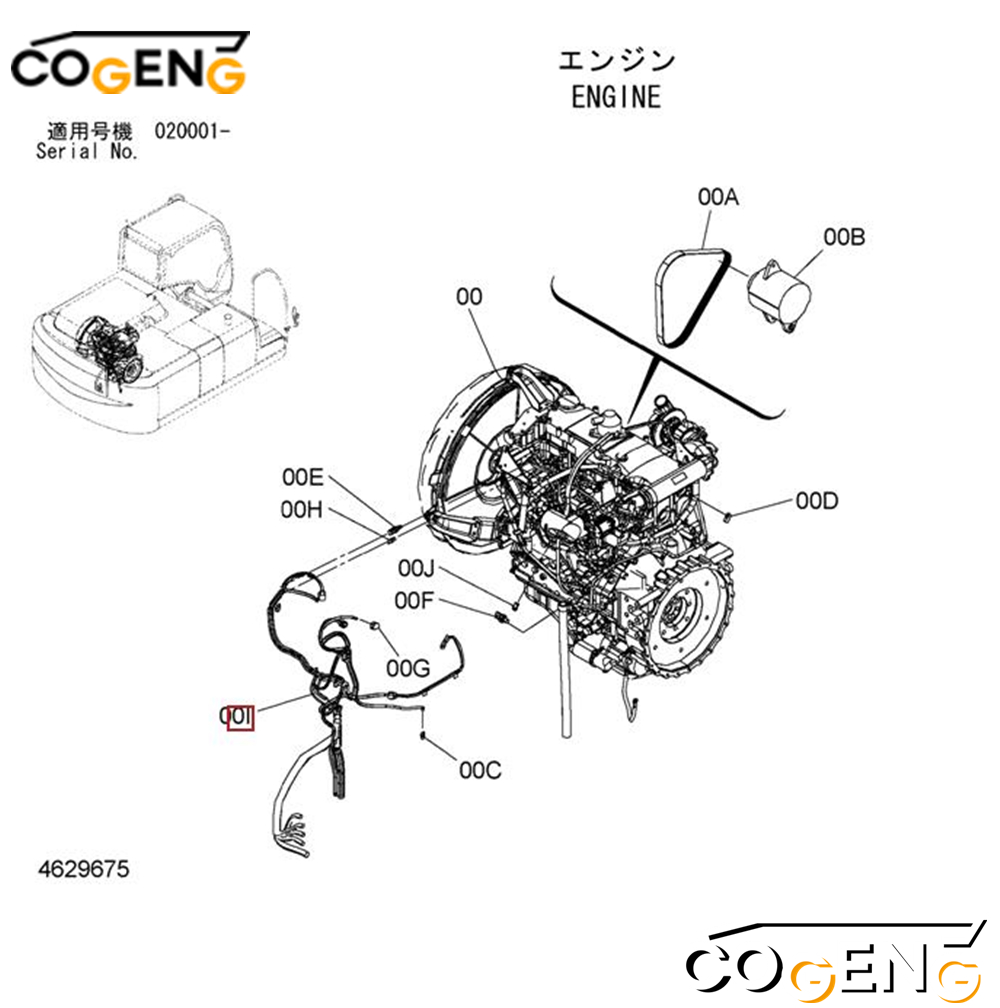

| NO | Number | Name | Qty |
| 00 | 4629675 | ENGINE | 1 |
| 00 | 4681619 | ENGINE | 1 |
| 00 | 4686914 | ENGINE | 1 |
| 00A | 4642643 | BELT;FAN | 1 |
| 00B | 4687689 | ALTERNATOR | 1 |
| 00C | 4657939 | SENSOR | 1 |
| 00D | 4657940 | SENSOR | 1 |
| 00E | 4657941 | SENSOR | 1 |
| 00F | 4657942 | SENSOR | 1 |
| 00G | 4657944 | SENSOR | 1 |
| 00H | 4371318 | SWITC | 1 |
| 0OI | 4658146 | HARNESS | 1 |
| 00J | 4651943 | SENSOR | 1 |
Verify specific model and configuration before installation
Complete machine power shutdown required
Follow model-specific routing diagrams as applicable
Ensure proper connector compatibility for target model
Perform comprehensive system diagnostics after installation
| Detail | Description |
|---|---|
| Shipping Methods | By Air: Cost-effective for medium-weight orders. By Sea: Most economical for bulk orders. By Express (FedEx, UPS, DHL, TNT): Fastest door-to-door service. Method optimized based on cargo situation and destination. |
| Estimated Delivery Time | Express: 3-5 business days. Air Freight: 8-15 days. Sea Freight: 30-45 days. Transit times are carrier-dependent. Tracking provided within one business day of dispatch. |
| Packing | Inner: PP bag with anti-static protection. Outer: Heavy-duty export-grade corrugated carton box with custom-cut protective foam. |
| Payment Terms | Western Union, L/C, T/T, MoneyGram, D/A, D/P. Standard terms: 30% T/T deposit, 70% balance before shipment. |
| Minimum Order Quantity | Acceptable Trial Order — Single unit orders welcomed. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. A wiring harness cannot be restocked once departed from our controlled environment. |
| DOA Quality Guarantee | Full replacement for manufacturing defects reported within 7 days of delivery. Harness must be in original, uninstalled condition. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness for written approval before dispatch. |
*shipping Details Return Sales*
Sales price:
Please contact COGENG sales customer service for specific prices.
Shipping method:
The specific arrangement will be based on the cargo situation.
Estimated delivery time:
It is based on the shipping time of the logistics company, and the arrival time shown shall prevail.
Contact details are at the bottom.
MerchantReturnPolicy:
The products shipped are not returnable or exchangeable.
