| Specification Category | Technical Specifications |
|---|---|
| Compatible Hitachi Models | EX200-2, EX200LC-3, EX100-2, EX100LC-3, 120-2, 120LC-3, EX200-5, EX220-2, EX220LC-3, EX300-2, EX300LC-3, EX400-3, EX400LC-3, EX550LC-5, EX750-5 |
| Compatible John Deere Models | 190E 450LC 490E 750 892EL 992ELC 6101 |
| COGENG Part Number | CG-HIT-JD-TM-48 |
| Replaces OEM Part Number | 4257163 |
| Product Type | Universal Electronic Throttle Motor Assembly |
| Operating Voltage | 12V/24V DC (Auto-sensing) |
| Protection Rating | IP67 Sealed Connectors and Housing |
| Position Sensing | Non-Contact Hall Effect Sensor |
| Operating Temperature | -40°C to 105°C |
| Duty Cycle | 100% Continuous Duty Rated |
| Multi-Platform Validation | Tested across all specified models and generations |
| Quality Assurance | 100% Performance and Compatibility Tested |
| Warranty | COGENG 18-Month Unlimited Hour Warranty |

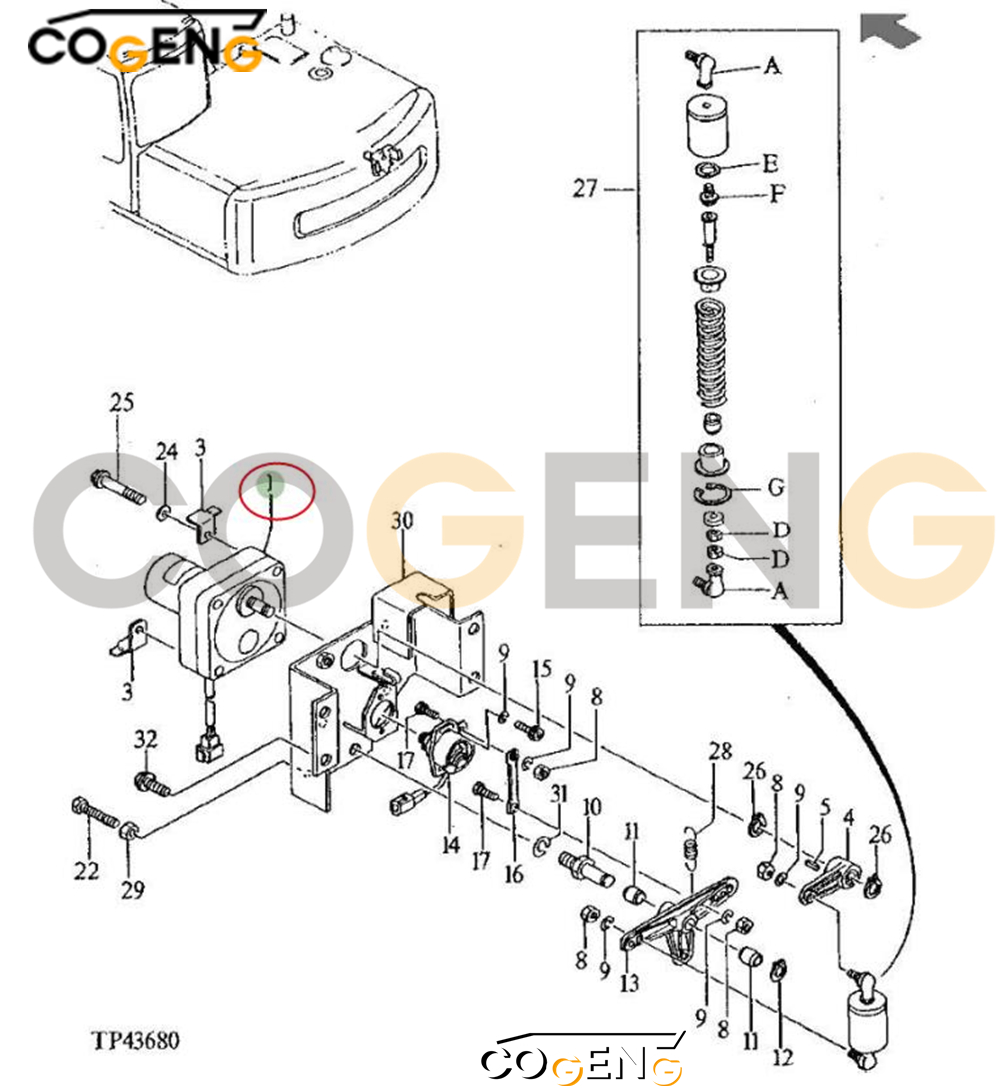

| NO | Number | Name | Qty |
| 1 | 4257163 | Throttle Motor | 1 |
| 3 | 4602634 | Bracket | 2 |
| 4 | 3051015 | Lever | 1 |
| 5 | 94-2204 | Shaft Key | 1 |
| 8 | 14M7272 | Nut | 4 |
| 9 | 12M7006 | Lock Washer | 6 |
| 10 | 4257162 | Stud | 1 |
| 11 | 4260781 | Bushing |
2 |
| 12 | 40M7188 | Snap Ring | 1 |
| 13 | 2030310 | Lever | 1 |
| 14 | 4257164 | Sensor | 1 |
| 15 | 19M8553 | Screw | 2 |
| 16 | 4254025 | Link | 1 |
| 17 | 4254023 | Bolt | 2 |
| 22 | 19M7164 | Cap Screw | 1 |
| 24 | 12M7066 | Lock Washer | 4 |
| 25 | 19M8499 | Cap Screw | 4 |
| 26 | 40M7202 | Snap Ring | 2 |
| 27 | 9095828 | Spring Assembly | 1 |
| 27A | 4722815 | Ball Joint | 2 |
| 27D | 14M7272 | Nut | 2 |
| 27E | 12M7006 | Lock Washer | 1 |
| 27F | J900614 | Bolt | 1 |
| 27G | 40M7136 | Snap Ring | 1 |
| 28 | 4271909 | Spring | 1 |
| 29 | 14M7273 | Nut | 1 |
| 30 | 7024515 | Bracket | 1 |
| 31 | 12H317 | Lock Washer | 1 |
| 32 | 19M7938 | Cap Screw | 4 |
| 32 | 12M7066 | Lock Washer | 4 |
