COGENG YN35V00054F1 Maximize Uptime Value: High-Performance Solenoid Valve for Kobelco

Name: COGENG YN35V00054F1 Maximize Uptime Value: High-Performance Solenoid Valve for Kobelco
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

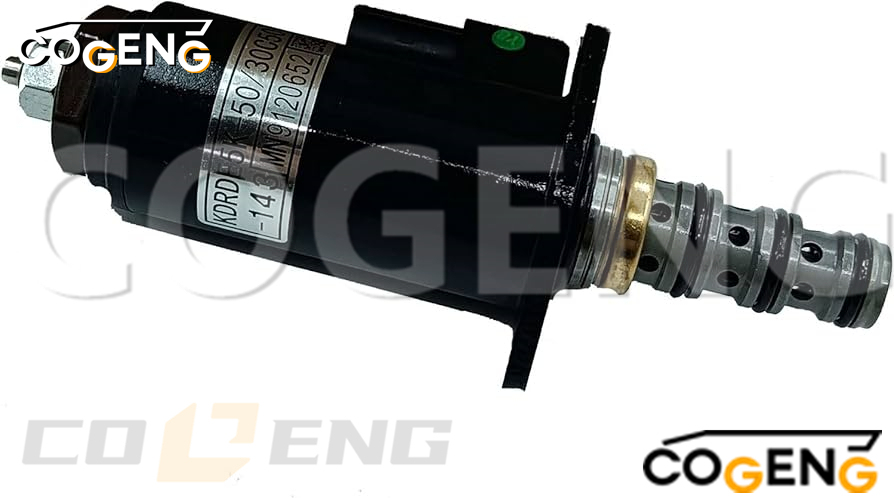

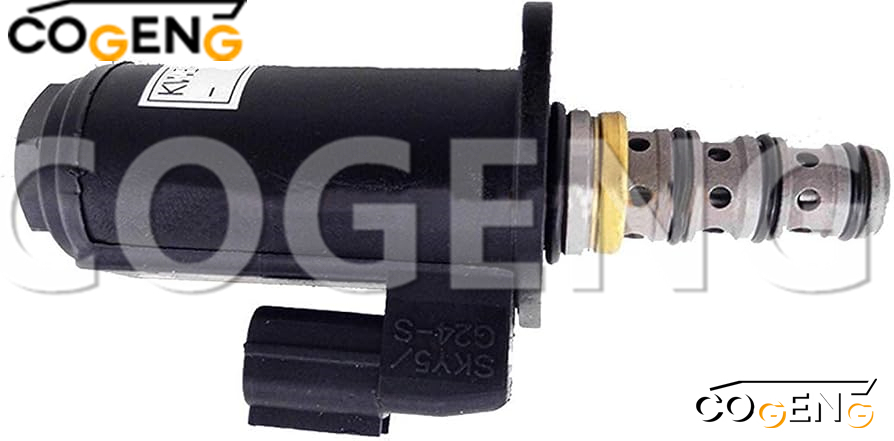

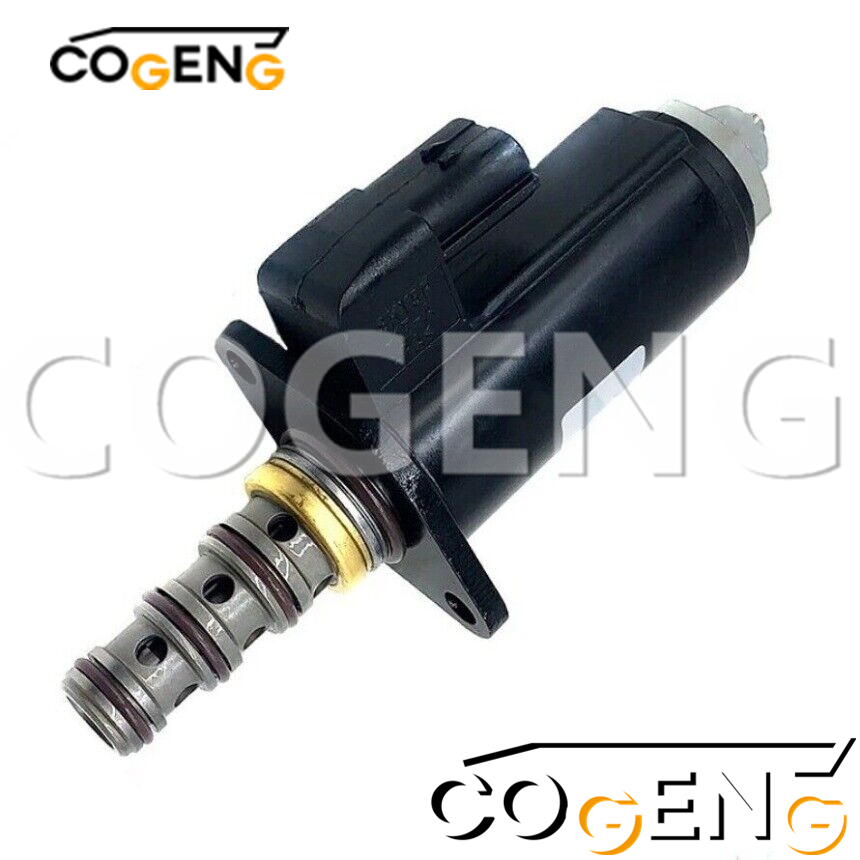

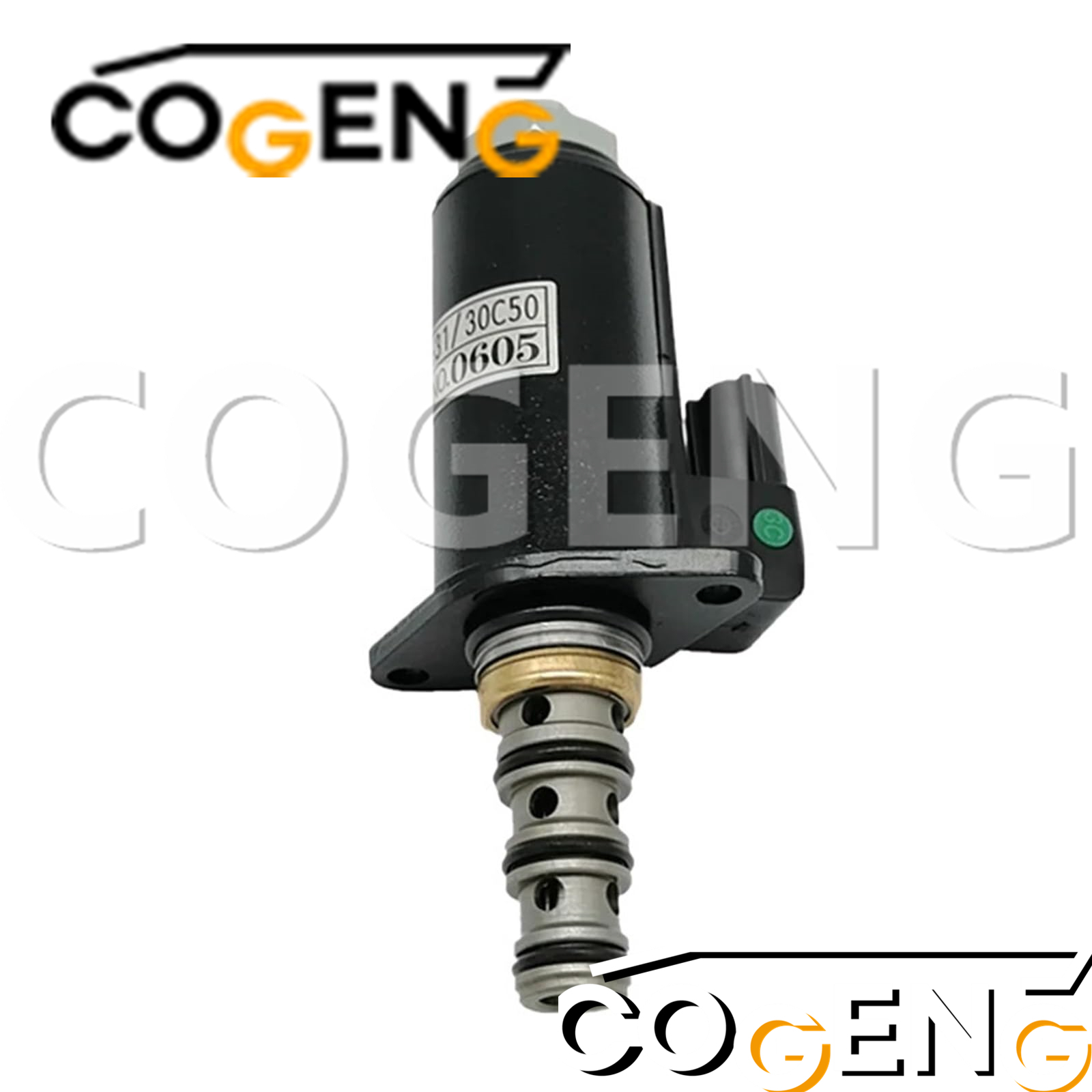

Product name: Kobelco Solenoid Valve Group

Part No:YN35V00054F1

Model Number:For SK170 SK-8 SK200-8 SK210LC-8 SK210DLC-8 SK260-9 SK350-8 SK295-9 SK350-9 SK260-9

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

PRODUCT IDENTIFICATION

Parameter	Specification
COGENG Part Number	YN35V00054F1
OEM Equivalent	Kobelco YN35V00054F1
Product Type	Hydraulic Solenoid Valve
Voltage	24V DC (Kobelco standard)
Mounting Type	Direct fit, cartridge or bolt-on
Application	Pilot control, attachment switching, swing brake, travel speed

CROSS REFERENCE GUIDE

Brand	Part Number
COGENG	YN35V00054F1
Kobelco	YN35V00054F1
Interchange	YN35V00054F2, YN35V00054F3, YN35V00055F1, YN35V00053F1

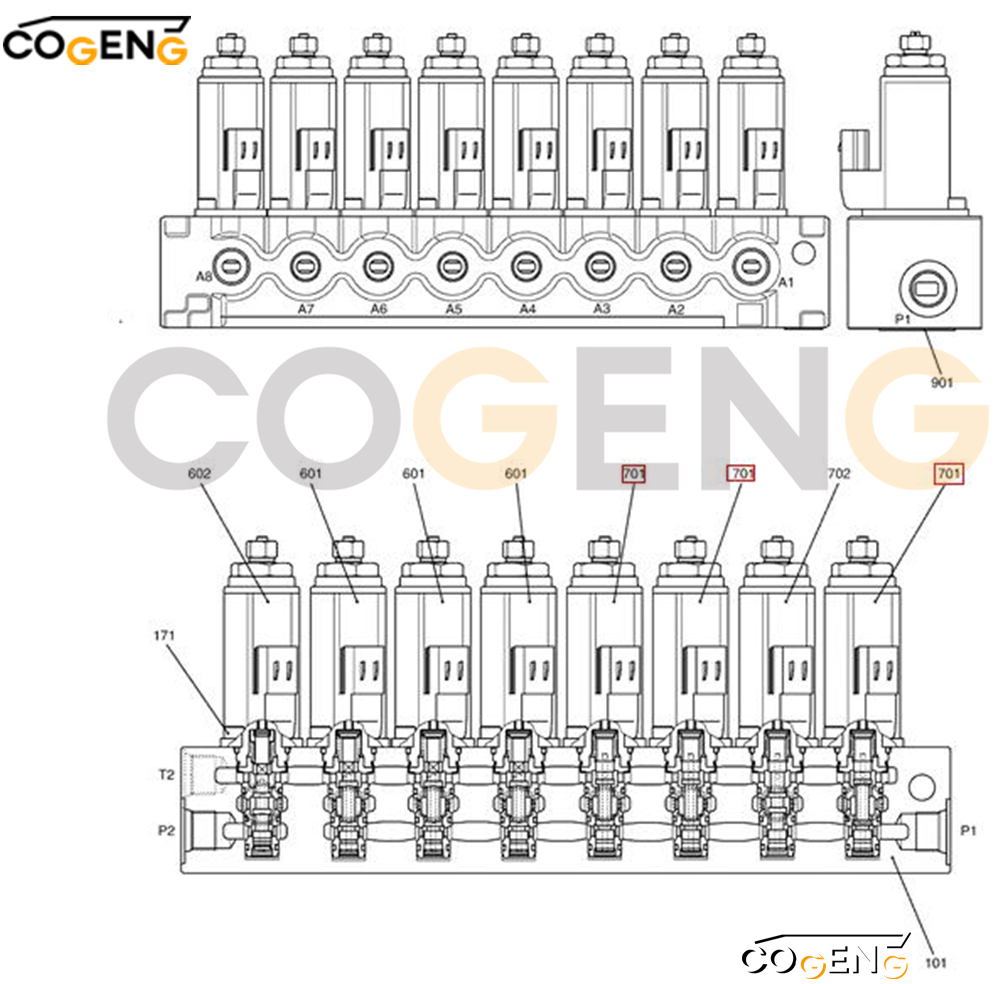

Decompose pictures

Parts list

NO	Number	Name	Qty
	YN35V00047F1	HYDRAULIC VALVE Solenoid	AR
101	YN35V00047S101	CASE	1
171	YX35V00002S171	SCREW M05x0.8x12mm-Used Before 11/03/2006	16
171	YN35V00047S171	SCREWM05x0.8mm--Used After 11/03/2006	16
601	YN35V00048F1	VALVE Solenoid,SEE (HC851)	3
602	YN35V00049F1	VALVE Solenoid,SEE (HC852)	1
701	YN35V00054F1	VALVE Solenoid,SEE (HC853)	3
702	YN35V00051F1	VALVE Solenoid,SEE (HC854)	1
901	NA	NOT SERVICED Name plate	1

Fault phenomenon	Associated error code	Detection method
Slewing start delay (>3 seconds)	E101 / E111	Measure the coil voltage to see if it is ≥22V
Unilateral weakness of the walking motor	E307	Compare the current values of the two valves (normal 1.2±0.3A)
Hydraulic lock failure (arm self-sinking)	-	Test whether the pressure relief valve is abnormally linked
Oil leakage from valve body (seal ring at base)	-	Check the O-ring specifications: P18×2.4mm

Device model	Generation	Applicable system
SK200-8	8 series	Swing Brake
SK210-8	8 series	Travel Motor
SK230-8	8 series	Pilot Valve
SK250-8	8 series	Hydraulic Lock
SK300-8	8 series	Main Pump

Installation decomposition diagram

Exact OEM Specification Match: Our YN35V00054F1 solenoid valve is meticulously manufactured to perfectly match the fit, form, and function of the genuine Kobelco part. This ensures a seamless, plug-and-play installation, simplifying maintenance and significantly reducing downtime.
Built for Extreme Durability: Crafted from premium, heavy-duty materials (often stainless steel for internal components and robust metal housing), this valve is engineered to withstand the demanding conditions of heavy construction and excavation. It offers exceptional resistance to high pressures, constant vibrations, contaminants, and wide temperature fluctuations, ensuring a long and reliable service life.
Precise Hydraulic Control: Provides accurate and consistent control over hydraulic fluid flow, leading to improved machine responsiveness, smoother movements, enhanced digging power, and overall greater operational efficiency.
Rigorously Tested Quality Assurance: Every YN35V00054F1 solenoid valve from Cogeng Company undergoes comprehensive multi-point quality control testing. This stringent process ensures that each valve meets the highest standards for performance, reliability, and safety before it leaves our facility.
Cost-Effective Solution: As a high-quality aftermarket alternative, the Cogeng Company's YN35V00054F1 solenoid valve delivers OEM-level performance without the associated premium price tag. It represents a smart and economical investment for maintaining the peak operational efficiency and extending the service life of your valuable Kobelco equipment.

Frequently Asked Questions

A. When will get the items after I place order?

Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?

Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??

Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??

Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?

Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??

Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?

Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?

Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.

A : Which payment terms can you accept?

Q : Paypal. Western Union, Bank Transfer, T/T...
