COGENG 332/J3254 332J3254 Restore JCB Electrical System: Wiring Harness for JS200, JS210, JS220 Excavators

PRODUCT IDENTIFICATION

CROSS REFERENCE GUIDE

TECHNICAL SPECIFICATIONS

Electrical Specifications

Material Construction

Environmental Ratings

COMPATIBLE JCB JS EXCAVATORS

JS200 Series

JS210 Series

JS220 Series

Engine Compatibility

Note: Verify engine model with your equipment manual before ordering. Contact COGENG with your machine serial number for exact compatibility confirmation.

HARNESS COMPONENTS & CIRCUITS

Engine Compartment Circuits

Decompose pictures

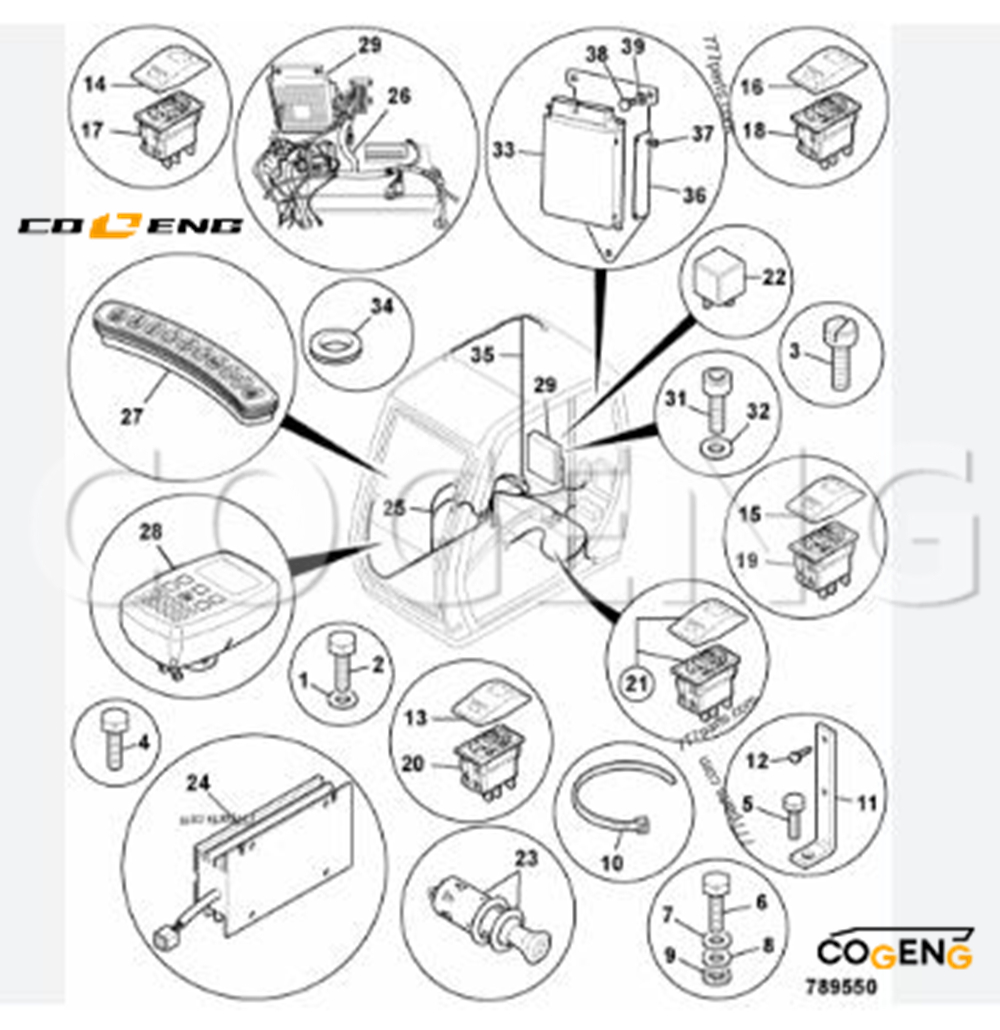

Installation decomposition diagram
Pre-Installation Safety Protocol:
Park excavator on level ground, lower attachment to ground
Turn ignition key to OFF position and remove
Disconnect negative (-) battery terminal
Wait for system capacitors to discharge
Identify and tag all existing harness connections
Harness Removal Procedure:
Photograph existing harness routing and connections
Label each connector with component identification
Use appropriate terminal release tools
Carefully release all clamps and mounting points
Document specific routing paths
Installation Verification:
Compare new COGENG harness with original for exact match
Verify all connector types and lengths align properly
Inspect all connection points for damage or corrosion
Ensure proper clearance from moving components
Precision Installation Steps:
Route harness following exact original path documentation
Secure all mounting clamps and retention points
Connect all components systematically
Verify all connector locks engage properly
Ensure adequate slack at movement points
System Testing & Verification:
Reconnect battery terminal
Turn key to ON position
Check for diagnostic trouble codes
Test all related electrical functions
Verify proper system operation
Conduct final inspection of installation
