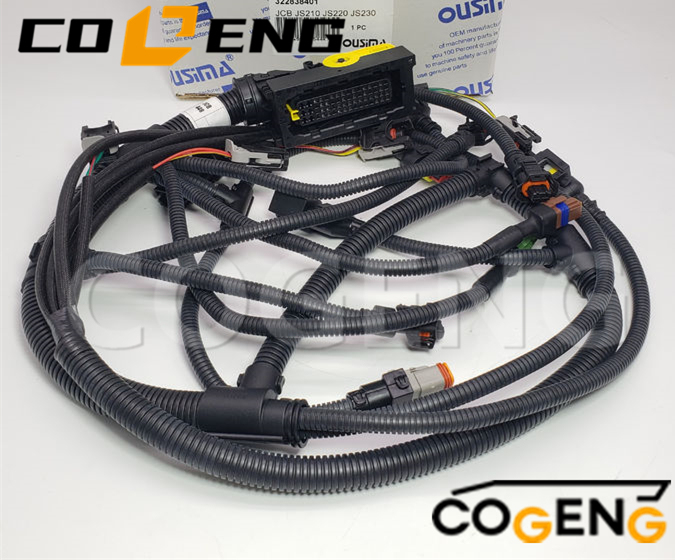

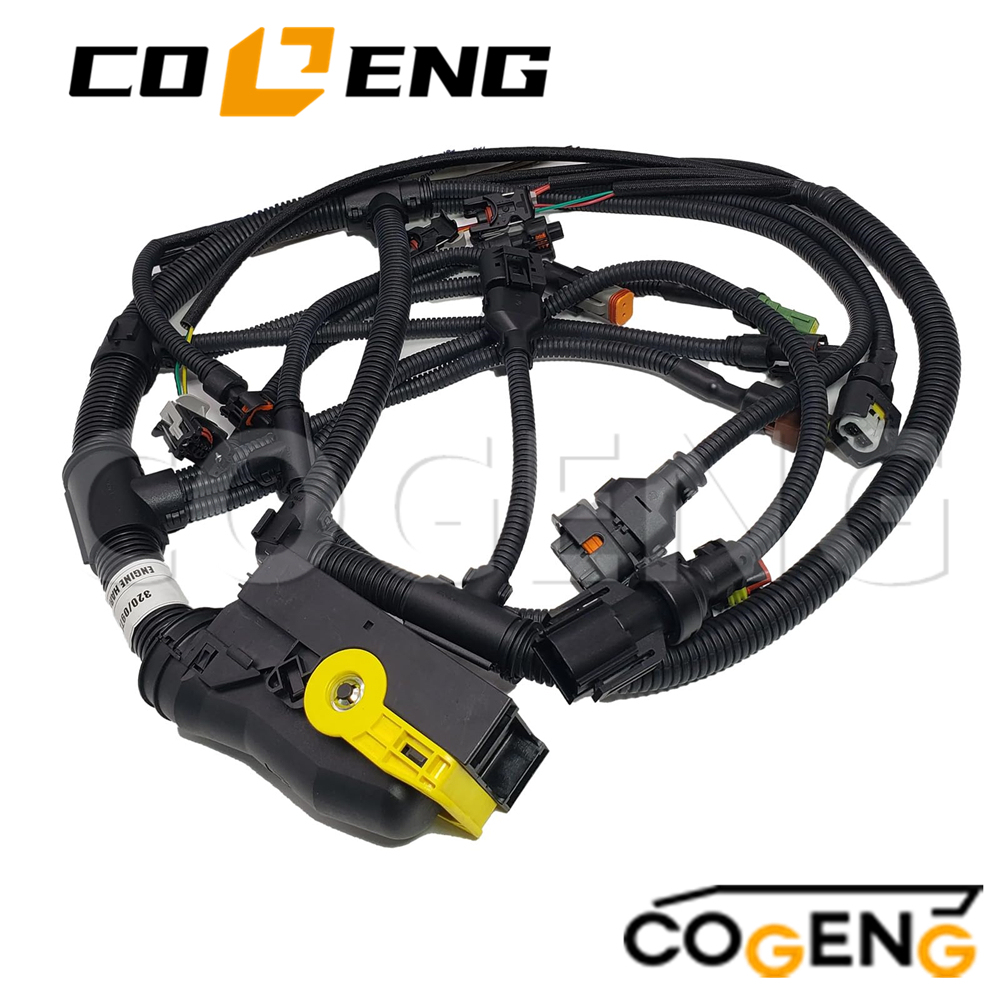

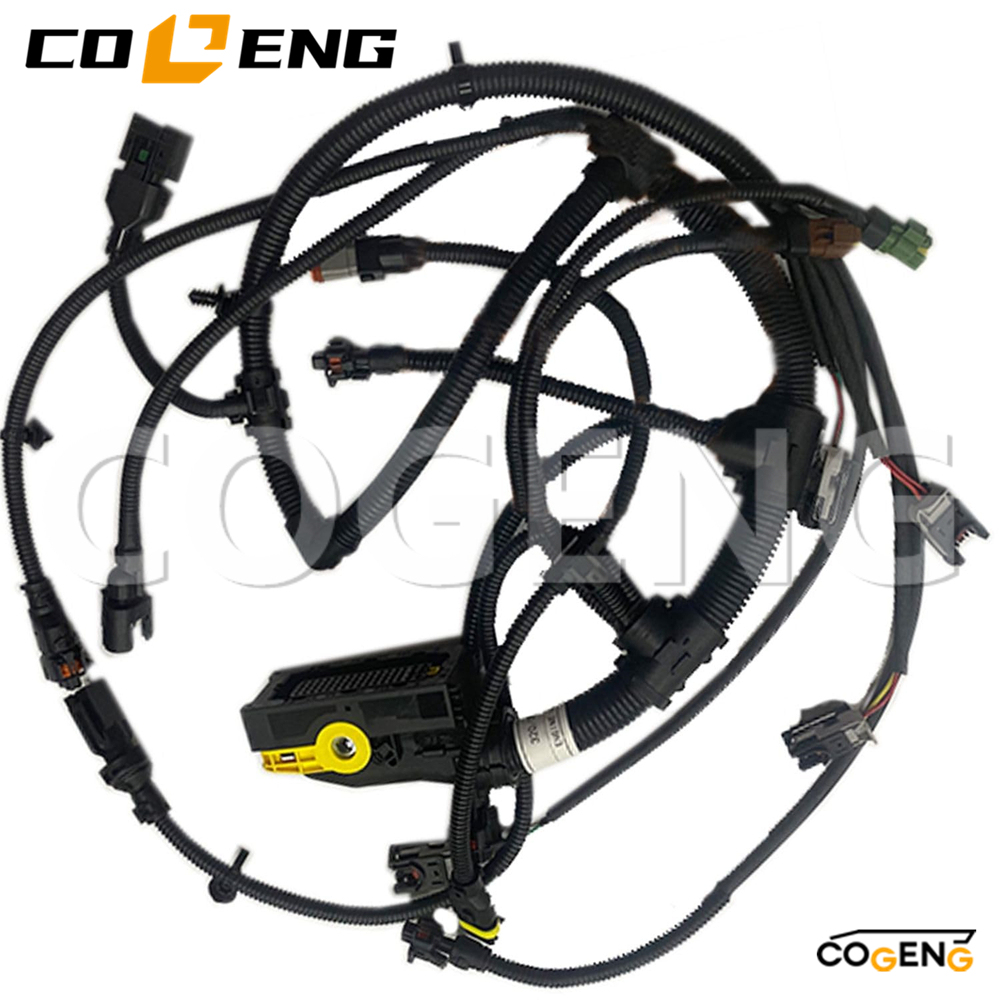

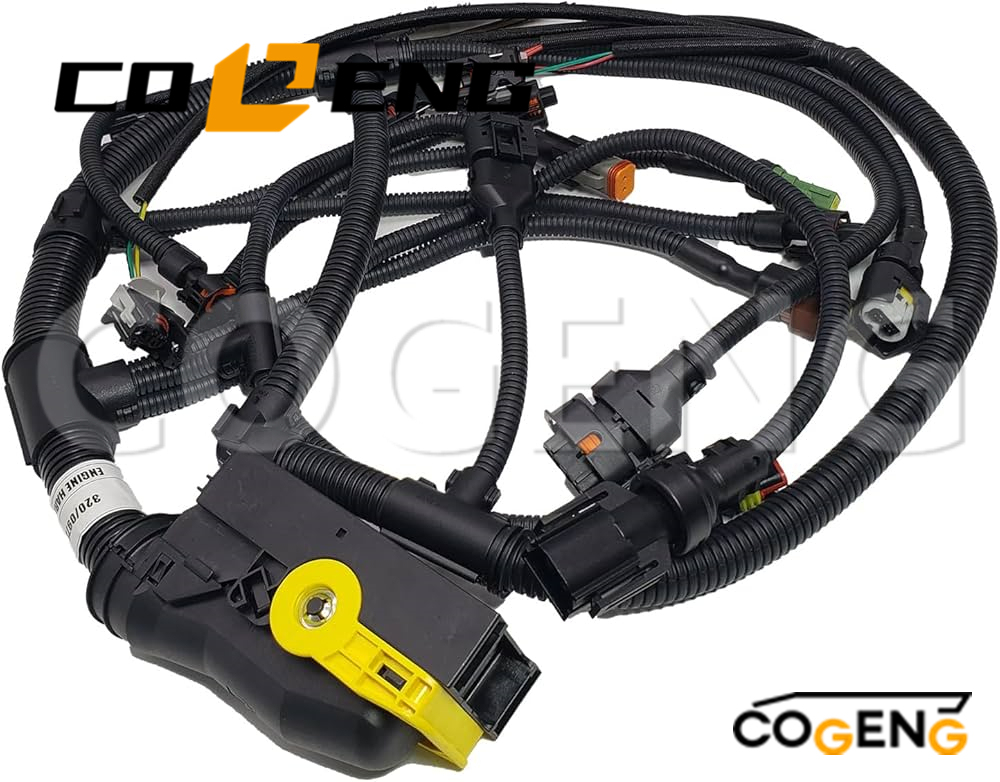

COGENG 320/09727 320/A9998 JCB Wiring Harness | Direct OEM Replacement for JS200 JS220

Name: COGENG 320/09727 320/A9998 JCB Wiring Harness | Direct OEM Replacement for JS200 JS220
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

320/09727 320/A9998 32009727 320A9998 Wiring Harness Compatible with JCB Excavator JS200 JS220

Product name: JCB Wiring Harness
Part No: 320/09727 320/A9998 32009727 320A9998
Model Number:For Excavator Series: JS200 JS200LC JS220 JS220LC
Related variants: JS200-1 JS220-1 JS200LC-1 JS220LC-1
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

320/09727 320/A9998 32009727 320A9998 JCB Wiring Harness Compatible with Excavator JS200 JS220

Attribute	Specification
COGENG Part Number	CG-JWH-32009727
Replaces OEM Number	320/09727
Product Name	JCB Excavator Wiring Harness
Application	JCB JS200, JS220 Excavators
Wire Insulation	Oil-Resistant XLPE (125°C Rating)
Connector System	IP67 Sealed Connectors
Circuit Protection	Double-Wall Convoluted Tubing
Temperature Range	-40°C to 125°C
Vibration Resistance	10G (MIL-STD-810)
Quality Standard	ISO 9001:2015
Warranty	COGENG Limited 24-Month Warranty

Compatibility & System Integration
System Component	Connection Type	Primary Function
Main Control System	Multi-pin Sealed Connectors	Primary Control Interface
Sensor Network	Various OEM Connectors	Machine Monitoring Systems
Power Distribution	Heavy-Gauge Terminals	Electrical Power Supply
Auxiliary Systems	Specific Application Connectors	Additional Functions

Installation decomposition diagram

Pre-Installation Safety Protocol:
Park excavator on level ground, lower attachment to ground
Engage parking brake and implement all safety locks
Turn ignition key to OFF position and remove
Disconnect negative (-) battery terminal first
Wait minimum 10 minutes for system capacitors to discharge
Harness Removal Procedure:
Photograph entire existing harness routing and connections
Label each connector with corresponding component identification
Use appropriate terminal release tools - never pull on wires
Carefully release all harness clamps and mounting points
Document routing through compartments and past moving parts
Installation Verification:
Compare new COGENG harness with original for exact match
Verify all connector types, lengths, and branch points align
Inspect all connection points for damage or corrosion
Ensure proper clearance from hydraulic lines and hot surfaces
Precision Installation Steps:
Route harness following exact original path documentation
Secure all mounting clamps and retention points properly
Connect all components systematically from main branches outward
Verify all connector locks engage with positive click
Ensure adequate slack at pivot points and movement areas

System Testing & Verification:
Reconnect battery terminal
Turn key to ON position (do not start) for system initialization
Check for diagnostic trouble codes
Start engine and monitor system operation
Test all electrical functions through complete operational cycle
Verify proper sensor readings and system communications
