| Specification Category | Details |
|---|---|
| Compatible Machine Model | Doosan DX235LC-5 Excavator |
| COGENG Part Number | CG-DX235-EWH06 |
| Replaces OEM Part Numbers | 310207-03915, 310207-03915A, 310207-03915C |

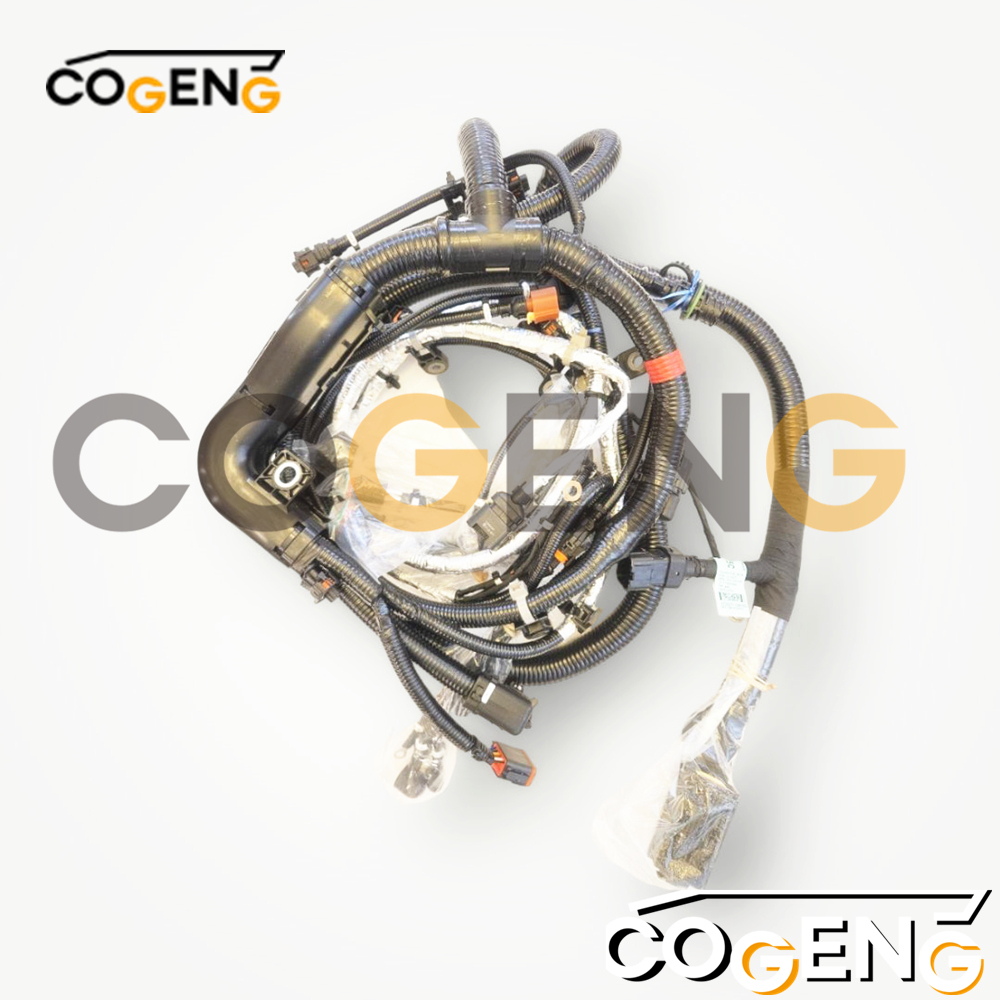

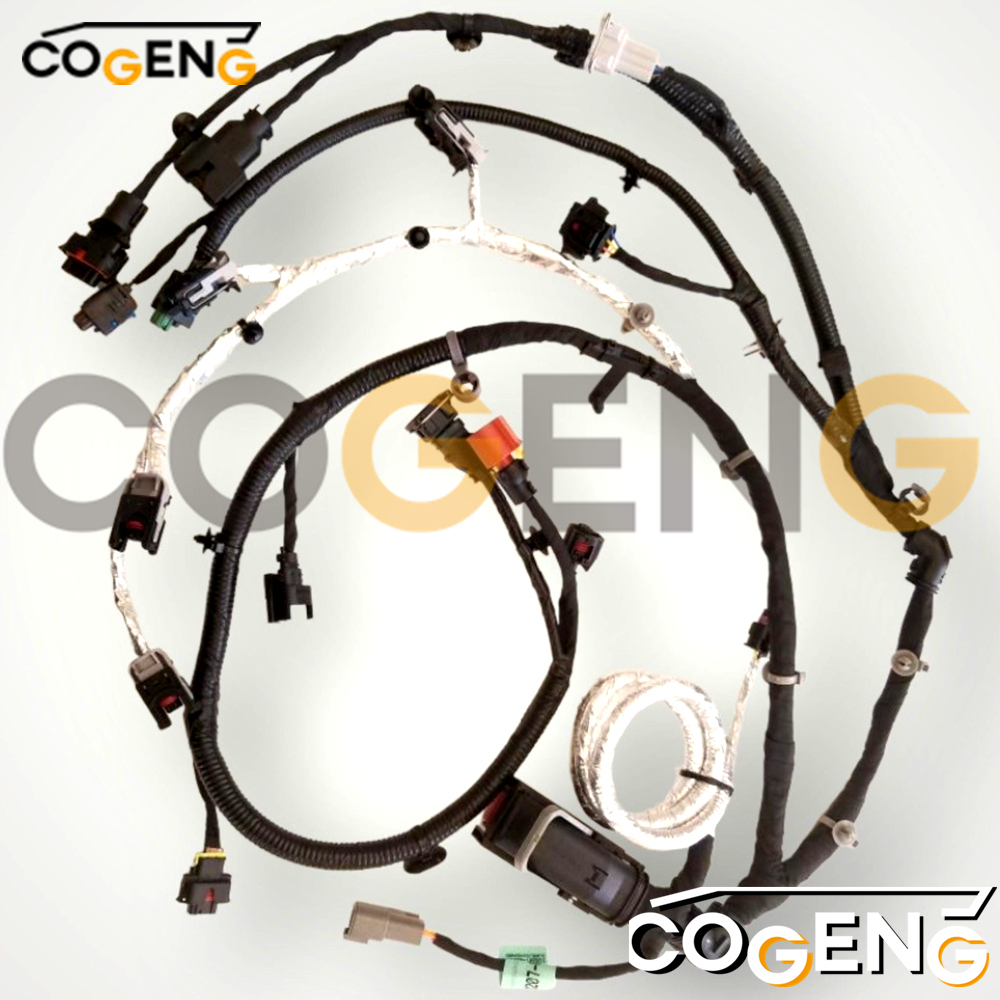

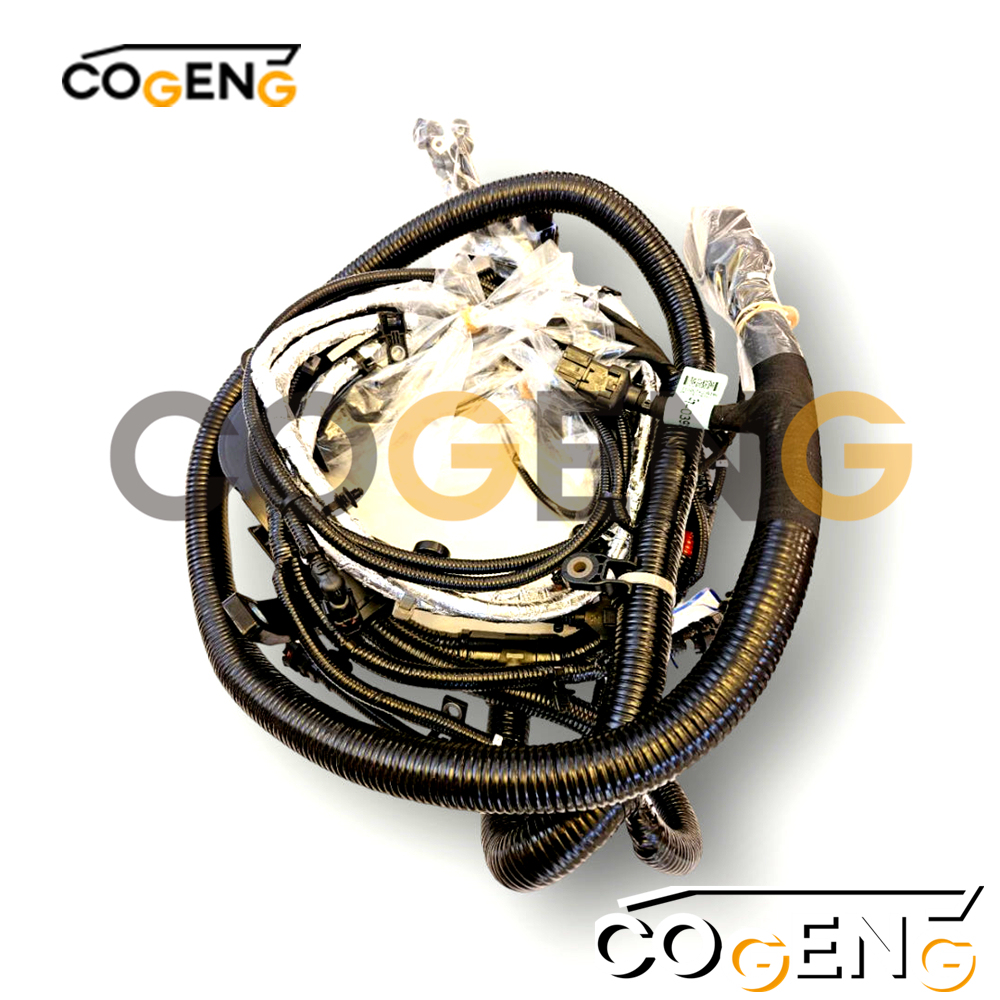

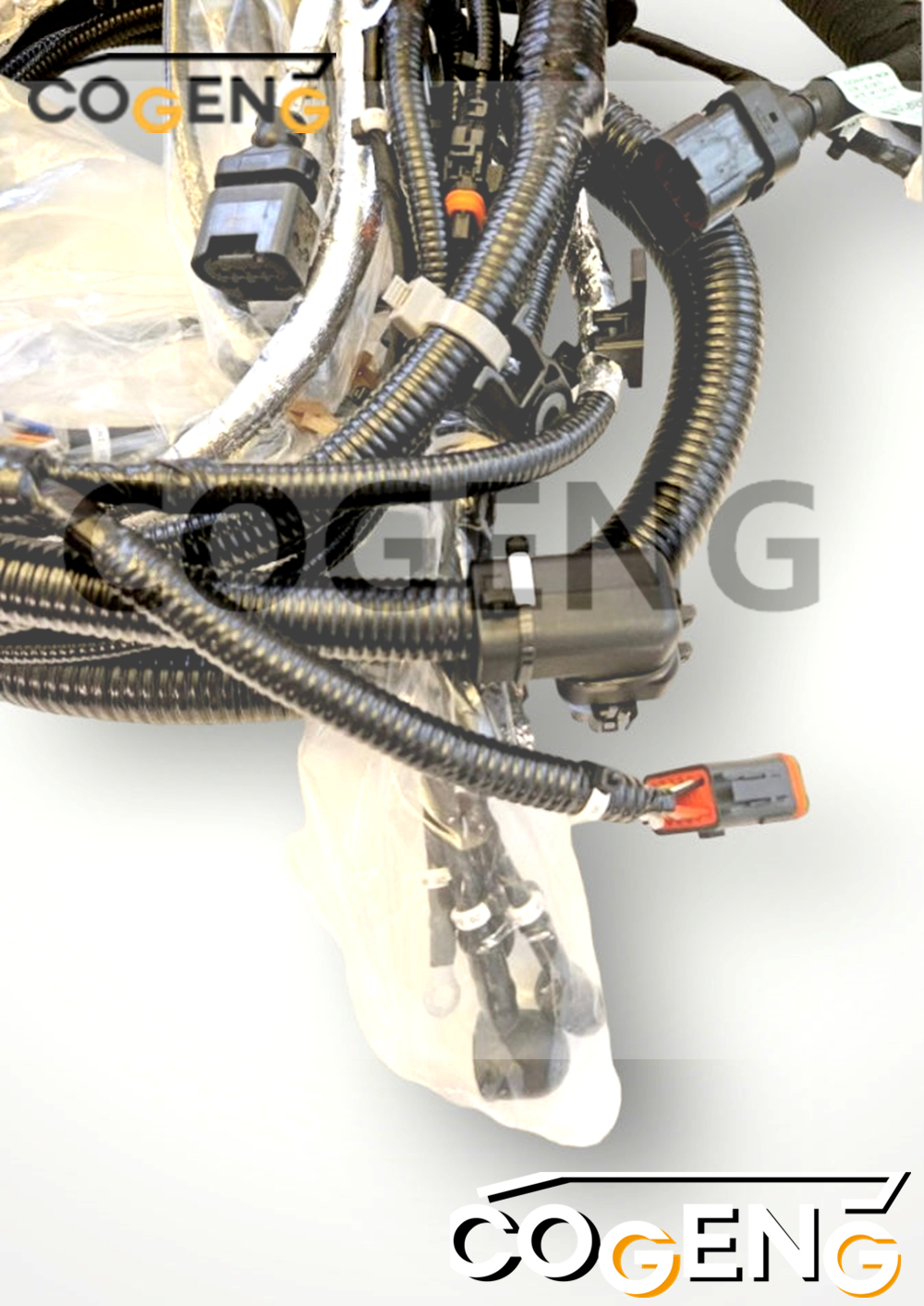

| Product Name | Engine Wiring Harness Assembly |
| Application | Engine control system, sensor links, and monitoring circuits |
| Wire Specifications | High-temperature XLPO insulation, oil and abrasion resistant |
| Connector Type | OEM-style sealed connectors (IP67 rated) |
| Quality Assurance | 100% continuity, insulation resistance, and short-circuit tested |
| Warranty | 2,000-hour limited warranty |

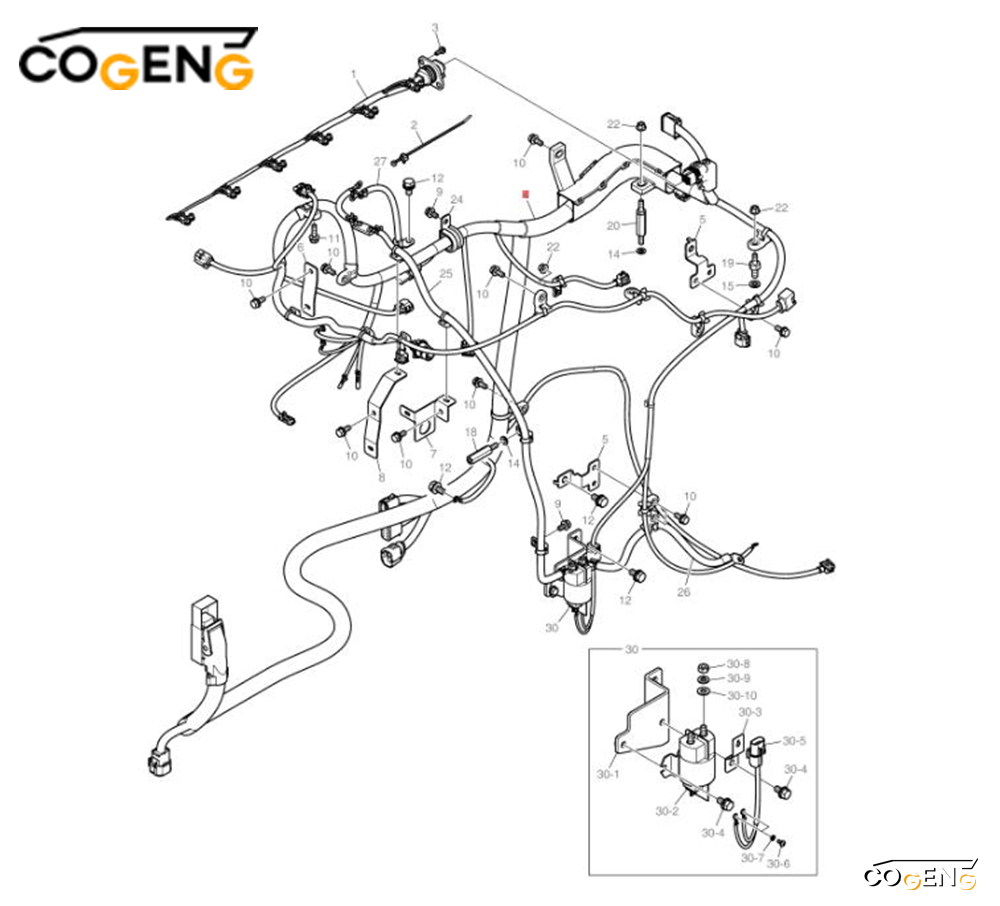

| NO | Number | Name | Qty |
| 1 | 310208-00430 | WIRE,ELECTRIC | 1 |
| 2 | 310101-00172 | TIE,CABLE | 5 |
| 3 | 06.01913-2911 | BOLT ASS'Y M6X16 | 2 |
| 4 | 310207-03915 | HARNESS ASSY,ENGINE | 1 |
| 310207-03915A | HARNESS ASS'Y,ENGINE | 1 | |
| 310207-03915C | HARNESS ASSY,ENGINE | 1 | |
| 5 | 110452-00085 | BRACKET;WIRE HARNESS | 2 |
| 6 | 110452-00104 | BRACKET,WIRE HARNESS | 1 |
| 7 | 110452-00144A | BRACKET,WIRE HARNESS | 1 |
| 8 | 110452-00145 | BRACKET,WIRE HARNESS | 1 |
| 9 | 06.01923-3112 | BOLT ASS'Y M8X18 | 2 |
| 10 | 06.01923-3114 | BOLT ASS'Y M8X22 | 10 |
| 11 | 06.01923-3117 | BOLT ASS'Y M8X30 | 1 |
| 12 | 06.01923-3214 | BOLT;HEX. M10X22 | 5 |
| 14 | 06.16731-2107 | WASHER | 2 |
| 15 | 06.16731-2108 | WASHER;SPRING | 1 |
| 18 | 120122-00023 | BOLT;SPACER | 1 |
| 19 | 120122-00024 | BOLT;SPACER | 1 |
| 20 | 120117-00033 | BOLT,STUD | 1 |
| 20 | 120122-00023 | BOLT;SPACER | 1 |
| 22 | 65.90535-0003 | NUT | 3 |
| 24 | 65.97401-0186 | CLIP,PIPE | 1 |
| 25 | 310207-03341A | HARNESS;AIR HEATER | 1 |
| 310207-03341B | HARNESS | 1 | |
| 26 | 310207-03342A | HARNESS;AIR HEATER | 1 |
| 310207-03342B | HARNESS | 1 | |
| 27 | 310207-03926 | HARNESS | 1 |
| 310207-03926A | HARNESS | 1 | |
| 30-1 | 110411-00253 | BRACKET,RELAY | 1 |
| 30-2 | 301202-00067 | RELAY,PRE HEATER | 1 |
| 30-3 | 110406-02674 | BRACKET | 1 |
| 30-4 | 06.01923-3112 | BOLT ASS'Y M8X18 | 2 |
| 30-5 | 310207-01067A | HARNESS ASS'Y | 1 |
| 30-6 | 06.04190-0604 | SCREW | 2 |
| 30-7 | 06.16731-2103 | WASHER,SPRING | 2 |
| 30-8 | 06.11063-8214 | NUT | 2 |
| 30-9 | 06.16731-2107 | WASHER | 2 |
| 30-10 | 06.15010-2311 | WASHER | 2 |
Disconnect All Power Sources: Turn off the excavator and disconnect the negative battery terminals. Allow 10 minutes for system capacitors to discharge.
Record Existing Layout: Take clear photos of the original harness routing, connector positions, and cable tie locations before removal.
Handle Connectors with Care: Use appropriate tools to release locks—do not pull wires. Check for and avoid bending pins during disconnection.
Inspect Related Components: Examine sensors, solenoids, and controller ports for damage or corrosion. Replace as needed before installing the new harness.
Follow Factory Routing: Install the harness along the original path. Use all designated clips and clamps to avoid contact with hot or moving parts.
Ensure Full Engagement: Push each connector until it clicks into place. Tug gently to confirm it’s secure.
Post-Installation Check: Reconnect batteries and power on the system. Check the dashboard for error codes and verify all engine and control functions operate normally.
