310207-01704A DOOSAN Wiring Harness DX300LC DX300LL DX340LC
Product name: DOOSAN Wiring Harness
Part No: 310207-01704A
Model Number:For DX300LC DX300LL DX340LC DX350LC DX380LC
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Details |
| Compatible Machine Models |
Doosan DX300LC, DX300LL, DX340LC Excavators |
| COGENG Part Number |
CG-DX300-MWH03 |
| Replaces OEM Part Number |
310207-01704A |
| Product Name |
Main Wiring Harness Assembly |
| Application |
Central Harness for Engine ECU, Sensor Arrays, Control Solenoids, and Monitoring Systems |
| Wire Specifications |
High-Temperature XLPO Insulation, Oil & Abrasion Resistant |
| Connector Type |
OEM-Specified, Sealed Connectors (IP67 Rated Equivalents) |
| Quality Assurance |
100% Continuity, Insulation Resistance, and Hi-Pot (Dielectric Strength) Tested |
| Warranty |
2,000-Hour Limited Warranty |
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 10 |
65.97460-0008 |
BAND;TENSION |
9 |
| 10 |
310101-00172 |
TIE,CABLE |
6 |
| 20 |
65.29101-6137C |
WIRE;ELECTIRC |
1 |
|
65.29101-6137E |
WIRE;ELECTIRC |
1 |
|
310208-00439 |
WIRE,ELECTRIC |
1 |
| 30 |
06.01923-2911 |
BOLT ASS'Y M6X16 |
2 |
| 40 |
65.29101-6155 |
WIRE;ELECTIRC |
1 |
|
65.29101-6155A |
WIRE;ELECTIRC |
1 |
|
65.29101-6155C |
WIRE;ELECTIRC |
1 |
|
310207-01705 |
HARNESS |
1 |
|
310207-04024 |
HARNESS,ENGINE |
1 |
| 50 |
65.29150-0005 |
BRACKET;HARNESS |
1 |
| 60 |
06.16731-2107 |
WASHER |
1 |
| 70 |
06.11063-8214 |
NUT |
1 |
| 80 |
65.97401-5024 |
CLIP;PIPE |
1 |
|
124-00209D4 |
CLIP |
1 |
| 90 |
06.15010-2311 |
WASHER |
1 |
| 100 |
06.16731-2107 |
WASHER |
1 |
| 110 |
06.11063-8214 |
NUT |
1 |
| 120 |
06.01923-3110 |
BOLT ASS'Y M8X12 |
1 |
| 130 |
65.90201-0128 |
BOLT;STUD |
1 |
| 140 |
06.16731-2107 |
WASHER |
1 |
| 150 |
310207-01704A |
HARNESS,ENGINE |
1 |
|
65.29101-6197 |
WIRE;ELECTIRC |
1 |
|
65.29101-6211 |
WIRE;ELECTIRC |
1 |
|
65.29101-6211A |
WIRE;ELECTIRC |
1 |
|
65.29101-6211C |
WIRE;ELECTIRC |
1 |
|
65.29101-6156 |
WIRE;ELECTIRC |
1 |
| 160 |
65.97401-5024 |
CLIP;PIPE |
1 |
| 170 |
65.97401-0196 |
CLIP;PIPE |
10 |
| 180 |
06.01923-3110 |
BOLT ASS'Y M8X12 |
5 |
| 190 |
06.15010-2311 |
WASHER |
4 |
| 200 |
06.16731-2107 |
WASHER |
5 |
| 210 |
06.11063-8214 |
NUT |
5 |
| 220 |
65.09440-5005 |
BRACKET |
1 |
| 230 |
06.11063-9216 |
NUT;HEX. M12X1.5 |
1 |
| 250 |
65.90201-0122 |
BOLT;STUD |
1 |
| 260 |
06.16731-2108 |
WASHER;SPRING |
1 |
| 270 |
06.15010-2312 |
WASHER;PLAIN |
1 |

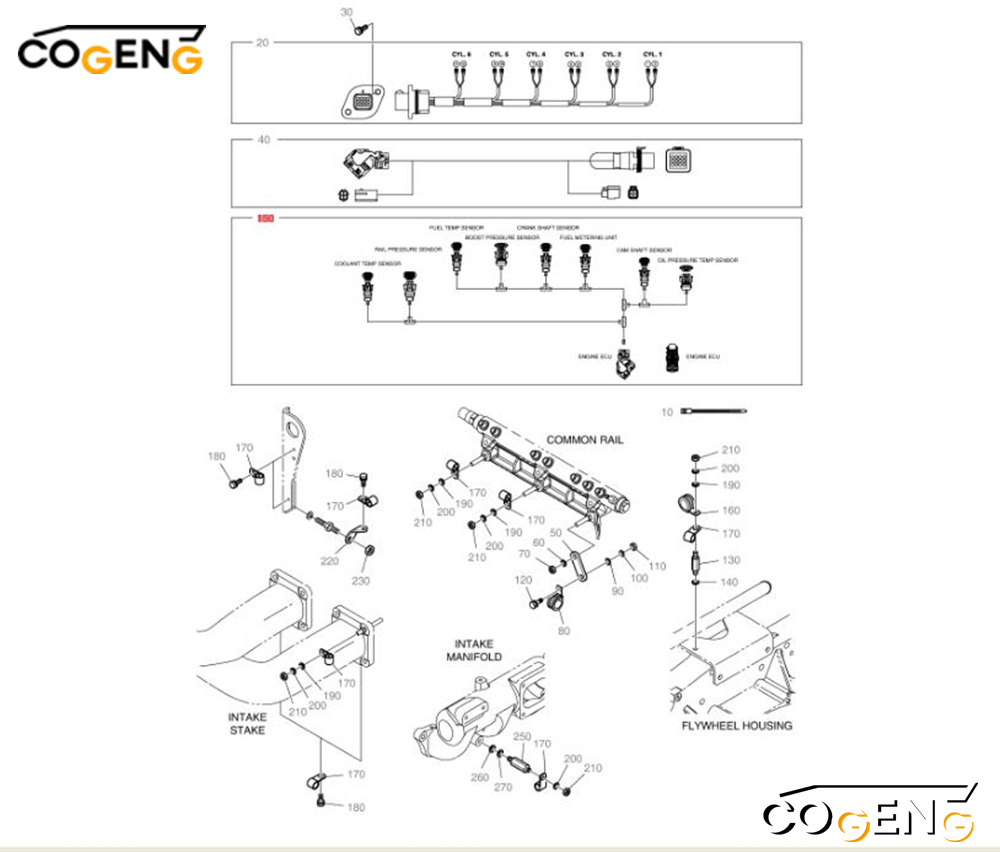

Installation decomposition diagram
