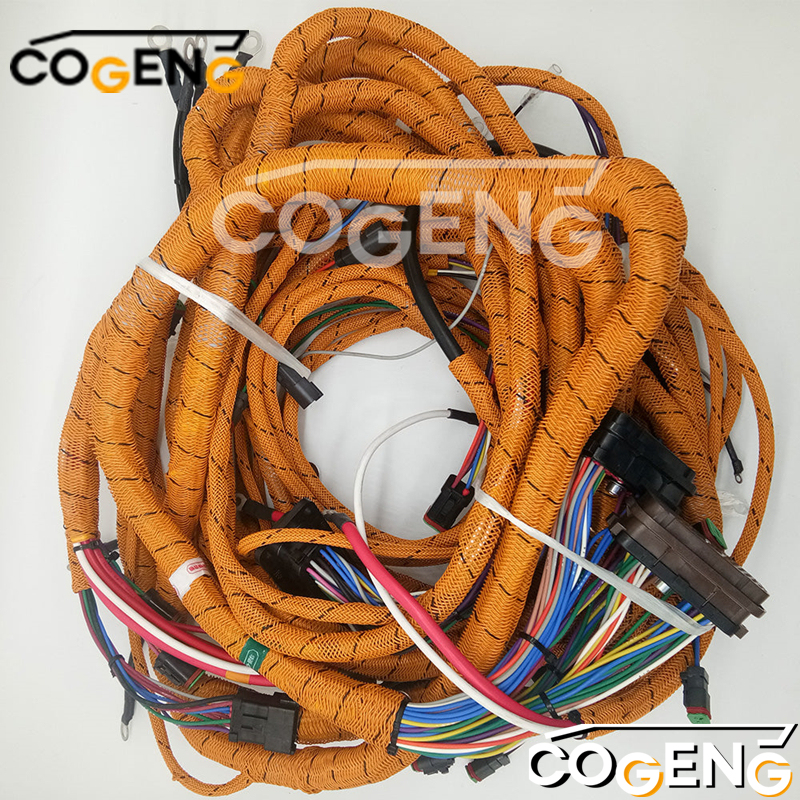

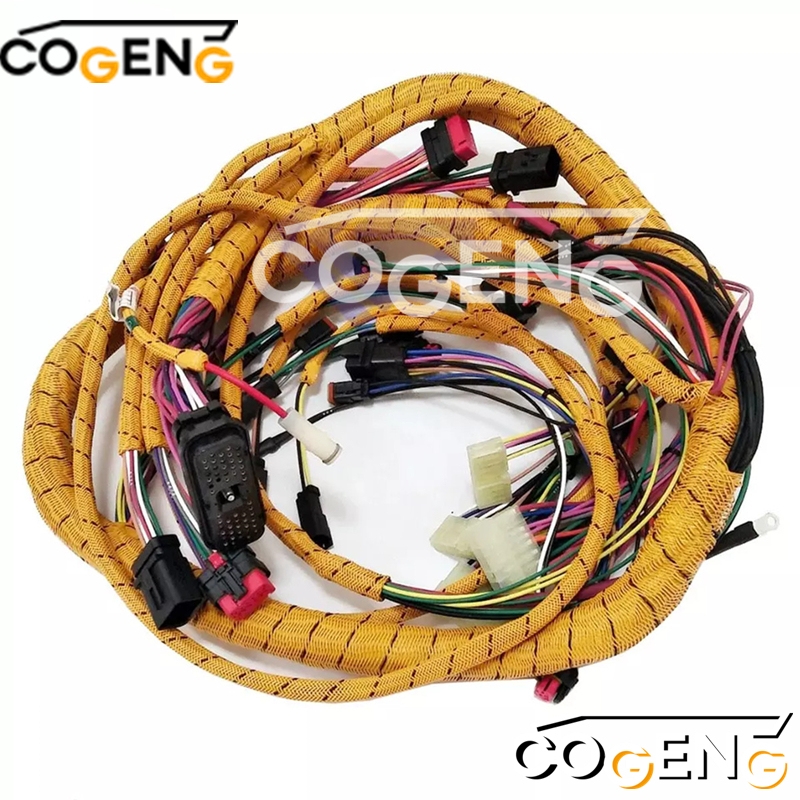

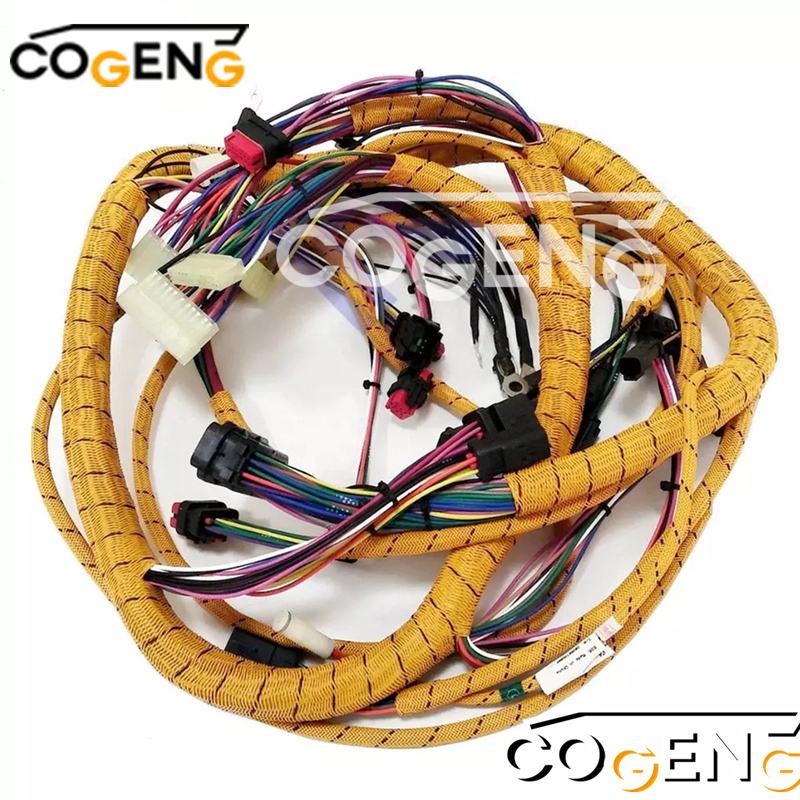

COGENG 283-2933 Caterpillar Wiring Harness | Direct OEM Replacement for CAT 330D 330DL

Name: COGENG 283-2933 Caterpillar Wiring Harness | Direct OEM Replacement for CAT 330D 330DL
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol

Product name: Caterpillar Wiring Harness

Part No: 283-2933 2832933

Model Number:For 330D 330DL

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Specification Category	Detailed Specification
COGENG Part Number	CG-CAT-2832933
OEM Reference Number	283-2933
Compatible Models	Caterpillar 330D, 330DL Excavators
Machine Weight Class	30-35 Ton Excavators
Wire Insulation Material	Oil-Resistant Cross-Linked Polyethylene (XLPE)
Connector Protection Rating	IP66 (Dust Tight & Powerful Water Jet Resistant)
Operating Temperature Range	-40°C to 125°C
System Voltage Rating	24V DC System
Quality Verification	100% Circuit Continuity & Insulation Tested
Warranty Protection	18-Month Limited Warranty

Decompose pictures

Parts list

NO	Number	Name	Qty
Grp	251-0618	BATTERY & WIRING GP
1	2G-8767	WASHER	2
2	3S-2093	STRAP-CABLE	43
3	3T-5760	BATTERY GP	2
4	570-6509	BATTERY AS-YM	1
5	123-1373	CAP AS-FILLER	6
6	5I-8270	COVER-BATTERY	1
7	6W-6005	HOLD-DOWN_x0002_BATTERY	1
8	7I-2673	STRAP-CABLE	5
9	7K-1181	STRAP-CABLE	22
10	7Y-5456	GROMMET	2
11	7Y-8165	GROMMET	2
12	087-4587	GROMMET	1
13	107-8618	SENSOR GP_TEMPERATURE	1
14	102-8803	KIT-RECEPTACLE	1
15	112-4550	SLEEVE	1
16	186-3735	CLIP	3
17	111-4836	CLIP	10
18	111-4837	CLIP	12
19	111-4838	CLIP	16
20	111-4839	STRAP	16
21	116-0118	CLIP	16
22	128-8886	STRAP AS-GROUND	1
23	130-1433	SPACER	1
24	132-1806	STRAP AS-GROUND	1
25	148-5018	GROMMET	1
26	170-6929	CABLE AS	2
27	5P-0761	CABLE	1
28	9G-0002	COVERAS-TERMINAL	1
29	9G-0005	COVERAS-TERMINAL	1
30	8C-5918	TERMINALAS-BATTERY	1
31	259-5132	BRACKET AS	1
32	283-2933	HARNESS AS-CHASSIS	1
33	3S-2093	STRAP-CABLE	33
34	102-8802	KIT-RECEPTACLE	4
35	102-8803	KIT-RECEPTACLE	3
36	102-8804	KIT-RECEPTACLE	1
37	102-8806	KIT-RECEPTACLE	1

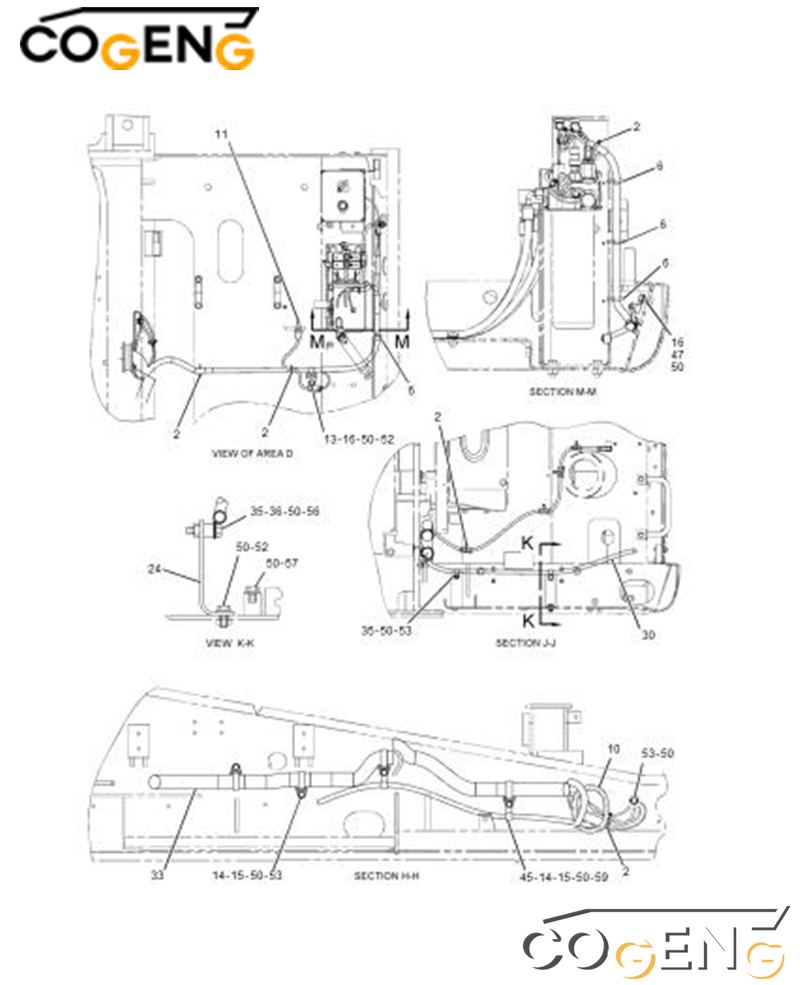

Installation decomposition diagram

Disconnect battery and main power sources before installation
Follow OEM routing paths and secure with original mounting hardware
Ensure all connectors are fully engaged and locking mechanisms secured
Verify proper clearance from moving parts and heat sources
Test all electrical functions and system diagnostics after installation

Frequently Asked Questions

A. When will get the items after I place order?

Q. Once your payment is confirmed,? ?we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?

Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??

Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??

Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?

Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??

Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?

Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?

Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.

A : Which payment terms can you accept?

Q : Paypal. Western Union, Bank Transfer, T/T...
