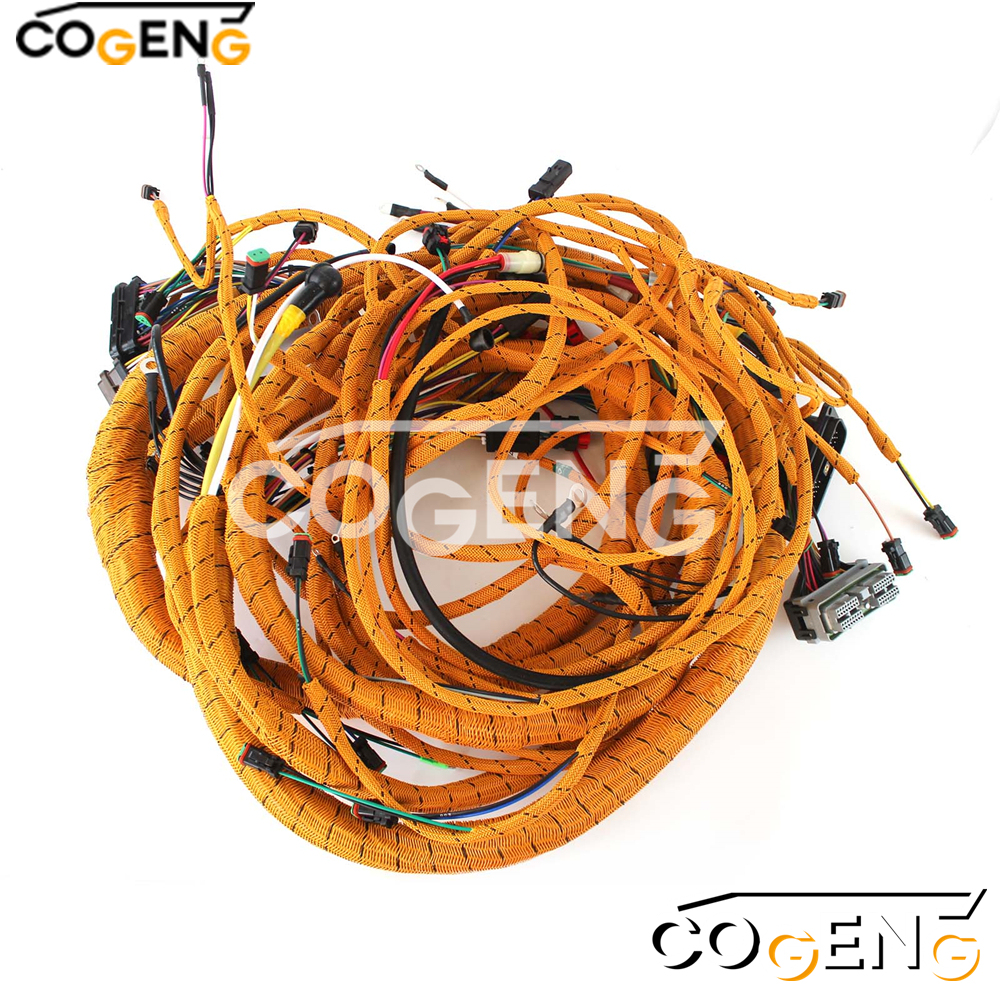

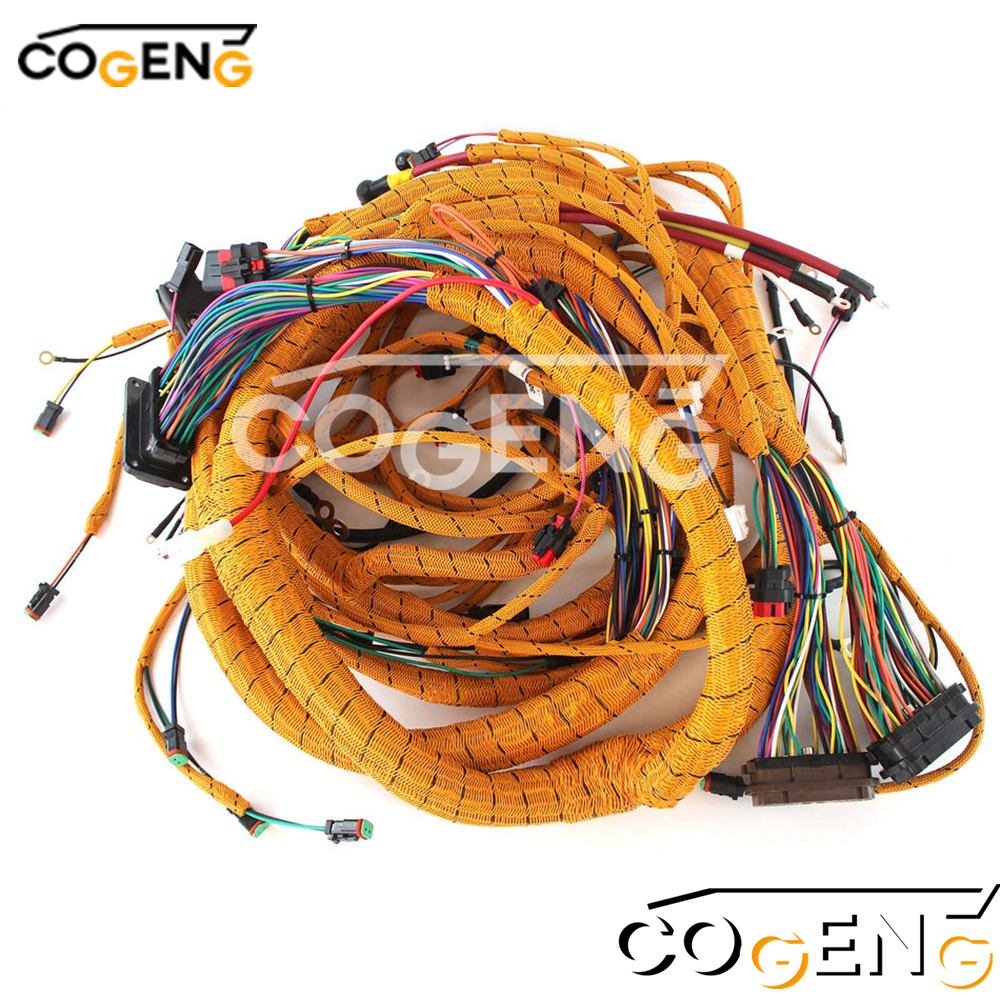

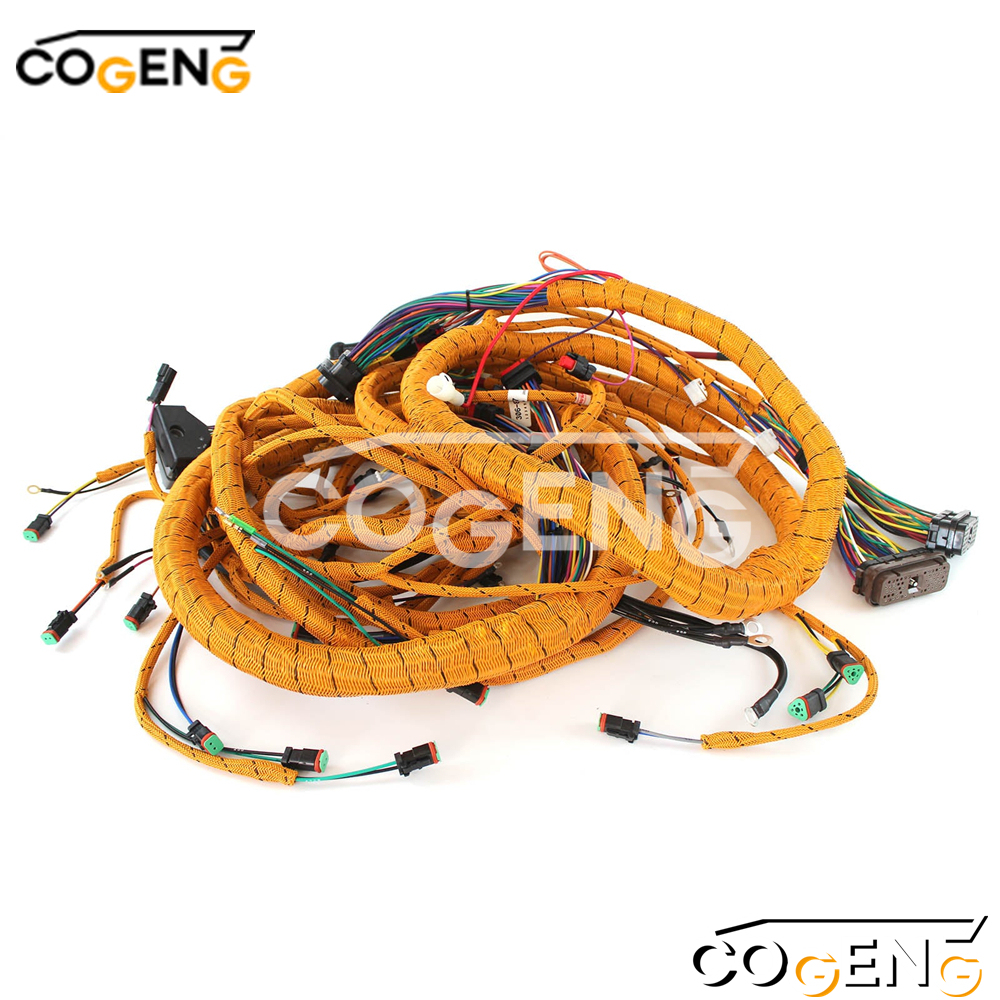

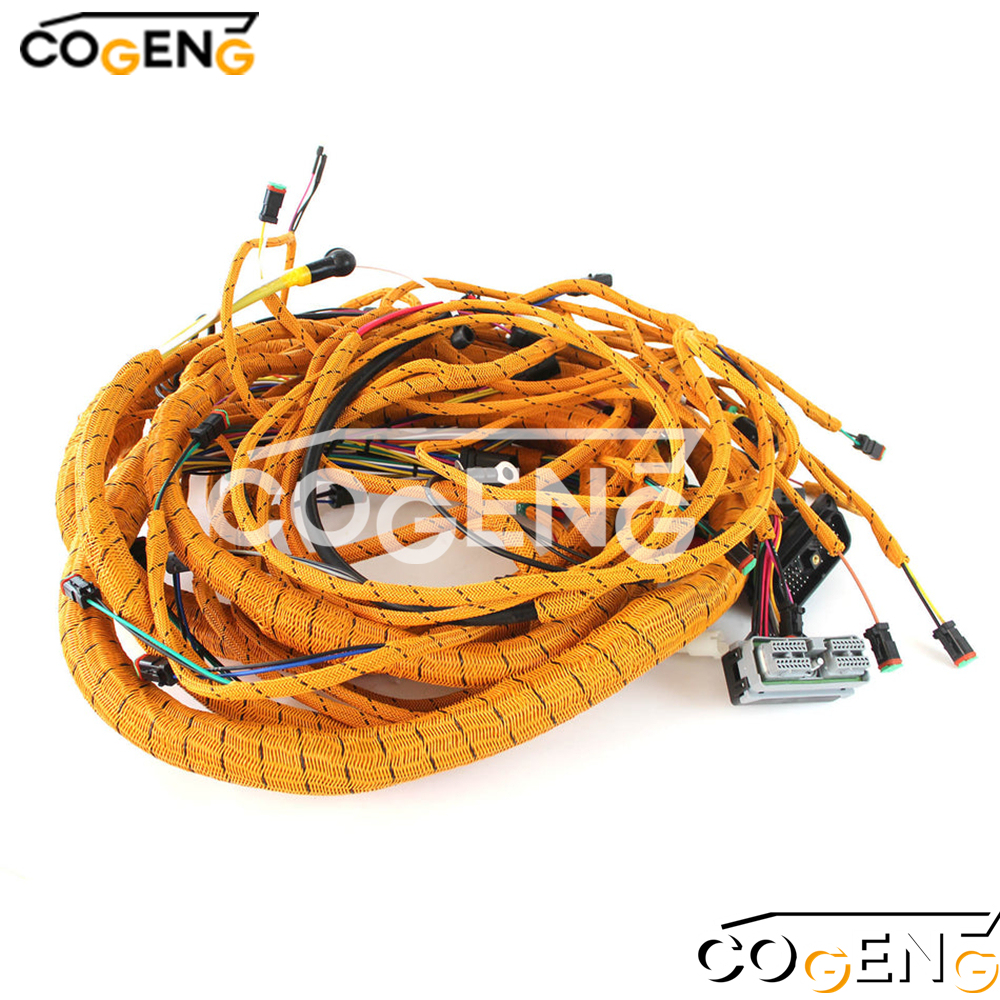

COGENG 275-6915 & 275-6916 Caterpillar Wiring Harness | Direct OEM Replacement for CAT 320DLN 323DLN

Product name: Caterpillar Wiring Harness

Part No: 275-6915 275-6916 275691 2756916

Model Number:For 320DLN 323DLN 323DL 323DS

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Category	Specification
COGENG Part Numbers	CG-CAT-2756915 CG-CAT-2756916
OEM References	275-6915 (Main Harness) 275-6916 (Supplementary Harness)
Compatible Models	Caterpillar 320DLN, 323DLN Excavators
Construction Standard	Caterpillar OEM Specification
Wire Type	Oil-Resistant Cross-Linked Polyethylene

Decompose pictures

The part numbers 275-6915 and 275-6916 typically refer to critical wiring systems—often the External or Main Chassis Harnesses—that manage the communication between the engine, the cab's operating systems, and the main hydraulic and electronic control units. In the advanced D-series excavators, this network is responsible for a huge array of functions
Parts list

NO	Number	Name	Qty
Grp	259-5275	BATTERY & WIRING GP
1	2G-8767	WASHER	3
2	3S-2093	STRAP-CABLE	37
3	3T-5760	BATTERY GP	1
	570-6509	BATTERY AS-YM	6
	123-1373	CAP AS-FILLER	1
4	4I-4641	GROMMET	1
5	5I-8270	SPACER	1
6	5I-9368	HOLD-DOWN-BATTERY	1
7	6W-6005	STRAP-CABLE	1
8	7I-2673	STRAP-CABLE	6
9	7K-1181	STRAP-CABLE	15
10	7W-8106	SPACER	1
11	7Y-5456	GROMMET	2
12	102-7880	BRACKET	1
13	111-4836	CLIP	19
14	111-4837	CLIP	14
15	111-4838	CLIP	9
16	111-4839	STRAP	9
17	116-0118	CLIP	13
18	132-1805	STRAP AS-GROUND	1
19	132-1806	STRAP AS-GROUND	1
20	170-6929	CABLE AS	1
21	170-9336	BRACKET AS	1
22	204-1882	BRACKET AS	1
23	231-1827	CABLE AS	1
24	238-2171	BRACKET AS	1
25	238-2501	KNOB	1
26	238-2528	ROD	1
27	251-0467	BRACKET AS	1
28	267-7737	CABLE AS	1
29	275-6915	HARNESS AS	1
30	275-6916	HARNESS AS	1
31	085-7329	SPACER	5
32	099-1319	GROMMET	1
33	132-5789	CLIP	3
34	134-3299	GROMMET	1
35	4I-7889	SPACER	2
36	4K-8864	CLIP	4
37	4P-7428	CLIP	1
38	4P-7581	CLIP	3
39	5C-7261	NUT	1
40	5C-7883	BOLT-SOCKET HEAD	4
41	5P-4116	WASHER-HARD	5
42	6G-2256	CLAMP	2
43	6G-2263	SPACER	3
44	6K-8178	CLIP	2
45	7X-0818	BOLT	1
46	7X-2533	BOLT	1
47	7X-2619	BOLT	1
48	7X-2621	BOLT	2
49	7Y-5226	NUT	1
50	7Y-8165	GROMMET	2
51	8J-1256	CLIP	1
52	8M-2770	CLIP	1
53	8T-0286	BOLT	1
54	8T-0328	WASHER-HARD	2
55	8T-4121	WASHER-HARD	64
56	8T-4133	NUT	1
57	8T-4136	BOLT	3
58	8T-4137	BOLT	44
59	8T-4172	BOLT	1
60	8T-4182	BOLT	1
61	8T-4185	BOLT	1
62	8T-4186	BOLT	1
63	8T-4191	BOLT	9
64	8T-4195	BOLT	1
65	8T-4200	BOLT	2
66	8T-4224	WASHER-HARD	2
67	8T-4226	WASHER-PLATED	1
68	8T-5005	BOLT	1
69	8T-6466	BOLT	1
70	8T-6912	BOLT	4
71	9X-8256	WASHER	6
72	107-8618	SENSOR GP-TEMPERATURE	1
	102-8803	KIT-RECEPTACLE	1
	186-3735	PIN-CONNECTOR	1
	112-4550	SLEEVE	3

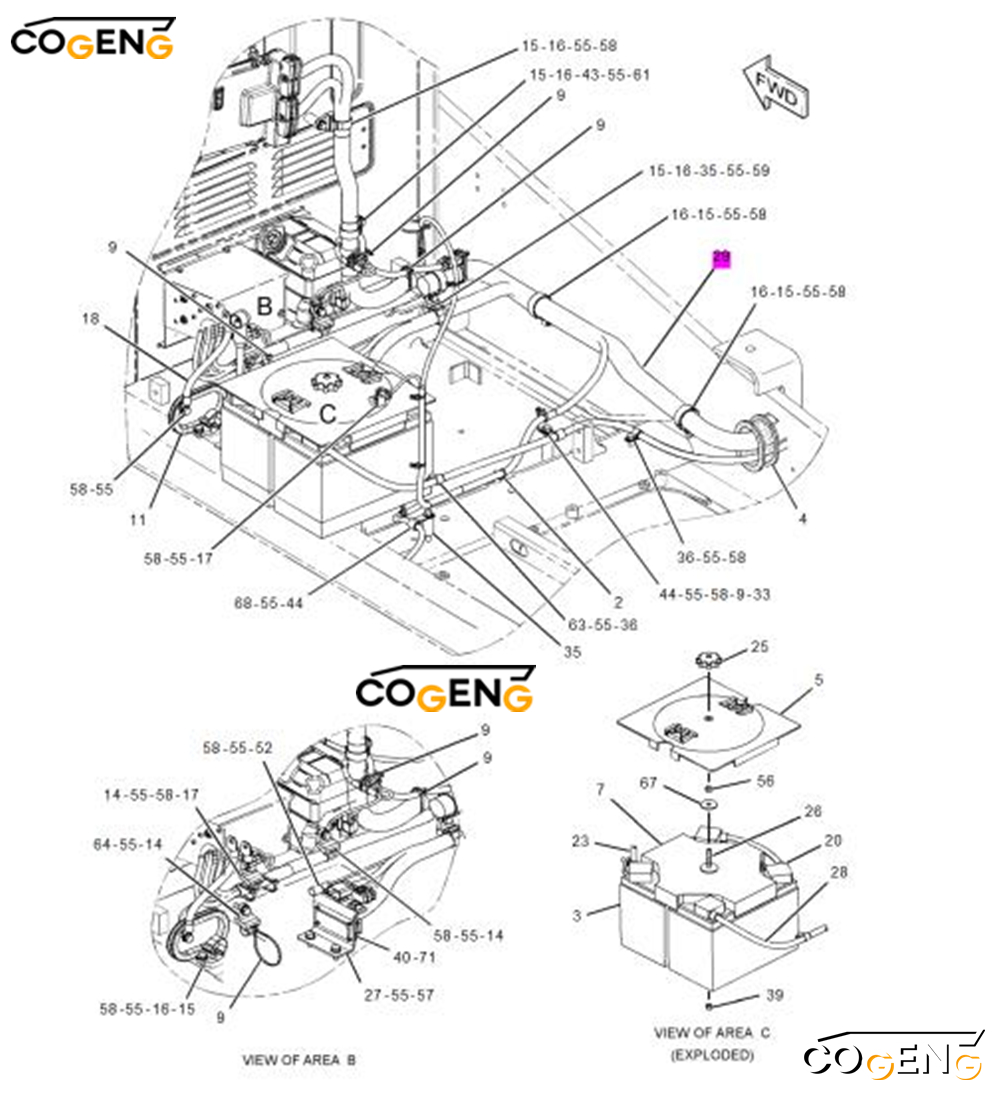

Installation decomposition diagram

COGENG delivers a precision-matched wiring harness set engineered as exact replacements for Caterpillar parts 275-6915 and 275-6916. This comprehensive harness solution ensures complete electrical system compatibility for CAT 320DLN and 323DLN excavators, maintaining original equipment performance while incorporating enhanced durability features.
