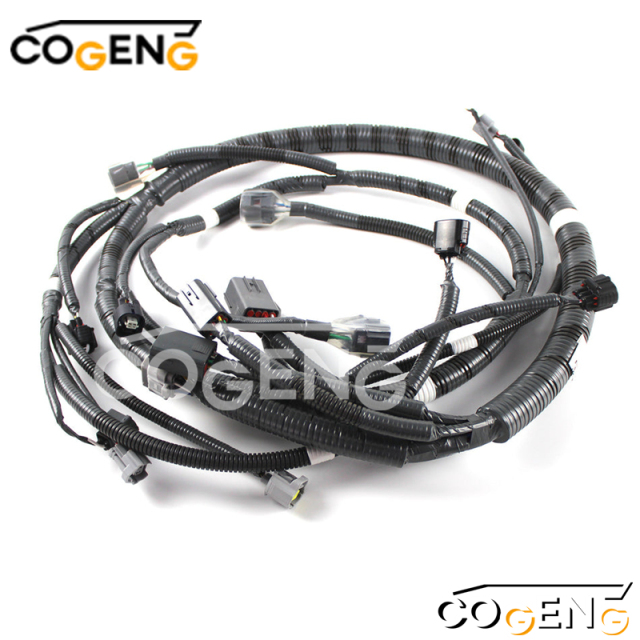

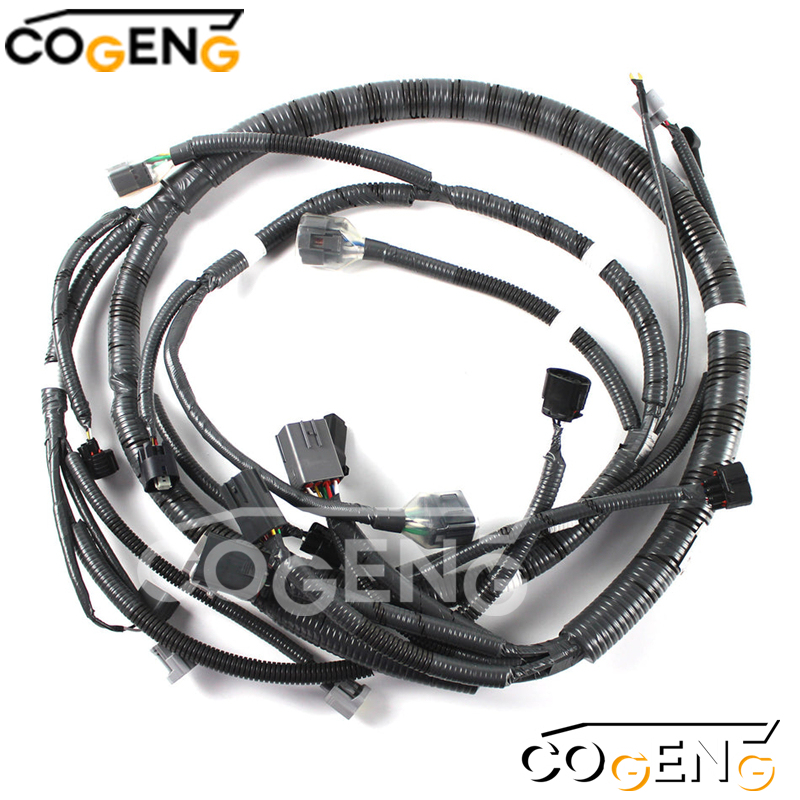

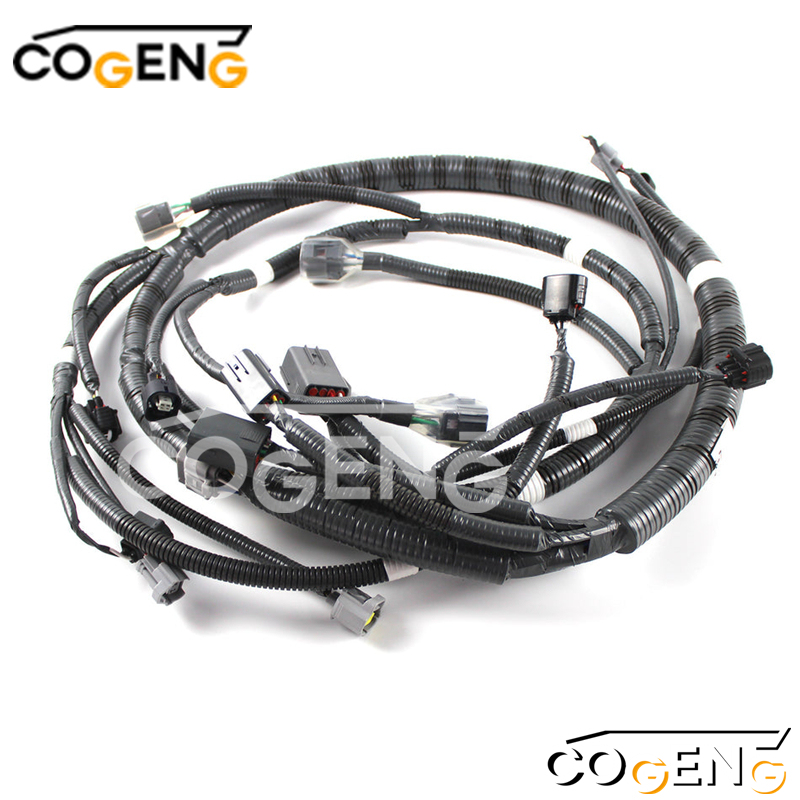

267-7882 Caterpillar Wiring Harness CAT 324D 324DL 324DLN
Product name: Caterpillar Wiring Harness
Part No: 267-7882 2677882
Model Number:For 324D 324DL 324DLN 325D 325DL 329D 329DL 329DLN
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Detailed Specification |
| COGENG Part Number |
CG-CAT-2677882 |
| OEM Reference Number |
267-7882 (2677882) |
| Construction Standard |
Caterpillar OEM Specifications |
| Wire Insulation Material |
Oil-Resistant Cross-Linked Polyethylene |
| Connector Protection Rating |
Weatherproof & Corrosion Resistant |
| Operating Temperature Range |
-40°C to 125°C |
| System Voltage Rating |
24V DC System |
| Quality Verification |
100% Circuit Continuity Tested |
| Warranty Protection |
18-Month Limited Warranty |
Decompose pictures
| Feature |
Rating |
| Temperature Range |
-65°C to +250°C |
| Ingress Protection |
IP68 (Submersible 2m/24hrs) |
| Flame Rating |
UL 94 V-0 (Self-Extinguishing) |
| Chemical Resistance |
Full Spectrum Fluid Resistance |
| Mechanical Impact |
IK10 Impact Protection |
Parts list
| NO |
Number |
Name |
Qty |
| Grp |
251-0437 |
WIRING GP-AUXILIARY CONTROL |
|
|
3S-2093 |
STRAP-CABLE |
16 |
|
7K-1181 |
STRAP-CABLE |
9 |
|
111-4836 |
CLIP |
1 |
|
204-1611 |
STRAP-CABLE |
5 |
|
259-5071 |
BRACKET AS |
2 |
|
259-5075 |
BRACKET AS |
1 |
|
267-7867 |
BRACKET AS |
1 |
|
267-7882 |
HARNESS AS-AUXILIARY |
1 |
|
102-8802 |
KIT-RECEPTACLE |
8 |
|
102-8803 |
KIT-RECEPTACLE |
1 |
|
8T-8729 |
PIN-CONNECTOR |
11 |
|
8T-8729 |
SOCKET-CONNECTOR |
18 |
|
3S-2093 |
STRAP-CABLE |
3 |
|
8T-8737 |
PLUG-SEAL |
25 |
| 9 |
132-5789 |
CLIP |
1 |
| 10 |
156-6175 |
CLIP |
1 |
| 11 |
8T-4121 |
WASHER-HARD |
6 |
| 12 |
8T-4137 |
BOLT |
1 |
| 13 |
8T-4171 |
BOLT |
1 |
| 14 |
8T-4179 |
BOLT |
4 |
| 15 |
8T-4191 |
BOLT |
5 |
| 16 |
8T-4223 |
WASHER-HARD |
4 |
| 17 |
9X-8256 |
WASHER |
1 |
| Connector Type |
Specification |
| Main Connectors |
32-pin Deutsch DT Series |
| Sensor Ports |
6-pin Waterproof Mini-Connectors |
| Power Terminals |
15mm Gold-Plated Copper Lugs |
| Data Communication |
CAN Bus 2.0B Compatible |
| Feature |
Rating |
| Temperature Range |
-65°C to +250°C |
| Ingress Protection |
IP68 (Submersible 2m/24hrs) |
| Flame Rating |
UL 94 V-0 (Self-Extinguishing) |
| Chemical Resistance |
Full Spectrum Fluid Resistance |
| Mechanical Impact |
IK10 Impact Protection |

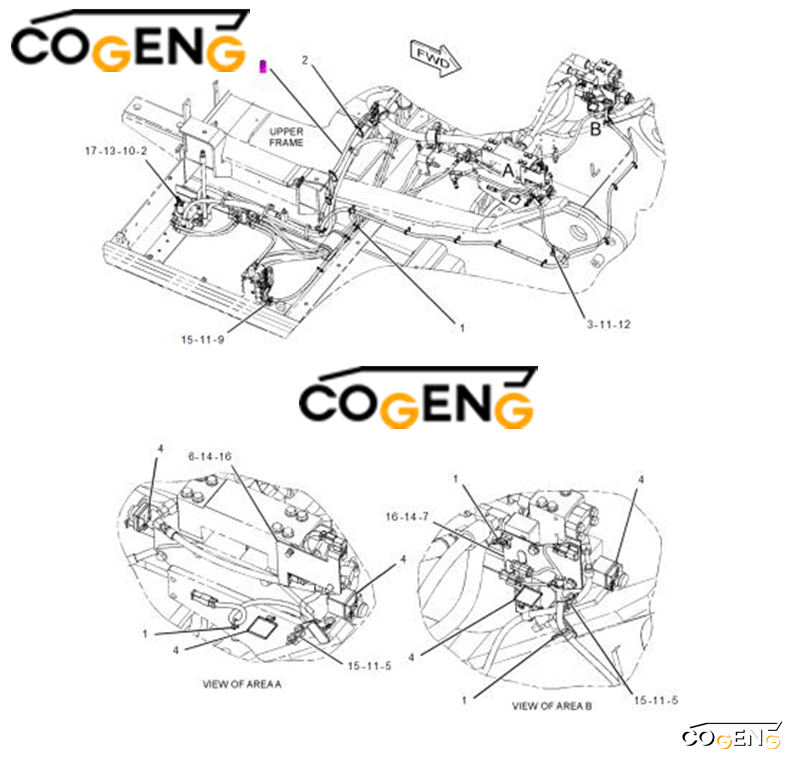

Installation decomposition diagram
-
Plug-and-Play: Universal Connector System
-
Diagnostic Integration: CAT ET Compatible
-
Smart Configuration: Software-Assisted Setup
-
Installation Time: 2-3 Hours (Professional)
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,? ?we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
