| Parameter | Specification |
|---|---|
| COGENG Part Number | 247-5227 (2475227) |
| OEM Equivalent | Caterpillar 247-5227 |

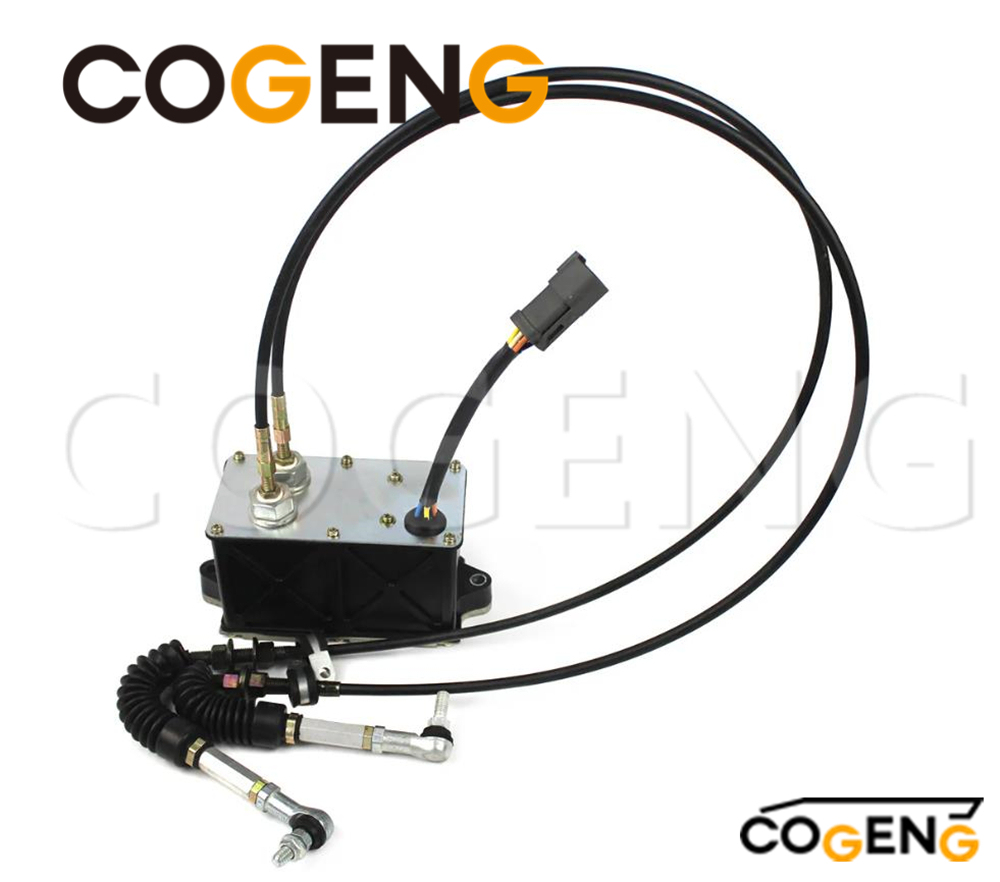

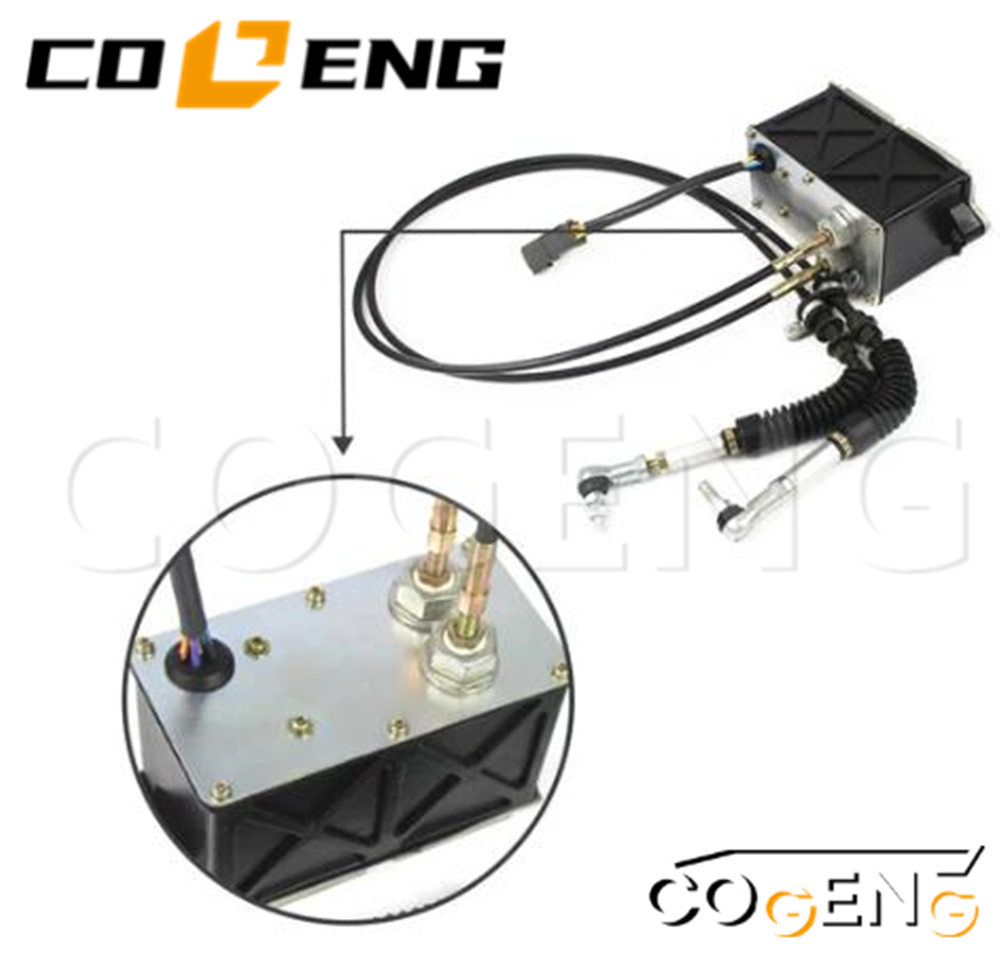

| Product Type | Throttle Motor / Electronic Governor Actuator |

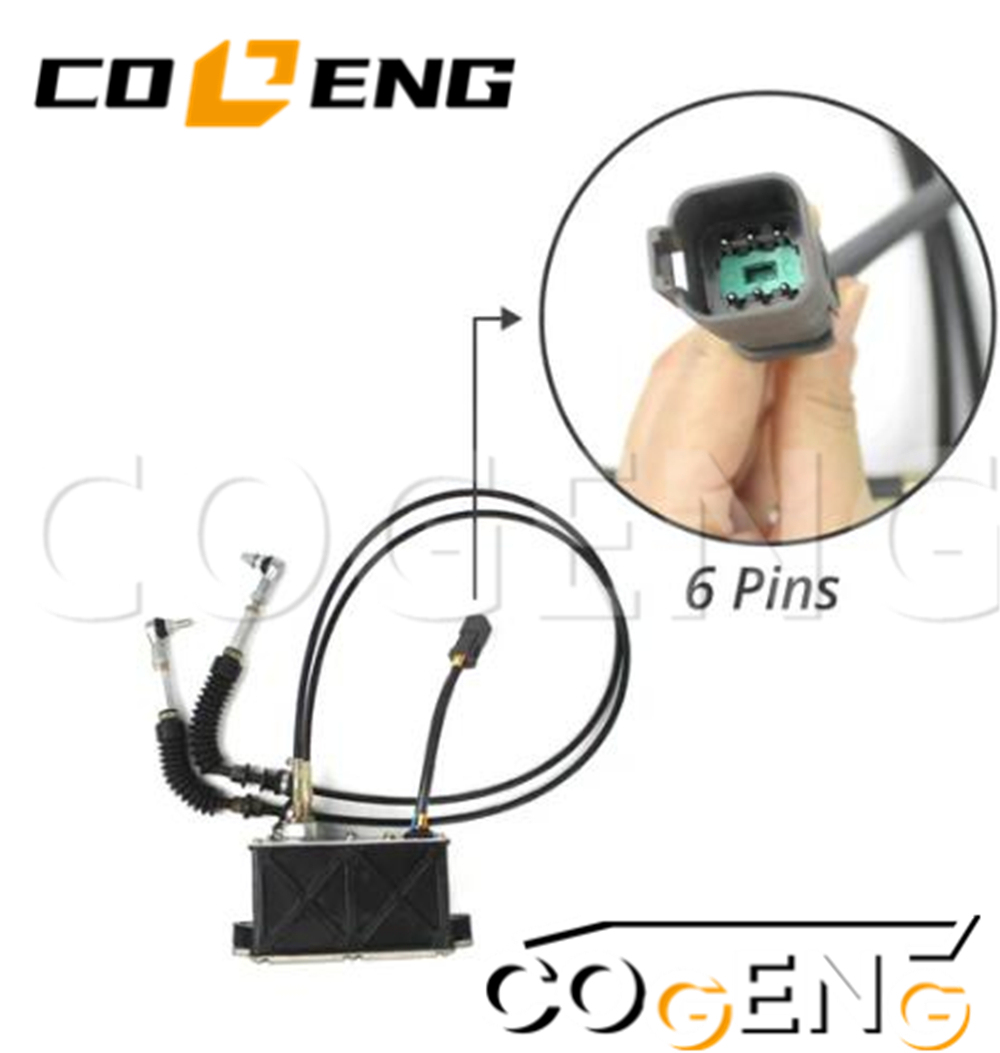

| Connector Type | 6-Pin Deutsch (Double Cable Design) |
| Voltage | 24V DC (Caterpillar standard) |
| Application | Engine speed control / RPM regulation |
| Compatible Models | Caterpillar E320, E312 Series Excavators |
| Brand | Part Number |
|---|---|
| COGENG | 247-5227, 2475227 |
| Caterpillar | 247-5227 |
| Interchange | 247-5226, 247-5228, 247-5229, 260-2054, 260-2055 |
| Parameter | Specification |
|---|---|
| Voltage Rating | 24V DC |
| Current Draw (idle) | 0.5 - 1.0 A |
| Current Draw (max load) | 2.5 - 4.0 A |
| Motor Type | DC servo motor with position feedback |
| Duty Cycle | Intermittent / Continuous |
| Insulation Class | Class F (155°C) |
| Protection Rating | IP65 / IP67 |
| Electrical Connection | 6-Pin Deutsch (DT / DTM series) |
| Feedback Sensors | Dual integrated potentiometers |
| Cable Type | Double cable mechanical linkage interface |
| Pin | Function | Signal Type | Notes |
|---|---|---|---|
| Pin 1 | Motor Power (+) | 24V DC (PWM) | Armature positive |
| Pin 2 | Motor Power (-) | Ground | Armature negative |
| Pin 3 | Position Feedback 1 (Main) | 0.5V - 4.5V DC | Primary potentiometer wiper |
| Pin 4 | Feedback Ground (GND) | 0V | Reference return |
| Pin 5 | Feedback Supply (+5V) | 5V DC regulated | Reference voltage |
| Pin 6 | Position Feedback 2 (Redundant) | 0.5V - 4.5V DC | Secondary potentiometer wiper |
Q1: Which Caterpillar equipment models use the 247-5227 throttle motor?
A: This throttle motor is designed for specific Caterpillar excavators and heavy equipment models requiring OEM part number 247-5227. Please verify compatibility with your machine model and serial number before ordering.
Q2: Is this an OEM or aftermarket throttle motor?
A: It is a direct OEM replacement throttle motor, manufactured to meet or exceed original Caterpillar quality standards for performance, durability, and precise fit.
Q3: What is the function of this throttle motor?
A: This engine speed control actuator electronically controls the engine throttle position based on input from the throttle lever or ECU – enabling precise engine speed management for optimal machine performance and fuel efficiency.
