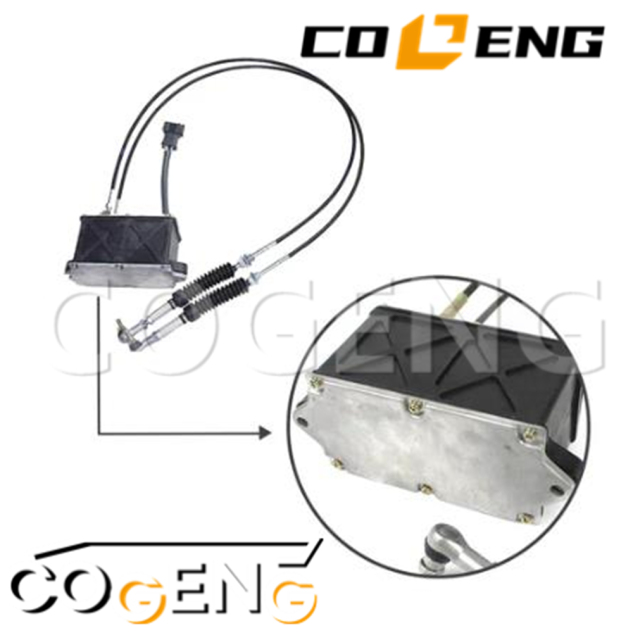

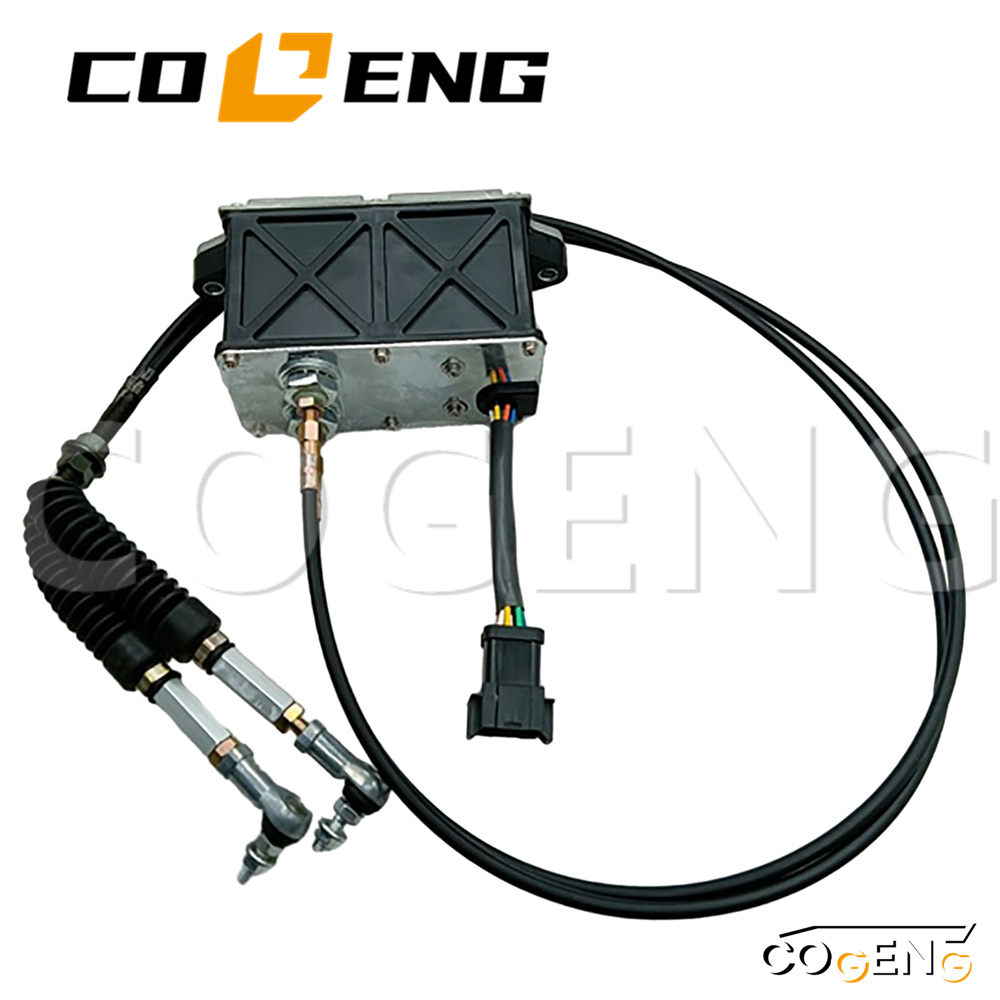

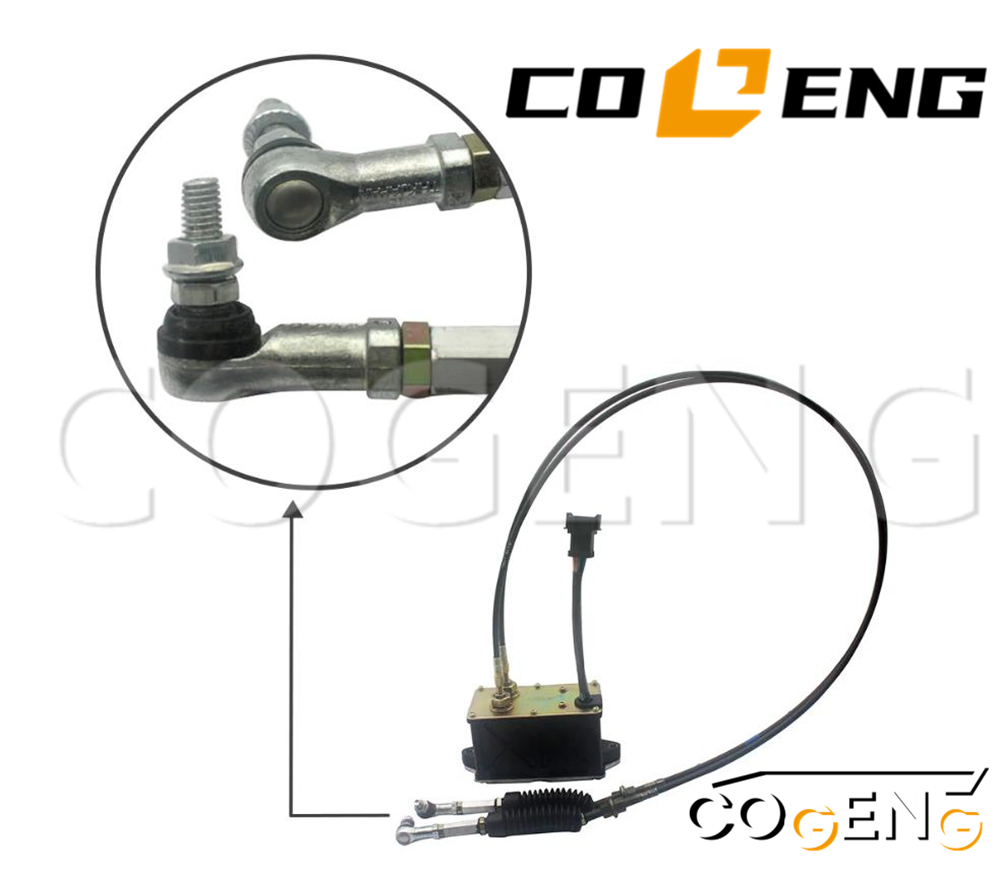

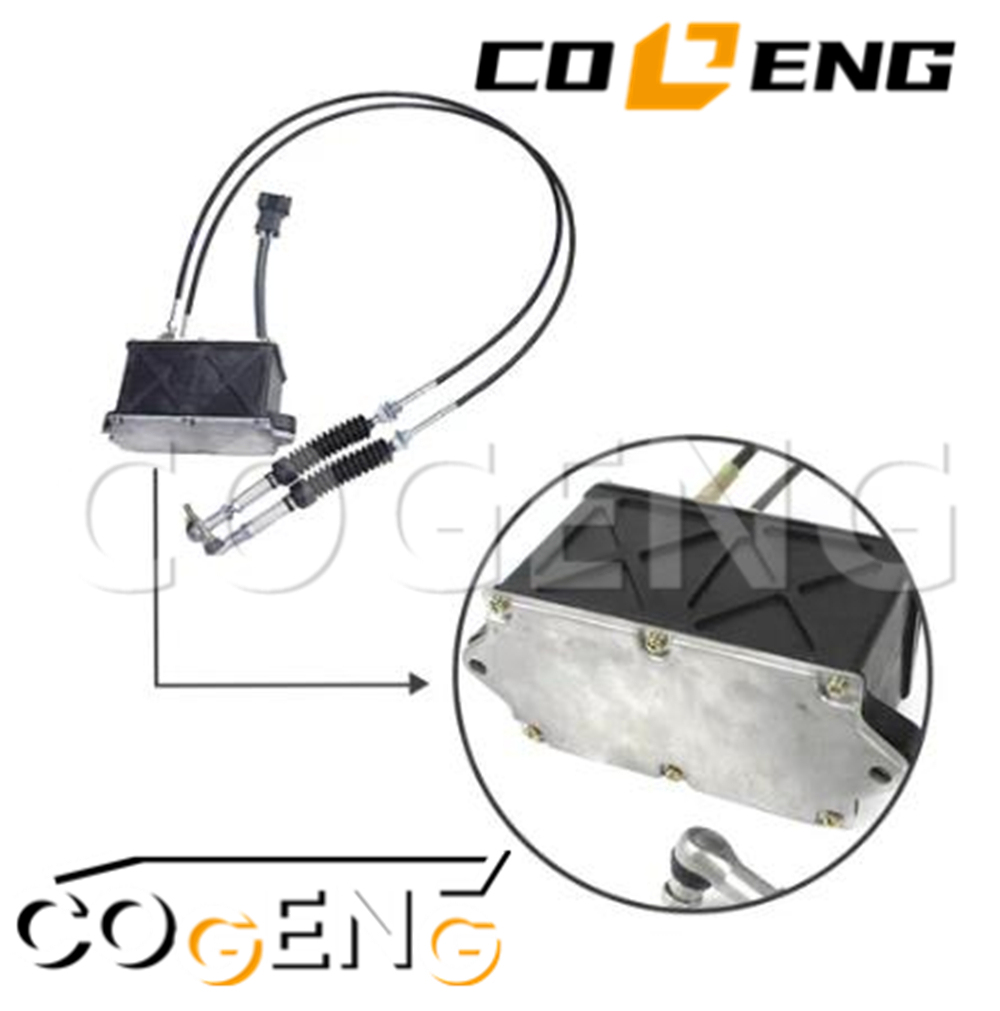

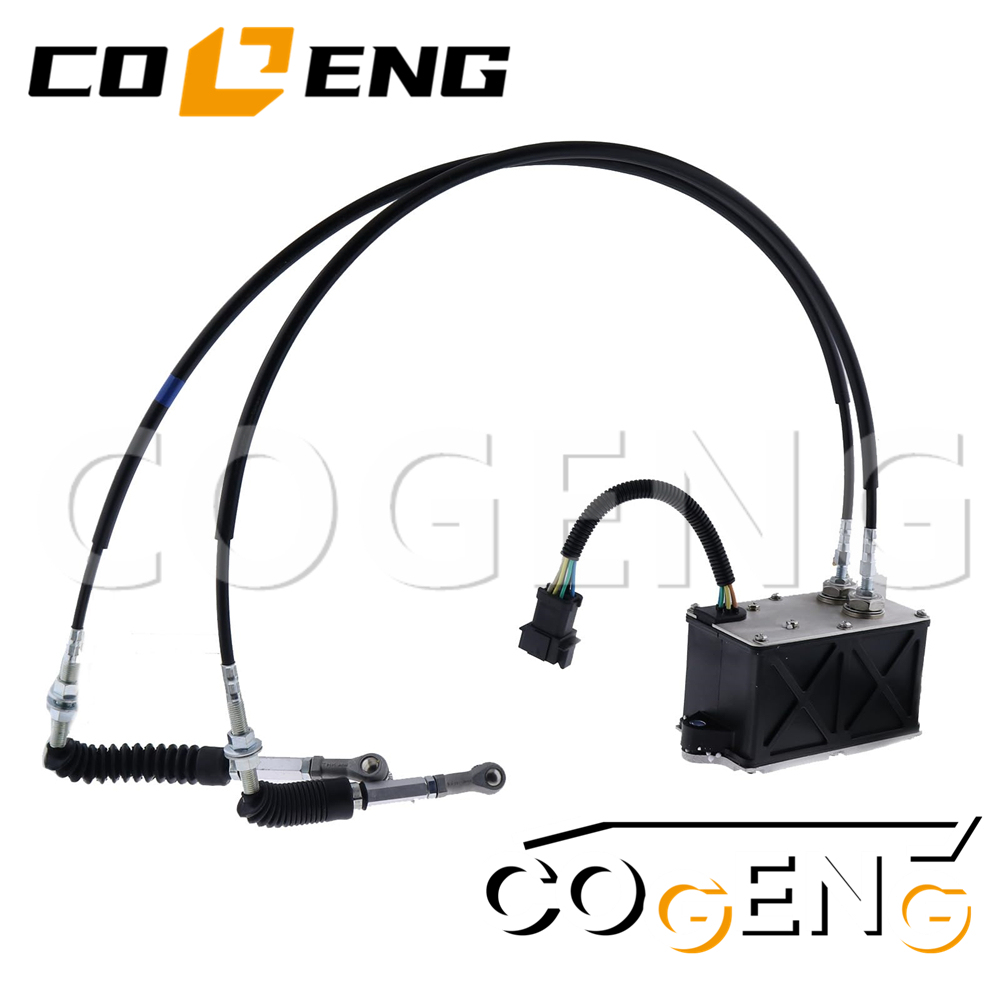

PRODUCT IDENTIFICATION
CROSS REFERENCE GUIDE
Electrical Specifications
Mechanical Specifications
Feedback Sensor Specifications
Environmental Ratings
COMPATIBLE CATERPILLAR EXCAVATORS
320C Series
320D Series
Additional Compatible Models (Verify)
Note: Verify with your equipment manual or contact COGENG with your machine serial number for exact compatibility confirmation.
HOW THE THROTTLE MOTOR WORKS
System Function
Operation Modes

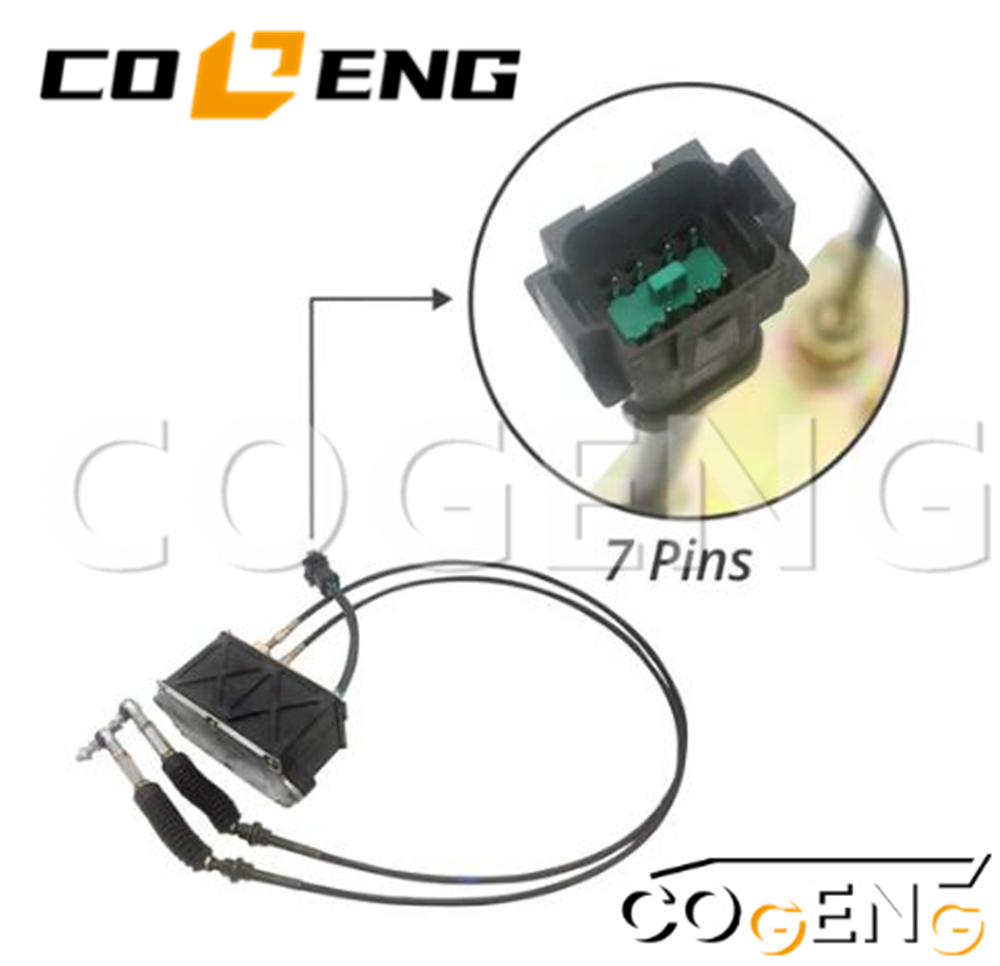

Typical Wiring Functions (4-pin / 5-pin connector)
⚠️ IMPORTANT: Pin configuration may vary slightly. Verify with your machine's electrical schematic (Cat ET) before connecting. The 247-5214 typically uses a 4-pin or 5-pin Deutsch connector.
QUALITY FEATURES
Design & Manufacturing
Testing & Certification
Certifications

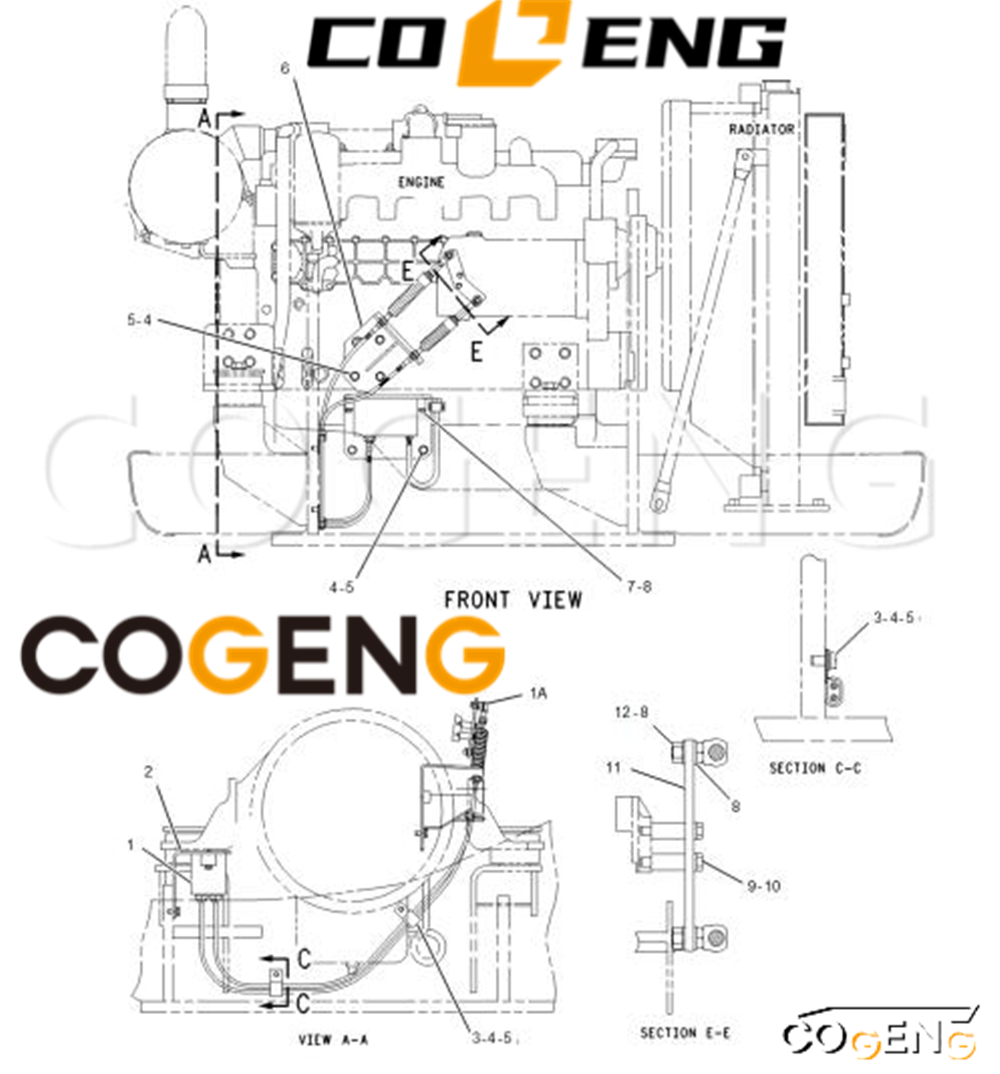

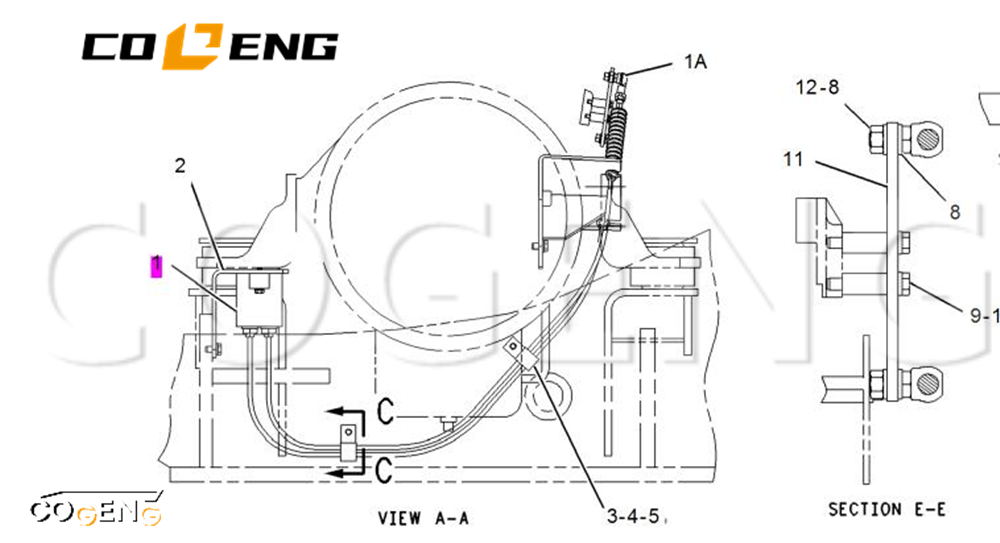

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
|
171-2607 |
GOVERNOR |
|
|
ACTUATOR AS- |
|
| 1 |
247-5214 |
GOVERNOR |
1 |
| KIT-RECEPTACLE |
|
|
|
|
|
102-8806 |
(8-PIN) |
2 |
|
|
(EACH KIT INCLUDES |
|
|
|
RECEPTACLE AS & |
|
|
|
WEDGE) |
|
|
|
PLUG-SEAL |
|
|
8T-8737 |
PIN-CONNECTOR |
1 |
|
|
|
|
|
9X-3401 |
(16-GA TO 18-GA) |
7 |
|
|
JOINT |
|
| 1A |
157-3160 |
BRACKET AS |
2 |
| 2 |
177-7727 |
CLIP |
1 |
| 3 |
4K-6177 |
WASHER-HARD |
2 |
| 4 |
8T-4121 |
(11X21X2.5-MM THK) |
7 |
| BOLT |
| 5 |
8T-4137 |
(M 10X 1.5X20-MM) |
7 |
| BRACKET AS |
| 6 |
157-3149 |
BOLT |
1 |
| 7 |
7X-2537 |
(M8X 1.25X35-MM) |
2 |
| WASHER-HARD |
| 8 |
8T-4224 |
(8 .8X 16X2-MM THK) |
6 |
| WASHER |
| 9 |
9X-8256 |
(6 .6X 12X2-MM THK) |
2 |
| BOLT |
| 10 |
8C-8451 |
(M6X 1X40-MM) |
2 |
| LEVER AS |
| 11 |
164-8244 |
NUT |
1 |
| 12 |
5C-7261 |
(M8X 1.25-THD) |
2 |
| CABLE GP-GOVERNOR |
|
319-4234 |
CONTROL |
1 |
|
|
(REFER TO REHS2358 |
|
|
|
FIELD REPAIR OF |
|
|
|
GOVERNOR MOTOR |
|
|
|
CABLES) |
|
Park excavator on level ground, lower attachment to ground
Engage parking brake and implement all safety locks
Turn ignition to OFF position and remove key
Disconnect negative battery terminal first
Wait 10 minutes for system capacitors to discharge
Clean throttle motor area thoroughly to prevent contamination
Installation Steps:Document existing throttle motor configuration and connections
Carefully disconnect electrical connector and mounting hardware
Clean throttle linkage and mounting surface completely
Install new COGENG throttle motor using proper torque specifications (8-12 Nm)
Connect electrical connector ensuring positive engagement
Verify smooth throttle linkage movement without binding
Calibration & Testing:Reconnect battery and initialize system
Perform throttle calibration procedure per excavator service manual
Test throttle response through complete operational range
Verify proper engine speed control at all throttle positions
Check for diagnostic trouble codes using Cat ET software
Test under actual operating conditions to confirm performance
