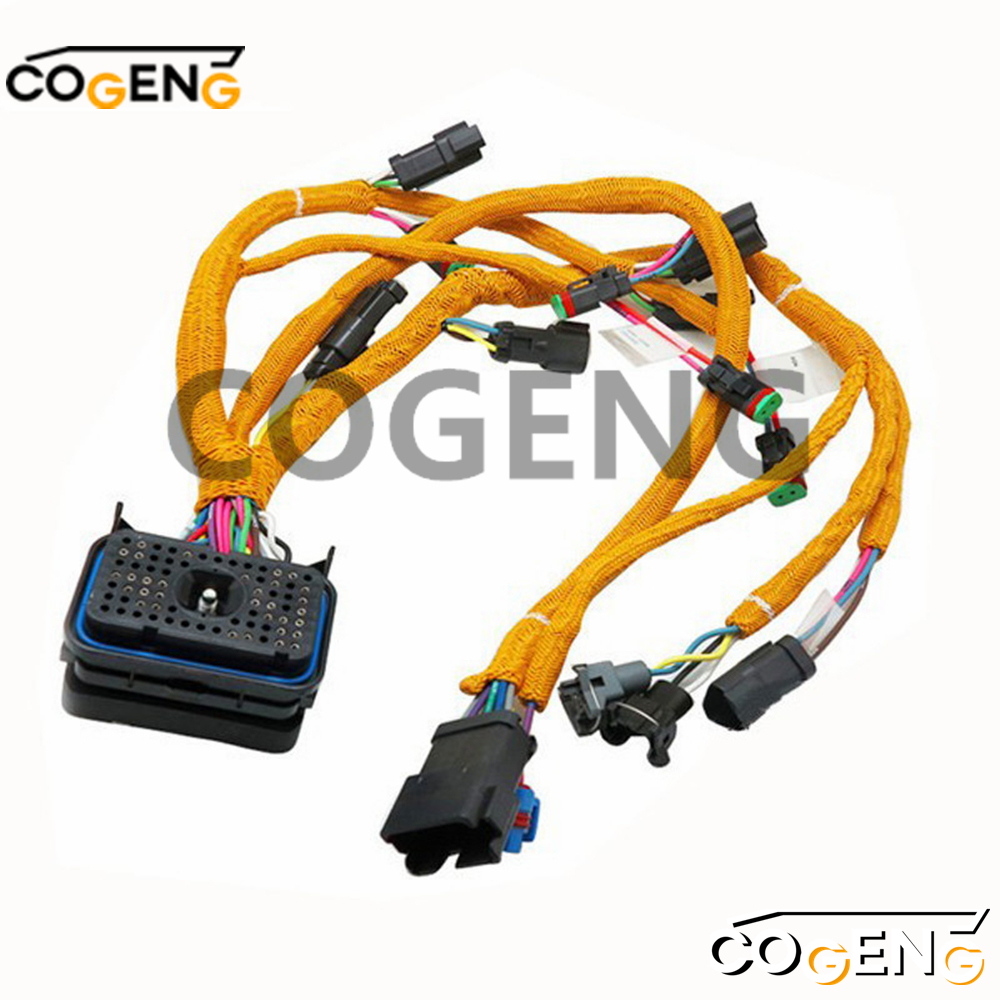

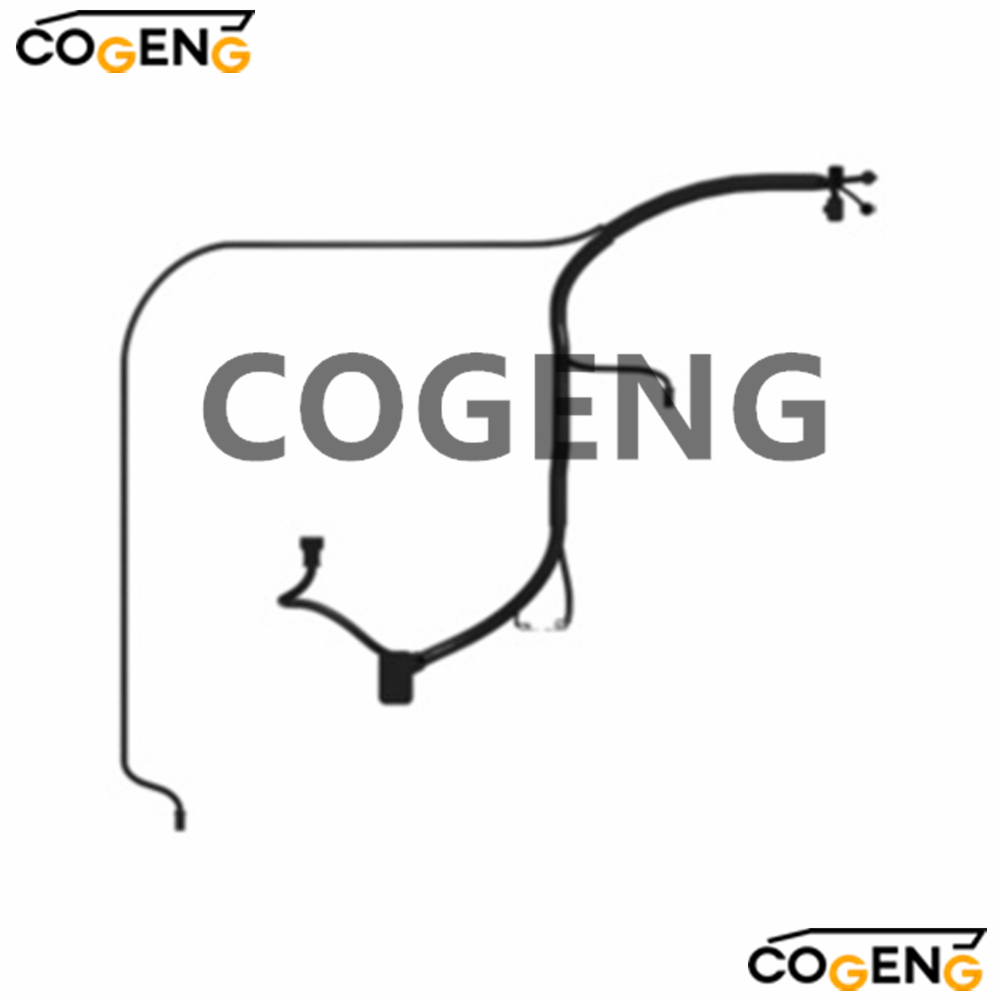

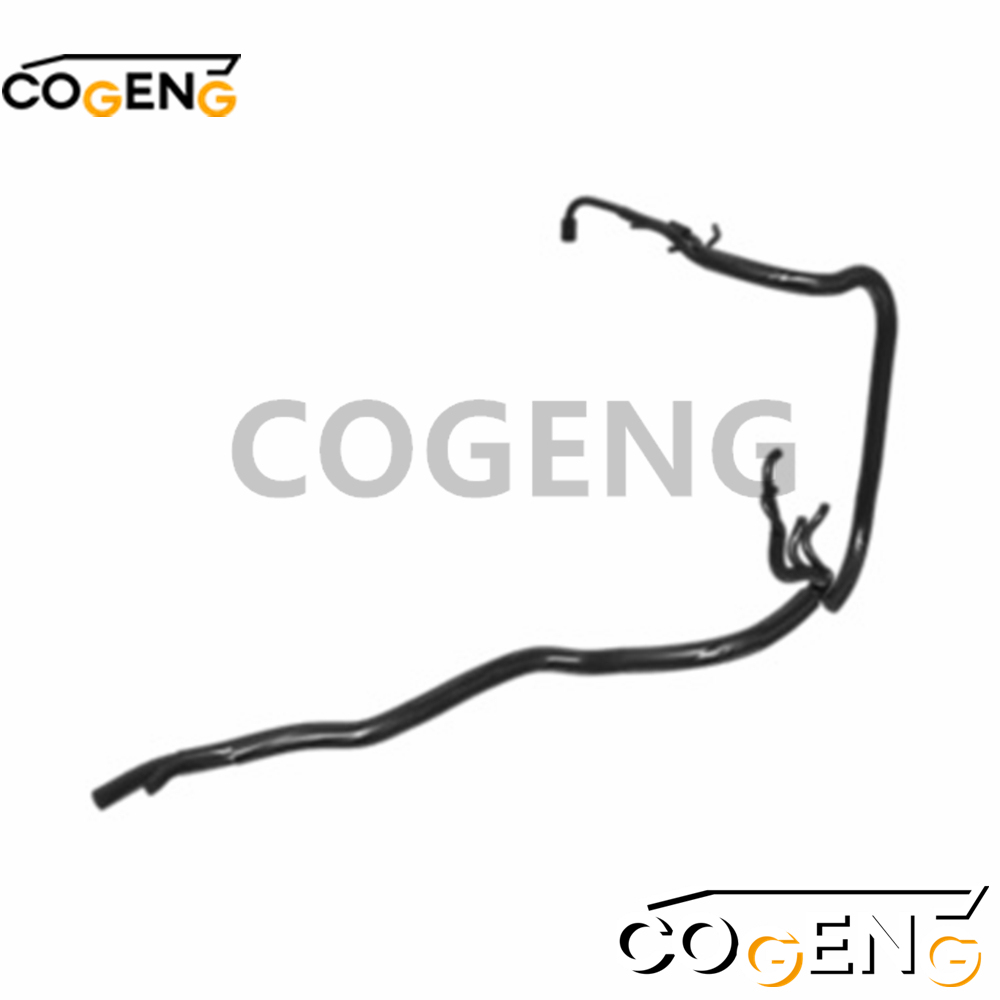

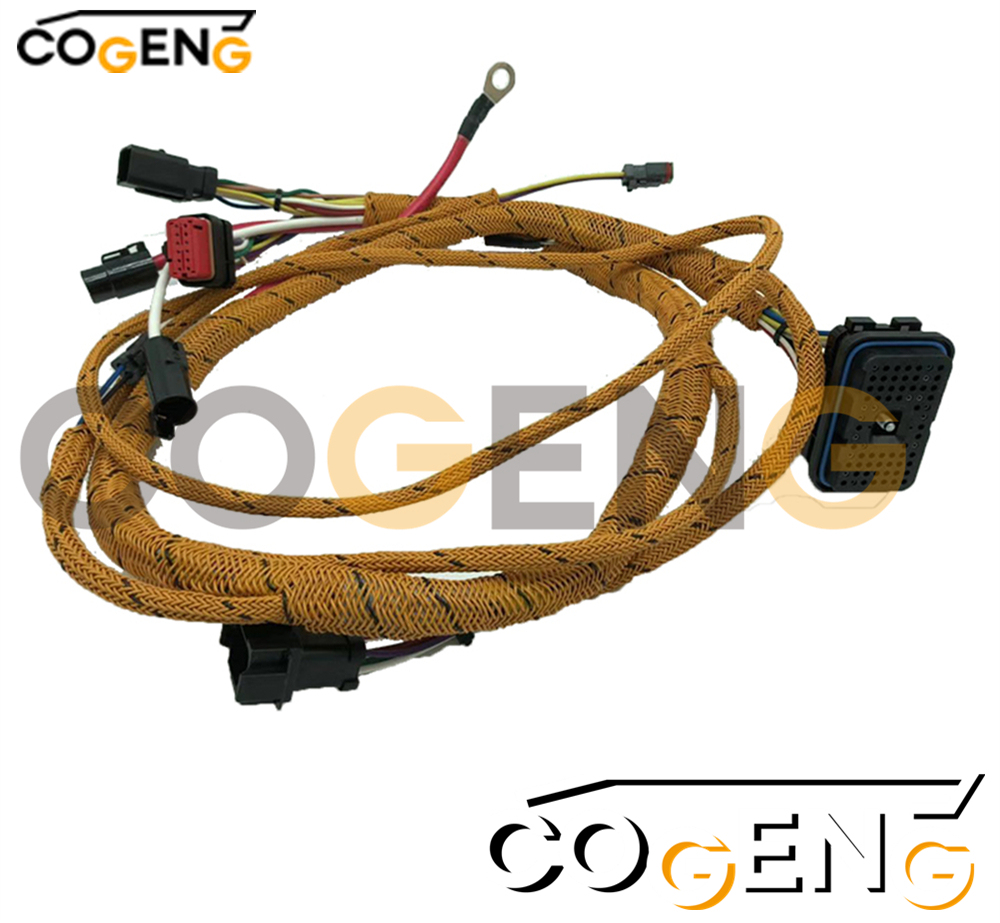

| Specification Category | Technical Specifications |
|---|---|
| Compatible Machine Models | Caterpillar 385C, 385C L, 385C MH, 385C FS |
| COGENG Part Number | CG-CAT-385C-HDMH26 |
| Replaces OEM Part Number | 231-1812 |
| Product Name | Heavy-Duty Main Wiring Harness Assembly |
| Application Scope | Complete large excavator electrical system integration |
| Wire Specifications | Heavy-duty XLPO insulation (-45°C to 160°C), extreme oil/fuel/abrasion resistance |
| Connector System | IP68 rated sealed connectors, Caterpillar heavy-duty specification compliant |
| Quality Assurance | 12-stage testing protocol including extended thermal cycling and vibration testing |
| Warranty Coverage | 5,000-hour heavy-duty warranty |
| NO | Number | Name | Qty |

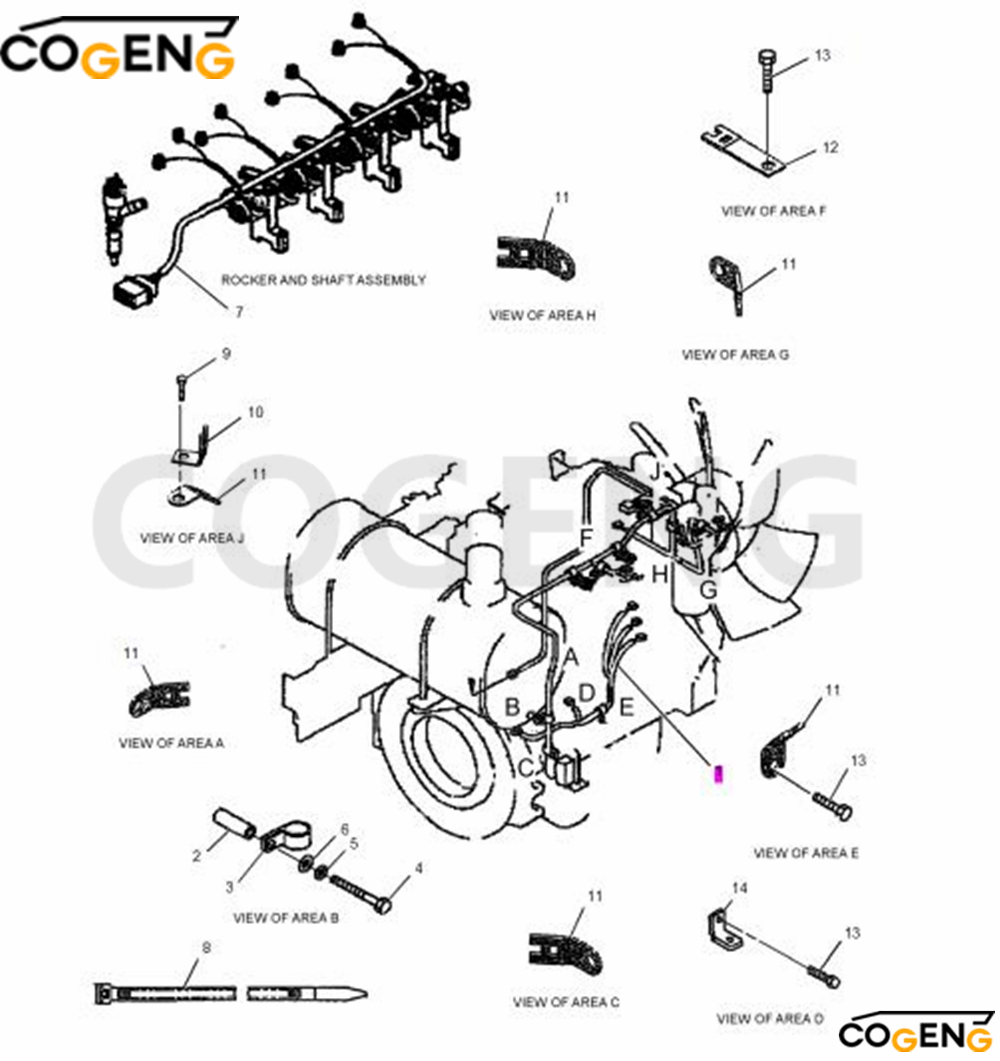

| Grp | 296-4801 | WIRING GP-ELECTRONIC CONTROL |
1 |
| 1 | 231-1812 | HARNESS AS-ENGINE | 1 |
| 2 | 296-4618 | SPACER | 1 |
| 3 | 296-4619 | CLIP | 1 |
| 4 | 099-4460 | BOLT | 1 |
| 5 | 096-2501 | LOCKWASHER | 1 |
| 6 | 8T-4223 | WASHER-HARD | 1 |
| 7 | 305-4891 | HARNESS AS-ENGINE | 1 |
| 8 | 305-4895 | STRAP-CABLE | 15 |
| 9 | 282-8567 | BOLT | 2 |
| 10 | 305-4898 | CLIP | 1 |
| 11 | 305-4896 | CLIP | 11 |
| 12 | 305-4897 | CLIP | 3 |
| 13 | 294-1768 | BOLT | 6 |
| 14 | 296-4766 | BRACKET | 1 |
| 15 | 223-7577 | SWITCH GP-MAGNETIC | 1 |
| 16 | 296-4755 | CABLE | 1 |
| 17 | 296-4621 | BOLT | 2 |
Complete System Power Down: Execute full shutdown procedure including battery disconnection, main power isolation, and verified capacitor discharge waiting period (minimum 20 minutes)
Model-Specific Documentation: Create comprehensive photographic records of existing harness routing, noting specific variations between different 385C series configurations
Heavy-Duty Connector Handling: Use appropriate tools for large connector disengagement, ensuring careful release of heavy-duty locking mechanisms
Systematic Component Inspection: Conduct thorough examination of all sensors, control units, and mating connectors for signs of damage, corrosion, or pin issues
Precise Routing Implementation: Follow exact factory routing path for your specific 385C model, ensuring proper placement in all heavy-duty clamps, guides, and protective conduits
Comprehensive Connection Verification: Implement step-by-step connection process using provided model-specific checklist, verifying all connectors are fully seated with positive locking confirmation
Full System Functional Testing: Perform progressive power-up sequence and complete operational testing of all electrical systems, including diagnostic code verification and operational calibration
Q: What Caterpillar models use the 231-1812 engine wiring harness?
A: The COGENG 231-1812 engine wiring harness is a direct OEM replacement designed for Caterpillar C18 diesel engines where this harness part number is specified. The Cat C18 engine platform powers a wide range of heavy equipment including large excavators, dozers, wheel loaders, off-highway trucks, and industrial power applications. Always verify this part number against your engine's parts manual or the original harness tag to confirm exact compatibility before ordering.
Q: What are the symptoms of a failing engine wiring harness on a Caterpillar C18?
A: Common symptoms include intermittent engine performance issues, engine stalling or failure to start, multiple diagnostic trouble codes, erratic sensor readings on the monitor panel, unresponsive throttle control, CAN bus communication errors between the engine ECM and machine controller, engine derating or limp mode activation, or specific engine functions not responding. The C18 is a high-output engine platform where harness integrity is critical for managing fuel delivery, emissions control, and overall engine reliability.
Q: Is this harness a direct plug-and-play replacement?
A: Yes, the COGENG 231-1812 engine harness is manufactured to exact OEM specifications for connector types, pin assignments, wire gauge, and routing length. It is a direct plug-and-play replacement requiring no wire splicing, soldering, or modifications when installed on compatible Caterpillar C18 engine applications.
