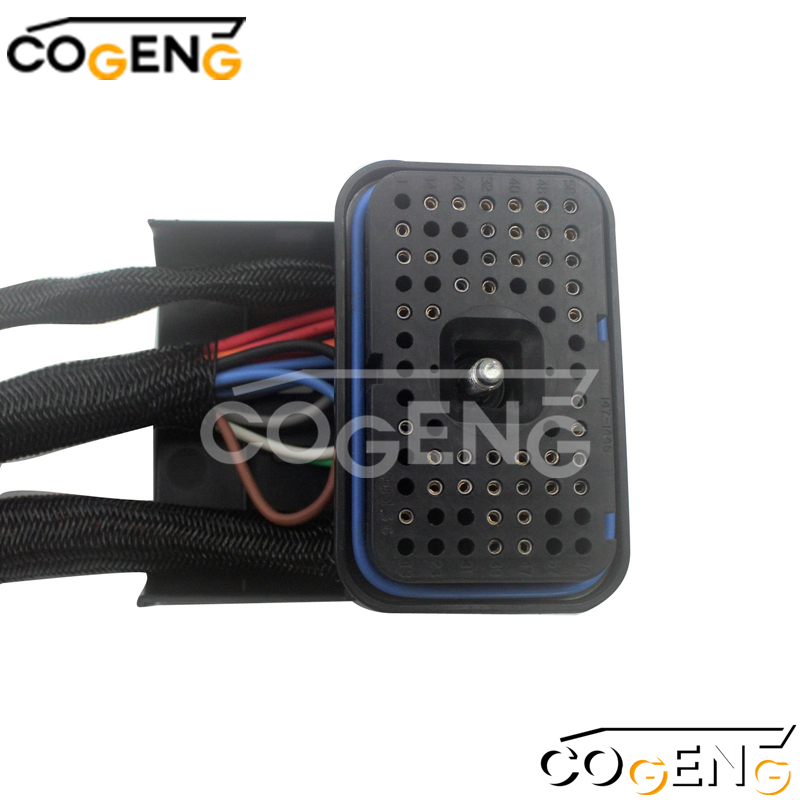

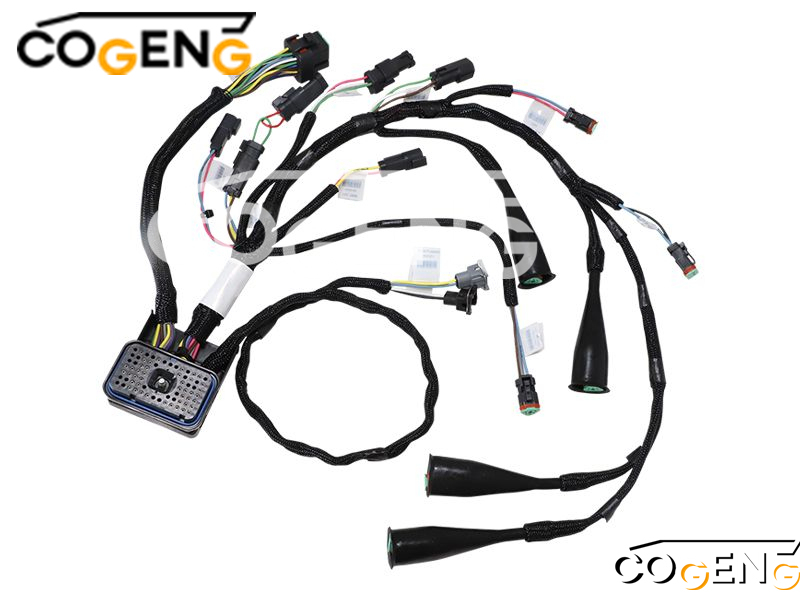

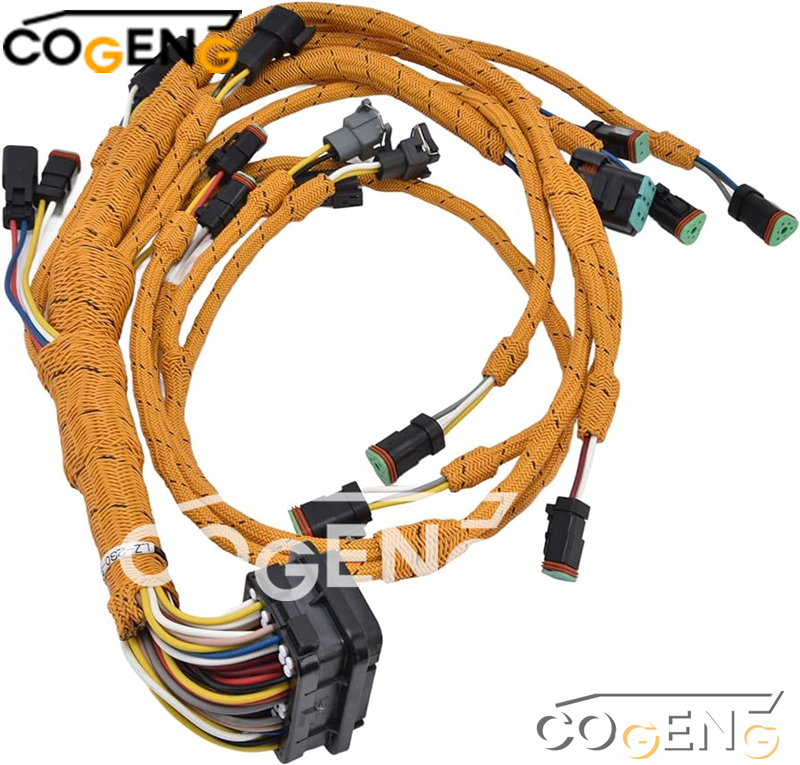

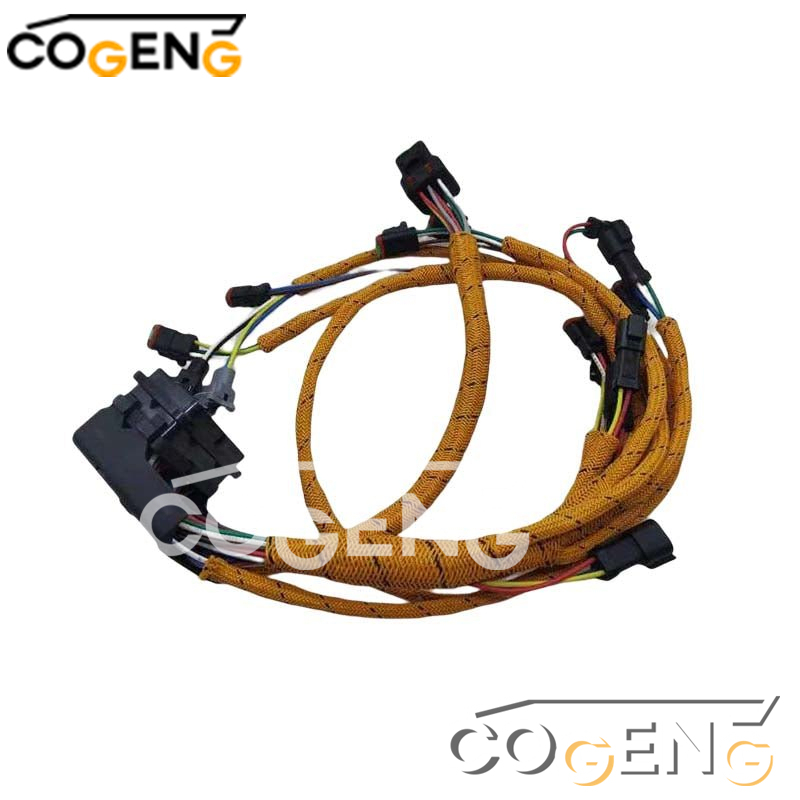

230-6279 Caterpillar Wiring Harness CAT C-9 330C 330CFM
Product name: Caterpillar Wiring Harness
Part No: 230-6279 2306279
Model Number:For C-9 330C 330CFM 330CL 330CLN 330CMH
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Detailed Specification |
| COGENG Part Number |
CG-CAT-2306279 |
| OEM Reference Number |
230-6279 |
| Compatible Equipment |
CAT 330C, 330CFM with C-9 Engine |
| Engine Compatibility |
Caterpillar C-9 Engine |
| Wire Insulation Material |
High-Temperature Oil-Resistant XLPE |
| Connector Protection Rating |
IP67 Rated (Engine Environment) |
| Operating Temperature Range |
-40°C to 150°C |
| System Voltage Rating |
24V DC System |
| Quality Verification |
100% Circuit & Sensor Continuity Tested |
| Warranty Protection |
18-Month Limited Warranty |
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| Grp |
204-3604 |
WIRING GP-ELECTRONIC CONTROL |
|
| 1 |
3S-2093 |
STRAP-CABLE |
25 |
| 2 |
215-3249 |
HARNESS AS-ENGINE |
1 |
| 3 |
226-0903 |
CABLE AS |
1 |
| 4 |
230-6279 |
HARNESS AS-ENGINE |
1 |
| 5 |
195-7226 |
HARNESS AS-ENGINE |
1 |
| 5 |
209-5582 |
SWITCH GP-MAGNETIC |
1 |
| 6 |
208-9277 |
BOLT-FLANGE HEAD |
2 |
| 7 |
4P-7581 |
CLIP |
5 |
| 8 |
4P-8134 |
CLIP |
3 |
| 9 |
5P-7970 |
NUT |
1 |
| 10 |
6V-4369 |
WASHER |
4 |
| 11 |
6V-6317 |
BOLT |
3 |
| 12 |
8T-4137 |
BOLT |
1 |
| 13 |
8T-0328 |
WASHER-HARD |
1 |
| 14 |
7I-2272 |
BOLT |
2 |
| 15 |
8T-4205 |
WASHER-HARD |
1 |
| 16 |
9M-1974 |
WASHER-HARD |
1 |
| 17 |
105-1797 |
MOUNT |
5 |
| 18 |
9X-3401 |
PIN-CONNECTOR |
12 |
| 19 |
126-1767 |
PIN-CONNECTOR |
12 |
| 20 |
191-7823 |
RECEPTACLE AS |
1 |
| 21 |
307-8428 |
GASKET |
1 |
| 22 |
3S-2093 |
STRAP-CABLE |
5 |

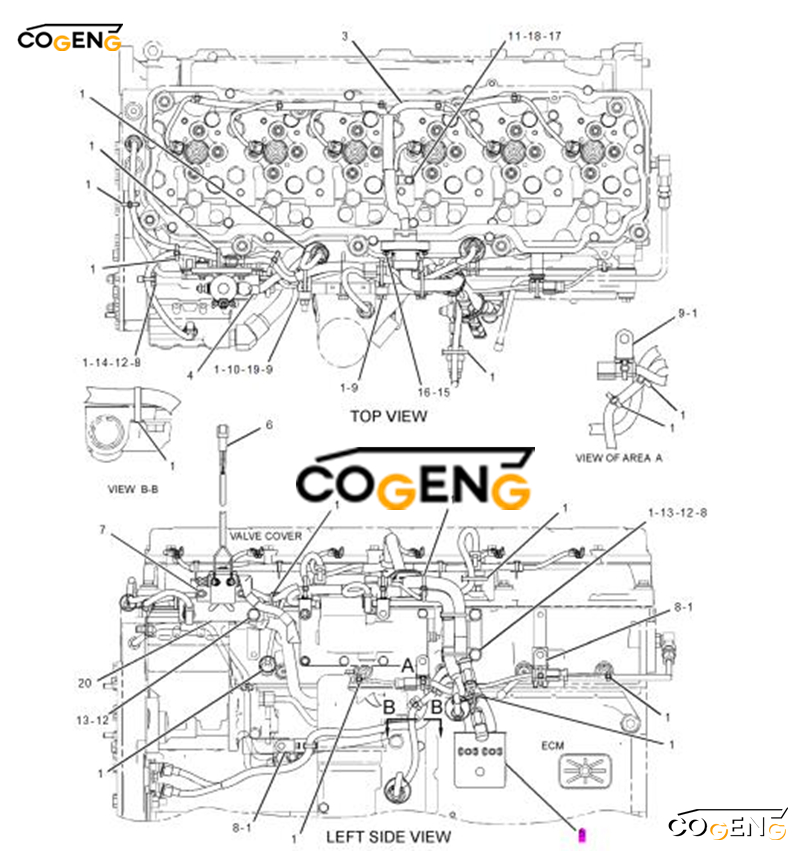

Installation decomposition diagram
-
Disconnect battery and engine control module before installation
-
Follow exact OEM routing around engine components
-
Secure all mounting points and protective covers
-
Verify all sensor connectors are fully engaged
-
Perform engine system diagnostic after installation
COGENG presents a precision-engineered engine wiring harness specifically designed for Caterpillar C-9 engines in 330C and 330CFM excavators. This exact replacement for OEM part 230-6279 delivers reliable performance and maintains optimal engine operation through precise sensor communication and electrical connectivity.
