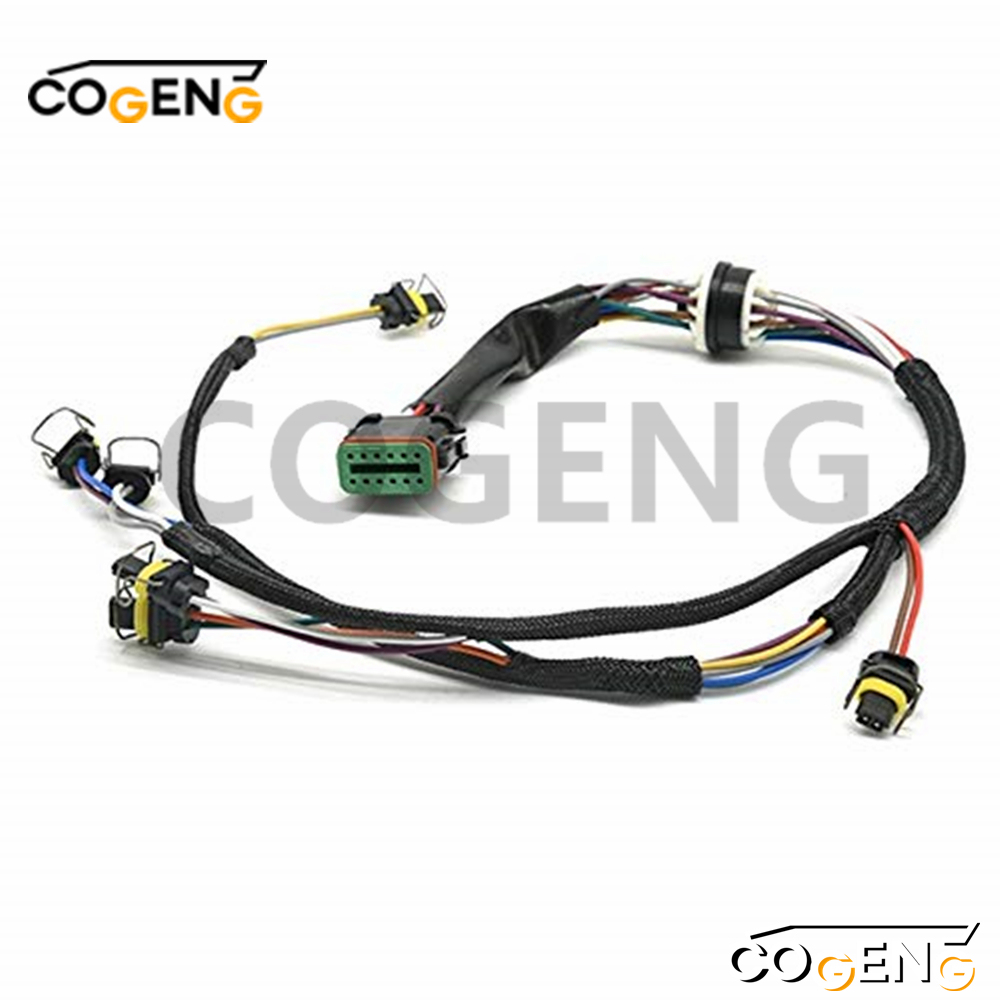

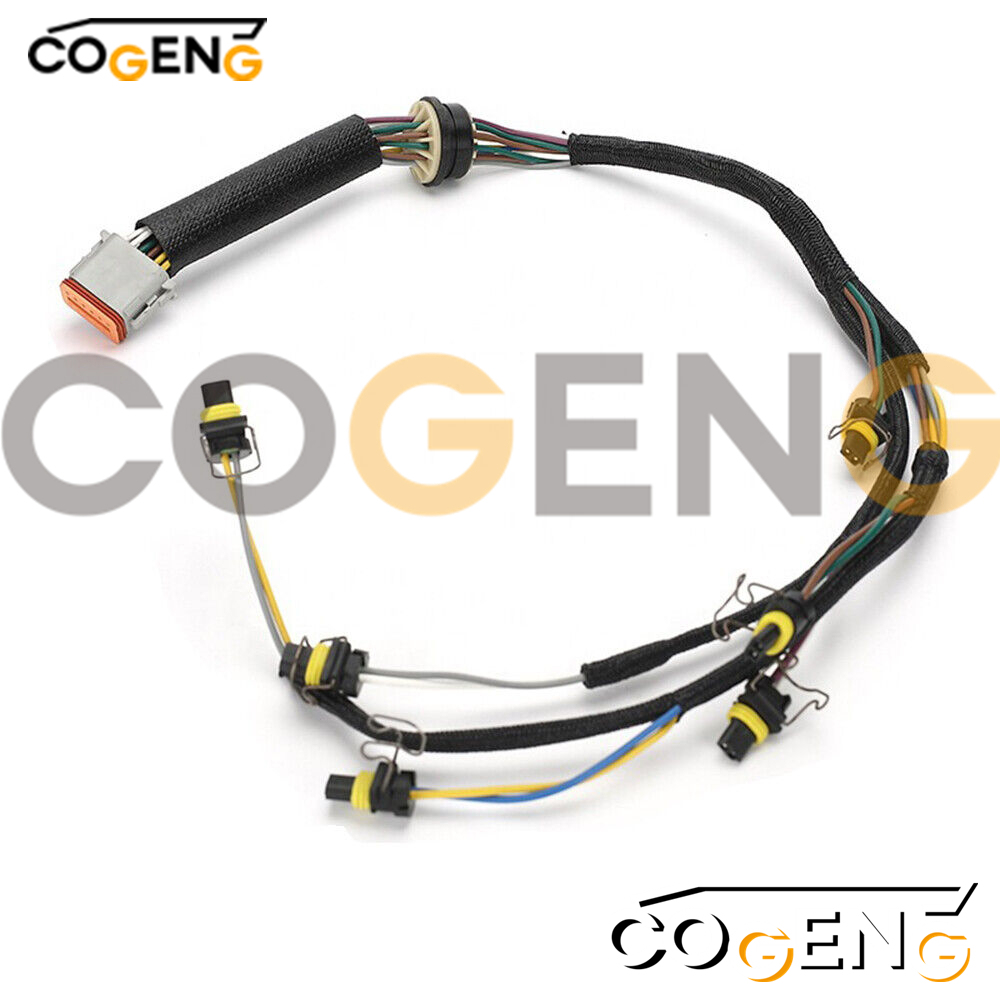

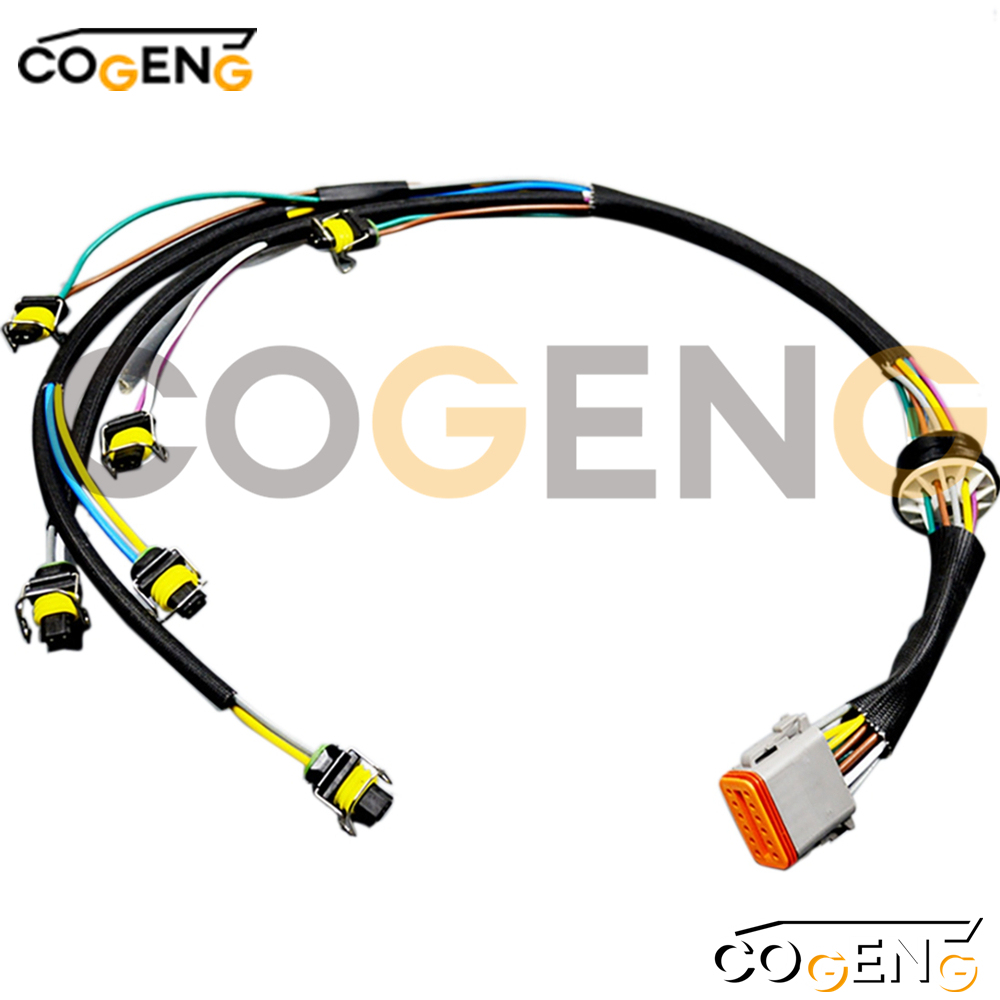

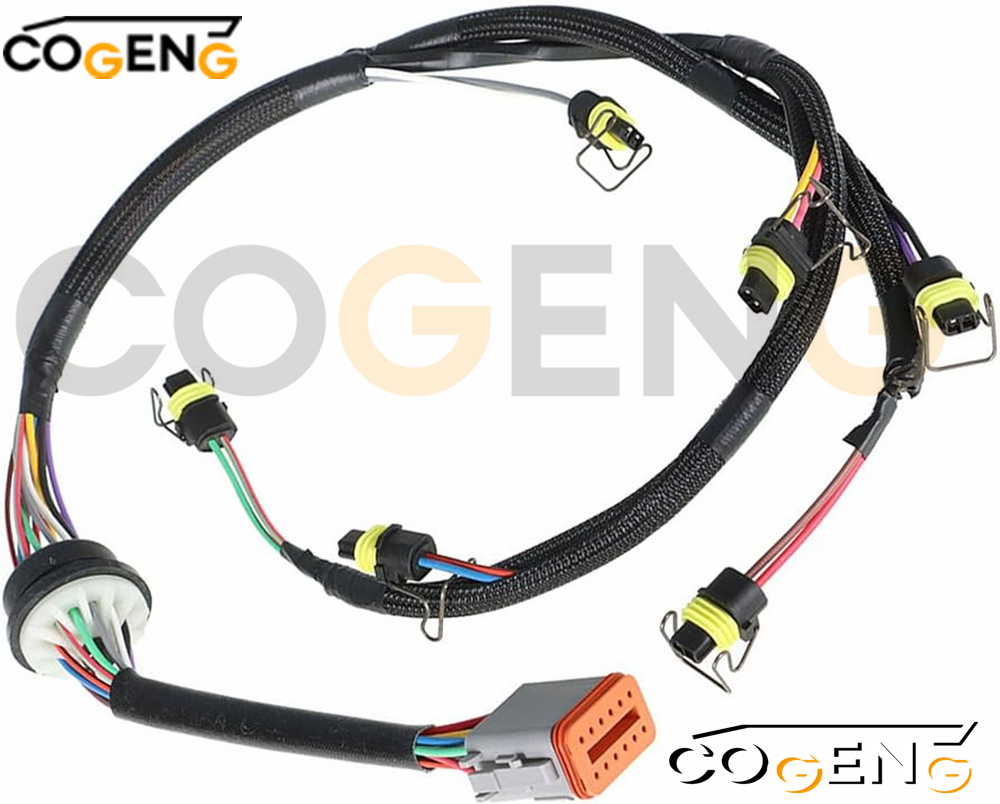

COGENG 222-5917 Caterpillar Wiring Harness | OEM-Compatible for CAT Excavators and Loaders

1. Complete System Power Down: Execute full shutdown procedure including battery disconnection, main power isolation, and verified capacitor discharge waiting period (minimum 15 minutes)

2. Model-Specific Documentation: Create comprehensive photographic records of existing harness routing, noting specific variations between 324D, 325D, and 329D configurations

3. Connector Identification: Use provided connector chart to identify model-specific connections and ensure proper harness configuration for your excavator

4. Systematic Component Inspection: Conduct thorough examination of all sensors, control units, and mating connectors for signs of damage, corrosion, or pin issues

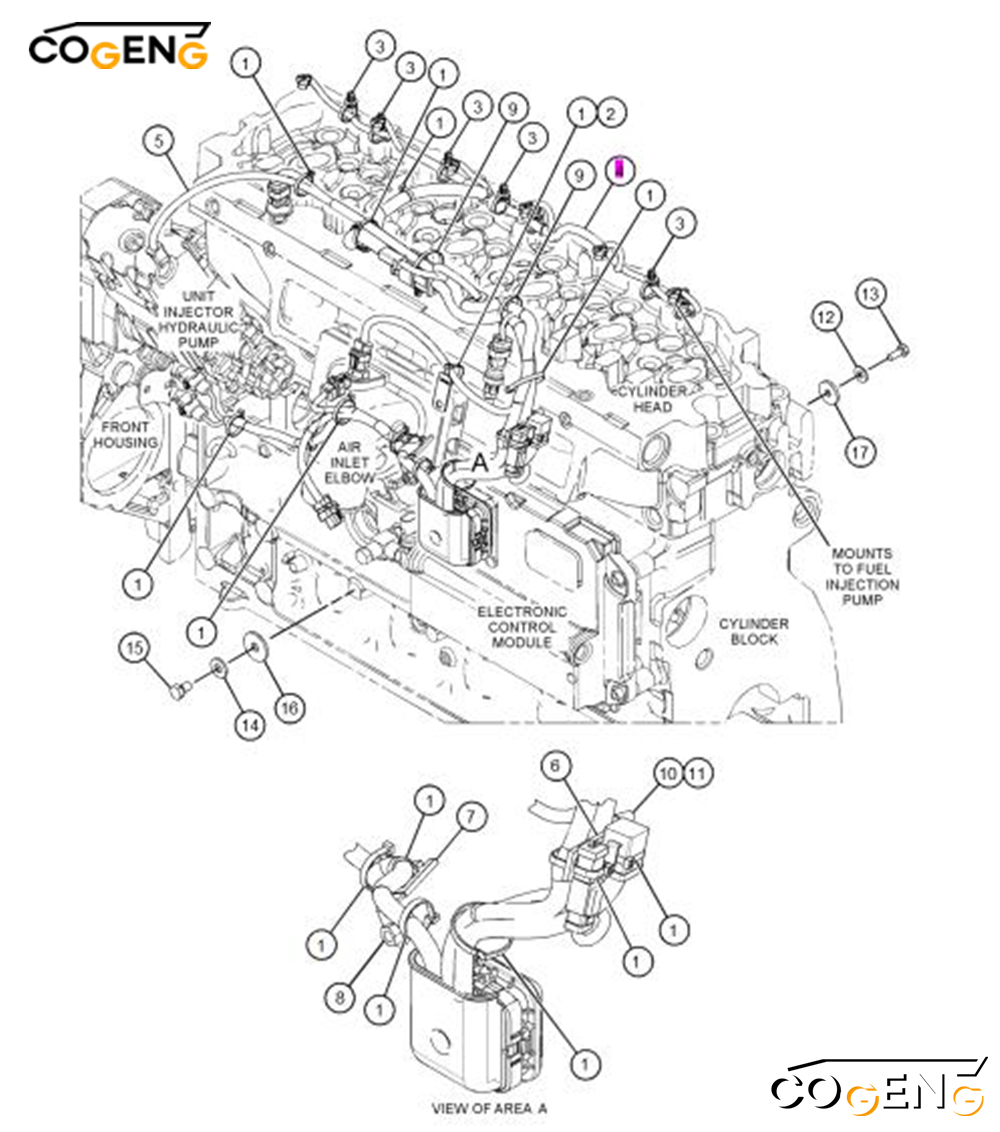

5. Precise Routing Implementation: Follow exact factory routing path for your specific 300D series model, ensuring proper placement in all clamps, guides, and protective conduits

6. Comprehensive Connection Verification: Implement step-by-step connection process using provided model-specific checklist, verifying all connectors are fully seated with positive locking confirmation

7. Full System Functional Testing: Perform progressive power-up sequence and complete operational testing of all electrical systems, including diagnostic code verification and operational calibration

1. What exactly is this wiring harness, and what does "300D Series" mean?
This is a main chassis/cab interface wiring harness designed as a direct replacement for Caterpillar OEM Part No. 222-5917. The "300D Series" refers to Caterpillar's Dash-D generation of mid-to-large crawler excavators, a family that includes multiple models introduced in the mid-to-late 1990s through the early 2000s. This harness serves as the central electrical backbone connecting:

• Engine ECM (Electronic Control Module)

• Hydraulic pump controllers and solenoid valves

• Cab console, monitor display, and operator controls

• Sensors and actuators throughout the machine

• Power distribution from batteries and alternator

"Universal" in this context means the harness is designed to cover several models within the 300D family that share the same base electrical architecture and use OEM harness 222-5917.

2. Which specific Caterpillar models does this harness fit?
Part No. 222-5917 is most commonly associated with the following Caterpillar 300D series models:

• Cat 330D / 330D L – 33-ton crawler excavator

• Cat 325D / 325D L – 25-ton crawler excavator

• Cat 320D / 320D L – 20-ton crawler excavator

• Cat 315D / 315D L – 15-ton crawler excavator

• Potentially also Cat 345D / 345D L or Cat 328D LCR depending on configuration

However — this is critical — the 300D series spans multiple models with different engine packages (Cat C4.2, C6.4, C7, C9 depending on model and market), different emissions standards (Tier 2, Tier 3, Tier 4 Interim depending on region), and different cab/control configurations (standard vs. deluxe cab, hydraulic pilot vs. electro-hydraulic controls). The same base model designation (e.g., "320D") can have multiple harness variants.

Never assume compatibility based on model name alone. You must verify through the OEM part number on your existing harness and your machine's full serial number prefix.

3. What does "Universal" mean in this product title?
"Universal" in the aftermarket parts context typically indicates that this harness is designed to cover multiple similar models within a product family range rather than one specific serial number break. For the 300D series, COGENG likely manufactured this harness to fit the most common 222-5917 configuration found across several D-series models.

However, the term "universal" should not be interpreted as "fits every Cat 300D machine ever built." Caterpillar alone produced hundreds of harness variations for this series. Verify detailed fitment before purchasing.

4. Why would a Cat 300D excavator need a complete main harness replacement?
The 300D series launched in the mid-2000s, putting the earliest machines at approximately 15–20 years old. Common failure modes demanding complete harness replacement include:

• Insulation degradation – Engine bay heat, combined with age, causes PVC wire insulation to become brittle and crack. Multiple adjacent bare conductors create unpredictable short circuits.

• Connector terminal corrosion – Moisture ingress into Deutsch and AMP connectors over two decades corrodes pins and sockets, creating high-resistance circuits. Individual terminal replacement may be impractical when dozens of connectors are affected.

• Wire fatigue fractures – Copper conductors work-harden and snap at high-vibration flex points: cab-to-chassis transition, engine mounts, and boom foot area. The break is invisible inside intact insulation.

• Rodent damage – Extended idle periods or storage allow rodents to nest and chew wires across multiple harness sections.

• Previous owner modifications – Additions of aftermarket attachments (breakers, thumbs, quick couplers), radio/GPS installations, or amateur electrical repairs accumulate splices, scotch-locks, and misrouted wires.

• Catastrophic short circuit events – A main power wire shorted to ground can fuse adjacent conductors together, melting insulation far beyond the visible damage point.

• Intermittent ECM fault codes – The classic "ghost in the machine" — random, non-repeatable sensor faults and communication errors that resist all component-level diagnosis point to harness faults.

5. What are the specific symptoms of a failing harness on a 300D excavator?
Cat 300D machines use Cat's proprietary electronic control system (engine ECM, machine ECM on later configurations, Cat Monitor display). Harness problems commonly present as:

• Random sensor diagnostic codes – Engine oil pressure, coolant temperature, boost pressure, intake manifold temperature codes that appear, clear, and reappear after sensor replacement

• CAN Bus / Data Link communication errors – Loss of communication between ECMs or between ECM and monitor; often from corroded bulkhead connectors or damaged twisted-pair data wires

• Engine derate or shutdown – The engine ECM enters derate mode or shuts down the engine due to missing sensor signals

• Hydraulic pump not responding – Machine moves slowly or not at all; pump displacement solenoids not receiving signal; machine ECM not commanding pumps due to input faults

• Monitor display issues – Blank screen, frozen display, erratic gauge readings, warning indicators illuminating without cause

• Safety/hydraulic lockout malfunction – Hydraulic implement lockout solenoid de-energizes, stopping all cylinder and swing functions

• Intermittent electrical behavior – Functions work cold but fail hot, or work in the shop but fail in the field; often vibration or temperature dependent

• Repeatedly blown fuses – A single fuse circuit keeps failing; the short is in the harness, not the component
