| Attribute | Specification |
|---|---|
| COGENG Part Number | CG-VWH-22068267 |
| Replaces OEM Number | 22068267 |

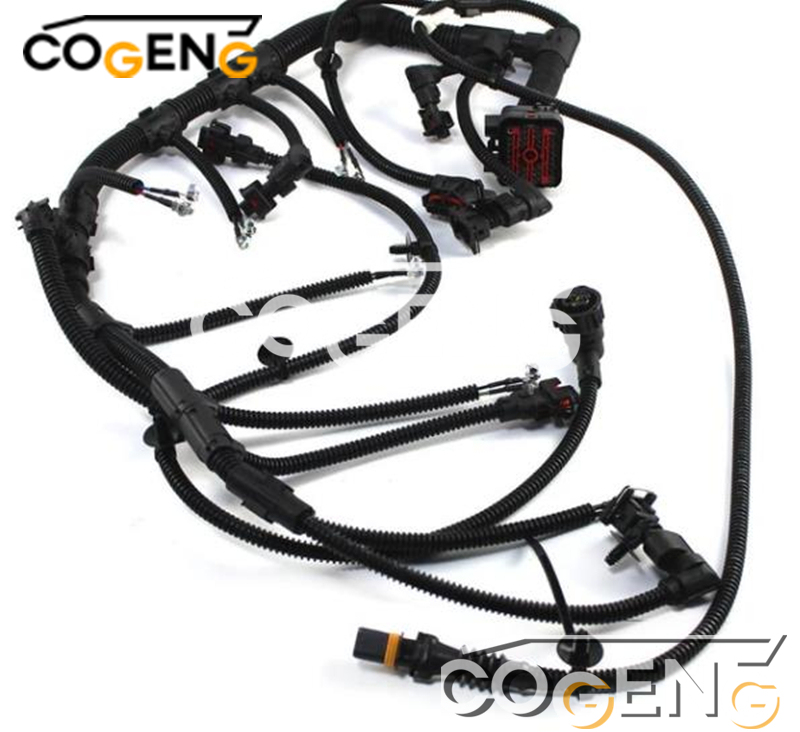

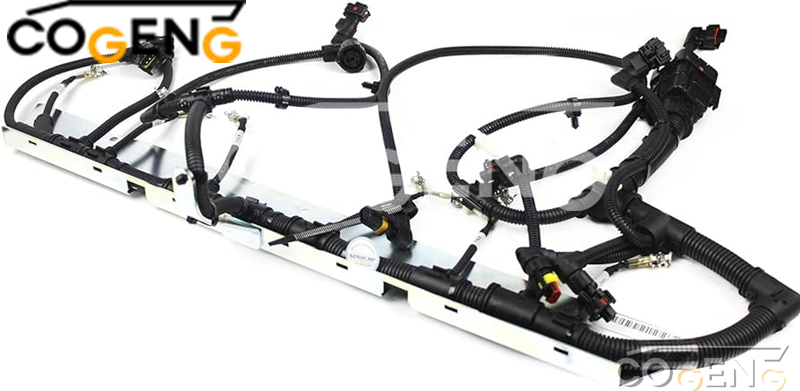

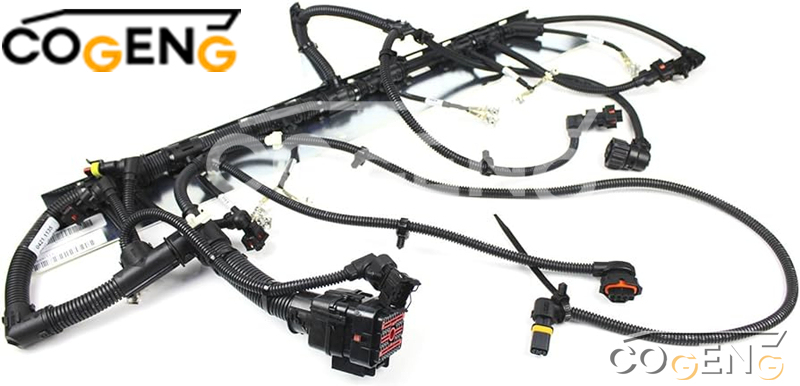

| Product Name | VOLVO Universal Wiring Harness Assembly |
| Application | Compatible with Multiple Volvo Models including: D6E Dozer, EC180C/EC210B Excavators, EW145B Backhoe, L60F/L90F Wheel Loaders, P6820C Compactor. Always verify specific machine model and serial number for exact compatibility. |
| Harness Type | Universal Main Chassis / Engine Harness |

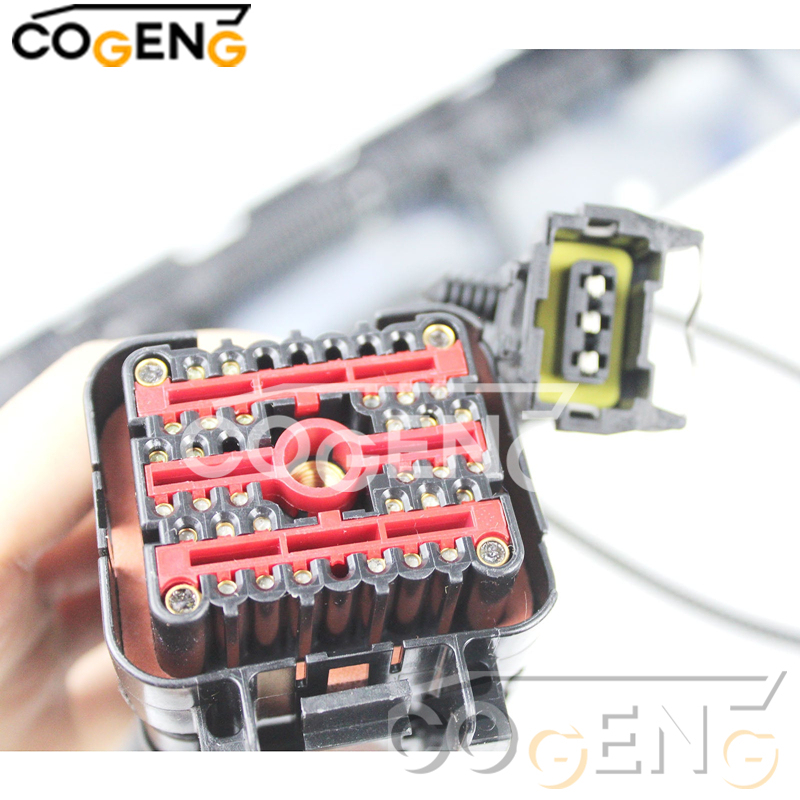

| Connector Type | OEM-Specification Sealed Connectors |
| Wire Insulation | Oil-Resistant, High-Temperature XLPE |
| Color Coding | OEM-Standard Wire Colors and Tracers |
| Quality Standard | ISO 9001, Compliant with Volvo OEM Specifications |
| Warranty | COGENG Limited 18-Month Warranty |
| NO | Number | Name | Qty |

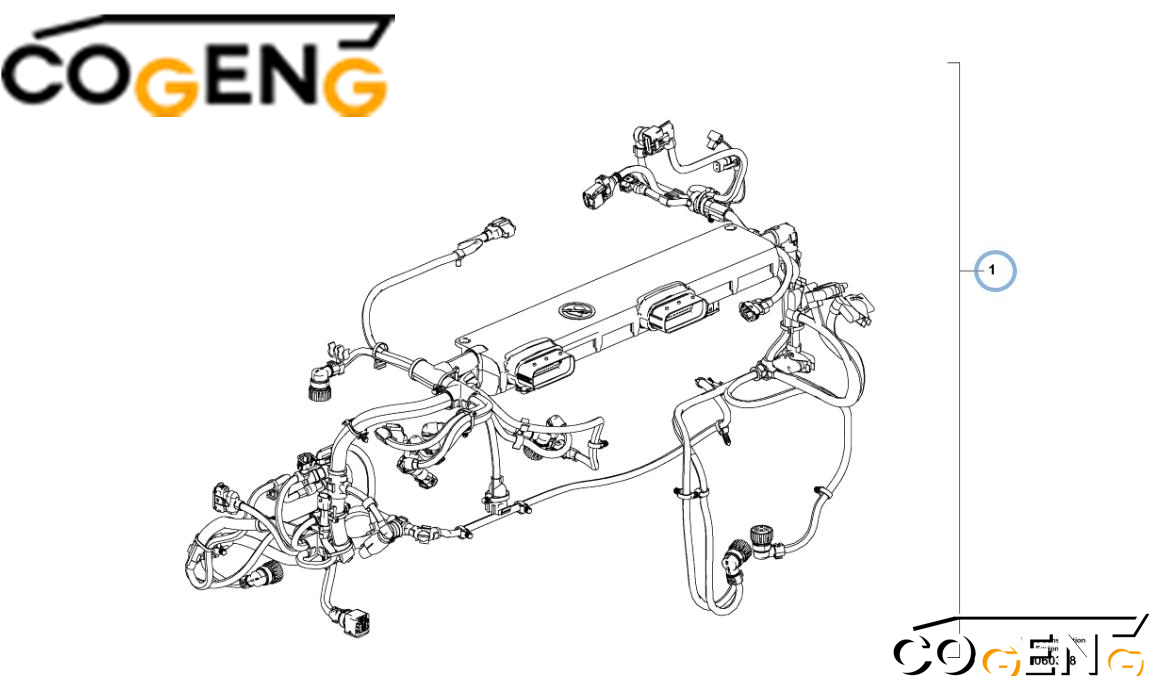

| 1 | VOE22068267 | Cable harness | 1 |
| VOE22243151 | Cable harness | 1 | |
| 2 | VOE20460347 | Clamping band | 9 |
| 3 | VOE20915014 | Cover Plate | 1 |
Complete Power Disconnection: Park the machine on a level surface, lower all attachments to the ground, and engage the parking brake. Turn the key switch to OFF and remove the key. Disconnect the negative (-) battery terminal first, followed by the positive (+) terminal. Isolate the terminals to prevent accidental contact.
Thorough Pre-Disassembly Documentation: Due to its application across different machines, precise routing is critical. Before disconnecting anything, take extensive, clear photographs and videos of the entire existing harness routing, all connection points, and how it passes through grommets and clamps.
Organized Disassembly: Label each connector with its location and component using non-conductive tape. When unplugging, release locking tabs carefully and pull only on the connector housing itself—never on the wires.
Pre-Installation Verification: Lay the new COGENG harness (CG-VWH-22068267) next to the old one. Meticulously compare the length, branching, connector types, and overall layout to ensure they are identical for your specific machine model.
Precise Routing and Connection: Install the new harness by exactly following the documented routing path from your photos. Ensure it is securely seated in all clamps and guides, and is clear of sharp edges, hot surfaces, and moving parts. Push all connectors together until they audibly "click" and lock into place.
Comprehensive Pre-Start Inspection: Before reconnecting the battery, perform a meticulous visual and tactile inspection. Verify there are no pinched wires, unseated connectors, or incorrect routing. Double-check that all ground points are clean, tight, and secure.
Post-Installation System Check: Reconnect the battery terminals (positive first, then negative). Start the machine and allow it to idle. Monitor the dashboard for any warning lights. Methodically test all functions relevant to the harness, including engine operation, hydraulic controls, and monitoring systems, to confirm full system functionality.
Q: What Volvo models use the 22068267 universal wiring harness?
A: The COGENG 22068267 universal wiring harness is a direct OEM replacement designed for multiple Volvo equipment applications, including D6E articulated haulers, EC210B and EC180C crawler excavators, EW145B wheeled excavators, L60F and L90F wheel loaders, and P6820C pavers. Always verify the part number stamped on your original harness tag and consult your machine's parts manual to confirm exact compatibility before ordering.
Q: What are the symptoms of a failing wiring harness on these Volvo models?
A: Common symptoms include intermittent electrical faults, multiple warning lights illuminated on the display, unresponsive hydraulic or engine controls, erratic gauge or sensor readings, CAN bus communication errors, specific functions not responding, or unexpected machine shutdowns. Volvo equipment relies heavily on clean CAN bus signals, and harness degradation from heat, vibration, and moisture ingress can cause widespread electrical issues across all machine types.
Q: Is this harness a direct plug-and-play replacement?
A: Yes, the COGENG 22068267 harness is manufactured to exact OEM specifications for connector types, pin assignments, wire gauge, and routing length. It is a direct plug-and-play replacement requiring no wire splicing, soldering, or modifications when installed on compatible Volvo equipment.
