COGENG 21NB-10040 & 21NB-10041 & 21NB-10042 & 21NB-10043 & 21NB-10046 & 21NB-10047 Hyundai Wiring Harness Set | Direct OEM Replacement for R455LC-7

Product name: Hyundai Wiring Harness

Part No: 21NB-10040 21NB-10041 21NB-10042 21NB-10043 21NB-10046
21NB-10047

Model Number:For R455LC-7 R500-7 R500LC-7

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Category	Specification
COGENG Set Number	CG-HYUNDAI-SET-21NB10040-10047
OEM References	21NB-10040, 21NB-10041, 21NB-10042, 21NB-10043, 21NB-10046, 21NB-10047
Compatible Model	Hyundai R455LC-7
Machine Class	50-Ton Mining Excavator
Application	Mining & Heavy Construction
Wire Insulation	Mining-Grade Oil-Resistant XLPE
Connector Rating	IP67 (Waterproof & Dustproof)
Temperature Range	-40°C to 135°C
Voltage Rating	24V DC System
Quality Validation	100% Individual & Integrated Testing
Warranty Coverage	18-Month Limited Warranty

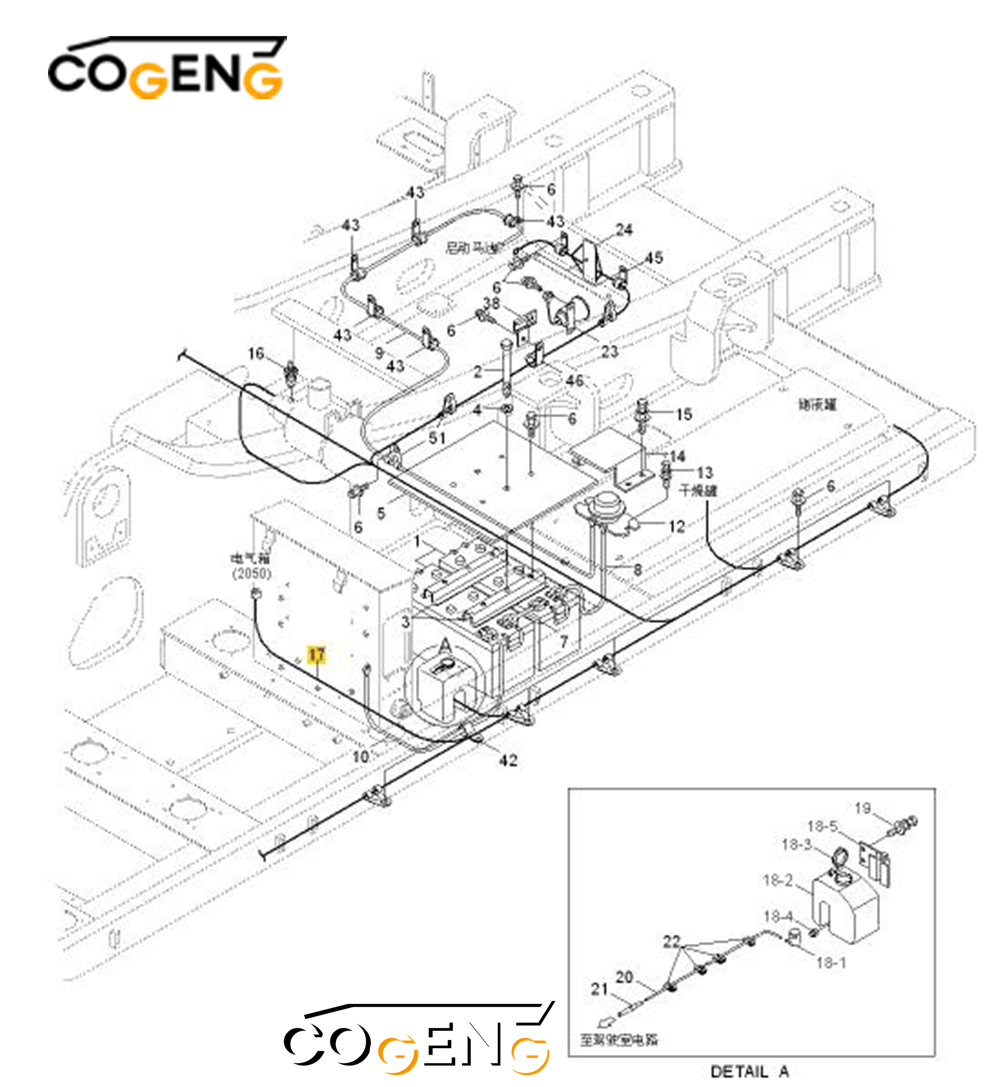

Decompose pictures

Parts list

NO	Number	Name	Qty
1	21L1-1012	BATTERY	2
1	21L1-1012C	BATTERY	2
2	S017-102652	BOLT-HEX	2
3	21NB-10150	BRACKET-BATTERY	2
4	S403-102002	WASHER-PLAIN	2
5	21NB-21021	COVER-BATTERY	1
6	S037-101652	BOLT-W/WASHER	22
7	21E2-60400	CABLE(BATT-BATT)	1
8	21E2-60130	CABLE(BATT-BATTRY)	1
9	21E2-60030	CABLE(BATTRY-STARTER)	1
10	21EK-15041	CABLE(BATT-EARTH)	1
12	21E5-0003	RELAY-BATTERY	1
13	S035-082522	BOLT-W/WASHER	2
14	21N6-10181	COVER-BATTRELAY	1
15	S035-082022	BOLT-W/WASHER	4
16	21L7-20100	SWITCH-AIRCLEANER	1
17	21NB-10040	HARNESS-FRAME	1
	21NB-10041	HARNESS-FRAME	1
	21NB-10042	HARNESS-FRAME	1
	21NB-10043	HARNESS-FRAME	1
	21NB-10046	HARNESS-FRAME	1
	21NB-10047	HARNESS-FRAME	1
17*1	21N4-01311	LINK-FUSIBLE(0.85)	1
17*2	21N4-01320	LINK-FUSIBLE(0.5)	1
18	21EG-30630	WASHERTANKASSY	1
18*1	21EG-10130	MOTORPUMPASSY	1
18*2	21EG-10140	TANK	1
18*3	24L3-30660	CAP	1
18*4	24L3-30670	RUBBER-BUSH	1
18*5	24L3-30710	PLATE	1
19	S035-061622	BOLT-W/WASHER	2
20	21EM-10890	HOSE-WASHERTANK	1
21	21EM-30570	CONNECTOR-TUBE	1
22	21EM-30630	CLAMP-QUICK	3
23	21N6-20321	BUZZER-TRAVELALARM	1
23	21N6-20322	BUZZER-TRAVELALARM	1
24	21N8-21090	PLATE-CONNECTOR	1
24	21N4-01130	PLATE-CONNECTOR	2
38	25D1-10640	CLIPASSY	1
42	S543-240002	CLAMP-TUBE	1
43	S543-200002	CLAMP-TUBE	6
45	S543-160002	CLAMP-TUBE	2
46	S543-120002	CLAMP-TUBE	1
51	21E9-00170	CLIP-HARNESS	7

Installation decomposition diagram

Complete machine power shutdown and isolation required
Install all six harnesses as complete set for optimal performance
Follow R455LC-7 specific mining equipment routing diagrams
Ensure all high-current connections are properly torqued
Perform comprehensive system diagnostics and calibration
