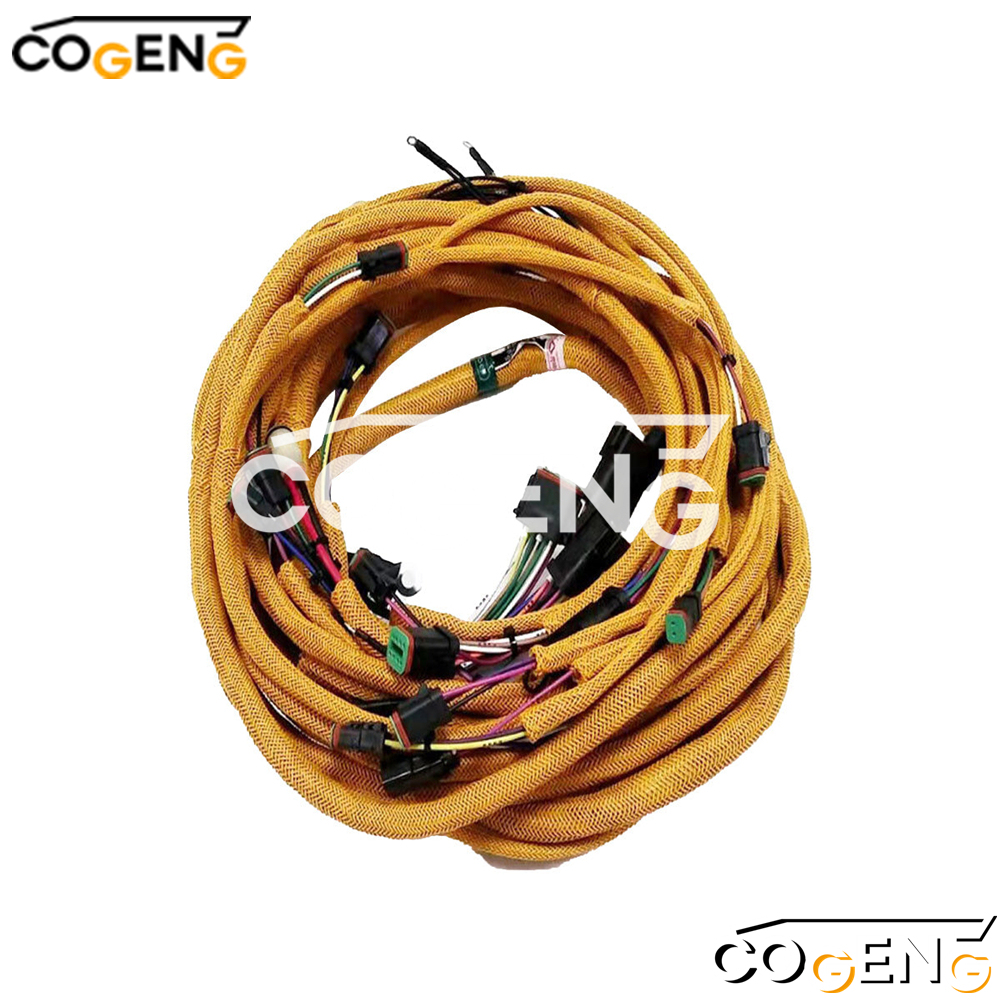

216-2129 216-2134 Caterpillar Wiring Harness CAT 365B 365BII 365BL
Product name: Caterpillar Wiring Harness
Part No: 216-2129 216-2134 2162129 2162134
Model Number:For 365B 365BII 365BL
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Category |
Specification |
| COGENG Part Numbers |
CG-CAT-2162129
CG-CAT-2162134 |
| OEM References |
216-2129 (Main Power Harness)
216-2134 (Control System Harness) |
| Compatible Models |
Caterpillar 365B, 365BII, 365BL Mining Excavators |
| Construction Standard |
Caterpillar Mining Specification |
| Wire Type |
Mining-Grade Oil & Heat Resistant |
| Temperature Range |
-45°C to 150°C |
| Voltage Rating |
24V DC System |
| Insulation Rating |
High Temperature XLPE |
| Quality Validation |
100% Circuit Continuity & High-Voltage Testing |
| Warranty Coverage |
24-Month Limited Warranty |
Decompose pictures
| Parameter |
Specification |
| Voltage Rating |
12V/24V DC Auto-Sensing |
| Current Capacity |
Main Circuits: 35A Max |
| Wire Gauge Range |
10AWG-20AWG |
| Insulation Resistance |
>500MΩ @ 1000V DC |
| Voltage Withstand |
2000V AC Minute |
| Parameter |
Specification |
| Temperature Range |
-55°C to +125°C |
| Vibration Resistance |
15G @ 1000Hz |
| Crush Resistance |
100N/cm |
| Flame Rating |
UL94 V-0 |
| Chemical Resistance |
Resists Hydraulic Fluid, Diesel, Antifreeze |
| Parameter |
Specification |
| Primary Connectors |
Caterpillar 4P/6P Sealed Series |
| Secondary Connectors |
Deutsch HD16 Series |
| Contact Material |
Silver-Plated Copper Alloy |
| Locking Mechanism |
Positive Locking Lever |
Parts list
| NO |
Number |
Name |
Qty |
| Grp |
211-3439 |
BATTERY & WIRING GP |
|
| 1 |
111-4836 |
CLIP |
16 |
| 2 |
8T-4121 |
WASHER-HARD |
100 |
| 3 |
8T-4137 |
BOLT |
53 |
| 4 |
111-4837 |
CLIP |
38 |
| 5 |
4I-5426 |
GROMMET |
1 |
| 6 |
3S-2093 |
STRAP-CABLE |
37 |
| 7 |
149-4989 |
CABLE AS |
1 |
| 8 |
8V-0622 |
CABLE AS-BATTERY |
1 |
| 9 |
116-0081 |
CABLE AS |
1 |
| 10 |
9X-9731 |
BATTERY GP |
2 |
|
7N-0060 |
VENT AS |
6 |
| 11 |
198-7070 |
SUPPORT AS |
1 |
| 12 |
157-4822 |
BOLT |
4 |
| 13 |
111-4838 |
CLIP |
15 |
| 14 |
111-4839 |
STRAP |
15 |
| 15 |
8T-4195 |
BOLT |
19 |
| 16 |
8T-4186 |
BOLT |
6 |
| 17 |
132-1805 |
STRAP AS-GROUND |
1 |
| 18 |
173-0313 |
PANEL GP-CIRCUIT BREAKER |
1 |
| 19 |
5I-8307 |
GROMMET |
1 |
| 20 |
6C-9151 |
GROMMET |
1 |
| 21 |
177-3388 |
GROMMET |
1 |
| 22 |
6G-2256 |
CLAMP |
3 |
| 23 |
6G-2263 |
SPACER |
3 |
| 24 |
6G-2263 |
WASHER |
5 |
| 25 |
8T-4185 |
BOLT |
3 |
| 26 |
149-5083 |
GROMMET |
1 |
| 27 |
216-2134 |
HARNESS AS |
1 |
|
216-2129 |
HARNESS AS |
1 |
| 28 |
204-1730 |
HARNESS AS |
1 |
| 29 |
148-5020 |
GROMMET |
2 |
| 30 |
116-0118 |
CLIP |
15 |
| 31 |
149-4993 |
STRAP AS-GROUND |
1 |
| 32 |
132-1843 |
BRACKET AS |
1 |
| 33 |
161-3064 |
BRACKET AS |
1 |
| 34 |
8T-4191 |
BOLT |
6 |
| 35 |
5I-3878 |
GROMMET |
2 |
| 36 |
170-9469 |
HARNESS AS |
1 |
| 37 |
121-1044 |
HARNESS AS-POWER |
1 |
| 38 |
140-0873 |
BRACKET AS |
1 |
| 39 |
6V-3822 |
BOLT |
1 |
| 41 |
161-3066 |
BRACKET AS |
1 |
| 42 |
140-0872 |
BRACKET AS |
1 |
| 43 |
153-2579 |
BRACKET AS |
1 |
| 44 |
153-2475 |
BRACKET AS |
1 |
| 45 |
122-0450 |
GROMMET |
1 |
| 46 |
8T-4136 |
BOLT |
8 |
| 47 |
8T-4196 |
BOLT |
2 |
| 48 |
153-2447 |
BRACKET AS |
2 |
| 49 |
197-4450 |
HARNESS AS |
1 |
| 50 |
192-8668 |
BRACKET AS |
1 |
| 51 |
153-2450 |
BRACKET AS |
4 |
| 52 |
153-2451 |
BRACKET AS |
1 |
| 53 |
8T-4224 |
WASHER-HARD |
16 |
| 54 |
8T-4189 |
BOLT |
4 |
| 55 |
8T-4199 |
BOLT |
11 |
| 56 |
8T-4200 |
BOLT |
1 |
| 57 |
204-1771 |
PLATE |
1 |
| 58 |
161-3117 |
KNOB AS |
2 |
| 59 |
161-3115 |
COVER |
1 |
| 60 |
161-3063 |
BRACKET AS |
1 |
| 61 |
4I-5049 |
NUT-SPACER |
2 |
| 62 |
167-3628 |
HARNESS AS-WIRING |
1 |
| 63 |
148-4808 |
BAR |
1 |
| 64 |
3E-5169 |
GUARD-SWITCH |
1 |
| 65 |
170-2512 |
SWITCH GP-TOGGLE |
1 |
| 66 |
7K-1181 |
STRAP-CABLE |
12 |
| 67 |
109-0361 |
FILM-INSTRUCTION |
1 |

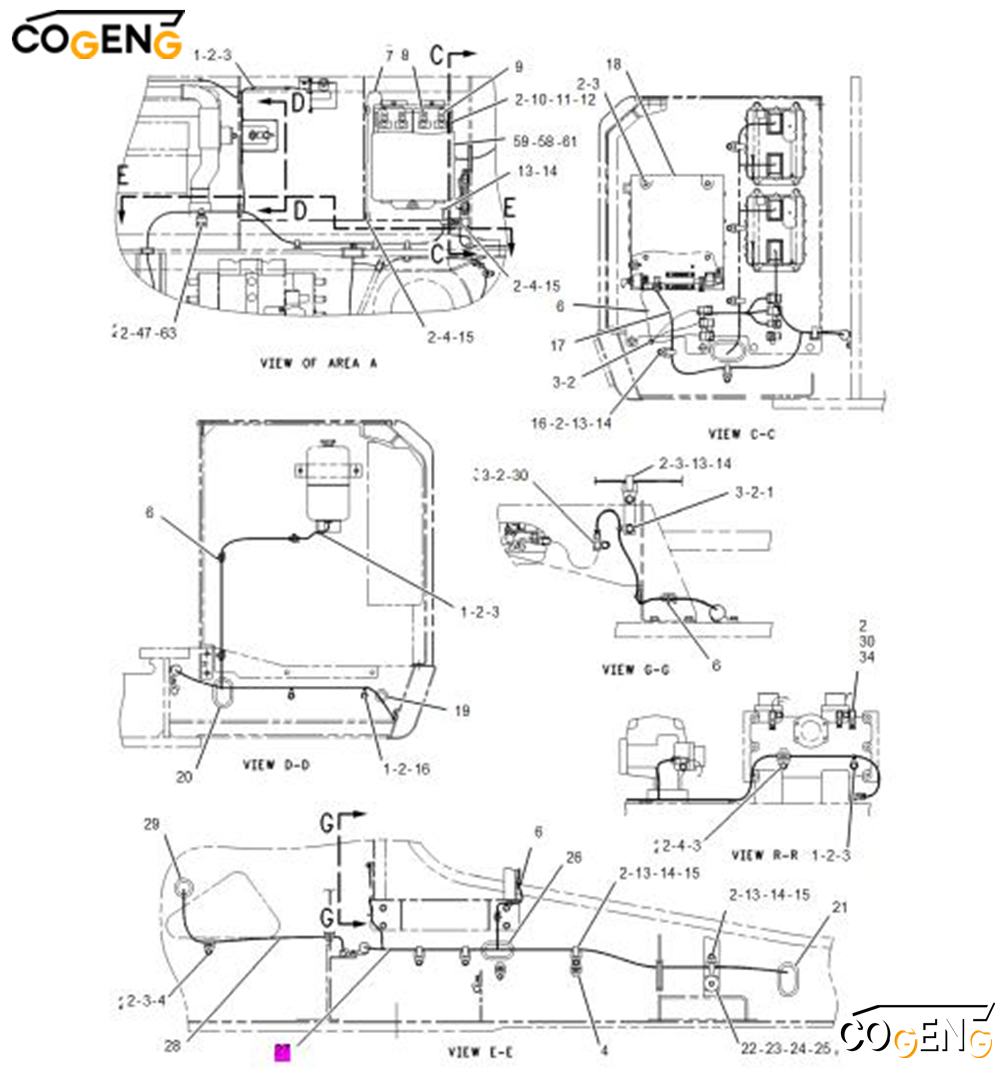

Installation decomposition diagram
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,? ?we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
