215-3249 Caterpillar Wiring Harness CAT 330C 330D 336D2 340DL
Product name: Caterpillar Wiring Harness
Part No: 215-3249 2153249
Model Number:For 330C 330CFM 330CL 330CLN 330CMH 330D 330DFM 330DL 330DLN 330DMH 336D2 LXE 336D2XE 336D 336DL 336DLN 340DL
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Detailed Specification |
| COGENG Part Number |
CG-CAT-2153249 |
| OEM Reference Number |
215-3249 |
| Compatible Models |
Caterpillar 330C, 330D, 336D2, 340DL Excavators |
| Machine Weight Range |
30-45 Ton Class Excavators |
| Wire Insulation Material |
Oil-Resistant Cross-Linked Polyethylene (XLPE) |
| Connector Protection Rating |
IP66 (Dust Tight & Powerful Water Jet Resistant) |
| Operating Temperature Range |
-40°C to 125°C |
| System Voltage Rating |
24V DC System |
| Quality Verification |
100% Circuit Continuity & Insulation Tested |
| Warranty Protection |
18-Month Limited Warranty |

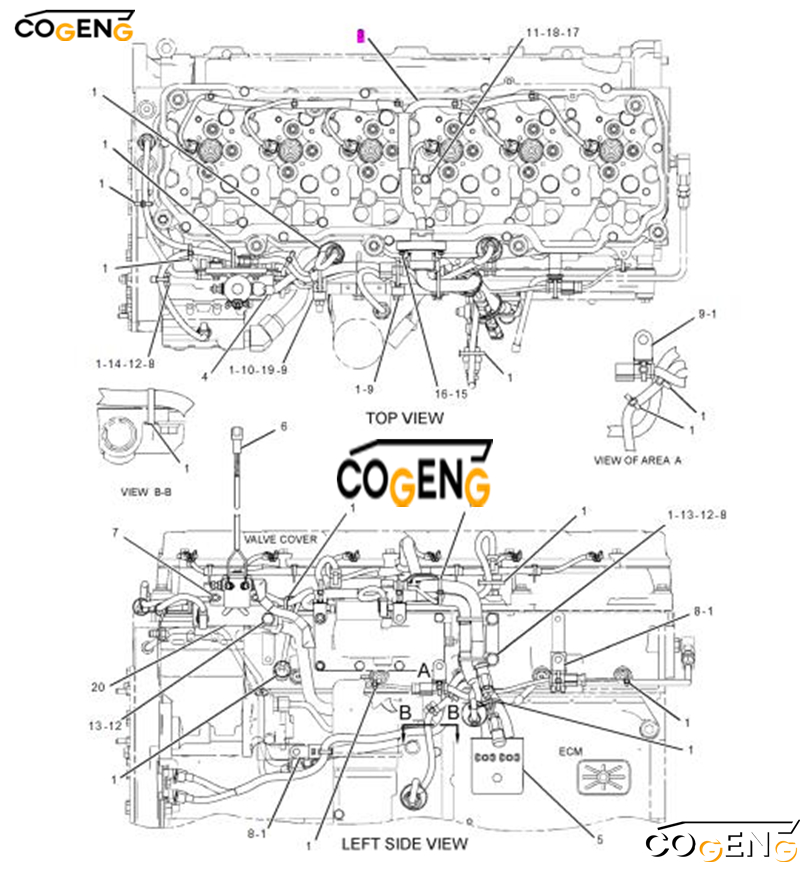

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| Grp |
204-3604 |
WIRING GP-ELECTRONIC CONTROL |
|
| 1 |
3S-2093 |
STRAP-CABLE |
25 |
| 2 |
215-3249 |
HARNESS AS-ENGINE |
1 |
| 3 |
226-0903 |
CABLE AS |
1 |
| 4 |
230-6279 |
HARNESS AS-ENGINE |
1 |
| 5 |
209-5582 |
SWITCH GP-MAGNETIC |
1 |
| 5 |
195-7226 |
HARNESS AS-ENGINE |
1 |
| 6 |
208-9277 |
BOLT-FLANGE HEAD |
2 |
| 7 |
4P-7581 |
CLIP |
5 |
| 8 |
4P-8134 |
CLIP |
3 |
| 9 |
5P-7970 |
NUT |
1 |
| 10 |
6V-4369 |
WASHER |
4 |
| 11 |
6V-6317 |
BOLT |
3 |
| 12 |
8T-4137 |
BOLT |
1 |
| 13 |
8T-0328 |
WASHER-HARD |
1 |
| 14 |
7I-2272 |
BOLT |
2 |
| 15 |
8T-4205 |
WASHER-HARD |
1 |
| 16 |
9M-1974 |
WASHER-HARD |
1 |
| 17 |
105-1797 |
MOUNT |
5 |
| 18 |
9X-3401 |
PIN-CONNECTOR |
12 |
| 19 |
126-1767 |
PIN-CONNECTOR |
12 |
| 20 |
191-7823 |
RECEPTACLE AS |
1 |
| 21 |
307-8428 |
GASKET |
1 |
| 22 |
3S-2093 |
STRAP-CABLE |
5 |
Installation decomposition diagram
-
Disconnect battery and main power sources before installation
-
Follow model-specific OEM routing paths and mounting positions
-
Ensure all connectors are fully engaged and locking mechanisms secured
-
Verify proper harness routing away from heat sources and moving components
-
Perform comprehensive system diagnostic after installation
