COGENG 20Y-06-24742 Main Wiring Harness Komatsu PC200-6 PC220-6

Language

English

IsiXhosa saseMzantsi Afrika

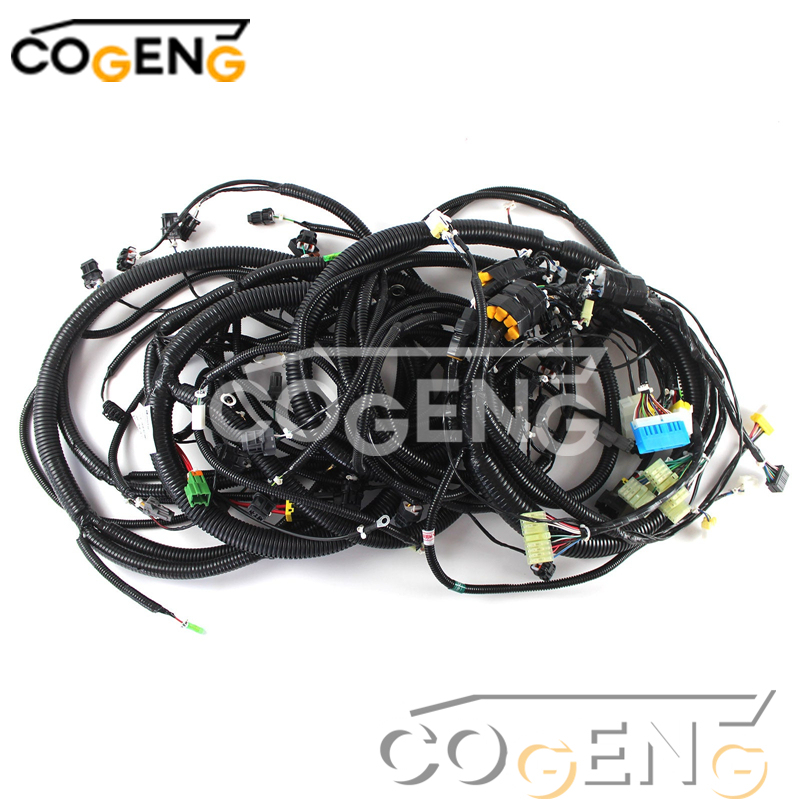

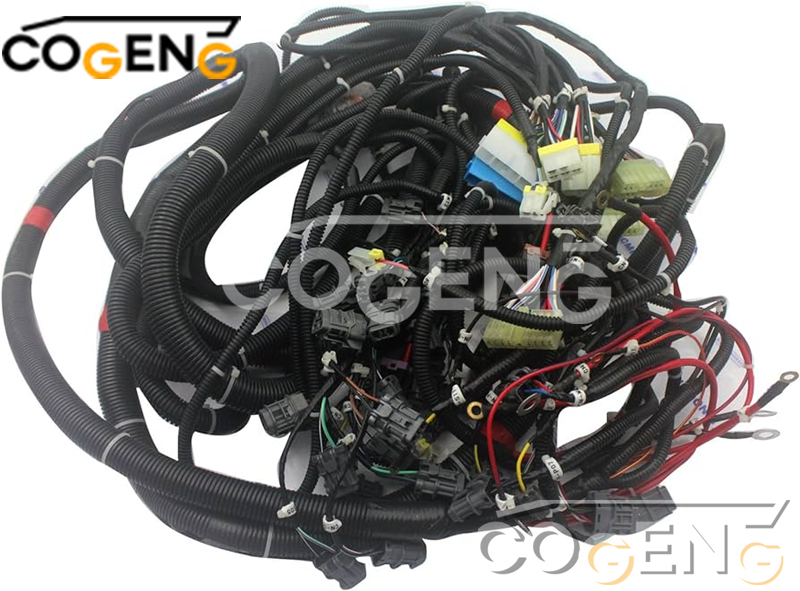

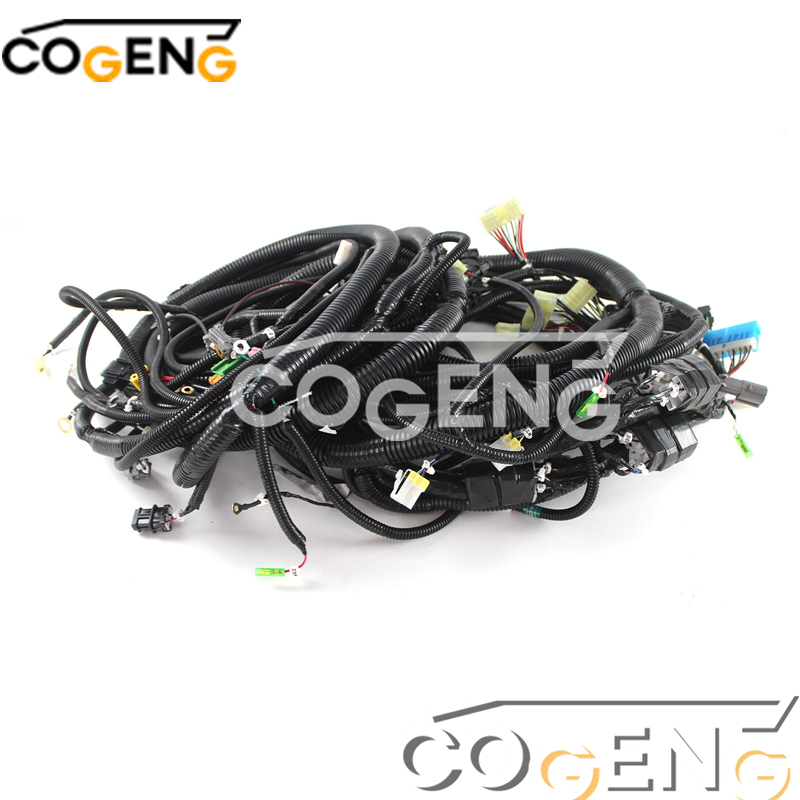

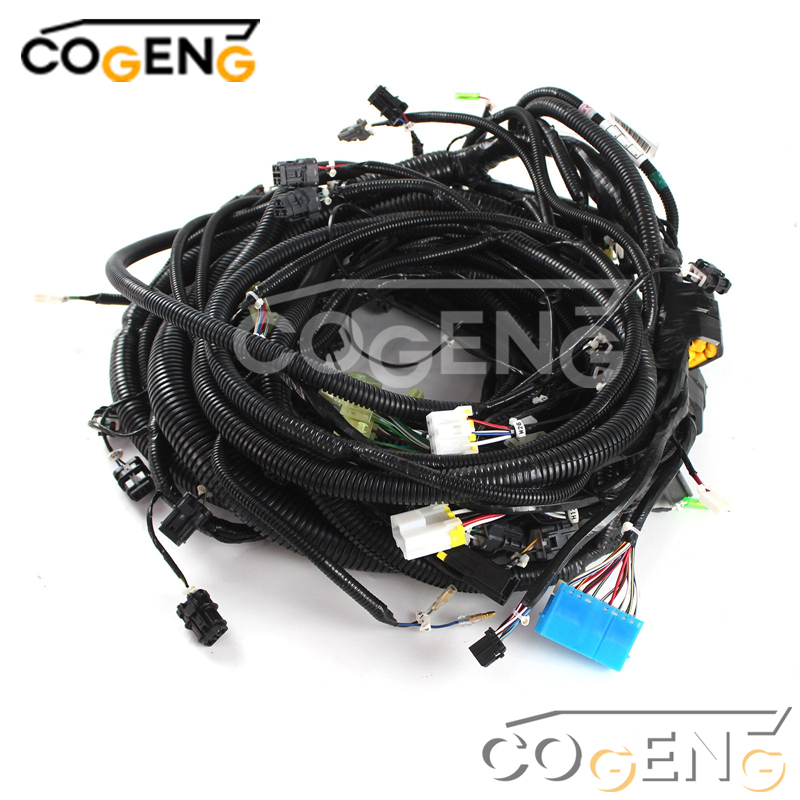

COGENG 20Y-06-24742 (20Y0624742) Komatsu Wiring Harness | Direct OEM Replacement for Komatsu Equipment

Name: COGENG 20Y-06-24742 (20Y0624742) Komatsu Wiring Harness | Direct OEM Replacement for Komatsu Equipment
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol

Product name: Komatsu Wiring Harness

Part No: 20Y-06-24742 20Y0624742

Model Number:For PC200-6 PC200LC-6 PC210-6 PC210LC-6 PC220-6 PC220LC-6 PC250HD-6

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Specification Category	Detailed Specification
COGENG Part Number	CG-KOM-20Y0631110
OEM Reference Number	20Y-06-31110
Construction Standard	Komatsu OEM Specifications
Wire Insulation Material	Oil-Resistant Cross-Linked Polyethylene (XLPE)
Connector Protection Rating	IP66 (Dust Tight & Powerful Water Jet Resistant)
Operating Temperature Range	-40°C to 125°C
System Voltage Rating	24V DC System
Wire Gauge Compliance	Meets Komatsu Original Specifications
Quality Verification	100% Circuit Continuity & Insulation Tested
Warranty Protection	18-Month Limited Warranty

Decompose pictures

✅ Exact OEM Fit | No Modifications Required
Proven Reliability | 5,000+ Hours Field Testing
Complete Circuit Coverage | All Machine Systems
Quality Materials | Industrial Grade Components

Parts list

NO	Number	Name	Qty
1	20Y-06-24742	WIRING HARNESS	1
	20Y-06-15150	• FUSIBLE LINK	2
2	08036-02514	CLIP	1
3	144-947-3490	SPACER	1
4	01010-81245	BOLT	1
5	01643-31232	WASHER	1
6	20Y-06-21240	PLATE	1
7	01010-81225	BOLT	1
8	01643-31232	WASHER	1
9	08036-02514	CLIP	1
10	01010-81225	BOLT	1
11	01643-31232	WASHER	1
12	08036-01014	CLIP	1
13	01010-81225	BOLT	1
14	01643-31232	WASHER	1
15	08036-02514	CLIP	1
16	01010-81230	BOLT	1
17	01643-31232	WASHER	1
18	08036-02514	CLIP	2
19	01010-81225	BOLT	2
20	01643-31232	WASHER	2
21	08036-01814	CLIP	2
22	01010-81225	BOLT	2
23	01643-31232	WASHER	2
24	08036-01414	CLIP	1
25	01010-81225	BOLT	1
26	01643-31232	WASHER	1
27	08036-01214	CLIP	2
28	01010-81225	BOLT	2
29	01643-31232	WASHER	2

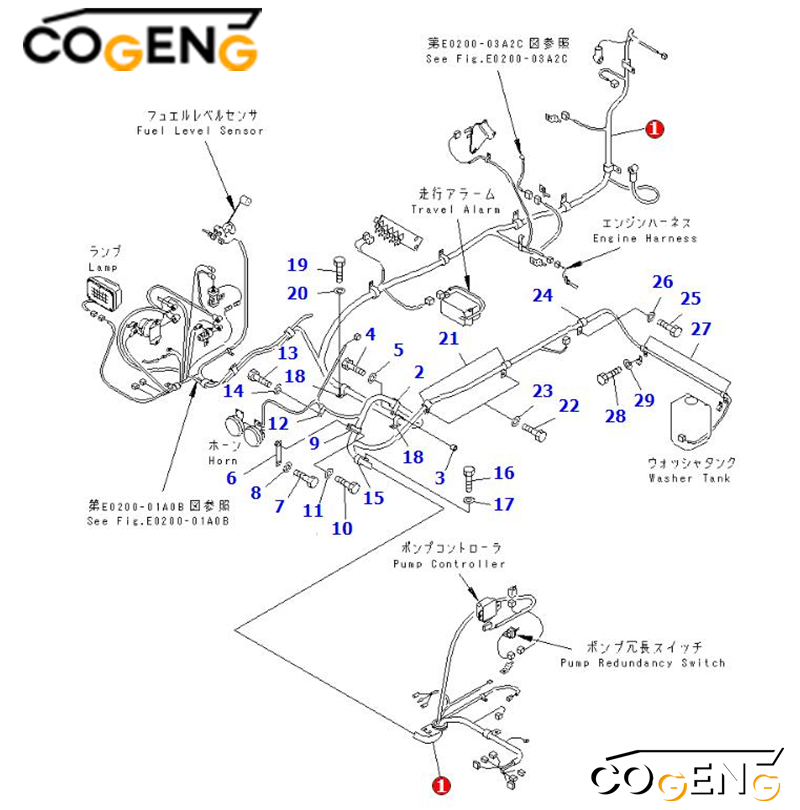

Installation decomposition diagram

Disconnect battery and main power sources before installation
Follow OEM routing paths and secure with original mounting hardware
Ensure all connectors are fully engaged and locking mechanisms secured
Verify proper clearance from moving parts and hot surfaces
Test all electrical functions and system diagnostics after installation

Frequently Asked Questions

A. When will get the items after I place order?

Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order.

A. If I only know the excavator model, but can not offer parts No.,what should I do ?

Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality?

Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address?

Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?

Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement?

Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?

Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?

Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.

A : Which payment terms can you accept?

Q : Paypal. Western Union, Bank Transfer, T/T...
