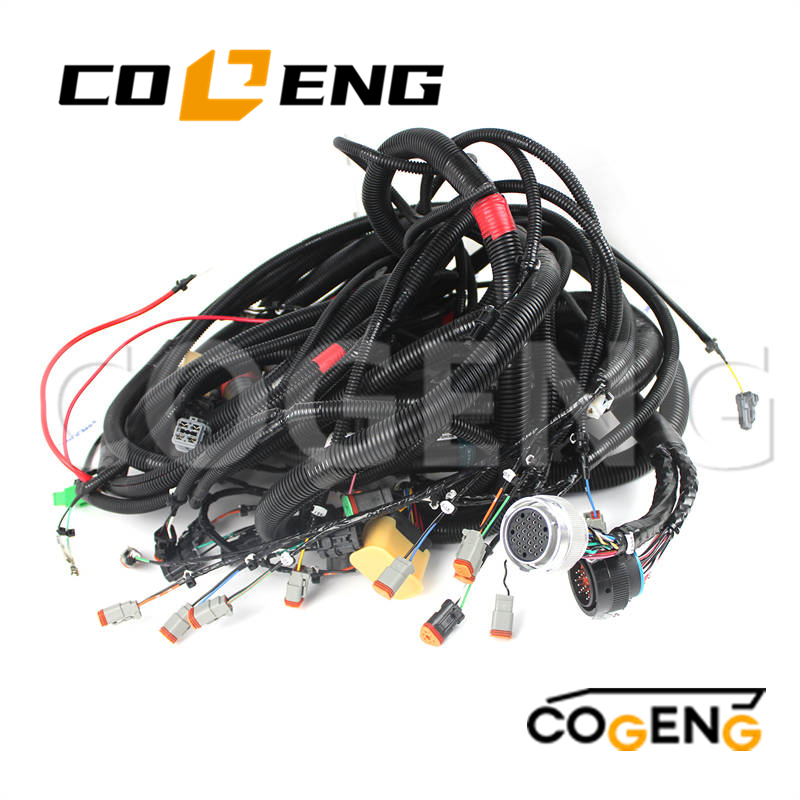

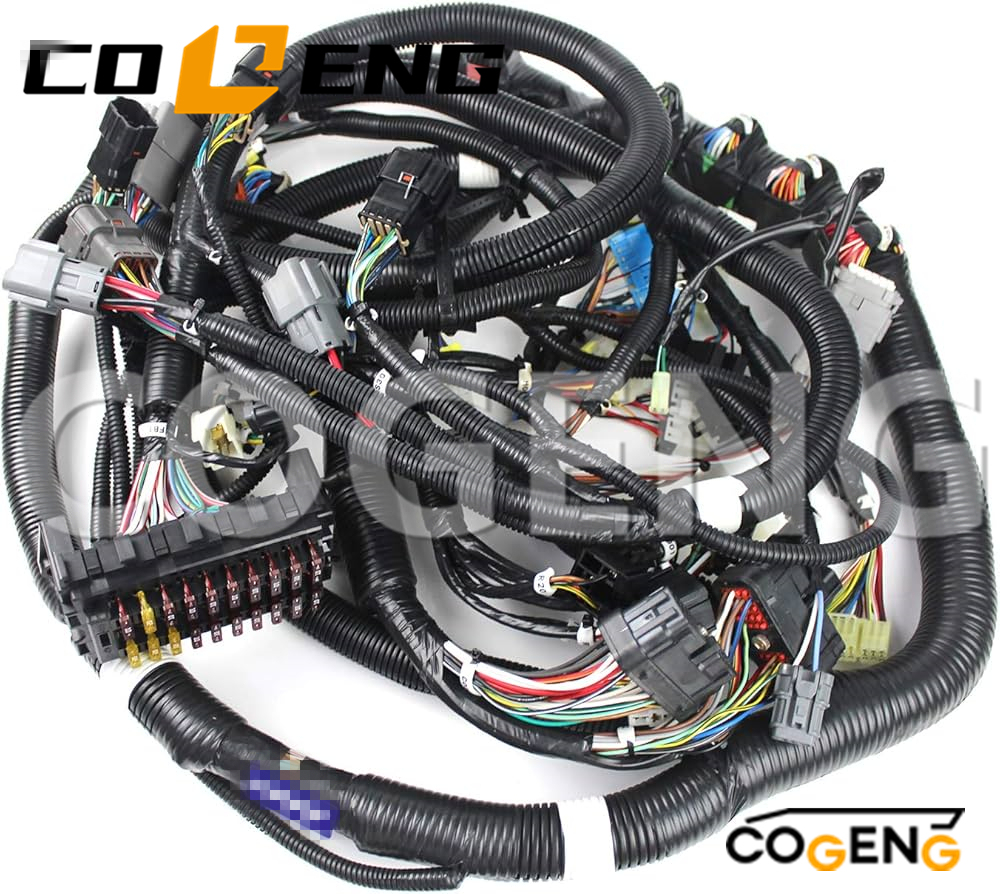

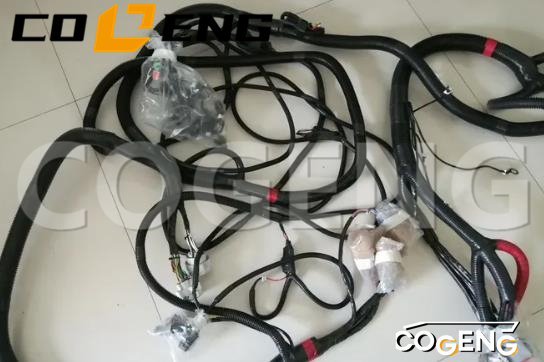

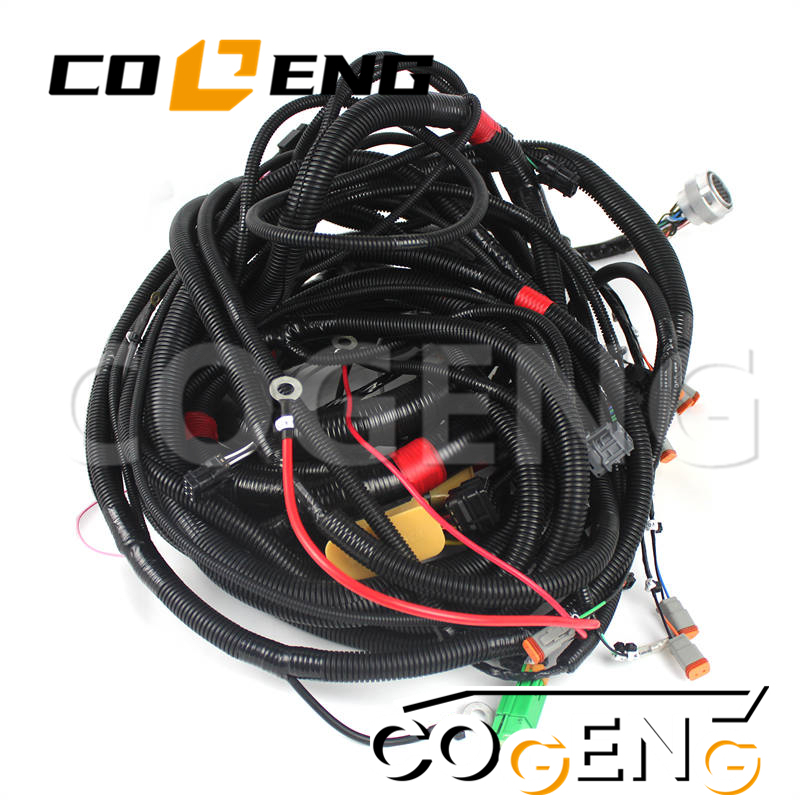

COGENG 208-06-71113 208-06-71112 208-06-71812 Premium External Wiring Harness

Name: COGENG 208-06-71113 208-06-71112 208-06-71812 Premium External Wiring Harness
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Komatsu Wiring Harness
Part No: 208-06-71113 2080671113
Model Number:For PC400 PC450
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Technical Specifications & Performance Data

Parameter	Specification	Testing Standard
COGENG Part Number	COGENG-208-06-71113-EWH	Internal Quality Standard QS-516
Replaces OEM Part No.	Komatsu 208-06-71113	Direct OEM Replacement
Wire Gauge Range	0.5 mm² - 16.0 mm²	ISO 6722
Temperature Rating	-40°C to +105°C (-40°F to +221°F)	ISO 16750-4
Insulation Material	Cross-linked polyethylene	UL 224
Protective Conduit	Corrugated PA66	ISO 6722 Class B
Voltage Rating	24V DC	IEC 60589
Current Capacity	5A - 80A (circuit dependent)	ISO 3780
Insulation Resistance	>100 MΩ at 1000V DC	IEC 60851
Dielectric Strength	1500V AC for 60 seconds	ISO 1456
Connector System	Komatsu weatherproof series	USCAR-2
Waterproof Rating	IP67 (connectors)	IEC 60529
Vibration Resistance	10-2000 Hz, 15G RMS	ISO 19453

Circuit Specifications Table

Circuit Function	Wire Gauge	Color Code	Connector Type	Application
Main Power Feed	16.0 mm²	Red	Ring terminals	Battery to main relay
Starter Control	4.0 mm²	Purple	Spade connectors	Starter solenoid
Lighting Circuits	2.0 mm²	White/Black	6-pin connector	Work lights, markers
Sensor Circuits	0.75 mm²	Various	4-pin weatherpack	Temperature, pressure
Monitor System	0.5 mm²	Gray/Brown	16-pin connector	Display & indicators
Safety Systems	1.0 mm²	Green/White	4-pin connector	Emergency stops
Ground Distribution	16.0 mm²	Black	Multiple points	Chassis ground
CAN Bus System	0.75 mm²	Orange/Brown	Twisted pair shielded	Data communication

Compatible Excavator Models

Model Series	Specific Models	Manufacture Years	Serial Number Range
Komatsu PC400-7	PC400-7 Standard	2006-2010	70001-73000
Komatsu PC400-7	PC400-7 Dash 3	2007-2011	73001-76000
Komatsu PC400-7	PC400-7 Dash 5	2008-2012	76001-79000
Komatsu PC450-7	PC450-7 Standard	2007-2011	450001-452500
Komatsu PC450-7	PC450-7 Dash 3	2008-2012	452501-455000

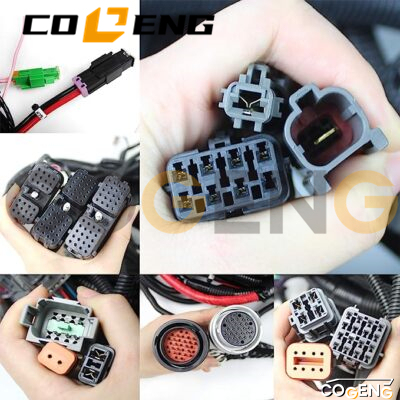

Connector Specifications

Connector Type	Position	Pin Count	Sealing Rating	Application
K-104	Engine Compartment Left	12-pin	IP67	Main sensor cluster
K-87	Cab Entry Right	8-pin	IP67	Control inputs
K-156	Rear Frame Center	6-pin	IP69K	Lighting system
K-92	Hydraulic Valve Bank	16-pin	IP67	Solenoid controls
K-203	Monitor Panel	24-pin	IP65	Display system

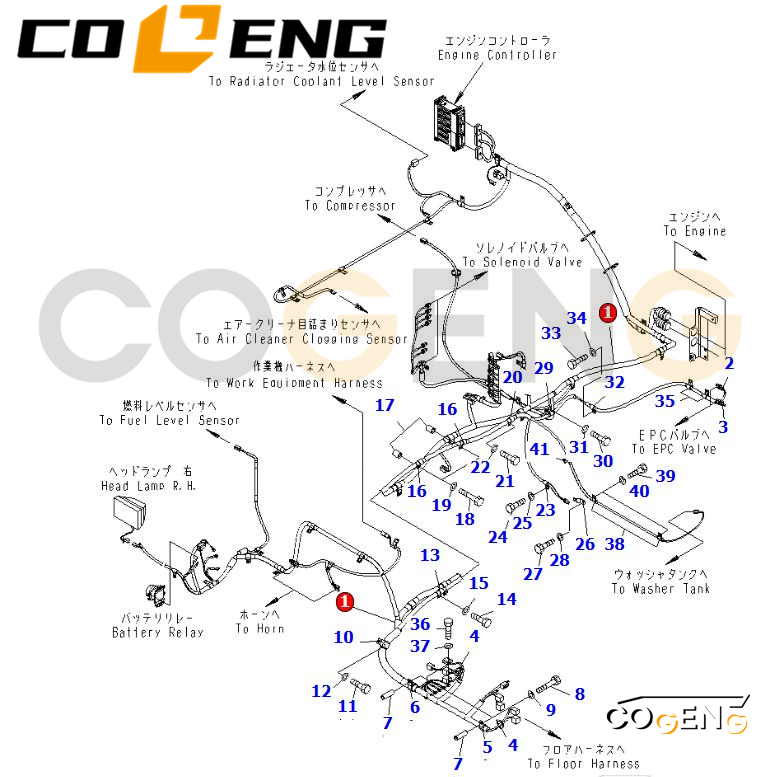

Decompose pictures

Parts list

NO	Number	Name	Qty
1	208-06-71113	WIRING HARNESS	1
	208-06-71112	WIRING HARNESS	1
	20Y-06-31660	• FUSIBLE LINK, 30A	1
	22U-06-11270	• FUSIBLE LINK, 65A	1
2	20Y-62-22790	• BAND, RED	1
3	20Y-62-22830	• BAND, WHITE	1
4	08034-20519	BAND	2
5	04434-52312	CLIP	1
6	04434-53412	CLIP	1
7	195-979-3570	COLLAR	2
8	01010-81290	BOLT	2
9	01643-31232	WASHER	2
10	04434-53412	CLIP	1
11	01010-81225	BOLT	1
12	01643-31232	WASHER	1
13	04434-51912	CLIP	1
14	01010-81225	BOLT	1
15	01643-31232	WASHER	1
16	04434-51912	CLIP	2
17	142-03-11160	SPACER	2
18	01010-81260	BOLT	2
19	01643-31232	WASHER	2
20	04434-51912	CLIP	1
21	01010-81225	BOLT	1
22	01643-31232	WASHER	1
23	04434-51012	CLIP	1
24	01010-81220	BOLT	1
25	01643-31232	WASHER	1
26	08193-21012	CLIP	1
27	01010-81220	BOLT	1
28	01643-31232	WASHER	1
29	04434-51412	CLIP	1
30	01010-81225	BOLT	1
31	01643-31232	WASHER	1
32	04434-51410	CLIP	1
33	01010-81025	BOLT	1
34	01643-31032	WASHER	1
35	04434-51412	CLIP	2
36	01010-81020	BOLT	6
37	01643-31032	WASHER	6
38	04434-51012	CLIP	2
39	01010-81225	BOLT	2
40	01643-31232	WASHER	2
41	04434-51012	CLIP	1

Installation decomposition diagram

Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
