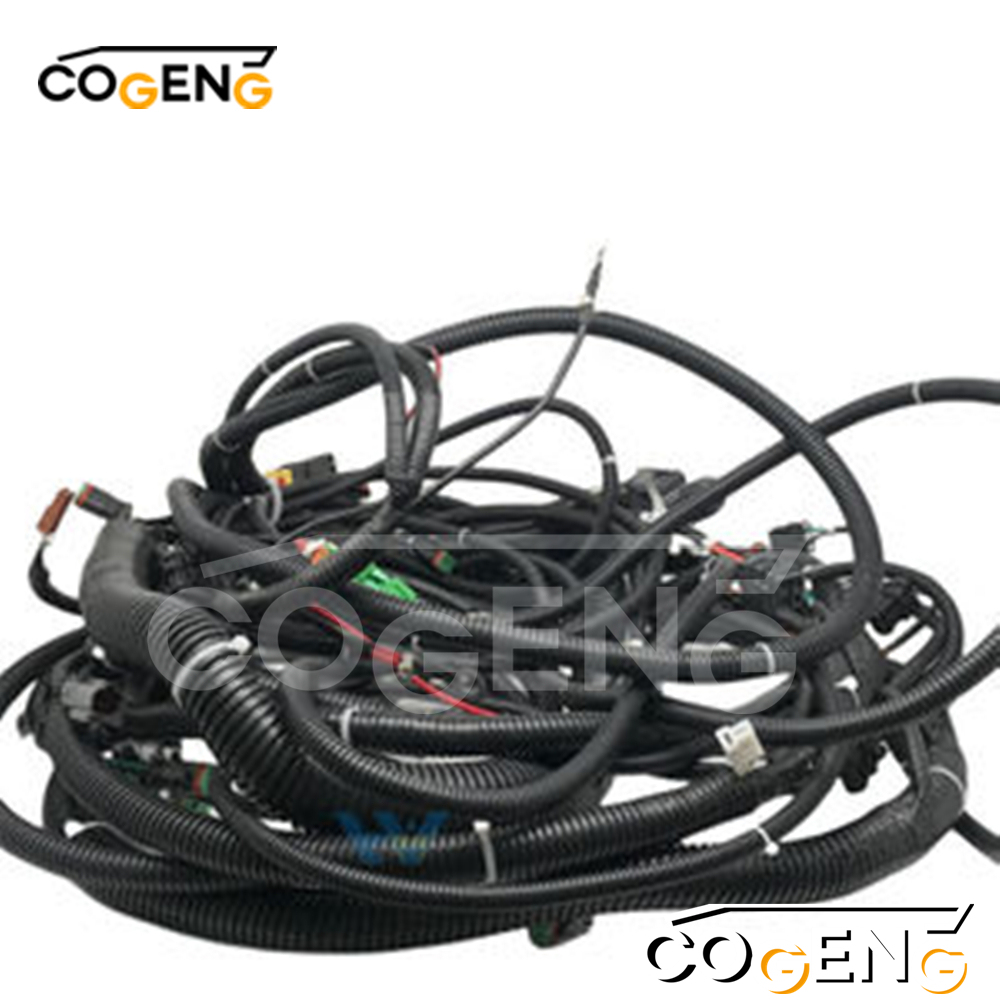

207-06-75111 KOMATSU Wiring Harness PC300-7E0 PC350-7E0LC
Product name: KOMATSU Wiring Harness
Part No: 207-06-75111
Model Number:For PC300-7E0 PC350-7E0LC PC300LC-7E0 PC300HD-7E0 PC300LL-7E0
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Specification Category |
Technical Specifications |
| Compatible Machine Models |
Komatsu PC300-7E0, Komatsu PC350-7E0LC Excavators |
| COGENG Part Number |
CG-KOM-HD-MH15 |
| Replaces OEM Part Number |
207-06-75111 |
| Product Name |
Heavy-Duty Main Wiring Harness Assembly |
| Application Scope |
Complete excavator electrical system integration |
| Wire Specifications |
Military-grade TXL insulation (-50°C to 150°C), extreme oil/fuel/abrasion resistance |
| Connector System |
IP68 rated sealed connectors with advanced locking mechanisms |
| Quality Assurance |
11-stage validation including salt spray corrosion and extended vibration testing |
| Warranty Coverage |
5,000-hour heavy-duty warranty |

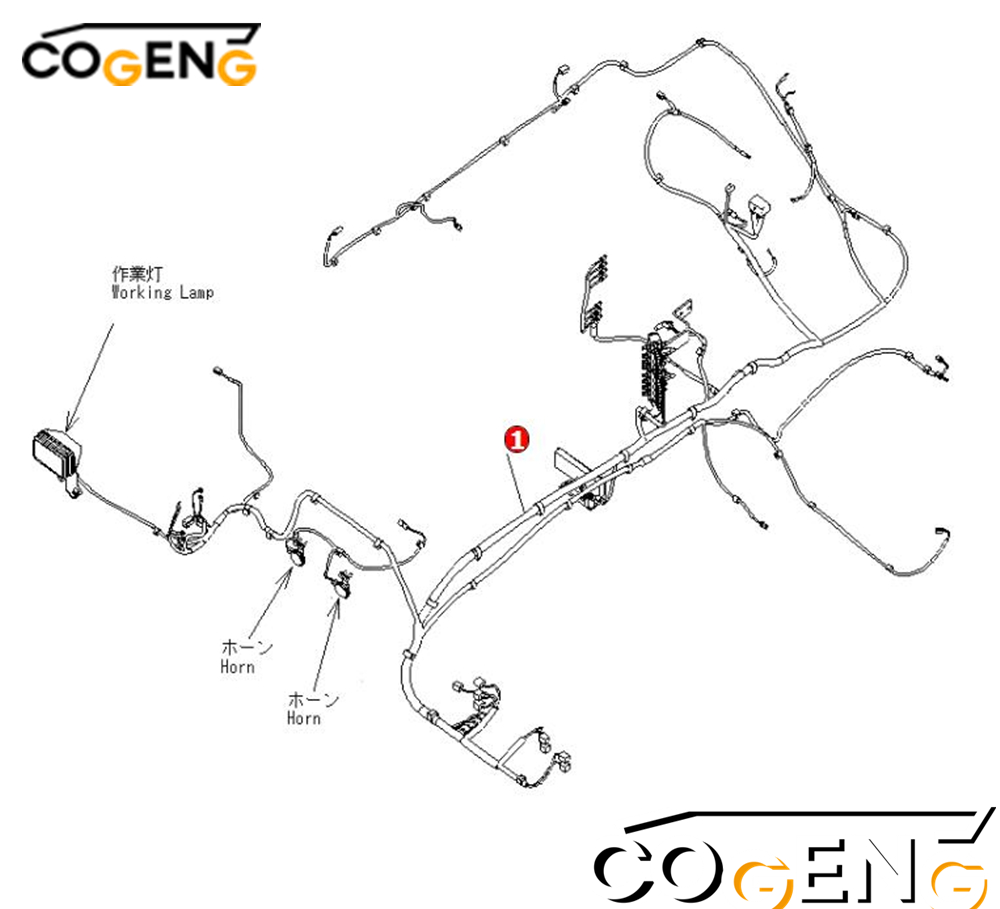

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
207-06-75111 |
WIRING HARNESS |
1 |
|
20Y-06-31660 |
FUSIBLE LINK |
1 |
|
22U-06-11270 |
FUSIBLE LINK |
1 |
Installation decomposition diagram
-
Complete System De-energization: Execute full shutdown procedure including primary and secondary battery disconnection, main power isolation, and verified capacitor discharge period (minimum 20 minutes)
-
Comprehensive Pre-Installation Documentation: Create detailed photographic and video records of existing harness routing, connector orientations, and all mounting point locations
-
Professional Connector Management: Use appropriate tools to release advanced locking mechanisms - identify connector types before disconnection and handle with care
-
Systematic Component Audit: Conduct thorough inspection of all sensors, control modules, and mating connectors for signs of damage, corrosion, or pin deformation
-
Precise OEM Routing Implementation: Follow exact factory routing path, ensuring proper seating in all clamps, guides, and protective conduits while maintaining critical clearances
-
Advanced Connection Verification: Implement sequential connection process using provided checklist, verifying all connectors achieve positive lock engagement and seal compression
-
Comprehensive System Commissioning: Perform staged power-up sequence, system initialization, and complete functional validation using official Komatsu diagnostic equipment
