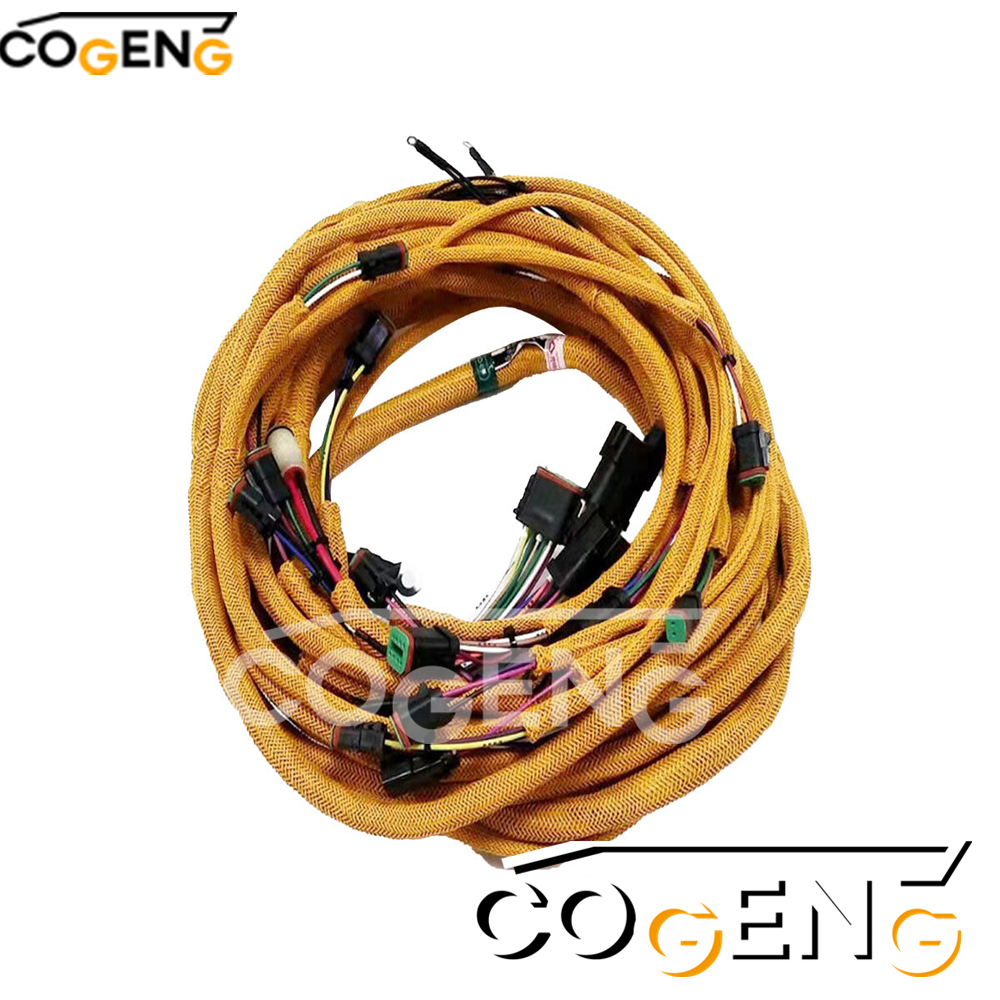

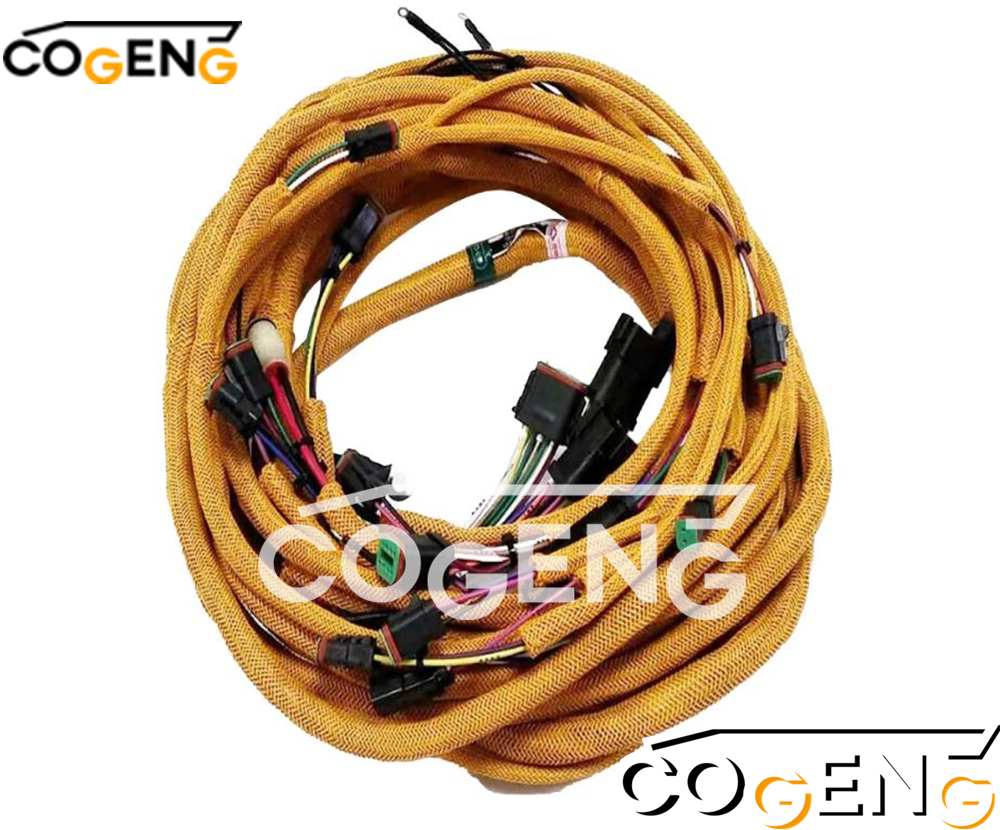

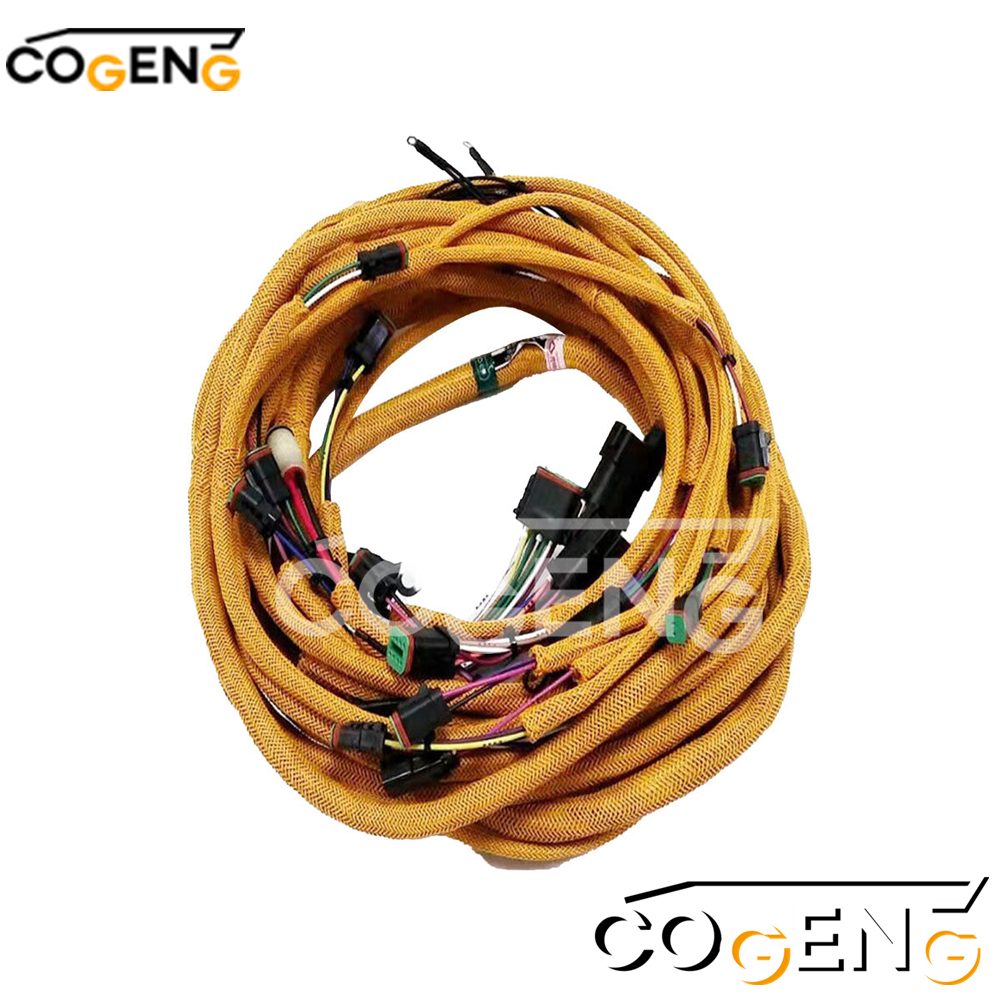

204-1730 Caterpillar Wiring Harness CAT 365B 365BII 365BL
Product name: Caterpillar Wiring Harness
Part No: 204-1730 2041730
Model Number:For 365B 365BII 365BL
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
| Category |
Specification |
| COGENG Part Number |
CG-CAT-2041730 |
| OEM Reference |
204-1730 |
| Compatible Models |
Caterpillar 365B, 365BII, 365BL Mining Excavators |
| Construction Standard |
Caterpillar Mining Application Specification |
| Wire Type |
Mining-Grade XLPE (Cross-Linked Polyethylene) |
| Temperature Range |
-50°C to 160°C |
| Voltage Rating |
24V DC System (Heavy-Duty Rating) |
| Insulation Class |
Class H (180°C) |
| Protection Rating |
IP68 Connectors (Submersible Rated) |

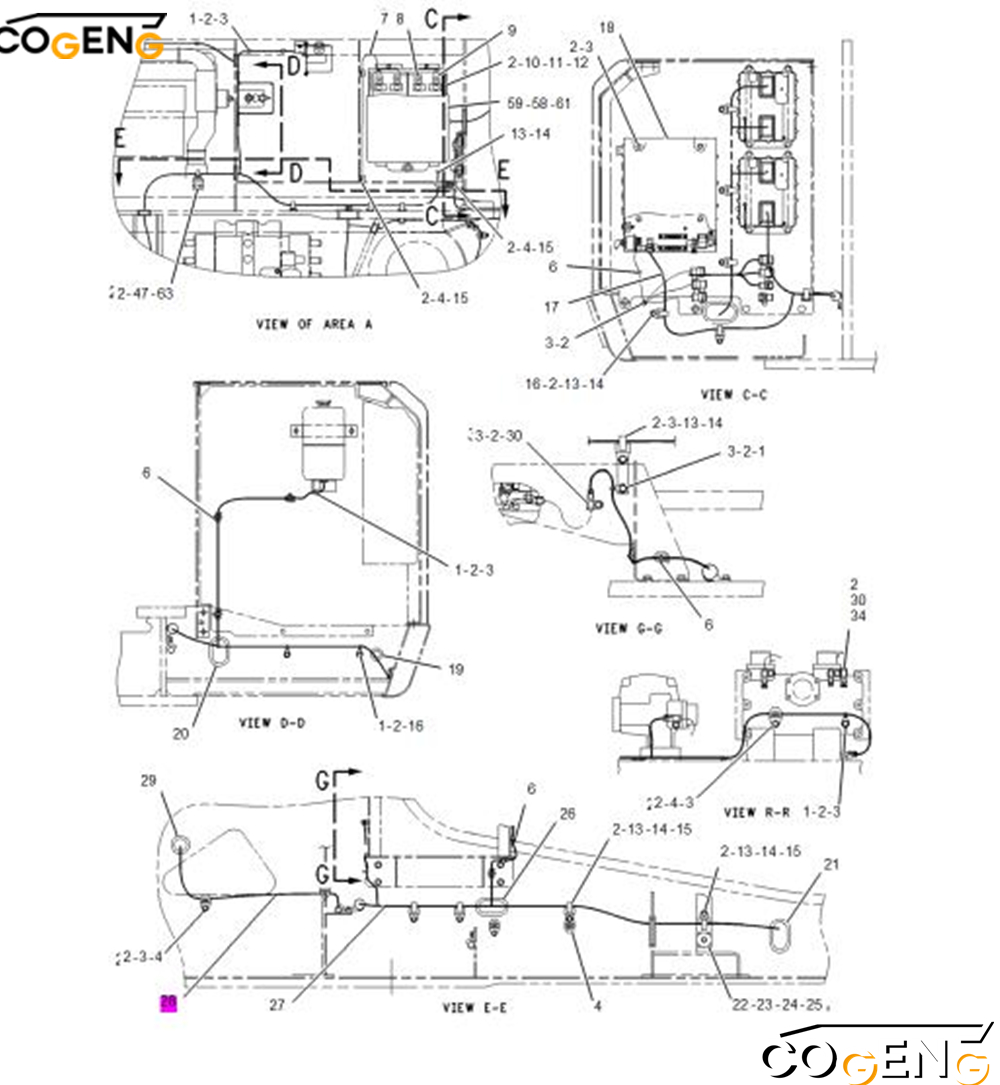

Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| Grp |
211-3439 |
BATTERY & WIRING GP |
|
| 1 |
111-4836 |
CLIP |
16 |
| 2 |
8T-4121 |
WASHER-HARD |
100 |
| 3 |
8T-4137 |
BOLT |
53 |
| 4 |
111-4837 |
CLIP |
38 |
| 5 |
4I-5426 |
GROMMET |
1 |
| 6 |
3S-2093 |
STRAP-CABLE |
37 |
| 7 |
149-4989 |
CABLE AS |
1 |
| 8 |
8V-0622 |
CABLE AS-BATTERY |
1 |
| 9 |
116-0081 |
CABLE AS |
1 |
| 10 |
9X-9731 |
BATTERY GP |
2 |
|
7N-0060 |
VENT AS |
6 |
| 11 |
198-7070 |
SUPPORT AS |
1 |
| 12 |
157-4822 |
BOLT |
4 |
| 13 |
111-4838 |
CLIP |
15 |
| 14 |
111-4839 |
STRAP |
15 |
| 15 |
8T-4195 |
BOLT |
19 |
| 16 |
8T-4186 |
BOLT |
6 |
| 17 |
132-1805 |
STRAP AS-GROUND |
1 |
| 18 |
173-0313 |
PANEL GP-CIRCUIT BREAKER |
1 |
| 19 |
5I-8307 |
GROMMET |
1 |
| 20 |
6C-9151 |
GROMMET |
1 |
| 21 |
177-3388 |
GROMMET |
1 |
| 22 |
6G-2256 |
CLAMP |
3 |
| 23 |
6G-2263 |
SPACER |
3 |
| 24 |
6G-2263 |
WASHER |
5 |
| 25 |
8T-4185 |
BOLT |
3 |
| 26 |
149-5083 |
GROMMET |
1 |
| 27 |
216-2134 |
HARNESS AS |
1 |
| 28 |
204-1730 |
HARNESS AS |
1 |
| 29 |
148-5020 |
GROMMET |
2 |
| 30 |
116-0118 |
CLIP |
15 |
| 31 |
149-4993 |
STRAP AS-GROUND |
1 |
| 32 |
132-1843 |
BRACKET AS |
1 |
| 33 |
161-3064 |
BRACKET AS |
1 |
| 34 |
8T-4191 |
BOLT |
6 |
| 35 |
5I-3878 |
GROMMET |
2 |
| 36 |
170-9469 |
HARNESS AS |
1 |
| 37 |
121-1044 |
HARNESS AS-POWER |
1 |
| 38 |
140-0873 |
BRACKET AS |
1 |
| 39 |
6V-3822 |
BOLT |
1 |
| 40 |
216-2129 |
HARNESS AS |
1 |
| 41 |
161-3066 |
BRACKET AS |
1 |
| 42 |
140-0872 |
BRACKET AS |
1 |
| 43 |
153-2579 |
BRACKET AS |
1 |
| 44 |
153-2475 |
BRACKET AS |
1 |
| 45 |
122-0450 |
GROMMET |
1 |
| 46 |
8T-4136 |
BOLT |
8 |
| 47 |
8T-4196 |
BOLT |
2 |
| 48 |
153-2447 |
BRACKET AS |
2 |
| 49 |
197-4450 |
HARNESS AS-VALVE |
1 |
| 50 |
192-8668 |
BRACKET AS |
1 |
| 51 |
153-2450 |
BRACKET AS |
4 |
| 52 |
153-2451 |
BRACKET AS |
1 |
| 53 |
8T-4224 |
WASHER-HARD |
16 |
| 54 |
8T-4189 |
BOLT |
4 |
| 55 |
8T-4199 |
BOLT |
11 |
| 56 |
8T-4200 |
BOLT |
1 |
| 57 |
204-1771 |
PLATE |
1 |
| 58 |
161-3117 |
KNOB AS |
2 |
|
7X-2533 |
BOLT |
1 |
| 59 |
161-3115 |
COVER |
1 |
| 60 |
161-3063 |
BRACKET AS |
1 |
| 61 |
4I-5049 |
NUT-SPACER |
2 |
| 62 |
167-3628 |
HARNESS AS-WIRING |
1 |
|
102-8803 |
KIT-RECEPTACLE |
1 |
| 63 |
148-4808 |
BAR |
1 |
| 64 |
3E-5169 |
GUARD-SWITCH |
1 |
| 65 |
170-2512 |
SWITCH GP-TOGGLE |
1 |
| 66 |
7K-1181 |
STRAP-CABLE |
12 |
| 67 |
109-0361 |
FILM-INSTRUCTION |
1 |
Each COGENG 204-1730 mining harness undergoes comprehensive validation:
-
Extended thermal cycling (-50°C to 160°C)
-
Vibration testing to mining equipment standards
-
Chemical resistance validation
-
High-current carrying capacity verification
-
Connector mating cycle testing
-
Environmental sealing certification
This rigorous testing protocol ensures maximum reliability and safety in the world's most challenging mining applications, providing peace of mind for continuous operation demands.
Installation decomposition diagram
