COGENG 203-06-11730 11731 Wiring Harness Set Komatsu PC130-8 OEM

Language

English

IsiXhosa saseMzantsi Afrika

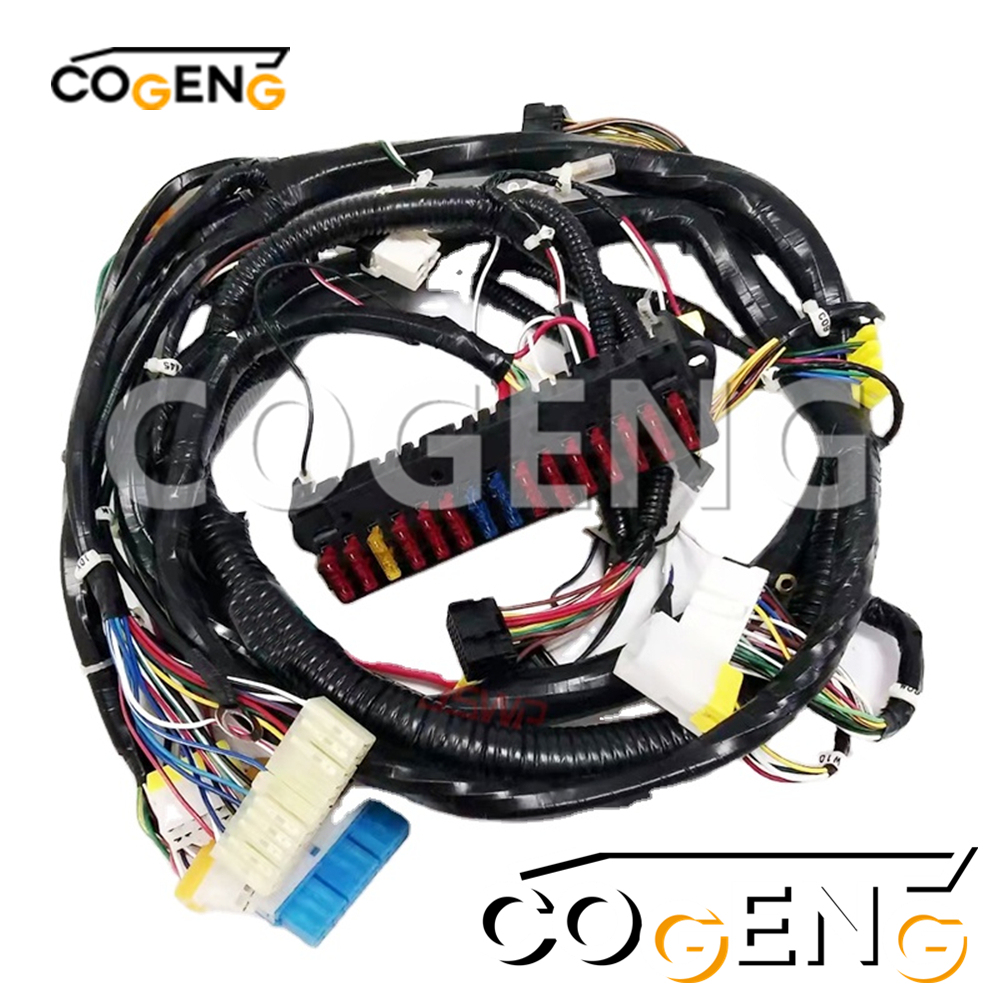

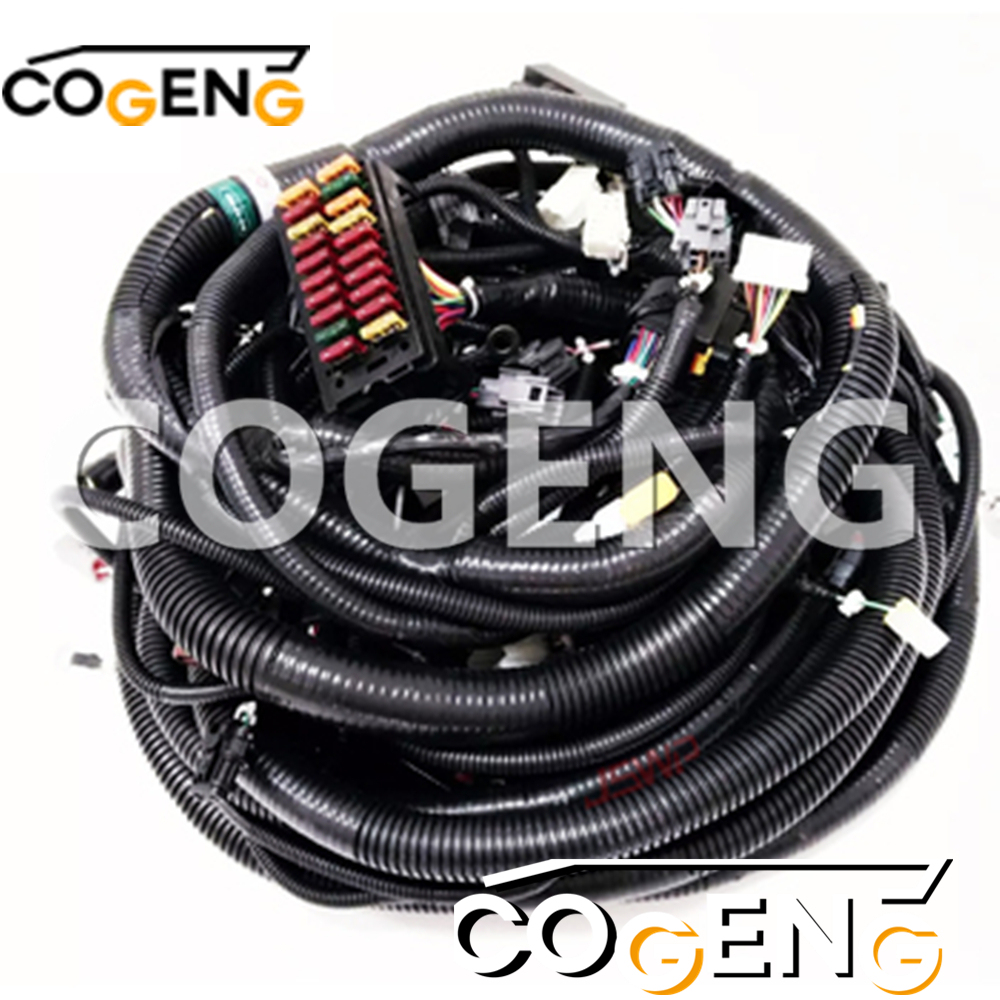

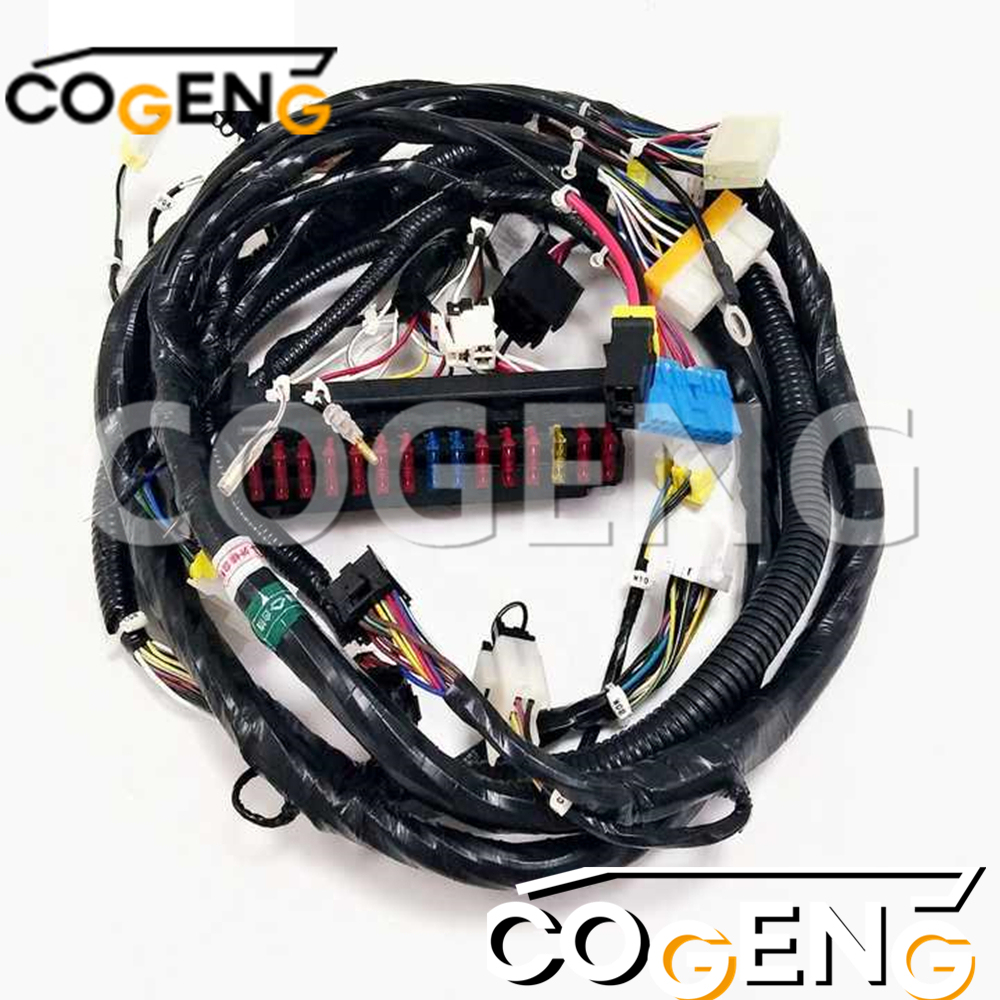

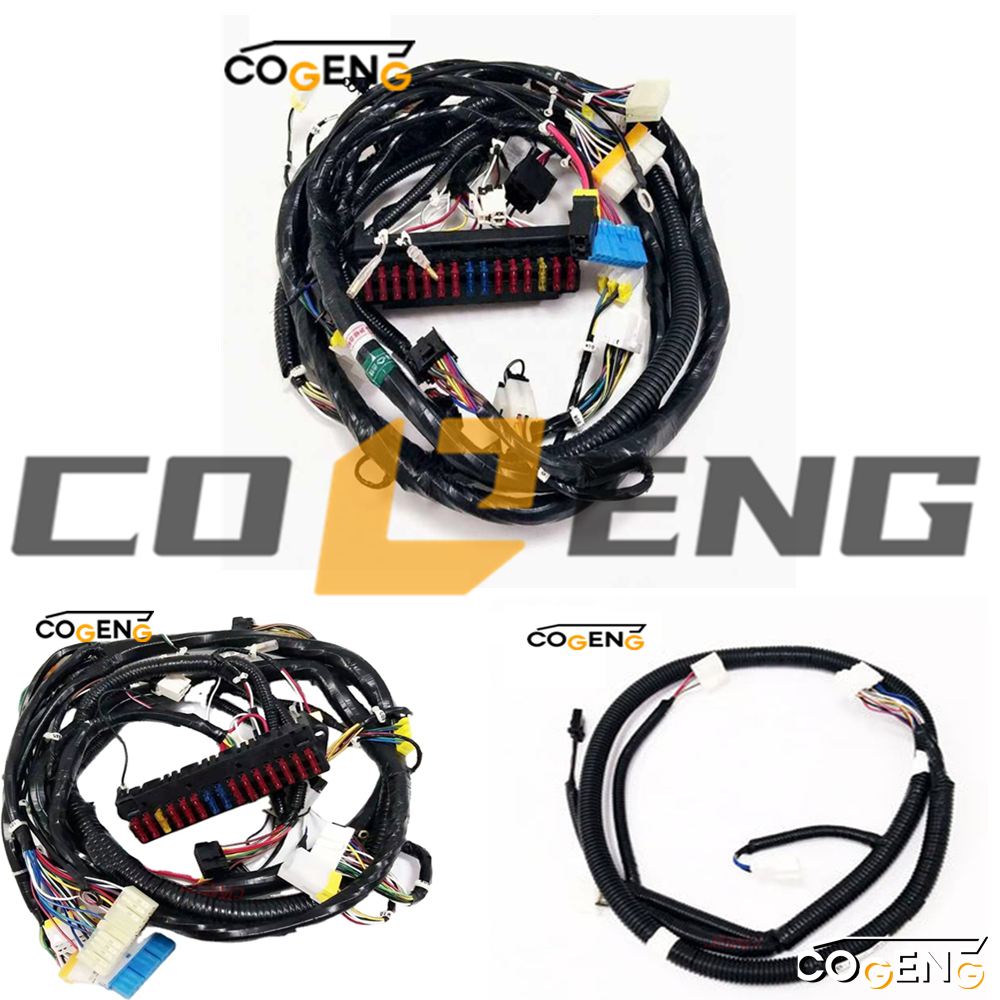

COGENG OEM-Compatible Dual Main Wiring Harness Set for Komatsu Excavators | Replaces 203-06-11730 & 203-06-11731

Name: COGENG OEM-Compatible Dual Main Wiring Harness Set for Komatsu Excavators | Replaces 203-06-11730 & 203-06-11731
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol

Product name: Komatsu Wiring Harness

Part No: 203-06-11730 203-06-11731 2030611730 2030611731

Model Number:For PC130-8

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Category	Specification
COGENG Set Number	CG-KOM-SET-203-11730 CG-KOM-SET-203-11731
OEM References	203-06-11730 203-06-11731
Compatible Model	Komatsu PC130-8
Machine Class	13-Ton Compact Excavator
Generation	Dash-8 Series
Wire Insulation	Oil-Resistant XLPE
Connector Rating	IP67 (Waterproof & Dustproof)
Temperature Range	-40°C to 125°C
Voltage Rating	24V DC System
Quality Validation	100% Paired Circuit Testing
Warranty Coverage	18-Month Limited Warranty

Decompose pictures

Parts list

NO	Number	Name	Qty
1	203-06-11430	Bracket	1
2	01010-81230	Bolt	2
3	01643-31232	Washer	2
4	203-06-11320	Bracket	1
5	01010-81230	Bolt	2
6	01643-31232	Washer	2
7	6251-81-7210	Cushion	8
8	01010-80850	Bolt	4
9	01643-30823	Washer	4
10	203-06-17220	Bracket	1
10	203-06-11330	Bracket	1
11	01010-80850	Bolt	4
12	01643-30823	Washer	4
13	08057-00812	Plate	1
14	01010-81225	Bolt	1
15	01643-31232	Washer	1
16	8288-43-1120	Bracket	1
16	21T-38-71260	Bracket	1
17	01010-81230	Bolt	1
18	01643-31232	Washer	1
19	04434-53212	Clip	1
20	01010-81220	Bolt	1
21	01643-31232	Washer	1
22	07095-20523	Cushion	1
23	203-06-11290	Bracket	1
24	08057-12010	Clip	1
25	01010-81040	Bolt	1
26	01643-31032	Washer	1
27	01010-81040	Bolt	1
28	01643-31032	Washer	1
29	203-06-11390	Bracket	1
30	01010-81040	Bolt	1
31	01643-31032	Washer	1
32	203-06-11360	Bracket	1
33	01010-81040	Bolt	2
34	01643-31032	Washer	2
35	203-06-11380	Bracket	1
36	01010-81230	Bolt	2
37	01643-31232	Washer	2
38	08057-00812	Plate	1
39	203-06-11731	Wiring Harness	1
40	203-06-11310	Bracket	1

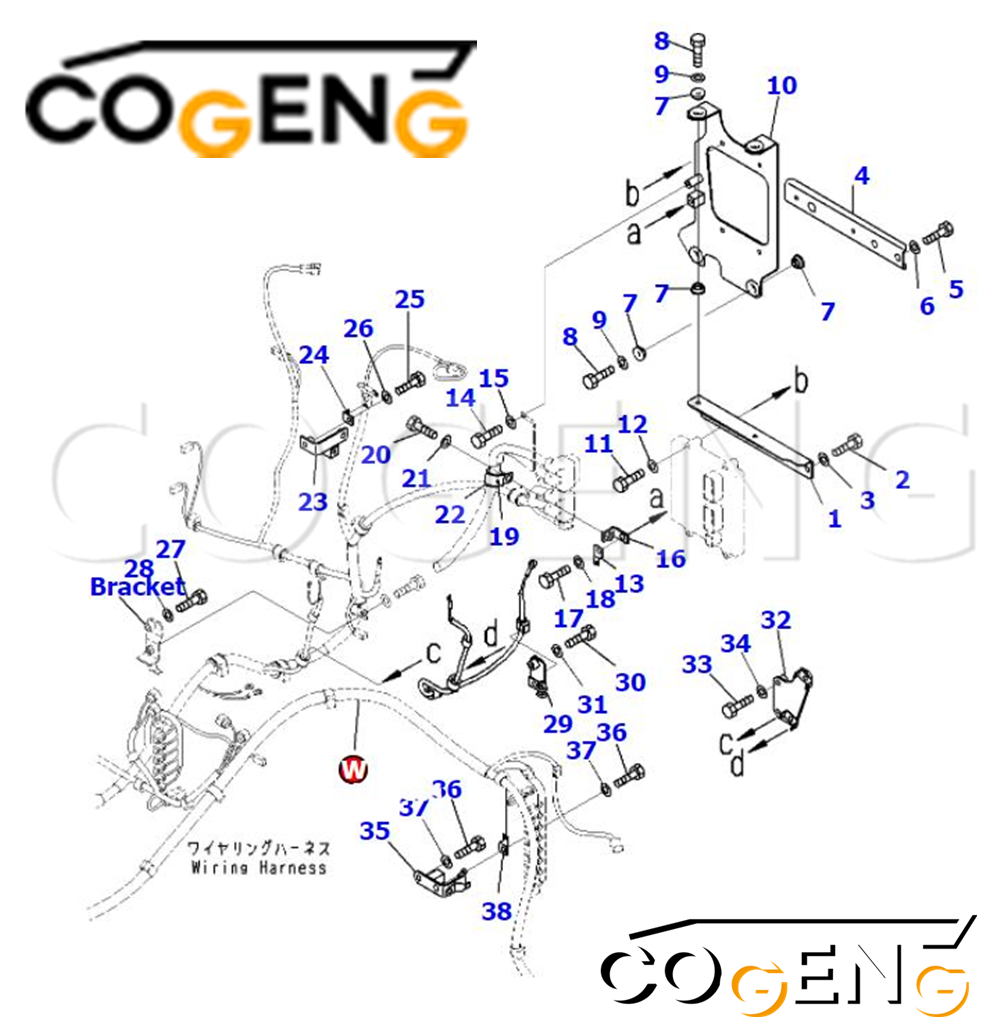

Installation decomposition diagram

Complete machine power shutdown required before installation
Install both harnesses as matched set for optimal performance
Follow PC130-8 specific routing diagrams and mounting positions
Ensure all connectors are fully engaged and locking mechanisms secured
Verify proper clearance in compact engine compartment
Perform comprehensive system diagnostics after installation

Frequently Asked Questions

A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
