| Category | Specification |
|---|---|
| COGENG Set Number | CG-KOM-SET-20311730-11731 |
| OEM References | 203-06-11730 & 203-06-11731 |
| Compatible Model | Komatsu PC130-8 |
| Machine Class | 13-Ton Compact Excavator |
| Generation | Dash-8 Series |
| Wire Insulation | Oil-Resistant XLPE |
| Connector Rating | IP67 (Waterproof & Dustproof) |
| Temperature Range | -40°C to 125°C |
| Voltage Rating | 24V DC System |
| Quality Validation | 100% Paired Circuit Testing |
| Warranty Coverage | 18-Month Limited Warranty |
| NO | Number | Name | Qty |

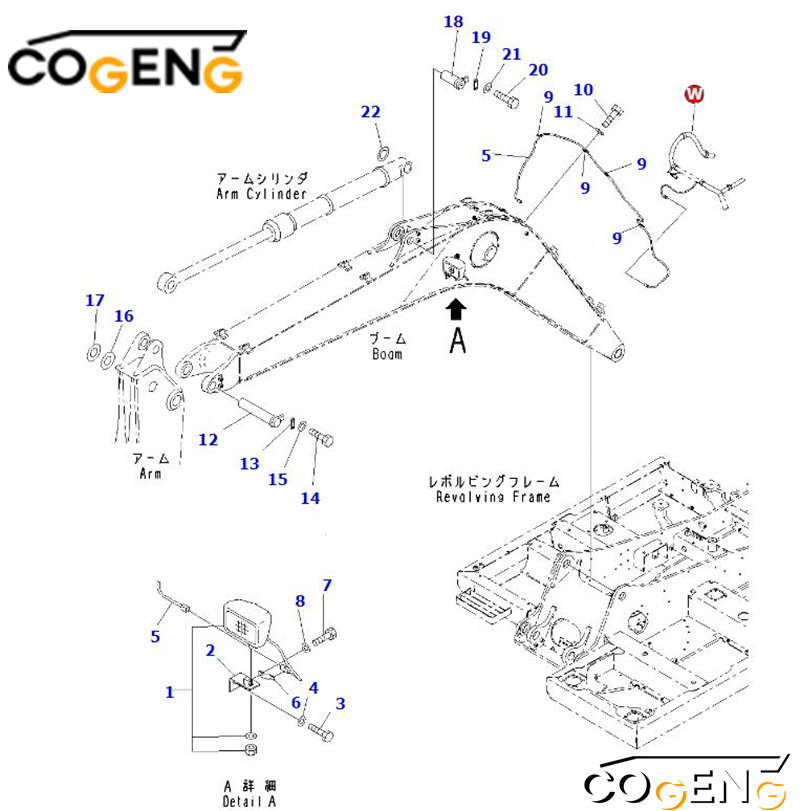

| 1 | 21T-06-32810 | Working Lamp Assembly | 1 |
| 1 | 421-06-23330 | • Bulb, 70watt | 1 |
| 2 | 20Y-06-21551 | Bracket | 1 |
| 3 | 01010-81225 | Bolt | 1 |
| 4 | 01643-31232 | Washer | 1 |
| 5 | 203-06-11140 | Wire | 1 |
| 6 | 08193-21012 | Clip | 1 |
| 7 | 01010-81225 | Bolt | 1 |
| 8 | 01643-31232 | Washer | 1 |
| 9 | 04434-51012 | Clip | 4 |
| 10 | 01010-81020 | Bolt | 1 |
| 11 | 01643-31032 | Washer | 1 |
| 12 | 22B-70-22550 | Pin | 1 |
| 12 | 202-70-61210 | Pin | 1 |
| 13 | 22B-70-22570 | Plate | 1 |
| 13 | 205-70-66580 | Plate | 1 |
| 14 | 01010-81235 | Bolt | 2 |
| 14 | 01010-81230 | Bolt | 2 |
| 15 | 01643-31232 | Washer | 2 |
| 16 | 20U-70-31340 | Spacer, T=1.0mm | 1 |
| 17 | 20U-70-31330 | Spacer, T=0.5mm | 1 |
| 18 | 203-70-42121 | Pin | 1 |
| 19 | 205-70-66580 | Plate | 1 |
| 20 | 01010-81230 | Bolt | 2 |
| 21 | 01643-31232 | Washer | 2 |
| 22 | 21Y-70-14830 | Spacer, T=1.0mm | 1 |
| 23 | 203-06-11730 | Wiring Harness |
Complete machine power shutdown required before installation
Install both harnesses as matched set for optimal performance
Follow PC130-8 specific routing diagrams and mounting positions
Ensure all connectors are fully engaged and locking mechanisms secured
Verify proper clearance in compact engine compartment
Perform comprehensive system diagnostics after installation
