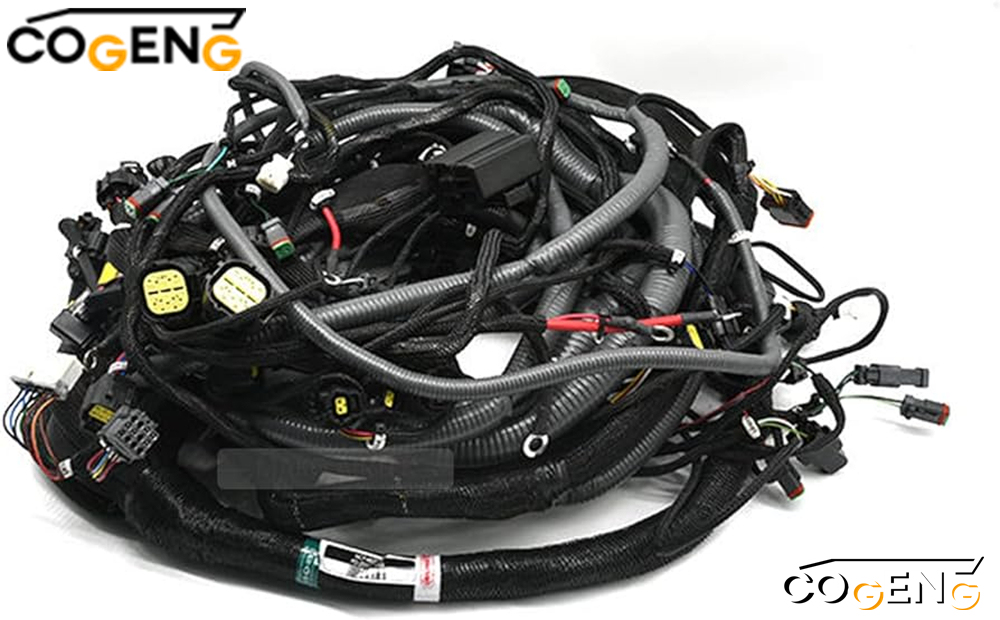

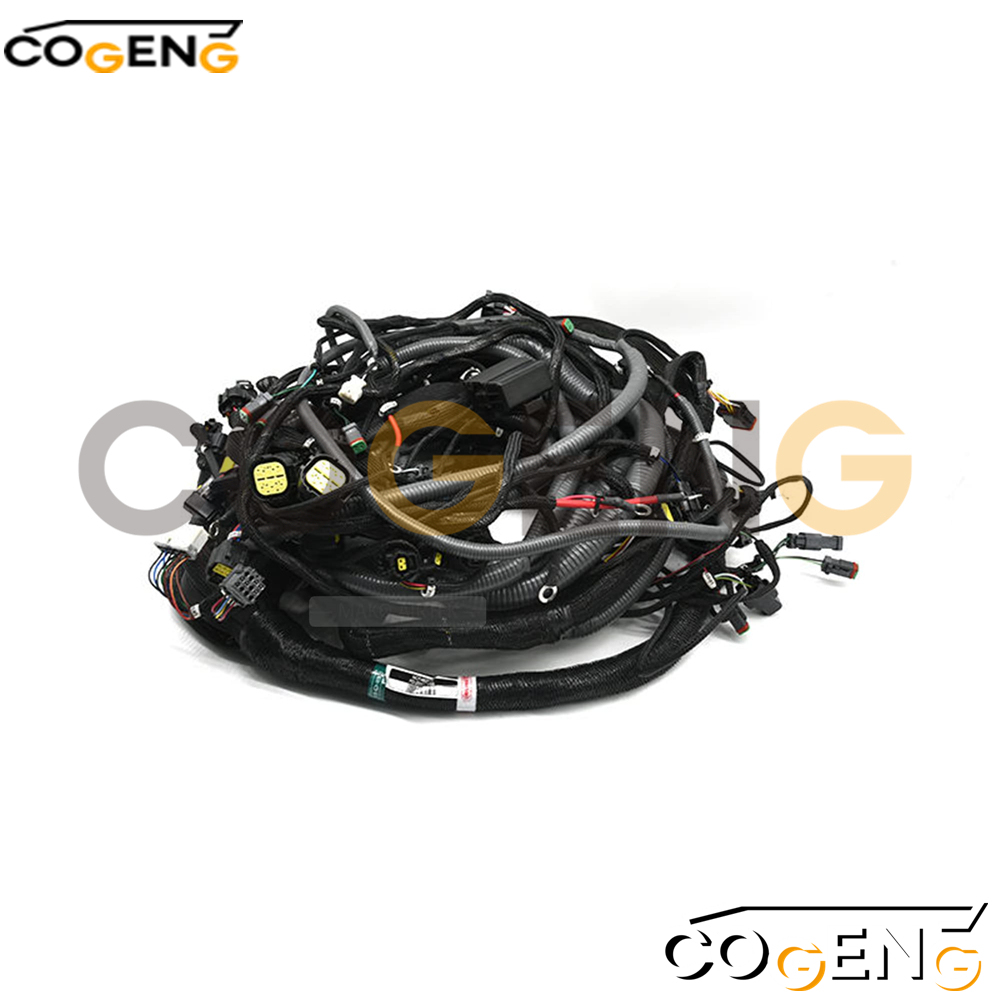

201-06-73551 201-06-73552 Komatsu Wiring Harness
Product name: Komatsu Wiring Harness
Part No: 201-06-73551 201-06-73552 2010673551 2010673552
Model Number:For PC60-7 PC60-7B PC70-7 PC70-7B
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
201-06-73551 |
WIRING HARNESS |
1 |
|
201-06-73552 |
WIRING HARNESS |
1 |
|
201-06-73132 |
WIRING HARNESS |
1 |
|
201-06-73133 |
WIRING HARNESS |
1 |
|
201-06-73134 |
WIRING HARNESS |
1 |
|
201-06-73231 |
WIRING HARNESS |
1 |
|
201-06-73232 |
WIRING HARNESS |
1 |
|
08020-00000 |
• DIODE |
5 |
|
20T-06-81230 |
• FUSIBLE LINK |
3 |
| 2 |
08036-02514 |
CLIP |
6 |
| 3 |
01010-81025 |
BOLT |
5 |
| 4 |
01010-81040 |
BOLT |
1 |
| 5 |
201-03-29160 |
SPACER |
1 |
| 6 |
01643-31032 |
WASHER |
6 |
| 7 |
04434-53211 |
CLIP |
1 |
| 8 |
07095-20523 |
CUSHION |
1 |
| 9 |
01010-81025 |
BOLT |
1 |
| 10 |
01643-31032 |
WASHER |
1 |
| 11 |
08036-01414 |
CLIP |
1 |
| 12 |
01010-81020 |
BOLT |
1 |
| 13 |
01643-31032 |
WASHER |
1 |
| 14 |
08036-01014 |
CLIP |
1 |
| 15 |
08036-02514 |
CLIP |
1 |
| 16 |
01010-81016 |
BOLT |
1 |
| 17 |
01643-31032 |
WASHER |
1 |
| 18 |
201-06-71322 |
BRACKET |
1 |
| 19 |
01010-81025 |
BOLT |
2 |
| 20 |
01643-31032 |
WASHER |
2 |
| 21 |
04434-51010 |
CLIP |
1 |
| 22 |
04434-51810 |
CLIP |
1 |
| 23 |
01010-81016 |
BOLT |
2 |
| 24 |
01643-31032 |
WASHER |
2 |
| 25 |
201-06-71380 |
BRACKET |
1 |
| 26 |
201-06-73640 |
BRACKET |
1 |
| 27 |
01010-81020 |
BOLT |
2 |
| 28 |
01643-31032 |
WASHER |
2 |
| 29 |
04434-53211 |
CLIP |
1 |
| 30 |
07095-20523 |
CUSHION |
1 |
| 31 |
01010-81025 |
BOLT |
1 |
| 32 |
01643-31032 |
WASHER |
1 |
| 33 |
01010-81025 |
BOLT |
1 |
| 34 |
01643-31032 |
WASHER |
1 |
| 35 |
08051-00801 |
CLIP |
3 |

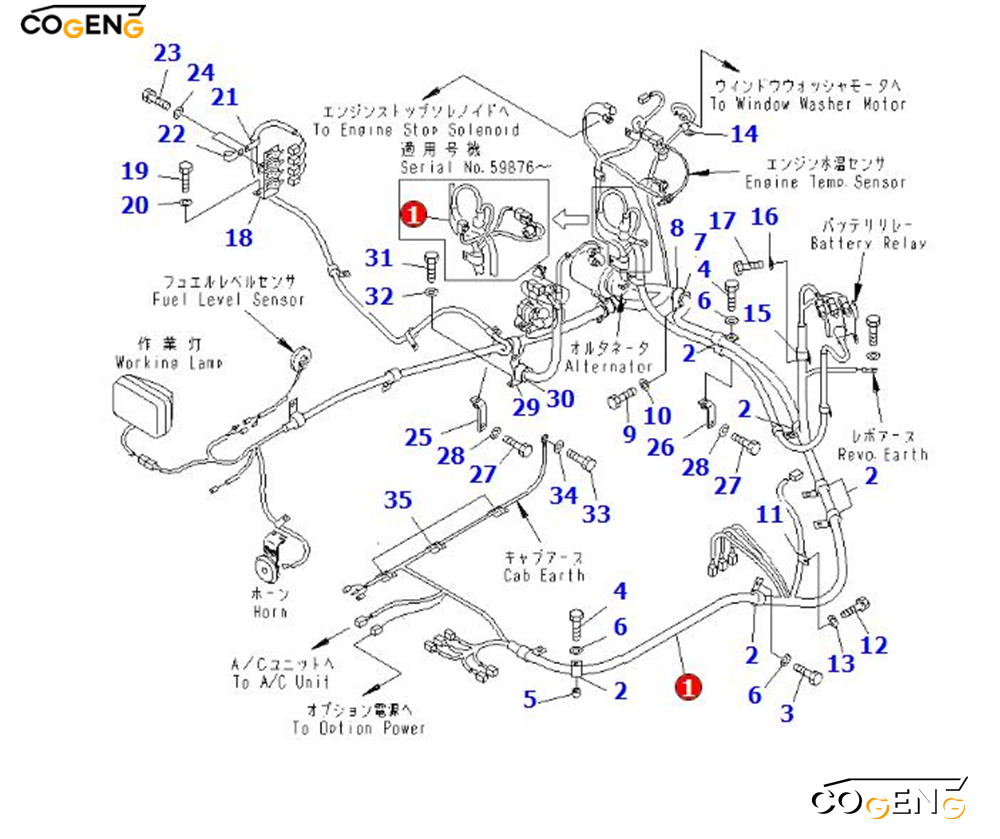

Installation decomposition diagram
Professional Installation Essential: Always consult the official Komatsu service documentation for your specific compact excavator model and serial number. The confined spaces require careful handling and proper installation sequence.
-
Complete System Power Down: Execute full shutdown procedure including battery disconnection and main power isolation, waiting 15 minutes for capacitor discharge
-
Compact Space Documentation: Create detailed photographic records of existing harness routing in the confined engine compartment, noting connector orientations and clamp positions
-
Connector Access Planning: Identify difficult-to-access connectors beforehand and plan appropriate tool usage for safe disconnection and reconnection
-
Compact Component Inspection: Thoroughly examine all sensors, controllers, and mating connectors for damage or corrosion in the tight engine bay environment
-
Precise Routing Implementation: Carefully follow exact factory routing path through tight spaces, ensuring proper clearance from moving components and hot surfaces
-
Connection Security Verification: Methodically verify all connectors are fully seated and locked, paying special attention to hard-to-see connection points
-
Comprehensive System Testing: Perform complete operational testing of all electrical functions, including compact-specific features and safety systems
