| Specification Category | Technical Specifications |
|---|---|
| Compatible Machine Models | Komatsu PC60-7, PC60-7B, PC70-7, PC70-7B |
| COGENG Part Number | CG-KOM-PC60-70-CPH22 |
| Replaces OEM Part Numbers | 201-06-73231, 201-06-73232 |

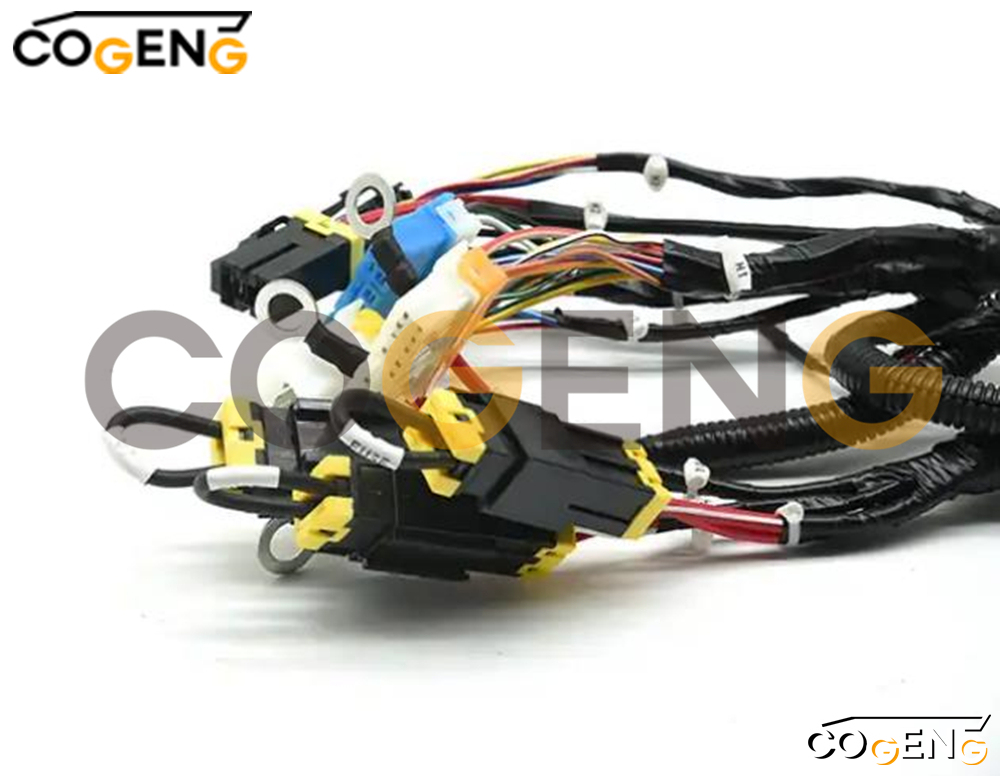

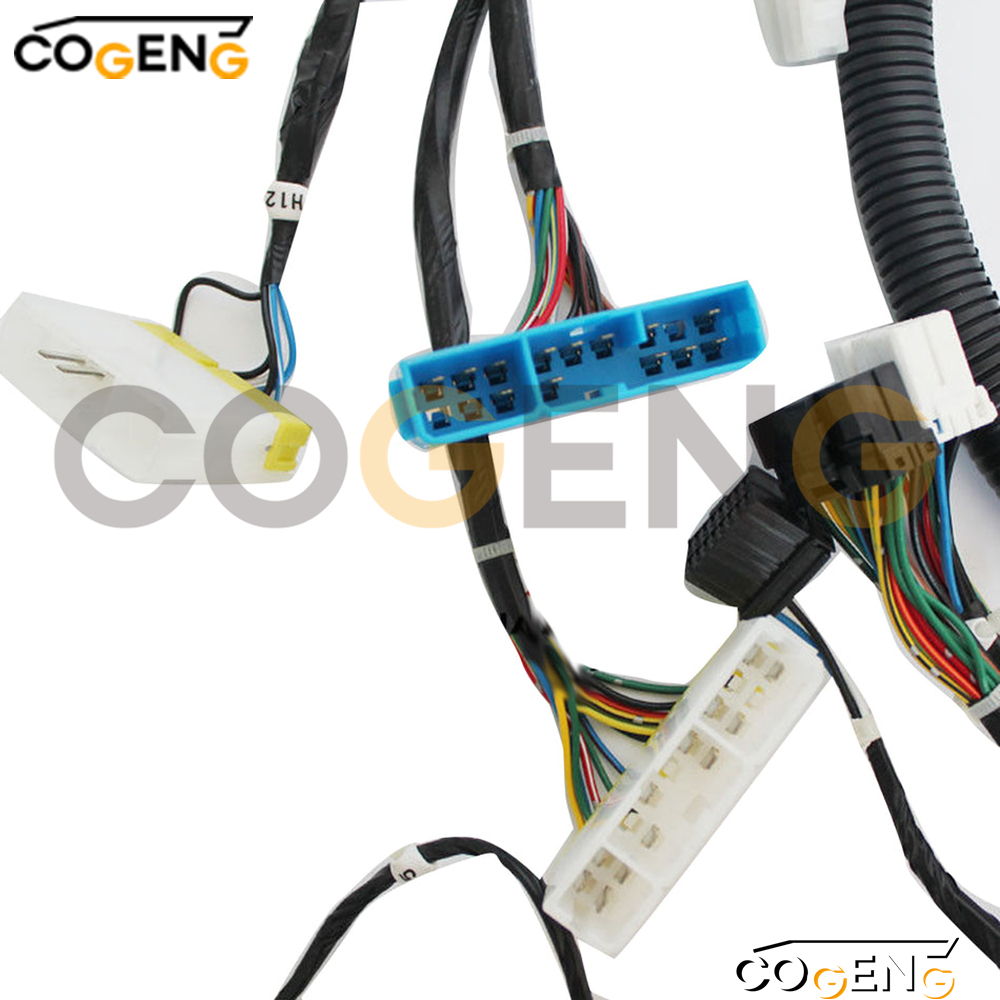

| Product Name | Compact Pro Wiring Harness Assembly |
| Application Scope | Complete compact excavator electrical system integration |
| Wire Specifications | High-density XLPO insulation (-45°C to 160°C), extreme oil/fuel/abrasion resistance |
| Connector System | IP68 rated micro-connectors with advanced sealing technology |
| Quality Assurance | 12-stage validation including high-frequency vibration and thermal shock testing |
| Warranty Coverage | 3,500-hour professional warranty |

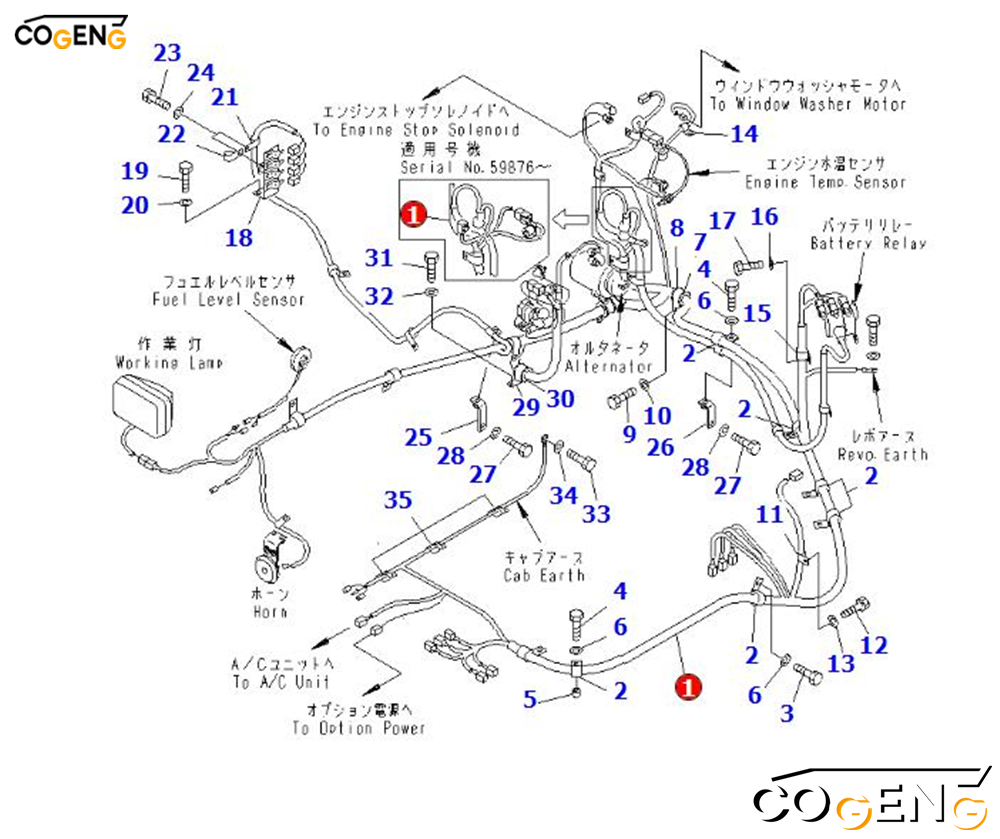

| NO | Number | Name | Qty |
| 1 | 201-06-73231 | WIRING HARNESS | 1 |
| 201-06-73232 | WIRING HARNESS | 1 | |
| 201-06-73132 | WIRING HARNESS | 1 | |
| 201-06-73133 | WIRING HARNESS | 1 | |
| 201-06-73134 | WIRING HARNESS | 1 | |
| 201-06-73551 | WIRING HARNESS | 1 | |
| 201-06-73552 | WIRING HARNESS | 1 | |
| 08020-00000 | • DIODE | 5 | |
| 20T-06-81230 | • FUSIBLE LINK | 3 | |
| 2 | 08036-02514 | CLIP | 6 |
| 3 | 01010-81025 | BOLT | 5 |
| 4 | 01010-81040 | BOLT | 1 |
| 5 | 201-03-29160 | SPACER | 1 |
| 6 | 01643-31032 | WASHER | 6 |
| 7 | 04434-53211 | CLIP | 1 |
| 8 | 07095-20523 | CUSHION | 1 |
| 9 | 01010-81025 | BOLT | 1 |
| 10 | 01643-31032 | WASHER | 1 |
| 11 | 08036-01414 | CLIP | 1 |
| 12 | 01010-81020 | BOLT | 1 |
| 13 | 01643-31032 | WASHER | 1 |
| 14 | 08036-01014 | CLIP | 1 |
| 15 | 08036-02514 | CLIP | 1 |
| 16 | 01010-81016 | BOLT | 1 |
| 17 | 01643-31032 | WASHER | 1 |
| 18 | 201-06-71322 | BRACKET | 1 |
| 19 | 01010-81025 | BOLT | 2 |
| 20 | 01643-31032 | WASHER | 2 |
| 21 | 04434-51010 | CLIP | 1 |
| 22 | 04434-51810 | CLIP | 1 |
| 23 | 01010-81016 | BOLT | 2 |
| 24 | 01643-31032 | WASHER | 2 |
| 25 | 201-06-71380 | BRACKET | 1 |
| 26 | 201-06-73640 | BRACKET | 1 |
| 27 | 01010-81020 | BOLT | 2 |
| 28 | 01643-31032 | WASHER | 2 |
| 29 | 04434-53211 | CLIP | 1 |
| 30 | 07095-20523 | CUSHION | 1 |
| 31 | 01010-81025 | BOLT | 1 |
| 32 | 01643-31032 | WASHER | 1 |
| 33 | 01010-81025 | BOLT | 1 |
| 34 | 01643-31032 | WASHER | 1 |
| 35 | 08051-00801 | CLIP | 3 |
Complete System De-energization: Perform comprehensive shutdown procedure including battery disconnect, main power isolation, and verified control module capacitor discharge (minimum 15 minutes)
Detailed Space Documentation: Create extensive photographic and video documentation of existing harness routing in the confined compartments, noting all connection points and securing locations
Specialized Connector Handling: Use compact-specific tools for connector disengagement in tight spaces, ensuring careful release of locking mechanisms without applying excessive force
Thorough Component Assessment: Conduct complete inspection of all sensors, control units, and mating connectors for damage, corrosion, or pin deformation before installation
Precision Routing Implementation: Meticulously follow factory routing path through tight spaces, ensuring proper clearance from hydraulic components, moving parts, and heat sources
Comprehensive Connection Verification: Implement systematic connection process using provided compact-specific checklist, verifying all connectors achieve positive lock engagement
Full System Functional Testing: Perform progressive power-up sequence and complete operational validation of all electrical systems, including compact-specific functions and safety interlocks
