| Specification Category | Details |
|---|---|
| COGENG Part Number | 195-9700 |
| Compatible OEM Part | Caterpillar® 195-9700 |
| Application | Auxiliary Hydraulic System Solenoid Valve |
| Compatible Models | 236B3, 236B, 242B3, 242B, 242, 246, 246B, 246C, 247B3, 247B, 247, 248B, 252B3, 252B, 252, 256C, 257B3, 257B, 257, 259B3, 262B, 262C2, 262, 262C, 267B, 267, 268B, 272C, 277B, 277C2, 277C, 277, 279C2, 279C |

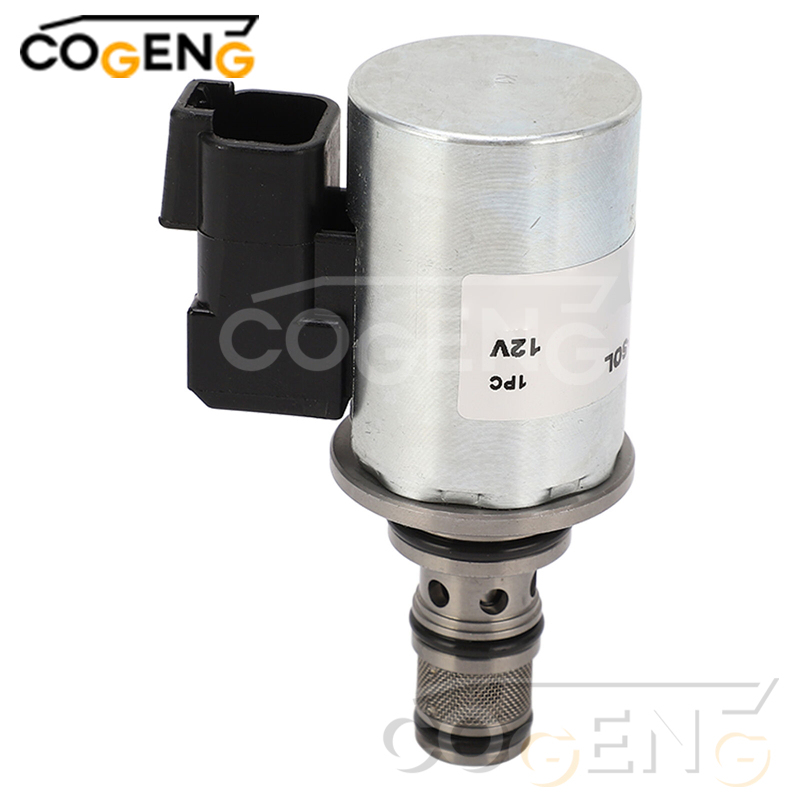

| Voltage | 12V DC (Confirm system voltage for your specific machine) |
| Electrical Coil | High-Temperature Copper Windings |
| Insulation Class | Class H (or higher) |
| Housing Material | High-Strength Steel/Alloy |
| Seals | Buna-N (Standard) - Compatible with standard hydraulic oils |
| Operating Pressure | Rated for High-Flow Auxiliary Hydraulic Systems |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Manufacturer | COGENG |

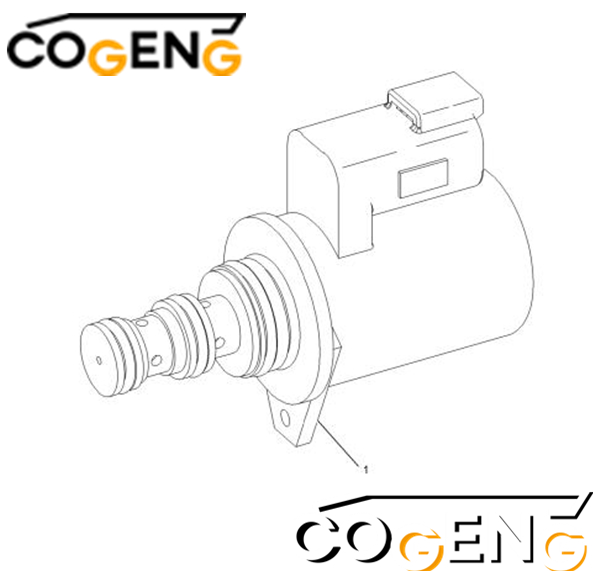

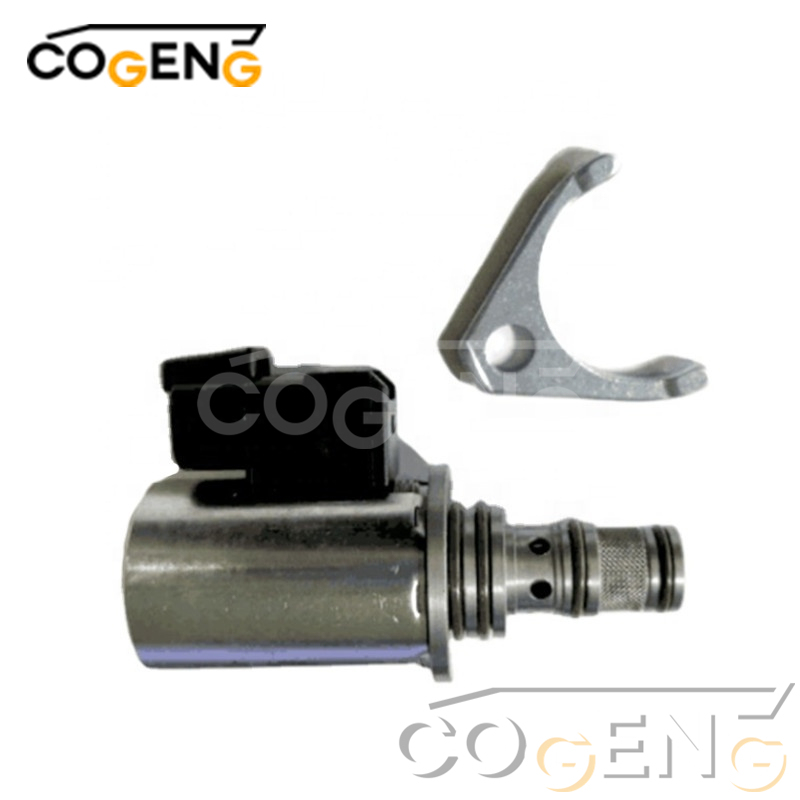

| NO | Number | Name | Qty |
| Grp | 195-9700 | VALVE GP-SOLENOID | 1 |
| 212-0061 | FLANGE | 1 | |
| 1 | 200-2371 | KIT-SEAL | 1 |
| OEM Part Number | 195-9700 / 1959700 |
| Brand | COGENG Engineering (Premium Aftermarket) |
| Valve Type | Multi-Application Hydraulic Solenoid Valve |
| Compatible Models | Caterpillar Skid Steer Loaders & Compact Track Loaders |
| Common Series | 216B, 226B, 236B, 246B, 252B, 262B, 272C, 277C, 287C etc. |
| Typical Application | Auxiliary Hydraulic Circuit / Work Tool Control / Quick Coupler |
Complete System Safeguarding:
Secure the Machine: Park the loader on a flat, level surface. Lower the lift arms and attachment fully to the ground. Stop the engine.
Depressurize the Hydraulic System: Slowly loosen the hydraulic tank cap to release residual pressure. Engage the auxiliary hydraulics via the control switch/lever (with engine off) to relieve any trapped pressure in the auxiliary circuit.
Disconnect All Power: Disconnect the negative (-) battery terminal to eliminate any risk of electrical shock or accidental machine start-up.
Maintain Impeccable Cleanliness:
The hydraulic system is extremely sensitive to contamination. Thoroughly clean the solenoid, its mounting area, and all connection points before disassembly.
Immediately after disconnecting hydraulic lines, use clean plugs or caps to seal all open ports on the valve and hoses.
Careful Handling & Installation:
Document Wiring: Note the routing and connection of the electrical connector before disconnecting it from the old solenoid.
Proper Removal: Remove the mounting bolts and/or hydraulic lines to extract the faulty valve.
Use New Seals: Always install the new O-rings or gaskets supplied with the COGENG valve. Lubricate them with clean hydraulic oil before assembly.
Correct Torque: Install the new COGENG 195-9700 solenoid and use a torque wrench to tighten all mounting bolts and hydraulic fittings to the values specified in the Caterpillar service manual. Avoid over-tightening.
Post-Installation System Check:
Reconnect the battery.
Start the engine and let it run at low idle. Conduct a meticulous visual inspection of the new solenoid and all connection points for any signs of hydraulic leakage.
With no attachment installed, briefly activate the auxiliary hydraulic control to purge air from the circuit.
Connect a simple attachment and perform a full operational test to ensure the auxiliary hydraulics engage and function smoothly and with full power.
Q: What does the 195-9700 solenoid valve control on a CAT skid steer?
A: This multi-application solenoid is typically used to control the auxiliary hydraulic circuit (for attachments like augers, breakers, or grapples) or the hydraulic quick coupler lock. Failure may result in attachments not functioning or the coupler failing to engage/disengage.
Q: Will the 195-9700 fit my CAT 246B skid steer loader?
A: Yes, the 195-9700 solenoid valve is a direct fit for the 246B and most other B, C, and D series Caterpillar compact loaders. It is a common component in the auxiliary hydraulic control manifold. Verify the part number stamped on your original valve to confirm.Contact COGENG
