| Attribute | Specification |
|---|---|
| COGENG Part Number | CG-SV-154-3064-24V |
| Replaces OEM Numbers | 154-3064, 1420350 |

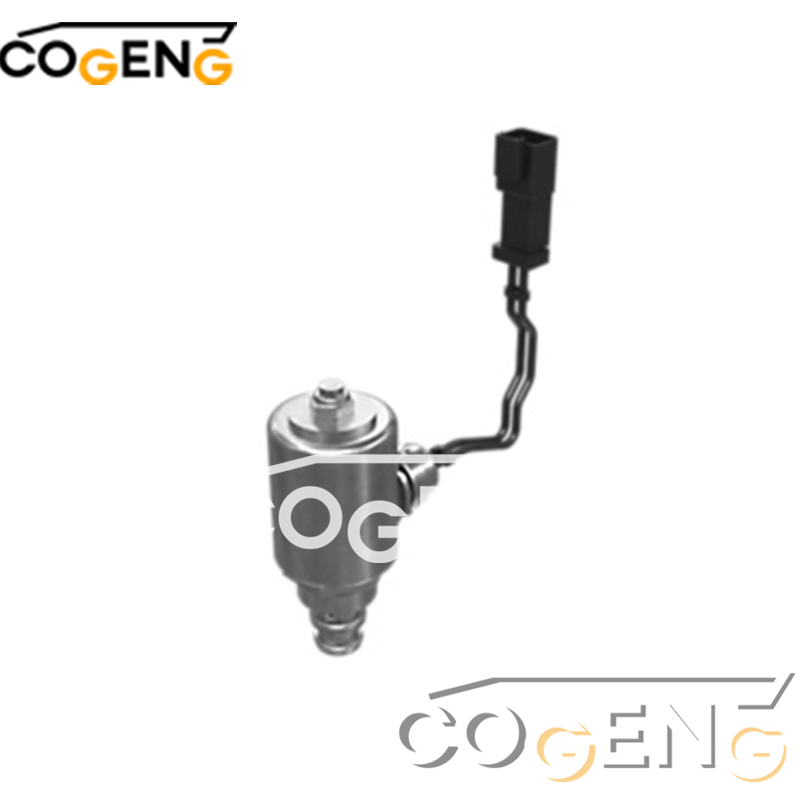

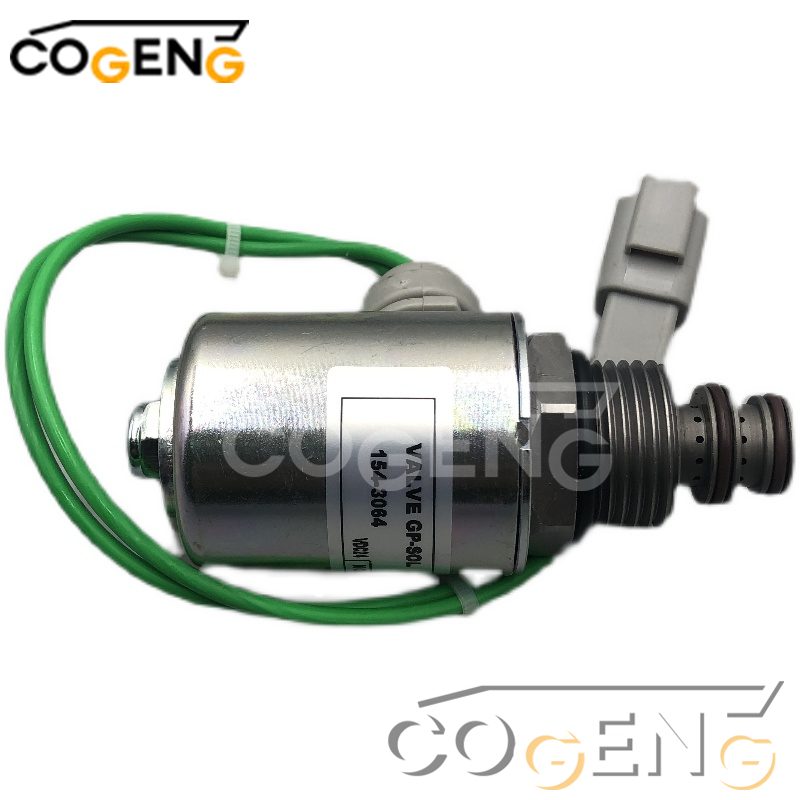

| Product Name | Caterpillar Compactor & Loader Solenoid Valve |
| Application | Compactors: 824G, 825G, 826G Wheel Loaders: 950F2, 960F |
| Voltage Rating | 24V DC (18-32V Operating Range) |
| Current Draw | 1.8A @ 24V DC |
| Maximum Pressure | 350 bar (5,075 PSI) |
| Flow Capacity | 50-120 L/min |
| Response Time | < 30 milliseconds |
| Vibration Resistance | 15G (Compactor) / 12G (Loader) |
| Temperature Range | -40°C to 120°C |
| Seal Material | FKM Fluoroelastomer |
| Coil Insulation | Class H (180°C) |
| IP Rating | IP67 |
| Quality Standard | ISO 9001:2015, Cat OEM Equivalent |
| Warranty | COGENG Limited 24-Month Warranty |
| OEM Part Number | 154-3064 / 1543064 |
| COGENG SKU | CG-SV-154-3064-24V |
| Brand | COGENG (Direct OEM Replacement) |
| Voltage | 24V DC |
| Valve Type | Hydraulic Control / Transmission Solenoid |
| Compatible Compactors | CAT 824G, 825G, 826G |
| Compatible Loaders | CAT 950F Series II, 960F |
| Common Application | Powershift Transmission / Pilot Hydraulic Circuit |

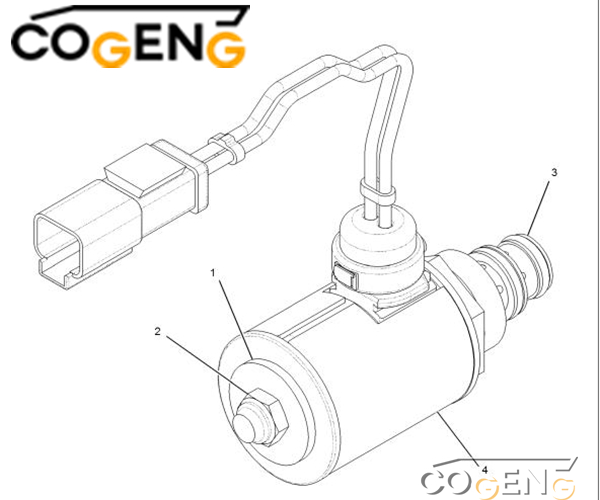

| NO | Number | Name | Qty |
| Grp | 154-3064 | VALVE GP-SOLENOID | |
| 1 | 8C-9987 | WASHER(8.3X28X2.5-MM THK) | 1 |
| 2 | 111-0343 | LOCKNUT (5/16-18-THD) | 1 |
| 3 | 142-0350 | CARTRIDGE AS | |
| 8C-9987 | WASHER(8.3X28X2.5-MM THK) | 1 | |
| 111-0343 | LOCKNUT (5/16-18-THD) | 1 | |
| 4 | 218-9894 | COIL AS(24-VOLT) | 1 |
| 1S-9593 | STRAP-CABLE | 2 | |
| 102-8802 | KIT-RECEPTACLE(2-PIN)(INCLUDES RECEPTACLE AS & WEDGE) | 1 | |
| 186-3735 | PIN-CONNECTO(16-GA TO 18-GA) | 2 | |
| 6G-5979 | AVAILABLE REPAIR KIT(S): KIT-SEAL(DIFFERENTIAL LOCK VALVE)(INCLUDES 0-RING SEALS) | 1 |
Q: How do I confirm if my CAT 950F II uses a 24V or 12V solenoid?
A: The 950F Series II and 960F loaders, as well as 824G-826G compactors, operate on a 24V electrical system. You can verify by checking if your machine has two 12V batteries connected in series. Installing a 12V valve in a 24V system will cause immediate coil failure.
Q: Does the 154-3064 fit both CAT compactors and wheel loaders?
A: Yes, this 24V DC solenoid valve is a common component shared across CAT 824G, 825G, 826G compactors and 950F Series II, 960F wheel loaders. It is typically located on the transmission control valve body or pilot hydraulic manifold.
