| Attribute | Specification |
|---|---|
| COGENG Part Number | CG-SV-152-8346-24V |
| Replaces OEM Number | 152-8346 |

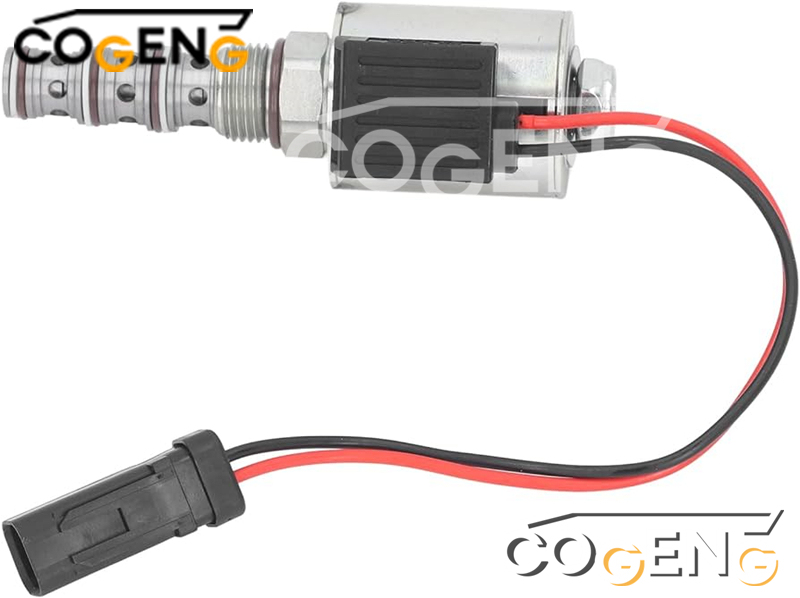

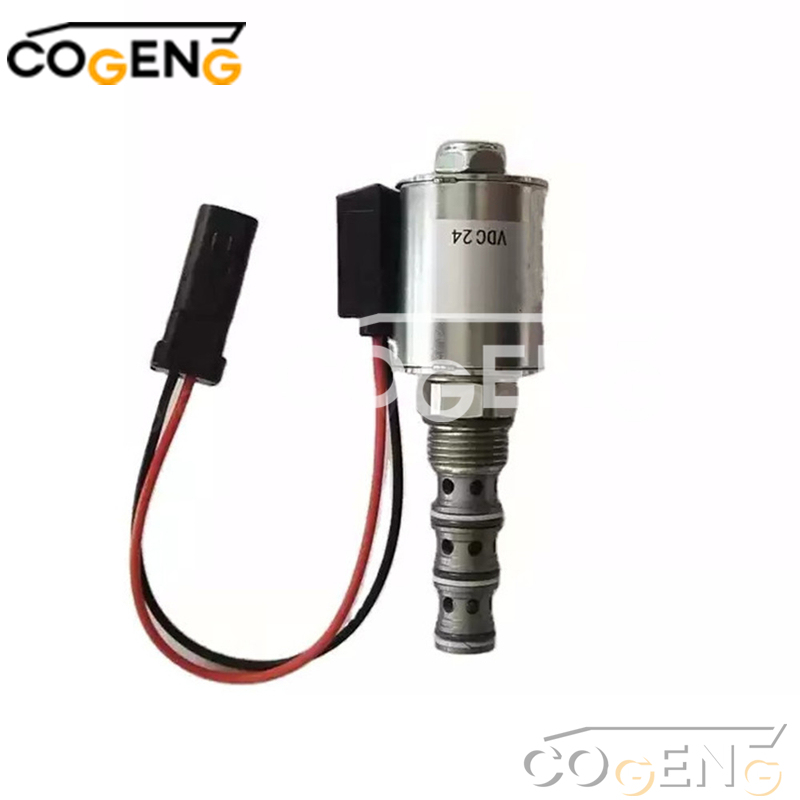

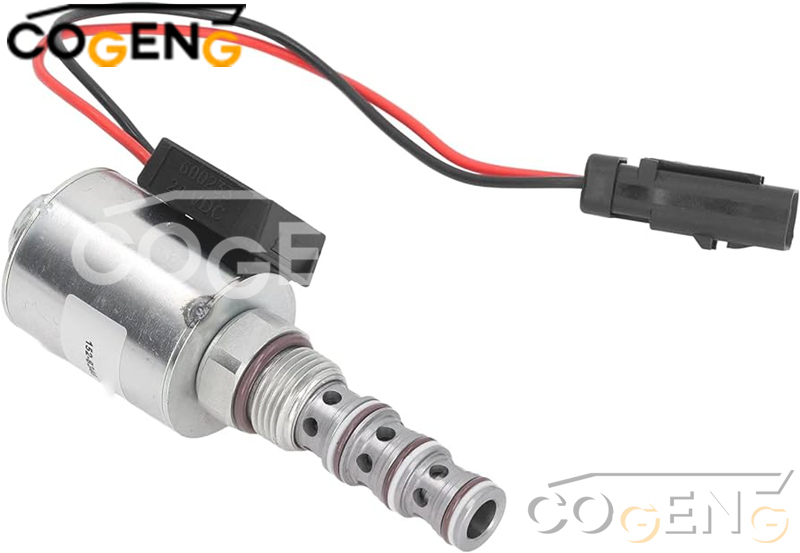

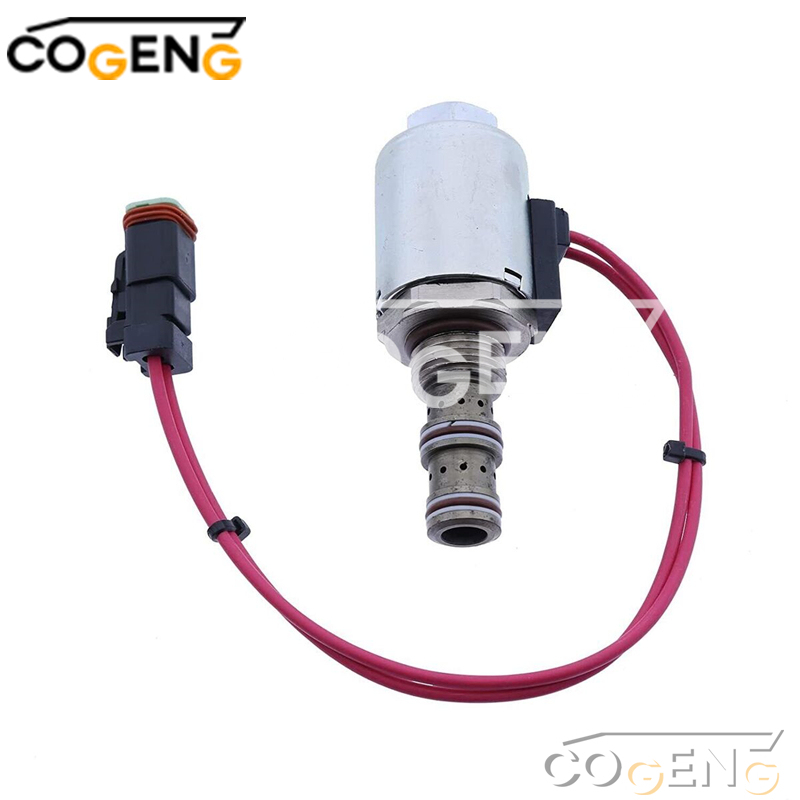

| Product Name | Caterpillar Motor Grader Solenoid Valve |
| Application | Caterpillar Motor Graders: 120H, 120H ES |
| Voltage Rating | 24V DC (18-32V Operating Range) |
| Maximum Pressure | 280 bar (4,060 PSI) |
| Flow Capacity | 35-90 L/min |
| Current Draw | 1.6A @ 24V DC |
| Response Time | < 45 milliseconds |
| Seal Material | HNBR Compound |
| Coil Insulation | Class H (180°C) |
| Vibration Rating | 5-2000 Hz, 12G |
| Connection Type | ISO 4401 Standard |
| Quality Standard | ISO 9001:2015 |
| Warranty | COGENG Limited 24-Month Warranty |
| OEM Part Number | 152-8346 / 1528346 |
| COGENG SKU | CG-SV-152-8346-24V |
| Brand | COGENG (Direct OEM Replacement) |
| Voltage | 24V DC |
| Valve Type | Transmission / Hydraulic Control Solenoid |
| Compatible Models | CAT 120H, 120H ES Motor Graders |
| Common Application | Powershift Transmission / Pilot Hydraulic Circuit |
| Key Feature | 24V direct fit for H-Series motor grader platforms |

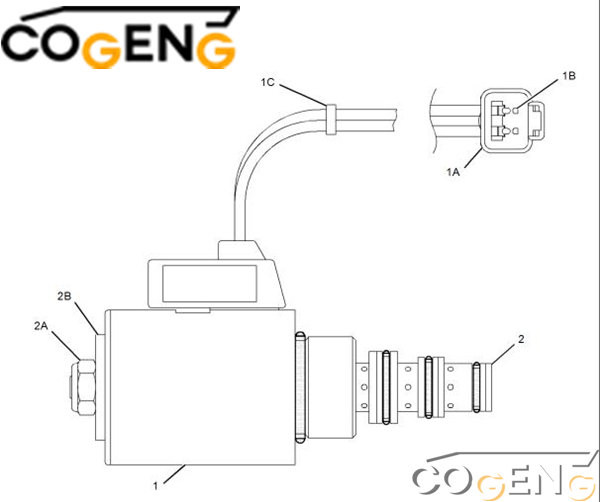

| NO | Number | Name | Qty |
| Grp | 152-8346 | VALVE GP-SOLENOID | |
| 1 | 218-9894 | COIL AS(24-VOLT) | 1 |
| 1A | 102-8802 | KIT-RECEPTACLE (2-PIN) (INCLUDES RECEPTACLE AS & WEDGE) | 1 |
| 1B | 8T-8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 |
| 1C | 1S-9593 | STRAP-CABLE | 2 |
| 2 | 170-7485 | SPOOL AS-VALVE | 1 |
| 2A | 111-0343 | LOCKNUT(5/16-18-THD) | 1 |
| 2B | 8C-9987 | WASHER(8.3X28X2.5-MM THK) | 1 |
| 109-3036 | AVAILABLE REPAIR KIT(S): KIT-SEAL (INCLUDES SEALS & RINGS) |
