| Attribute | Specification |
|---|---|
| COGENG Part Number | CG-VWH-15187835 |
| Replaces OEM Number | VOE15187835 (15187835) |

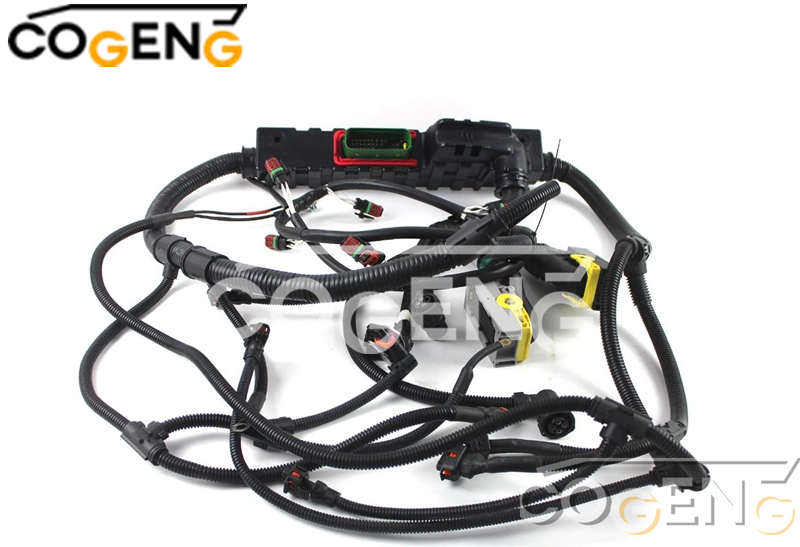

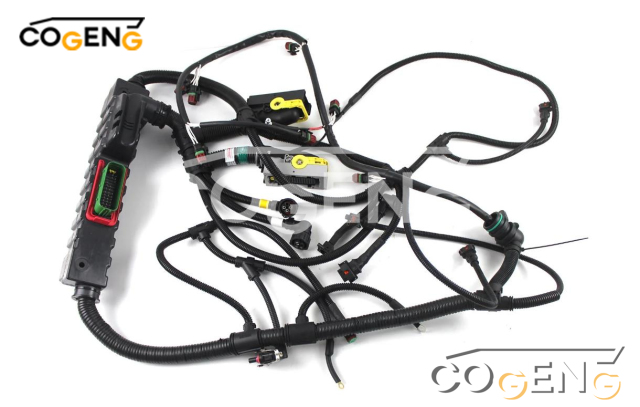

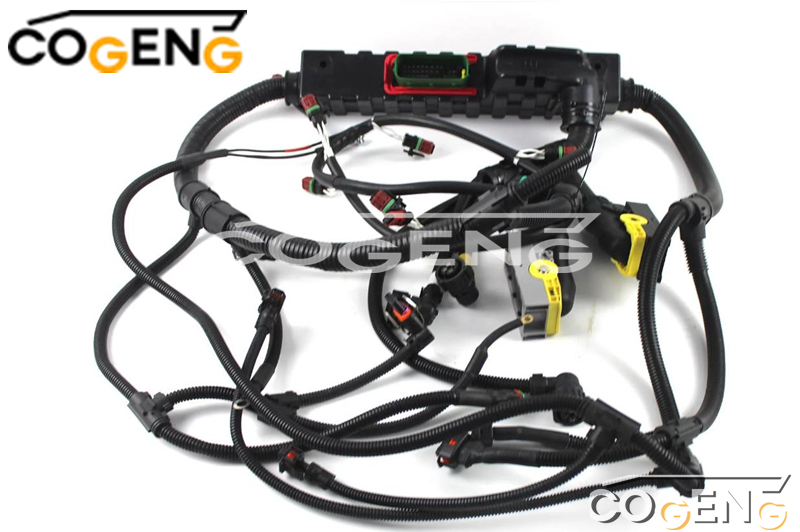

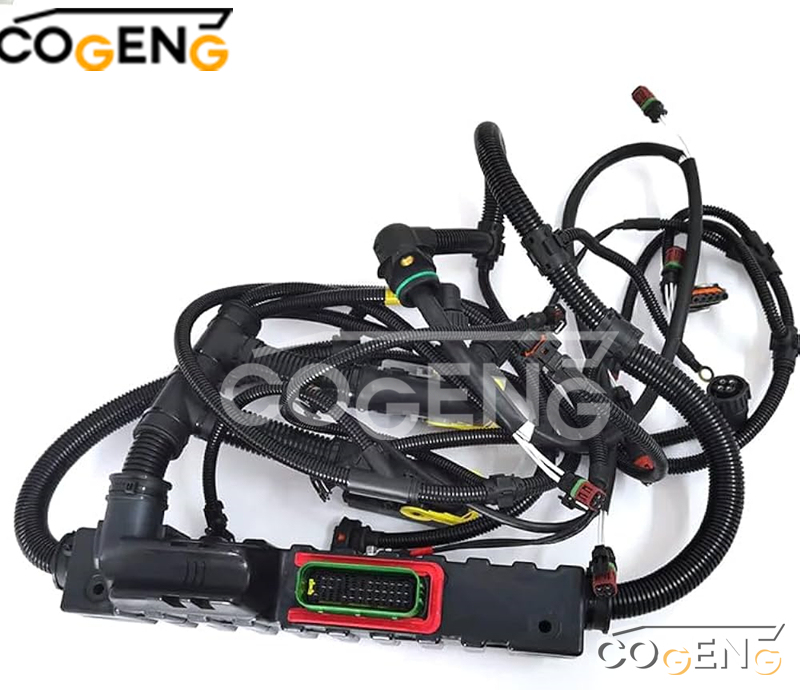

| Product Name | VOLVO Universal Main Wiring Harness Assembly |
| Application | Compatible with Volvo Models: EC480DL, EC380DL, EC380NL Excavators; L150G, L180G Wheel Loaders. Critical: Always verify specific machine model and serial number for exact compatibility. |
| Harness Type | Universal Main Chassis / Engine Harness |
| Connector Type | OEM-Specification Sealed Connectors (Deutsch, AMP) |
| Wire Insulation | Oil-Resistant, High-Temperature XLPE (125°C Rating) |
| Color Coding | OEM-Standard Wire Colors and Tracers |
| Quality Standard | ISO 9001, Compliant with Volvo OEM Specifications |
| Warranty | COGENG Limited 18-Month Warranty |

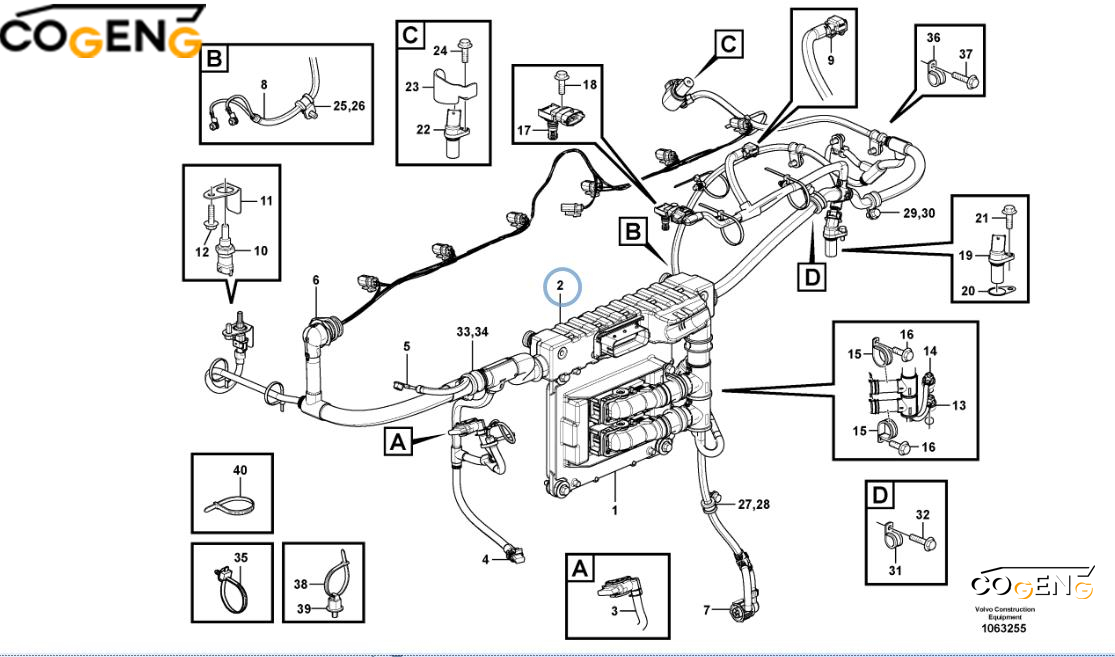

| NO | Number | Name | Qty |
| 1 | VOE15187835 | Cable harness | 1 |
| 2 | Control Unit | 1 | |
| 3 | Contact | 1 | |
| 4 | Contact | 1 | |
| 5 | Contact | 1 | |
| 6 | Contact | 1 | |
| 7 | Contact | 1 | |
| 8 | Contact | 1 | |
| 9 | Contact | 1 | |
| 10 | VOE20513340 | Sensor | 1 |
| 11 | VOE20771140 | Heat shield | 1 |
| 12 | VOE946440 | Flange screw | 1 |
| 13 | VOE20796744 | Pressure sensor | 1 |
| VOE968559 | •O-ring | 1 | |
| 14 | VOE21302639 | Pressure sensor | 1 |
| VOE968559 | •O-ring | 1 | |
| 15 | VOE13949997 | Clamp | 2 |
| 16 | VOE13946173 | Screw | 2 |
| 17 | VOE21097978 | Sensor | 1 |
| 18 | VOE13946544 | Screw | 1 |
| 19 | VOE20513343 | Sensor | 1 |
| 20 | VOE20556179 | Shim | 1 |
| 21 | VOE13946544 | Screw | 1 |
| 22 | VOE20513343 | Sensor | 1 |
| 23 | VOE20749801 | Heat shield | 1 |
| 24 | VOE13946544 | Screw | 1 |
| 25 | VOE990732 | Clamp | 1 |
| 26 | VOE946440 | Flange screw | 1 |
| 27 | VOE13949746 | Clamp | 1 |
| 28 | VOE946440 | Flange screw | 1 |
| 29 | VOE13949747 | Clamp | 1 |
| 30 | VOE946440 | Flange screw | 1 |
| 31 | VOE977599 | Clamp | 1 |
| 32 | VOE946440 | Flange screw | 3 |
| 33 | VOE947827 | Clamp | 1 |
| 34 | VOE946440 | Flange screw | 1 |
| 35 | VOE980881 | Cable tie | 3 |
| 36 | VOE990732 | Clamp | 3 |
| 37 | VOE946440 | Flange screw | 3 |
| 38 | VOE883472 | Cable Tie | 5 |
| 39 | VOE8131393 | Cage | 4 |
| 40 | VOE4881440 | Cable tie | 3 |
Q: What are the symptoms of a failing main wiring harness on Volvo EC480DL, EC380D, L150G, or L180G equipment?
A: Common symptoms include intermittent electrical faults, multiple warning lights illuminated on the display, unresponsive hydraulic or engine controls, erratic gauge or sensor readings, CAN bus communication errors, specific functions not responding, or unexpected machine shutdowns. Volvo D Series excavators and G Series wheel loaders feature advanced electronic control systems, making main harness integrity critical for proper machine operation
