| Attribute | Specification |
|---|---|
| COGENG Part Number | CG-VWH-15107205 |
| Replaces OEM Number | VOE15107205 （15107205) |

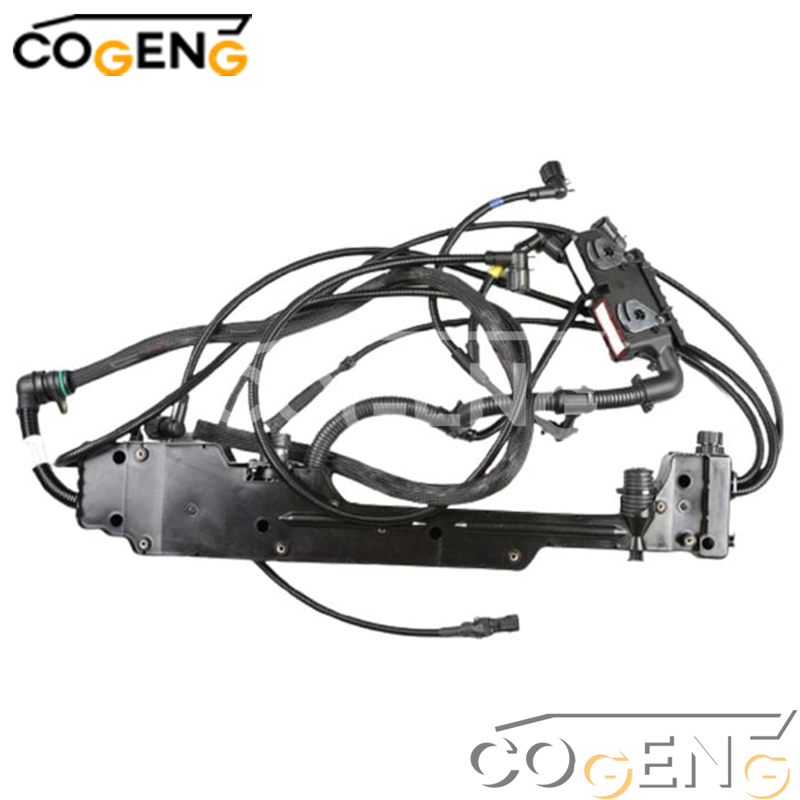

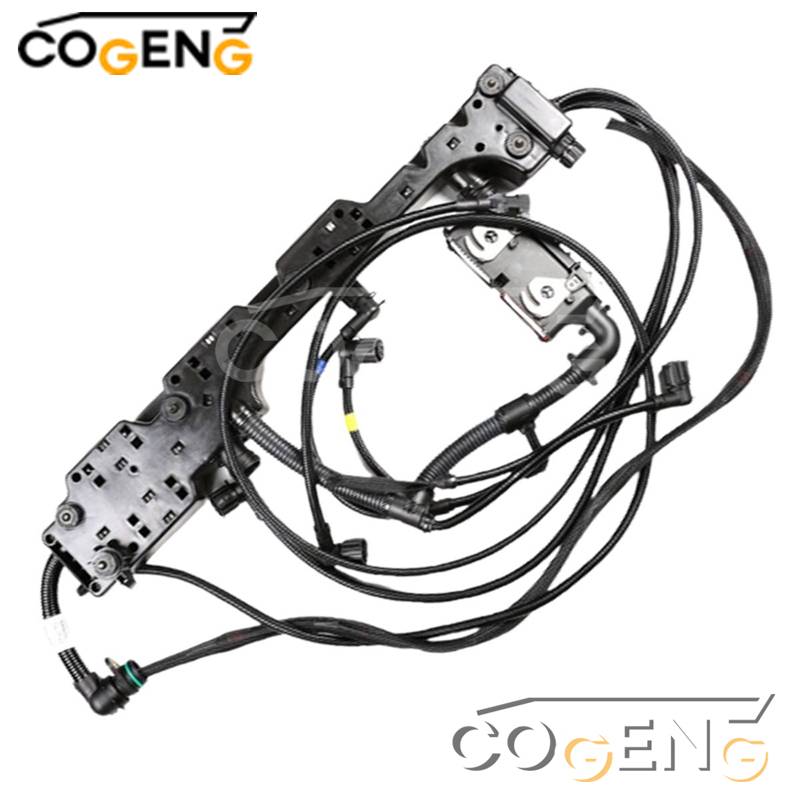

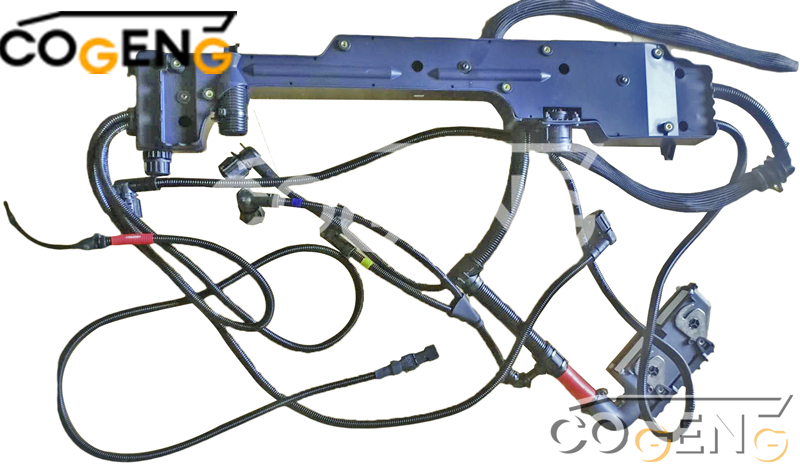

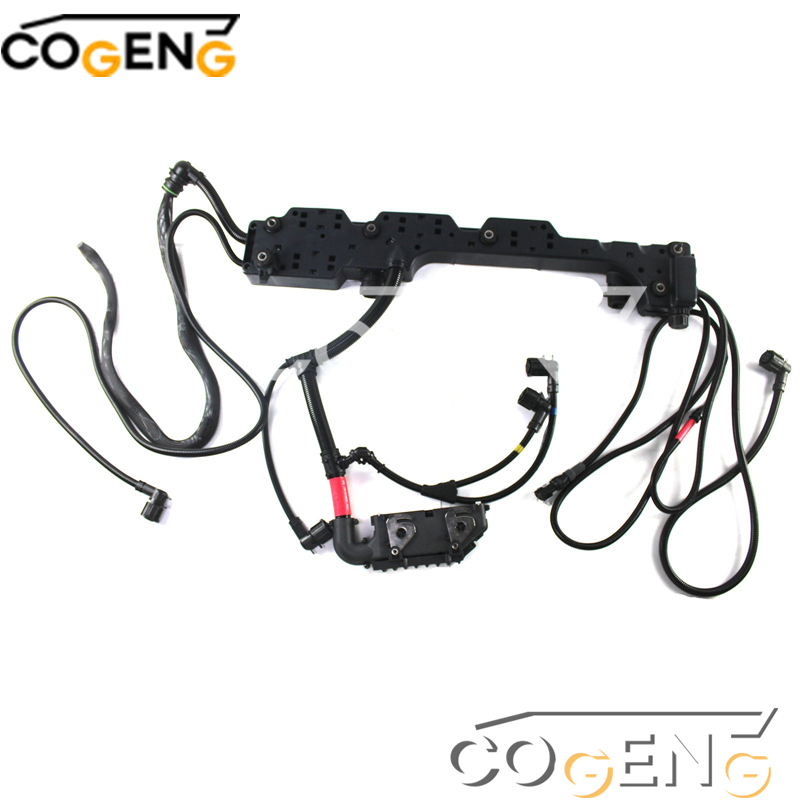

| Product Name | VOLVO Main Wiring Harness Assembly |
| Application | Volvo Large Excavator Models: EC460B, EC460BLC, EC460BLR. Confirm your machine's serial number and VOE prefix for a guaranteed fit. |
| Harness Type | Main Engine/Chassis Harness |
| Connector Type | OEM-Specification Heavy-Duty Sealed Connectors |
| Wire Insulation | High-Temperature, Oil-Resistant XLPE (Up to 150°C) |
| Color Coding | OEM-Standard Wire Colors and Tracers |
| Quality Standard | ISO 9001, Compliant with Volvo OEM Specifications |
| Warranty | COGENG Limited 18-Month Warranty |

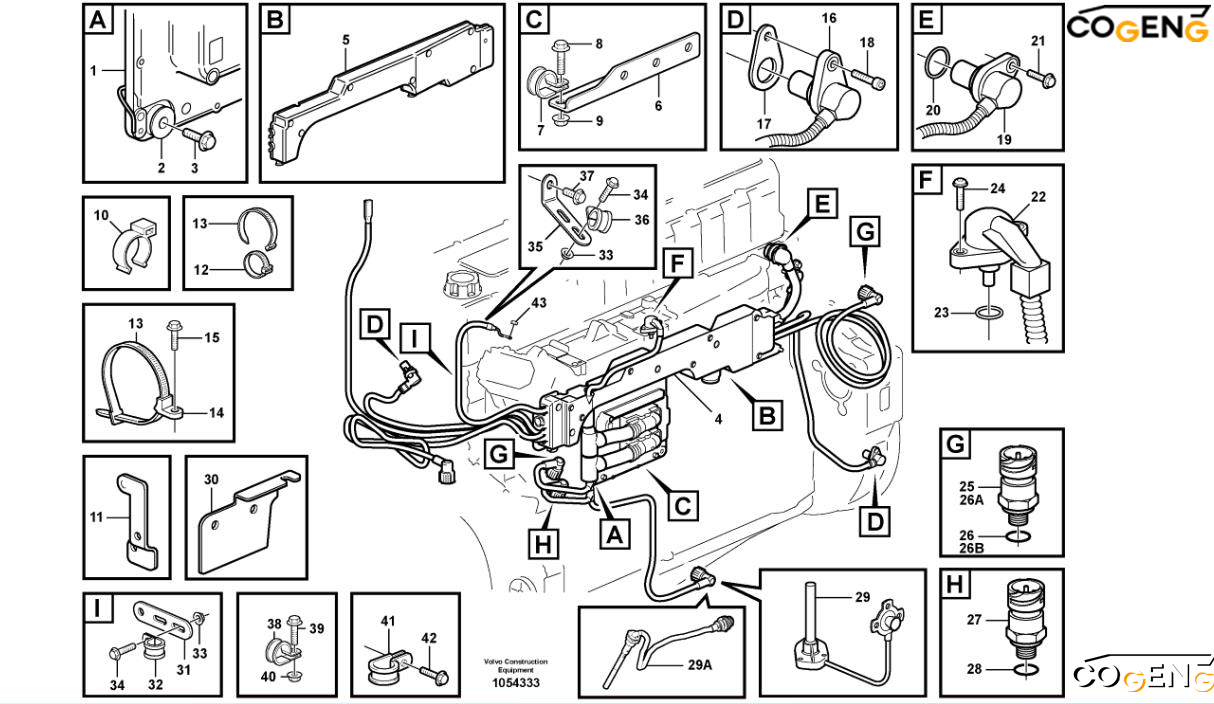

| NO | Number | Name | Qty |
| 1 | VOE20814604 | ECU | 1 |
| VOE20577131 | ECU | 1 | |
| 2 | VOE3095161 | •Damping element | 8 |
| VOE20582958 | ECU | 1 | |
| VOE3095161 | •Damping element | 8 | |
| 3 | VOE946470 | Flange screw | 4 |
| VOE13948217 | Screw | 4 | |
| 4 | VOE15107105 | Cable harness | 1 |
| VOE15107105 | Cable harness | 1 | |
| VOE15107105 | Cable harness | 1 | |
| VOE15107105 | Cable harness | 1 | |
| VOE11423644 | Cable harness | 1 | |
| VOE15107205 | Cable harness | 1 | |
| 5 | VOE20783926 | Cover | 1 |
| 6 | VOE20409005 | Bracket | 1 |
| 7 | VOE13949997 | Clamp | 2 |
| 8 | VOE13945444 | Screw | 1 |
| 9 | VOE13945408 | Nut | 1 |
| 10 | VOE28429850 | Retainer | 5 |
| 11 | VOE20826146 | Bracket | 1 |
| 12 | VOE983472 | Cable tie | REQ |
| 13 | VOE4881440 | Cable tie | REQ |
| 14 | VOE1578046 | Retainer | 2 |
| 15 | VOE972411 | Six point socket screw | 2 |
| 16 | VOE20508011 | Sensor | 2 |
| 17 | VOE1677894 | Shim | 1 |
| 18 | VOE940326 | Hex. socket screw | 2 |
| 19 | VOE20576614 | Sensor | 1 |
| 20 | VOE975660 | •O-ring | 1 |
| 21 | VOE946440 | Flange screw | 1 |
| 22 | VOE20700060 | Sensor | 1 |
| 23 | VOE975632 | •O-ring | 1 |
| 24 | VOE949845 | Flange screw | 2 |
| 25 | VOE20898038 | Pressure sensor | 1 |
| 26 | VOE968559 | •O-ring | 1 |
| 26A | VOE21302639 | Pressure sensor | 1 |
| 26B | VOE968559 | •O-ring | 1 |
| 27 | VOE20796744 | Pressure sensor | 1 |
| 28 | VOE968559 | •O-ring | 1 |
| 29 | Oil Lvl Sensor | 1 | |
| 29 | Oil Lvl Sensor | 1 | |
| 30 | Bracket | ||
| 31 | VOE13965535 | Bracket | 1 |
| 32 | VOE13949746 | Clamp | 2 |
| 33 | VOE13945408 | Nut | 2 |
| 34 | VOE946440 | Flange screw | 2 |
| 35 | VOE965576 | Bracket | 1 |
| 36 | VOE13949746 | Clamp | 1 |
| 37 | VOE947107 | Flange screw | 1 |
| 38 | VOE13949746 | Clamp | 1 |
| 39 | VOE946329 | Flange screw | 1 |
| 40 | VOE13945408 | Nut | 1 |
| 41 | VOE13949746 | Clamp | 5 |
| 42 | VOE946440 | Flange screw | 5 |
| 43 | VOE983715 | Sems nut | 1 |
Q: What does the "main" wiring harness cover?
A: The main wiring harness is the central electrical backbone of the excavator, connecting the operator cab controls, monitor display, engine ECU, hydraulic control solenoids, sensors, and various sub-harnesses throughout the machine. It serves as the primary communication pathway for all machine electrical functions via CAN bus networks and is essential for reliable excavator operation.
