| Attribute | Specification |
|---|---|
| COGENG Part Number | CG-SV-147-5399-24V |
| Replaces OEM Number | 147-5399 |

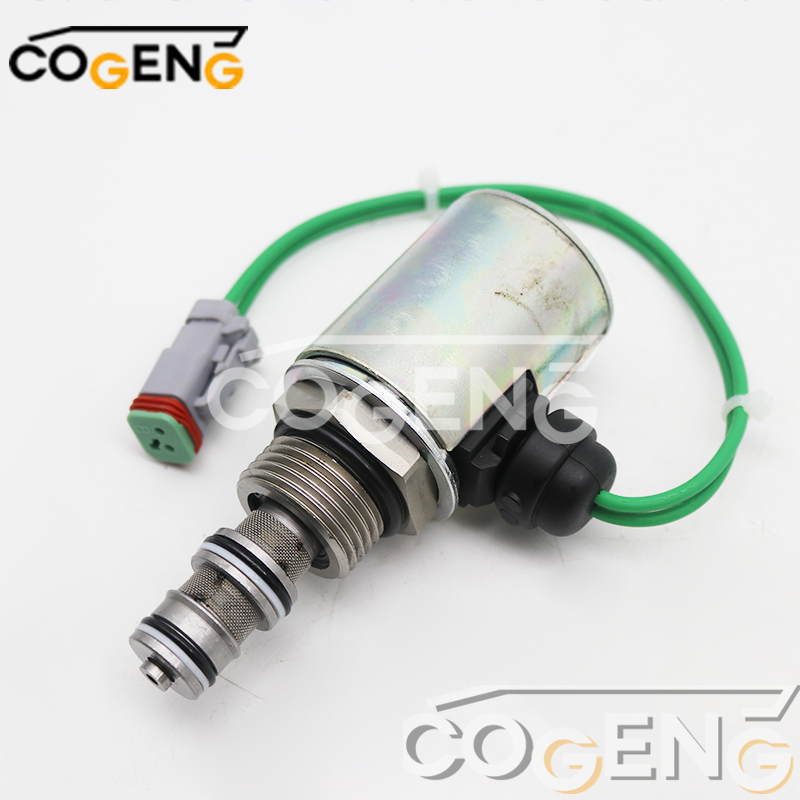

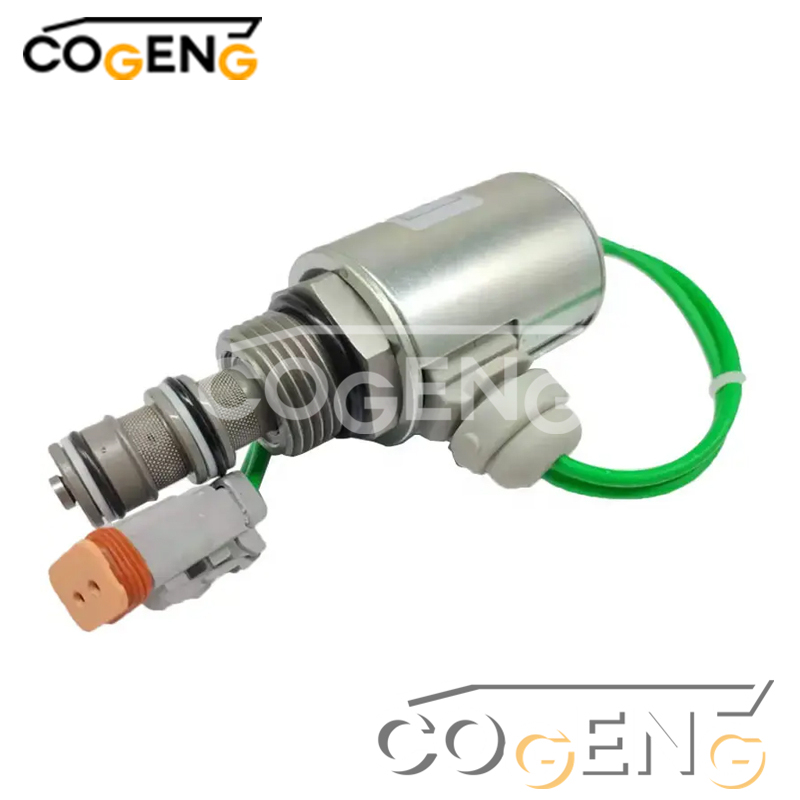

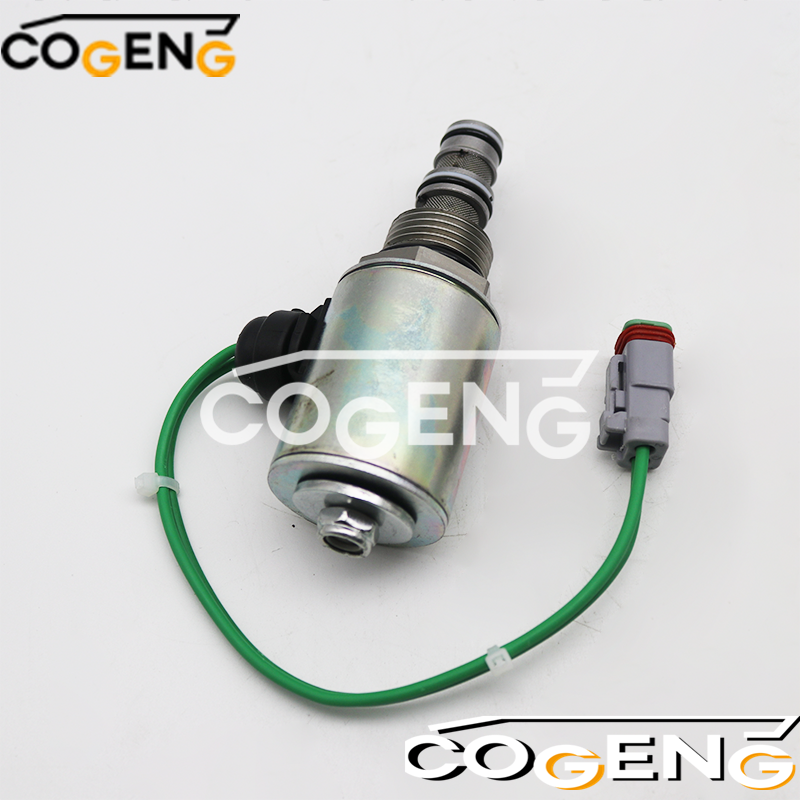

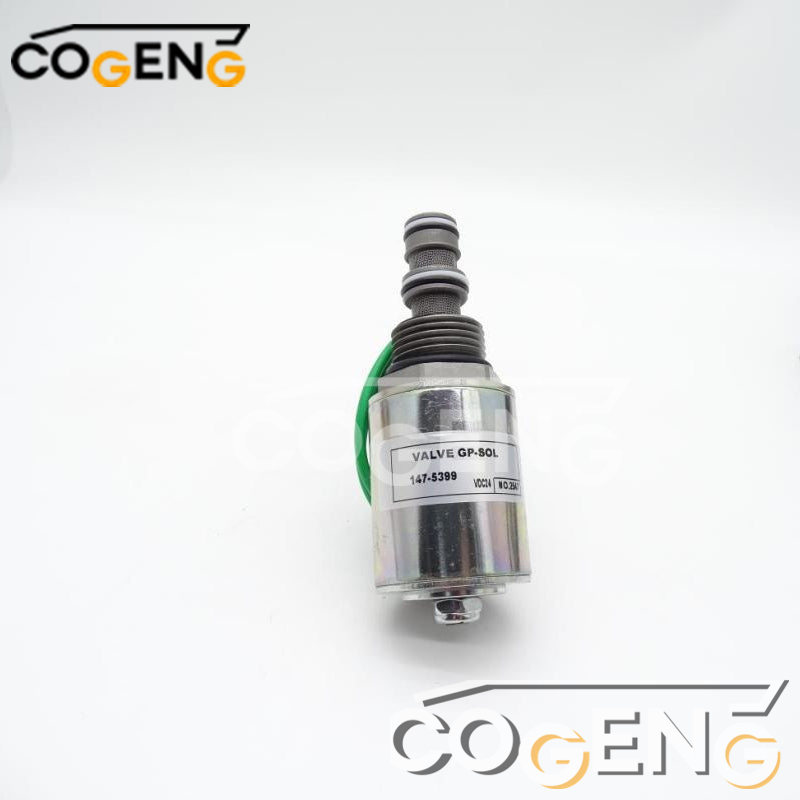

| Product Name | Caterpillar Compactor & Wheel Loader Solenoid Valve |
| Application | Compactors: 824G, 825G, 826G Wheel Loaders: 950F2, 960F |
| Voltage Rating | 24V DC (18-32V Operating Range) |
| Maximum Pressure | 320 bar (4,640 PSI) |
| Flow Capacity | 45-110 L/min |
| Current Draw | 1.7A @ 24V DC |
| Response Time | < 35 milliseconds |
| Seal Material | HNBR Compound |
| Coil Insulation | Class H (180°C) |
| Connection Type | ISO 4401 Standard |
| Quality Standard | ISO 9001:2015 |
| Warranty | COGENG Limited 24-Month Warranty |

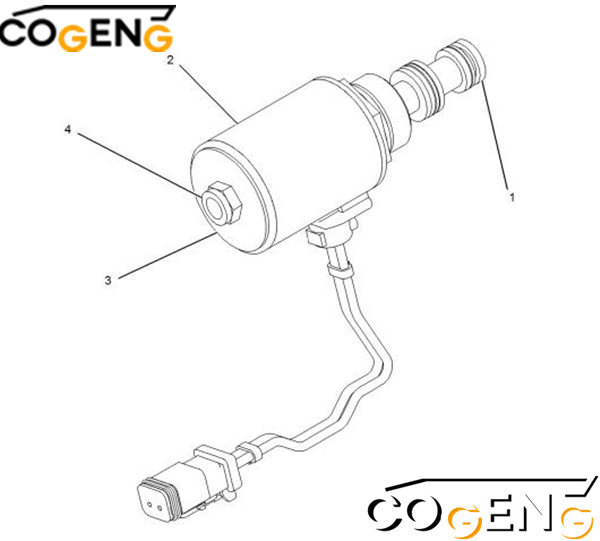

| NO | Number | Name | Qty |
| Grp | 147-5399 | CARTRIDGE AS | |
| 1 | 111-0343 | LOCKNUT (5/16-18-THD) | 1 |
| 149-5628 | WASHER(8.3X38.1X1.2-MM THK) | 1 | |
| 218-9901 | COIL AS | 1 | |
| 2 | 1S-9593 | STRAP-CABLE | 1 |
| 186-3736 | SOCKET-CONNECTOR(16-GA TO 18-GA) | 2 | |
| 155-2270 | KIT-CONNECTING PLUG(2-PIN)(INCLUDES PLUG AS, WEDGE, & INTERFACE SEAL) | 1 | |
| 3 | 149-5628 | WASHER(8.3X38.1X1.2-MM THK） | 1 |
| 4 | 111-0343 | LOCKNUT (5/16-18-THD) | 1 |
| 100-4083 | AVAILABLE REPAIR KIT(S): KIT-SEAL (INCLUDES SEALS & RINGS) |
1 |
Q: What is the difference between CAT 147-5399 and 154-3064 solenoids?
A: Both are 24V solenoids used on similar CAT compactor and loader platforms. The difference may be in connector orientation, internal flow characteristics, or application-specific calibration. Always replace with the exact part number stamped on your original valve to ensure proper function.
Q: Will the 147-5399 fit my CAT 950F Series II loader?
A: Yes, the 147-5399 24V DC solenoid valve is a direct fit for CAT 950F Series II and 960F wheel loaders, as well as 824G, 825G, and 826G compactors. Verify the part number stamped on your original valve to confirm exact fitment.
