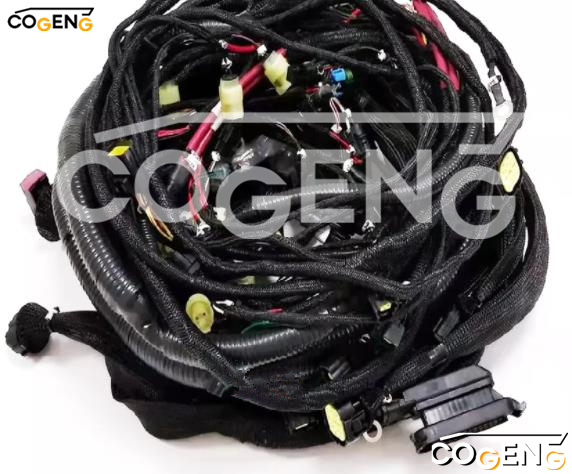

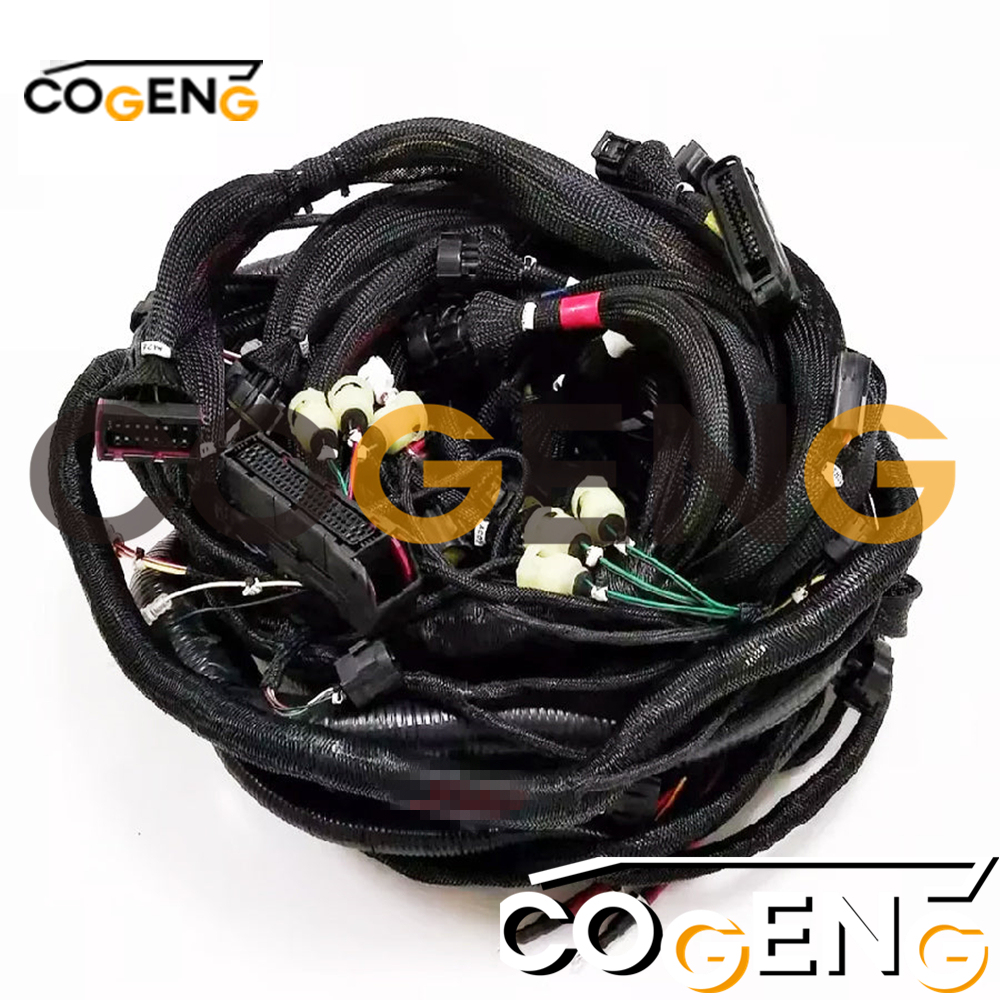

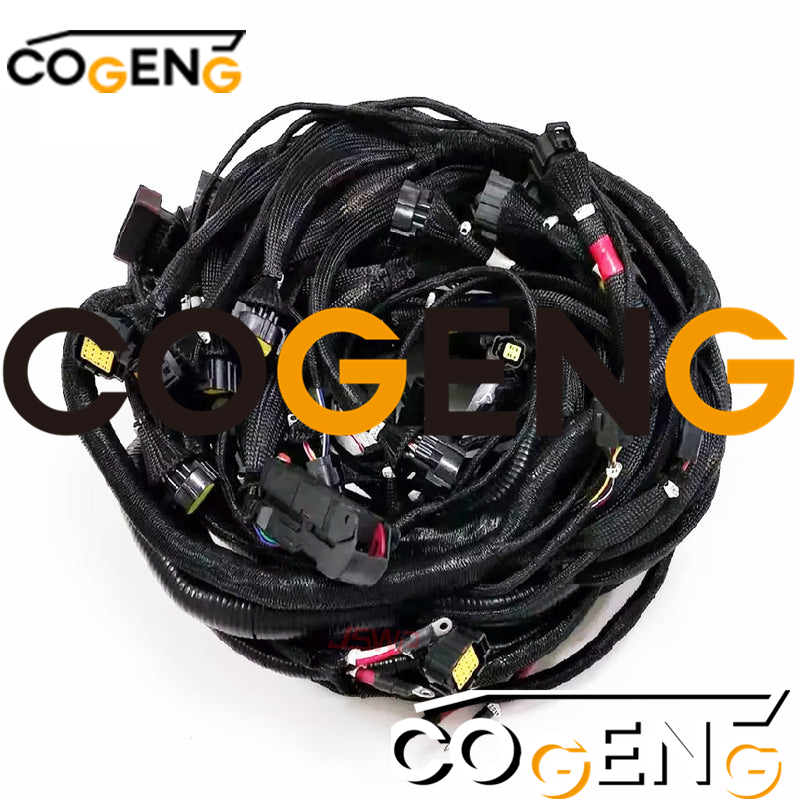

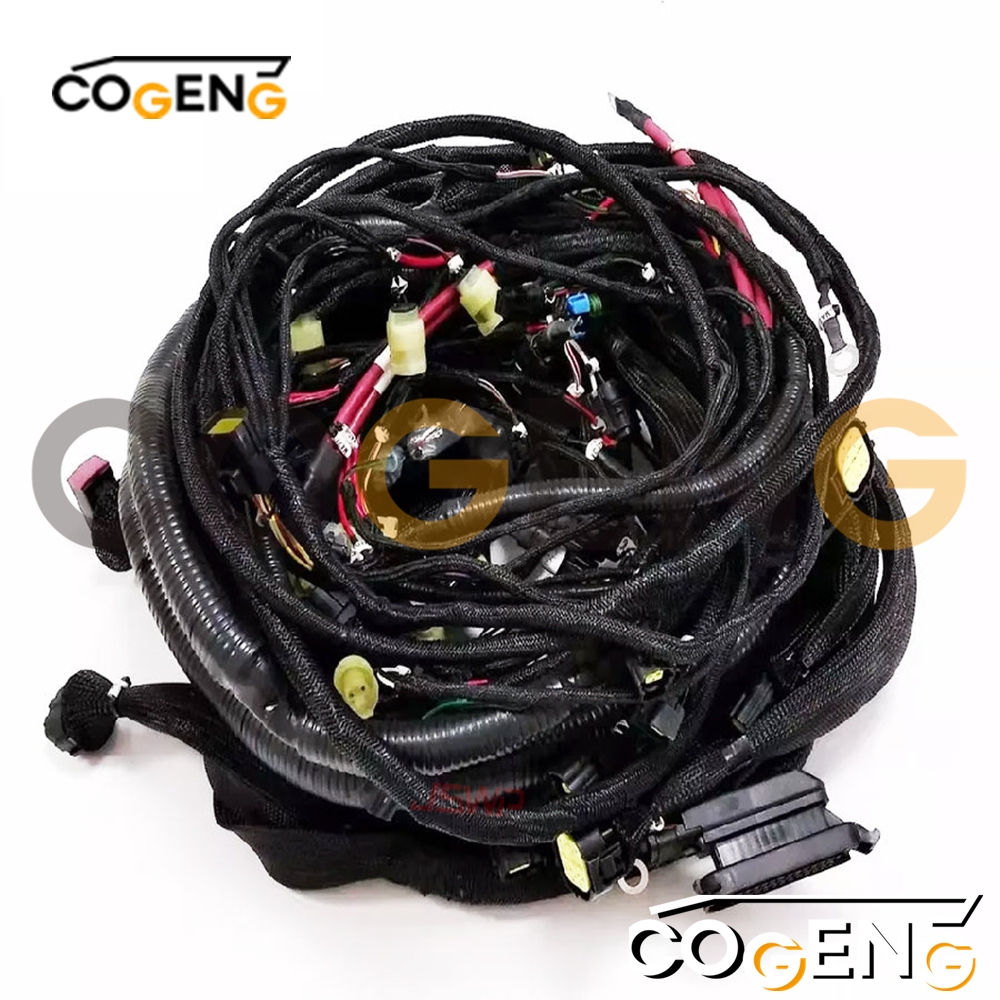

| Specification Category | Details |
|---|---|
| COGENG Part Number | WH-VK-VOE-01 |
| Replaces OEM Numbers | VOE14644238, VOE14614994, VOE14631795, VOE14591273, VOE14659626, VOE14682408 |
| Compatible Brands | Volvo |
| Compatible Models | Volvo EC140BLC, Kobelco SK200, SK200LC (and their variants) |
| Product Type | Electrical Wiring Harness / Cable Assembly Kit |
| Application | Various electrical systems within the excavator's engine and main chassis. |
| Wire Quality | High-Temperature Copper Strand, PVC Insulation |
| Connectors | OEM-Grade, Weatherproof |
| Quality Standard | ISO 9001, 100% Electrically Tested |

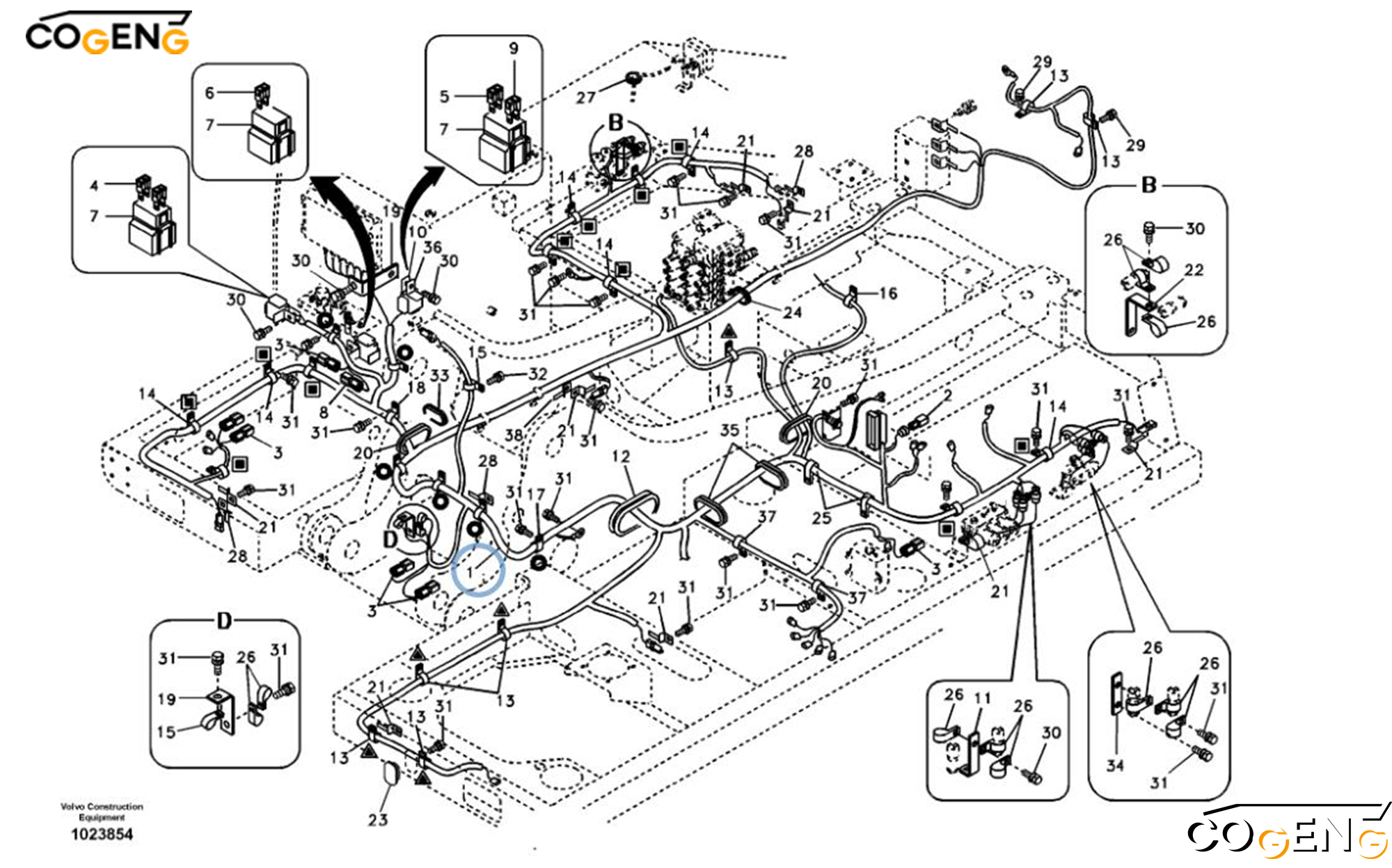

| NO | Number | Name | Qty |
| 1 | VOE14644238 | Cable harness | 1 |
| VOE14614994 | Cable harness | 1 | |
| VOE14631795 | Cable harness | 1 | |
| VOE14591273 | Cable harness | 1 | |
| VOE14659626 | Cable harness | 1 | |
| VOE14682408 | Cable harness | 1 | |
| 2 | VOE14514158 | •Resistor | 1 |
| 3 | VOE14529132 | •Diode | 5 |
| 4 | SA9879-10400 | •Fuse | 2 |
| 5 | SA9879-10800 | •Fuse | 1 |
| 6 | SA9879-11400 | •Fuse | 1 |
| 7 | SA1122-00940 | •Fuse holder | 3 |
| 10 | VOE14529100 | Bracket | 3 |
| 11 | VOE14517731 | Bracket | 1 |
| 12 | VOE14529325 | Grommet | 1 |
| 13 | VOE14500291 | Clip | 7 |
| 14 | VOE14500292 | Clip | 11 |
| 15 | VOE14500293 | Clip | 2 |
| 16 | VOE14500295 | Clip | 1 |
| 17 | VOE14500298 | Clip | 6 |
| 19 | VOE14505501 | Bracket | 2 |
| 20 | VOE14509621 | Grommet | 2 |
| 21 | VOE14510011 | Clip | 8 |
| VOE14629990 | Clip | 8 | |
| 22 | VOE14511073 | Bracket | 1 |
| 23 | VOE14511453 | Grommet | 1 |
| 24 | VOE14529331 | Grommet | 1 |
| 25 | VOE14507451 | Clip | 2 |
| 26 | VOE14529345 | Clip | 11 |
| 27 | VOE14529396 | Grommet | 1 |
| 28 | VOE14881250 | Clip | 3 |
| 29 | VOE946440 | Flange screw | 2 |
| 30 | VOE946441 | Flange screw | 6 |
| 31 | VOE946471 | Flange screw | 41 |
| 32 | VOE947107 | Flange screw | 1 |
| 33 | SA9751-15016 | Grommet | 1 |
| 34 | VOE14529334 | Bracket | 1 |
| 35 | VOE14529064 | Grommet | 2 |
| 36 | VOE14529099 | Bracket | 3 |
| 37 | VOE14500297 | Clip | 2 |
| 38 | VOE14522575 | Clip | 1 |
DISCONNECT POWER: Before starting any work, ALWAYS disconnect the negative (-) battery terminal. This prevents short circuits, electrical shocks, and potential damage to sensitive electronic control units (ECUs).
DOCUMENT BEFORE DISASSEMBLY: Take clear, well-lit photographs of the original harness routing and all connection points before disconnecting anything. Use labels or tape to mark connectors if needed.
WORK CLEAN: Ensure the work area is clean and dry to prevent contamination of electrical connectors.
Preparation:
Park the machine on a level, stable surface. Lower all attachments to the ground and engage the safety locks.
Gather all necessary tools (e.g., screwdrivers, wrenches, wire cutters/strippers, cable ties).
Removal of Old Harnesses:
Methodically unclip and unbundle the old harnesses. Never pull on the wires; always disengage connectors by their housings.
As you remove each old component, immediately match it with the corresponding new part from the COGENG WH-VK-SET-01 kit to ensure correct replacement.
Installation of New Harnesses:
Route the new harnesses precisely along the original pathways. Keep them clear of sharp edges, hot surfaces (like the exhaust), and moving parts.
Press all connectors together firmly until you hear or feel a distinct "click", confirming they are fully seated and locked.
Secure the harnesses using the existing clips and new cable ties to prevent vibration and abrasion.
Final Verification:
Before reconnecting the battery, perform a visual inspection. Double-check that all connections are secure and the routing is correct.
Reconnect the negative battery terminal.
Turn the ignition to the "ON" position (without starting the engine) and check the instrument cluster for any abnormal warning lights.
If clear, start the engine and perform basic operational checks. Listen for unusual sounds and test key functions.
Recommendation: For complex electrical systems, consulting the official Volvo or Kobelco service manual for your specific machine model is highly recommended. If you are not confident in your abilities, seek assistance from a qualified technician.
