COGENG VOE14595621 14595621Hydraulic Pump | Direct Replacement for Volvo EC210B Excavator

Name: COGENG VOE14595621 14595621Hydraulic Pump | Direct Replacement for Volvo EC210B Excavator
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: Volvo Hydraulic Pump
Part No: VOE14595621 14595621
Model Number:For Volvo Excavators:EC210B EC210B LC EC210B LR
Related Applications:EC210B Classic EC210B Prime
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

PRODUCT IDENTIFICATION

Parameter	Specification
COGENG Part Number	CG-HP-K3V112DT
OEM Equivalent (Volvo)	VOE14595621, 14595621
Base Pump Series	K3V112DT (Kawasaki / Industry standard)
Product Type	Main Hydraulic Pump
Application	Main implement, swing, travel circuits
Compatible Model	Volvo EC210B Excavator
Pump Type	Variable displacement dual-piston pump

CROSS REFERENCE GUIDE

Brand	Part Number
COGENG	CG-HP-K3V112DT
Volvo	VOE14595621, 14595621
Kawasaki (industry)	K3V112DT
Interchange	14595622, 14595623, K3V112DT-XXXR, VOE14595620

TECHNICAL SPECIFICATIONS

Pump Specifications (K3V112DT Platform)

Parameter	Specification
Pump Type	Variable displacement axial piston pump (tandem / dual)
Displacement (max per pump)	112 cc/rev (each section)
Total Displacement (tandem)	224 cc/rev
Maximum Flow Rate (rated RPM)	2 × 200 L/min = 400 L/min (approx)
Maximum Operating Pressure	350 bar (5,075 psi)
Continuous Pressure Rating	300 bar (4,350 psi)
Rated Speed	2,000 - 2,200 RPM
Direction of Rotation	Clockwise (CW) / Counter-clockwise (CCW) (verify)
Control Type	Load sensing + pressure compensation + horsepower control
Mounting Flange	SAE C / SAE D (4-bolt)
Shaft Type	Splined (SAE standard)
Port Type	SAE flanged (split flange)
Weight	110 - 130 kg (242 - 286 lbs)

Pump Sections (Tandem / Dual)

Parameter	Front Pump (Section 1)	Rear Pump (Section 2)
Displacement	112 cc/rev	112 cc/rev
Function	Main implement + Swing	Main implement + Travel
Control	Load sensing + PC	Load sensing + PC
Regulator	LS + PC + T	LS + PC + T

Construction Specifications

Component	Material Specification
Housing (front/rear)	High-strength cast iron
Cylinder block	Hardened steel with bronze plate
Pistons (9 per pump)	Hardened steel
Slipper pads	Bronze-faced
Valve plate	Hardened steel (brass-coated optional)
Shaft	Alloy steel (hardened, splined)
Seals	HNBR / FKM (Viton)
Bearings	Heavy-duty tapered roller
Regulator / control valve	Cast iron / Steel

Control System Specifications (K3V112DT)

Feature	Specification
Flow Control	Load sensing (LS)
Pressure Compensation (PC)	Yes (built-in per pump)
Horsepower Control (T)	Total horsepower control (anti-stall)
Standby Pressure	20-30 bar (290-435 psi)
LS margin pressure (ΔP)	20-25 bar (290-362 psi)
PC cut-off pressure	350 bar (5,075 psi)
Negative flow control (NFC)	Optional (EC210B may use)
Positive flow control	Not typical for EC210B

Hydraulic Fluid Compatibility

Parameter	Specification
Recommended Fluids	Mineral oil, synthetic hydraulic fluids
Viscosity Grade	ISO VG 46 / ISO VG 68
Viscosity range (operating)	10 - 1000 cSt
Operating Temperature	-20°C to +90°C (-4°F to +194°F)
Optimum Temperature	50-70°C (122-158°F)
Filtration requirement	ISO 18/16/13 (10 micron absolute)
Case drain pressure	≤2 bar (29 psi) absolute
Case drain flow (max)	≤25 L/min per pump

COMPATIBLE VOLVO EXCAVATOR

EC210B Specifications

Parameter	Specification
Model	Volvo EC210B Crawler Excavator
Engine	Volvo D6D (or equivalent)
Engine Power	110-130 kW (147-174 HP)
Operating Weight	20,000 - 22,000 kg
Bucket Capacity	0.8 - 1.2 m³
Hydraulic System	Load sensing (variable displacement)
Main Pump Pressure (implement)	320-350 bar (4,640-5,075 psi)
Pilot Pressure	30-40 bar (435-580 psi)
Pump Location	Direct drive from engine (via coupling)

EC210B Hydraulic Circuit Functions

Function	Pump Source	Pressure Range	Flow Priority
Boom	Front + Rear (merged)	320-350 bar	High
Arm	Front + Rear (merged)	320-350 bar	High
Bucket	Front + Rear (merged)	320-350 bar	High
Swing	Front pump (typically)	280-320 bar	Medium
Travel (left)	Rear pump (typically)	320-350 bar	Medium
Travel (right)	Front pump (typically)	320-350 bar	Medium
Pilot control	Pilot pump (separate)	30-40 bar	Low

Pump-to-Function Mapping (Typical EC210B)

Pump Section	Primary Function	Secondary Function
Front Pump (112cc)	Bucket + Swing + Right Travel	Boom (merged)
Rear Pump (112cc)	Arm + Left Travel	Boom (merged)
Pilot Pump	Pilot control (not included)	N/A

Note: The K3V112DT platform is a tandem (dual) pump. Verify your EC210B's exact pump configuration, regulator type (LS + PC + T), rotation direction
and port arrangement before ordering. Contact COGENG with your machine serial number for exact compatibility confirmation.

QUALITY FEATURES
Design & Manufacturing

Feature	Benefit
Precision-machined rotating group	≥92% volumetric efficiency
Hardened cylinder block	Extended wear life
Bronze-faced slipper pads	Excellent lubrication, reduced wear
Heavy-duty tapered roller bearings	Withstands continuous heavy loads
High-quality HNBR/FKM seals	Leak-proof, high temperature
K3V112DT OEM specification	Direct interchange with Kawasaki platform
Load sensing + PC + T control	Energy efficient, anti-stall
100% factory tested	Every pump individually tested on test stand

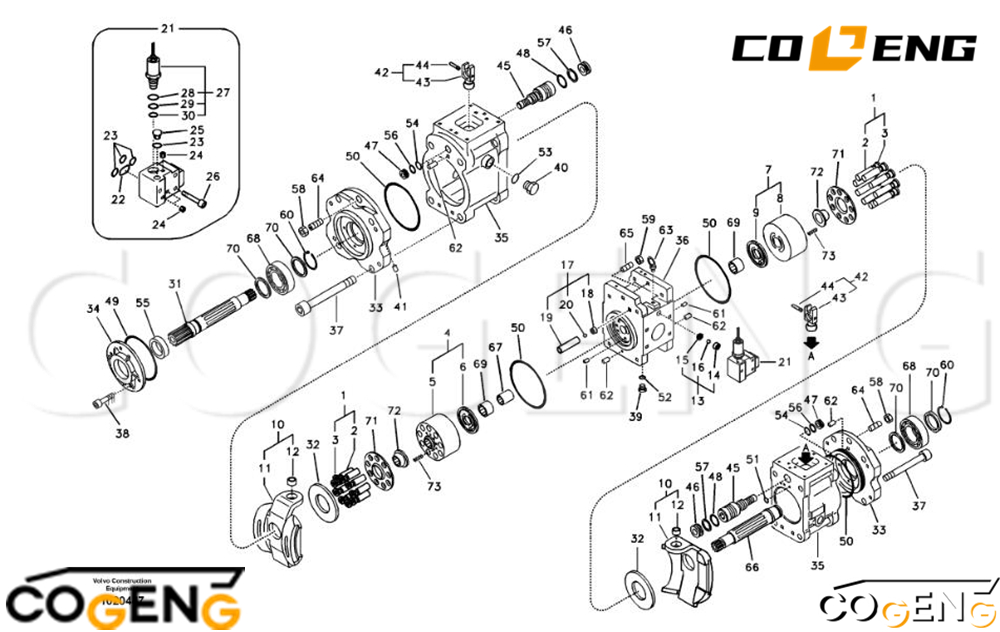

Decompose pictures

Parts list

NO	Number	Name	Qty
	VOE14595621	Pump	1
1	VOE14600771	• Piston	2
2		•• Piston	9
3		•• Liner	9
4	VOE14550188	• Cylinder	1
5		•• Housing	1
6		•• Mounting Plate	1
7	VOE14550189	• Cylinder	1
8		•• Housing	1
9		•• Mounting Plate	1
10	SA8230-09800	• Mounting Plate	2
11		•• Mounting Plate	1
12		•• Bushing	1
13	SA7223-00450	• Check Valve	2
14		•• Seat	1
15		•• Shield Weldment	1
16		•• Ball	1
17	SA7223-00460	• Check Valve	2
18		•• Seat	1
19		•• Shield Weldment	1
20		•• Ball	1
21	SA7223-00820	• Valve	1
22	VOE14533608	•• O-Ring	1
23	VOE14533606	•• O-Ring	4
24	VOE14560637	•• Plug	3
25	SA9415-11021	•• Plug	1
26	SA8230-25880	•• Hex Socket Screw	3
27	SA8230-32080	•• Valve	1
28	VOE990547	••• O-Ring	1
29	VOE990738	••• O-Ring	1
30	VOE990546	••• O-Ring	1
31	SA8230-09100	• Spindle	1
32	SA8230-21920	• Plate	2
33	SA8230-08940	• Support Bracket	2
34	SA8230-09350	• Flange Connection	1
35	VOE14541860	• Housing	1
36	SA8230-08980	• Valve Assembly	1
37	SA8230-09690	• Hex Socket Screw	8
38	SA9016-10804	• Bolt	4
39	SA9415-11021	• Plug	3
40	SA9415-11051	• Plug	4
41	VOE14560637	• Plug	21
42	SA8230-09790	• Pin	2
43		•• Pin	1
44		•• Locating Pin	1
45	VOE14540778	• Piston	2
46	VOE14600770	• Plate	2
47	SA8230-09650	• Plate	2
48	VOE14534044	• O-Ring	2
49	VOE14535450	• O-Ring	1
50	VOE14535451	• O-Ring	4
51	VOE14533604	• O-Ring	16
52	VOE14534029	• O-Ring	8
53	VOE14533612	• O-Ring	4
54	VOE14534028	• O-Ring	2
55	VOE14535452	• Seal	1
56	SA9566-10180	• Support Ring	2
57	SA9566-20350	• Support Ring	2
58	SA8230-25620	• Nut	2
59	VOE979022	• Hex Nut	2
60	SA8230-25980	• Sealing Ring	2
61	SA8230-26430	• Mounting Plate	2
62	SA7223-00660	• Spring Pin	4
63	SA8230-25450	• Eyebolt	2
64	SA8230-26780	• Bolt	2
65	SA8230-09700	• Bolt	2
66	SA8230-09070	• Pivot	1
67	SA8230-09660	• Adapter Plate	1
68	VOE14535425	• Bearing	2
69	VOE14535447	• Bearing	2
70	SA8230-14530	• Locator	4
71	VOE14541865	• Plate	2
72	VOE14535448	• Bushing	2
73	SA8230-09710	• Spring	18
74	VOE14555298	Seal Kit	1

Installation decomposition diagram
Park excavator on level ground, lower attachment to ground
Engage parking brake and implement all safety locks
Relieve all hydraulic system pressure before disconnecting lines
Clean pump and surrounding area thoroughly to prevent contamination
Use proper containment for hydraulic fluid drainage
Disconnect battery to prevent accidental engine start

Installation Steps:
Document existing pump configuration, line connections, and adjustment settings
Tag all hydraulic lines (P, A, B, T, LS, etc.) for proper reinstallation
Use proper tools for line disconnection - never force fittings
Carefully remove drive coupling and check for wear
Clean all mounting surfaces and connection points
Prime new pump with clean hydraulic fluid before installation
Install new COGENG pump using proper torque sequence and specifications
Connect hydraulic lines using new O-rings and seals
Ensure proper drive coupling alignment
Verify all connections are secure and properly sealed

System Commissioning:
Fill system with recommended Volvo hydraulic fluid
Bleed air from system following manufacturer procedures
Start engine and operate at idle to check for leaks
Gradually increase engine speed while monitoring pump operation
Check pump case drain flow for proper operation
Adjust pump settings according to Volvo service specifications
Test all hydraulic functions through complete operational cycles
Verify proper operation of load sensing and pressure compensation systems

Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed
Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
