| Specification Category | Detailed Specification |
|---|---|

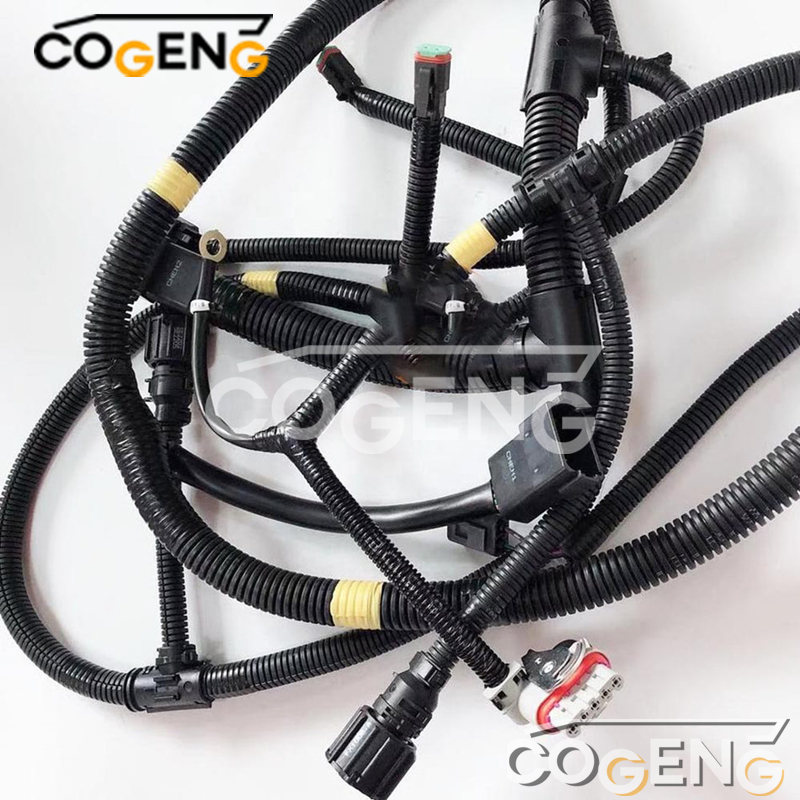

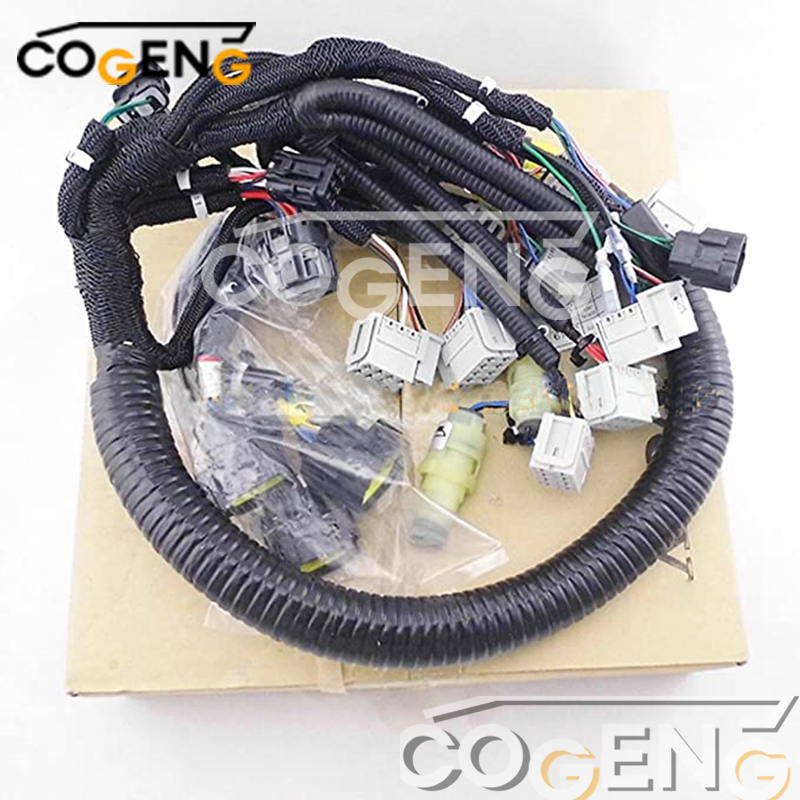

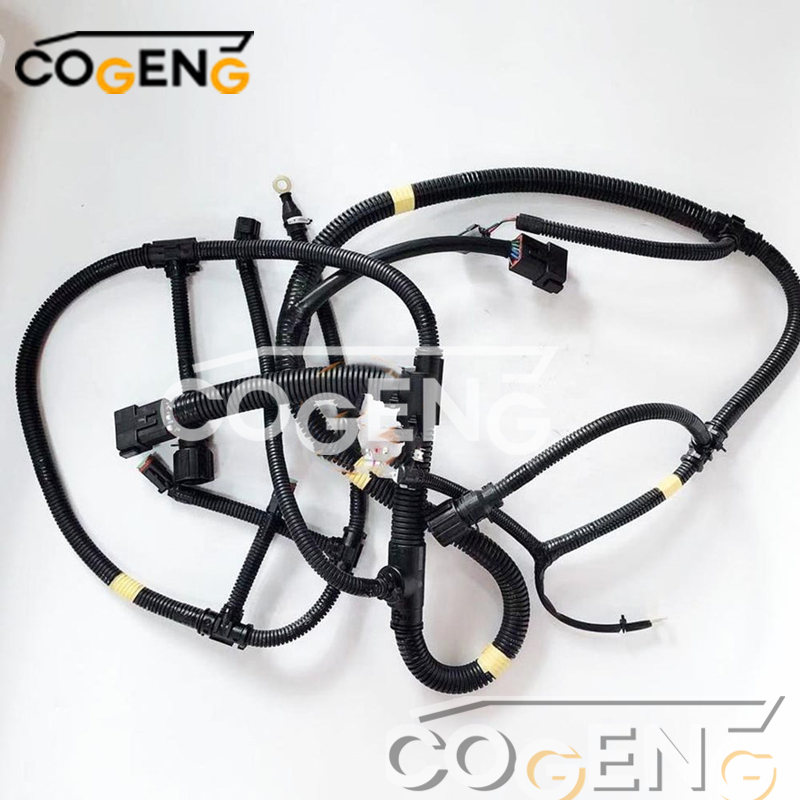

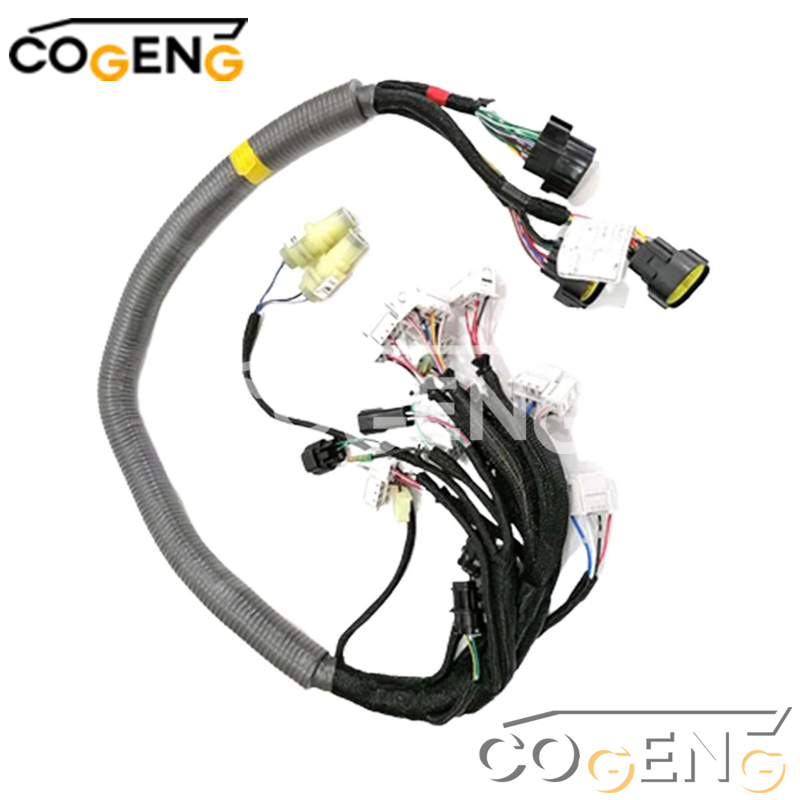

| COGENG Part Number | CG-VOL-14535881 |
| OEM Reference Number | 14535881 |
| Compatible Models | Volvo EC135B, EC140B, EC160B, EC180B, EC210B, EC240B, EC290B, EC330B, EC350B, EC380B, EC400B, EC450B, EC480B, EC550B, EC700B |
| Machine Weight Range | 13-70 Ton Excavators |
| Wire Insulation Material | Oil-Resistant Cross-Linked Polyethylene (XLPE) |
| Connector Protection Rating | IP67 (Submersible up to 1m for 30 minutes) |
| Operating Temperature Range | -45°C to 135°C |
| System Voltage Rating | 24V DC System |
| Quality Verification | 100% Circuit Continuity & Insulation Resistance Tested |

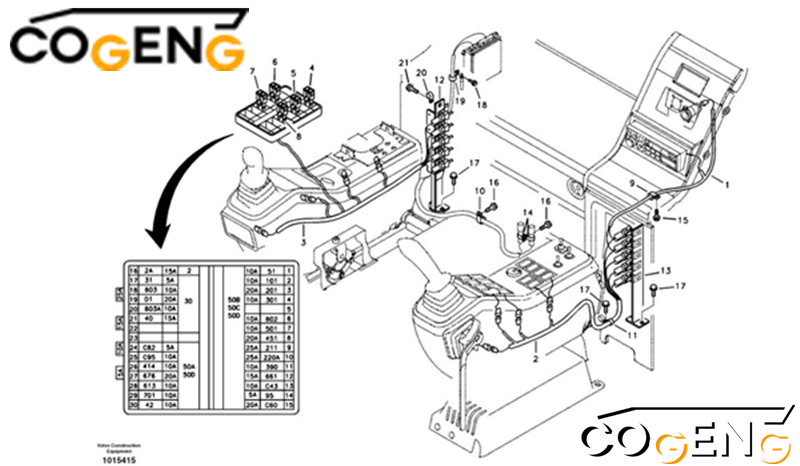

| NO | Number | Name | Qty |
| 1 | VOE14501569 | Wire harness | 1 |
| VOE14520105 | Wire harness | 1 | |
| 2 | VOE14503756 | Wire harness | 1 |
| VOE14535881 | Wire harness | 1 | |
| 3 | VOE14503755 | Wire harness | 1 |
| VOE14535882 | Wire harness | 1 | |
| 4 | VOE13969160 | •Fuse | 5 |
| VOE13969160 | •Fuse | 4 | |
| 5 | VOE969161 | •Fuse | 13 |
| VOE969161 | •Fuse | 15 | |
| 6 | VOE13969162 | •Fuse | 9 |
| VOE13969162 | •Fuse | 4 | |
| 7 | VOE978999 | •Fuse | 4 |
| VOE978999 | •Fuse | 5 | |
| 8 | VOE969164 | •Fuse | 2 |
| VOE969163 | •Fuse | 3 | |
| 9 | VOE14500292 | Clip | 1 |
| VOE14500294 | Clip | 1 | |
| 10 | VOE14500293 | Clip | 1 |
| 11 | VOE14500295 | Clip | 1 |
| VOE14500297 | Clip | 1 | |
| 12 | VOE14509874 | Bracket | 1 |
| VOE14527157 | Bracket | 1 | |
| 13 | VOE14511553 | Bracket | 1 |
| 14 | VOE14529345 | Clip | 2 |
| 15 | VOE947107 | Flange screw | 1 |
| 16 | VOE946440 | Flange screw | 2 |
| 17 | VOE946441 | Flange screw | 5 |
| 18 | VOE946471 | Flange screw | 1 |
| 19 | VOE14500298 | Clip | 1 |
| 20 | VOE14500295 | Clip | 1 |
| 21 | VOE946441 | Flange screw | 1 |
Complete machine power shutdown required before installation
Follow OEM routing diagrams for proper harness placement
Secure all mounting points and protective conduits
Verify all connector engagements are fully locked
Perform system diagnostic check after installation
Q: What Volvo models use the VOE14535881 wiring harness?
A: The COGENG VOE14535881 (also referenced as 14535881) wiring harness is a direct OEM replacement designed for select Volvo construction equipment models where this part number is specified. Always verify the part number stamped on your original harness tag and consult your machine's parts manual to confirm exact compatibility before ordering.
Q: What are the symptoms of a failing wiring harness on Volvo equipment?
A: Common symptoms include intermittent electrical faults, multiple warning lights illuminated on the display, unresponsive hydraulic or engine controls, erratic gauge or sensor readings, CAN bus communication errors, specific functions not responding, or unexpected machine shutdowns. Volvo equipment relies heavily on clean CAN bus signals, and harness degradation from heat, vibration, and moisture ingress can cause widespread electrical issues.
