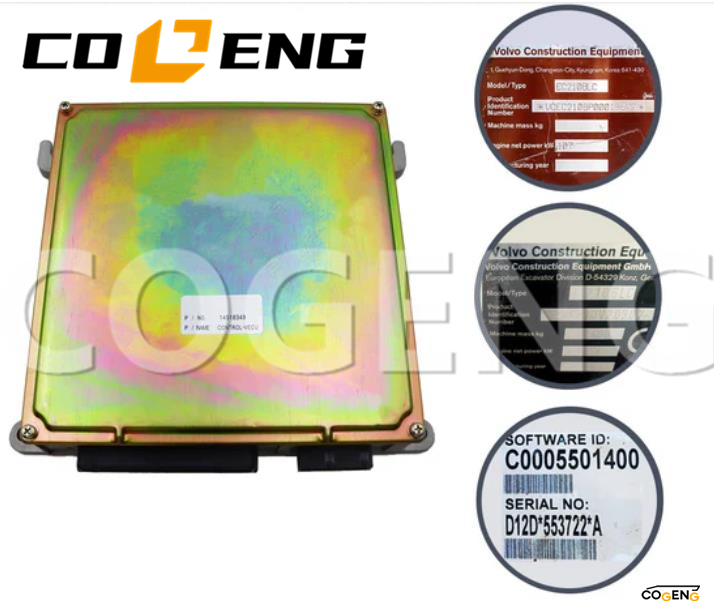

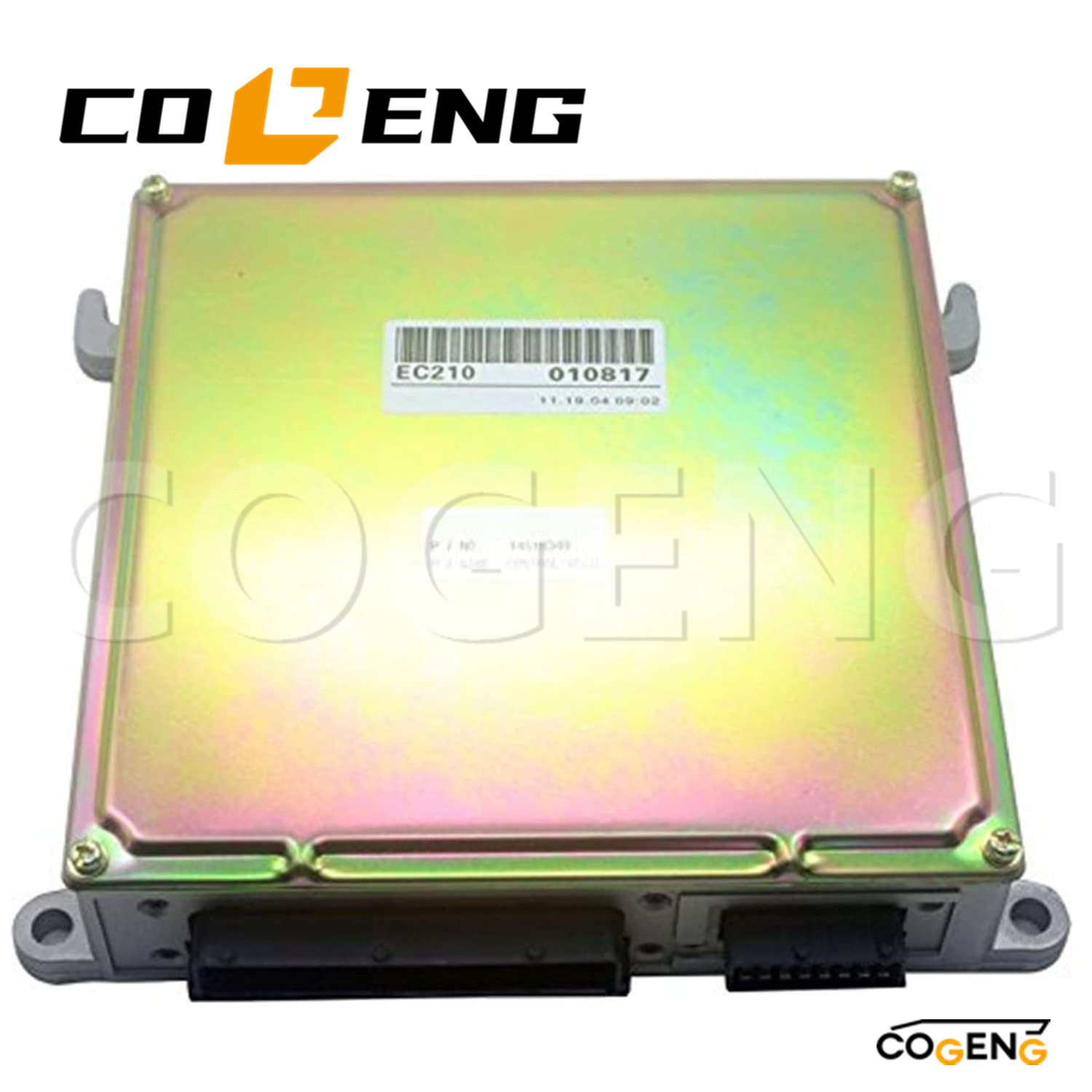

| Parameter | VOE14518349 | VOE14514090 |
|---|---|---|
| COGENG Part Number | VOE14518349 (14518349) | VOE14514090 (14514090) |
| OEM Equivalent | Volvo VOE14518349, 14518349 | Volvo VOE14514090, 14514090 |
| Product Type | V-ECU Engine Controller | V-ECU Engine Controller |
| Application | Engine management and control | Engine management and control |
| Compatible Models | Volvo B Generation Excavators | Volvo B Generation Excavators |
| Core Function | Engine control, fuel injection, system monitoring | Engine control, fuel injection, system monitoring |
| Brand | VOE14518349 | VOE14514090 |
|---|---|---|
| COGENG | VOE14518349, 14518349 | VOE14514090, 14514090 |
| Volvo | VOE14518349, 14518349 | VOE14514090, 14514090 |
| Interchange | 14518350, 14518351, 14518352 | 14514091, 14514092, 14514093 |
| Fault phenomenon | Association error code | Repair plan |
|---|---|---|
| Engine power drops sharply | PID 100/FMI 2 | 1. Check the fuel pressure sensor 2. Refresh the V-ECU firmware |
| Hydraulic action slow | SID 158/FMI 4 | 1. Calibrate pump proportional valve current (target value 1.5±0.2A) 2. Replace the pressure sensor (PN:1984783) |
| Difficulty in cold start | PID 167/FMI 0 | 1. Detect the glow plug resistance (normal 0.8-1.2Ω) 2. Update V-ECU low-temperature startup program |
| CAN communication interruption | UMID 148/FMI 9 | 1. Clean the 9-pin Deutsch connector 2. Measure the terminal resistance (60Ω) |
Replacing an engine V-ECU involves not only physical installation but also software configuration and security procedures. This work requires technical knowledge of Volvo diagnostic systems. The following is a general guide.
Step 1 – Pre-Installation Preparation
Record all existing fault codes, engine hours, and machine identification data from the old V-ECU if the controller still communicates
Ensure you have access to a compatible Volvo diagnostic tool (such as VCADS Pro, Tech Tool, or an equivalent dealer-level interface) with the appropriate software licenses
Have the machine's unique PIN code and any required immobilizer or security access codes available – these may be needed to authorize the new V-ECU
Step 2 – Battery and System Isolation
Turn the ignition fully off and remove the key. Disconnect the battery negative terminal(s). Wait at least two minutes to allow all capacitors in the electrical system to discharge before touching any V-ECU connectors.
Step 3 – Location and Access

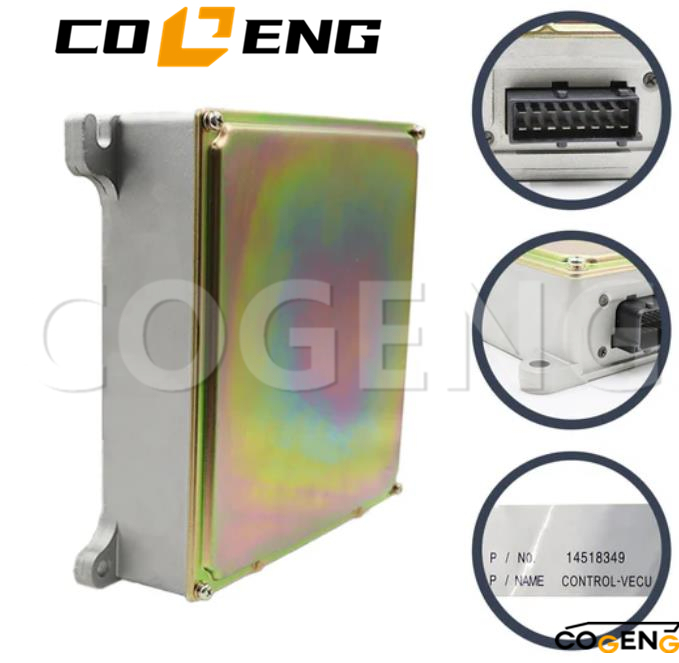

The V-ECU is typically mounted on the engine block, intake manifold, or a dedicated cooling plate bracket within the engine compartment. On Volvo excavators, access may require opening the engine hood and removing side panels or heat shields. The V-ECU has two large multi-pin connectors (often 60-pin or similar) that interface with the engine harness and the machine harness.
Step 4 – Remove the Old V-ECU
Disconnect both harness connectors by releasing the locking levers or bolt mechanisms – never pull on the wiring
Remove the V-ECU mounting bolts and lift the unit away from its mounting surface
If the V-ECU is mounted on a cooling plate with thermal paste or a conductive pad, note the condition and arrangement for reassembly

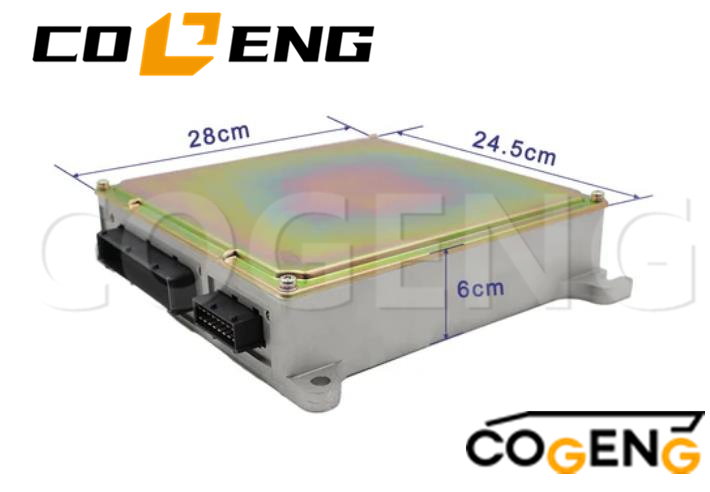

Step 5 – Install the COGENG VOE14518349 / VOE14514090
Clean the mounting surface thoroughly. If a thermal interface material is required, apply fresh thermal paste or install a new conductive pad according to specification
Position the new V-ECU and secure it with the mounting bolts to the correct torque value
Reconnect both harness connectors, ensuring they are fully seated and locked. Check that the connector seals are intact and correctly positioned to prevent moisture ingress
Step 6 – Power Up and Initial Communication
Reconnect the battery. Turn the ignition to ON without starting the engine. Connect the Volvo diagnostic tool and verify that the new V-ECU is detected and communicating on the CAN network.
Step 7 – Software Download and Configuration (Dealer/Technician Step)
This is the critical stage that differentiates a V-ECU from a simple sensor replacement:
Using the Volvo diagnostic software, download and install the correct engine software and parameter set (flash file) that matches the machine's engine type, emission tier, and injection system
Enter the machine's identification data, engine serial number, and hour meter reading
Perform any required immobilizer synchronization or security key programming
Execute the injector trim code (IQA / calibration code) input procedure for each cylinder, ensuring the V-ECU knows the precise flow characteristics of each installed injector
Complete any mandatory guided commissioning procedures as prompted by the diagnostic tool
Step 8 – Start and Verify
Start the engine and monitor for stable idle, correct throttle response, and the absence of warning lamps. Using the diagnostic tool, check that all sensor values are within expected ranges, no active fault codes are present, and the engine responds correctly under load. Conduct a test cycle of the machine through various operating modes before returning it to service.
