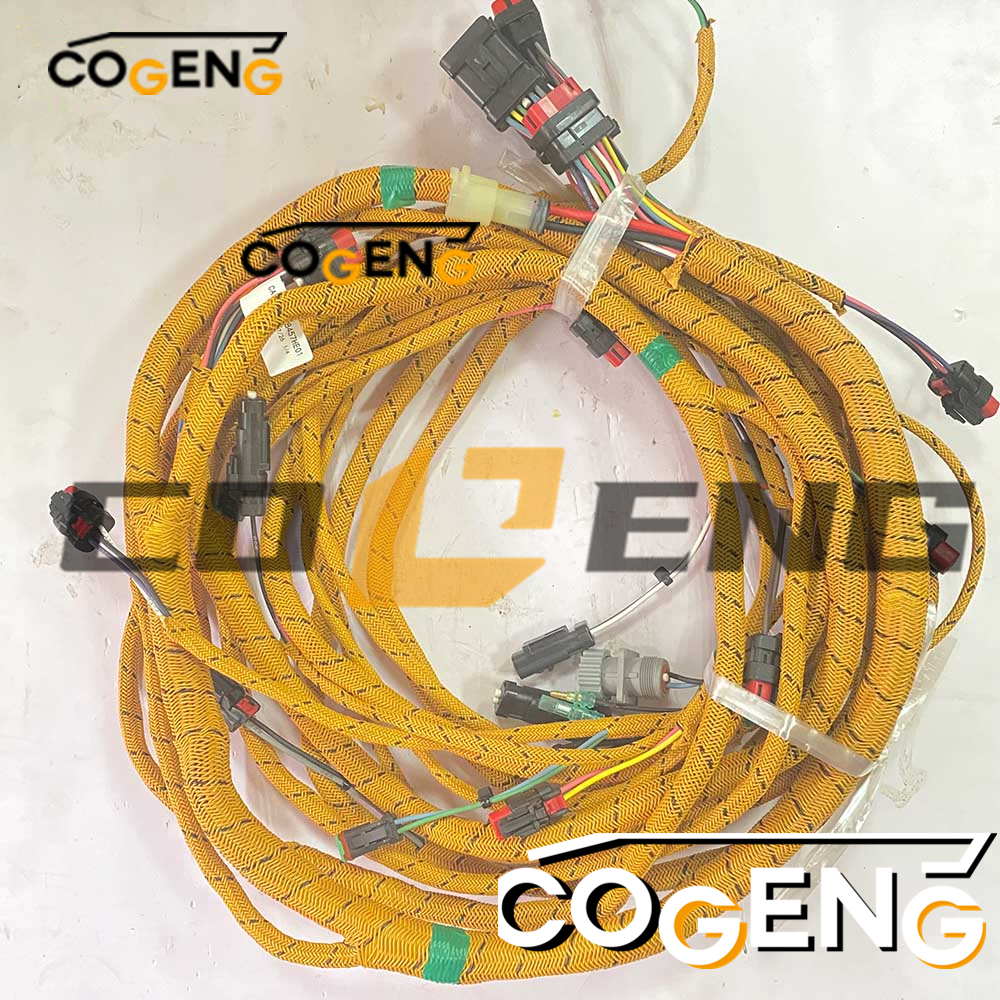

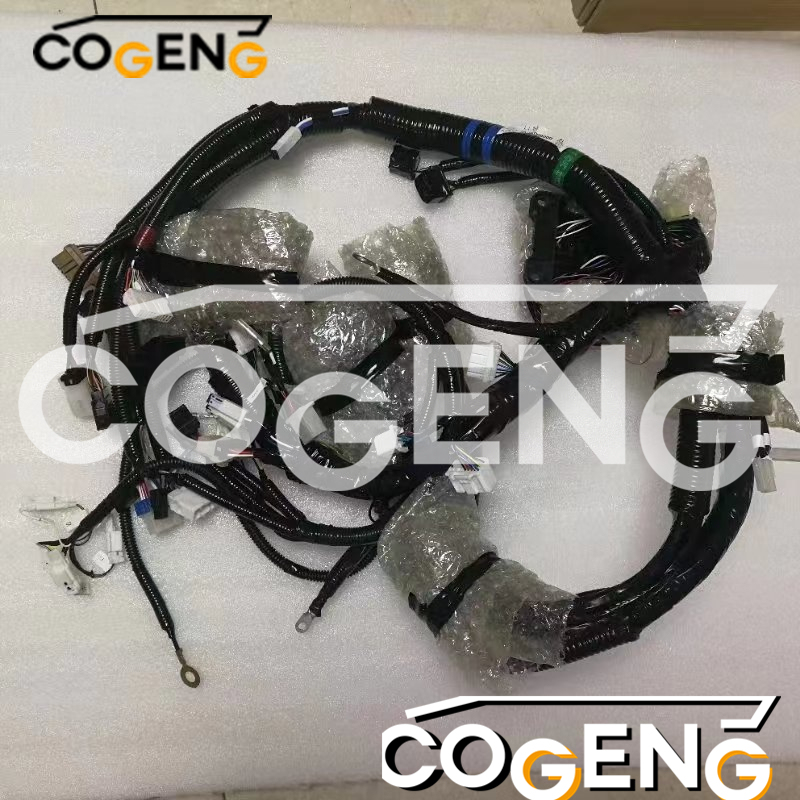

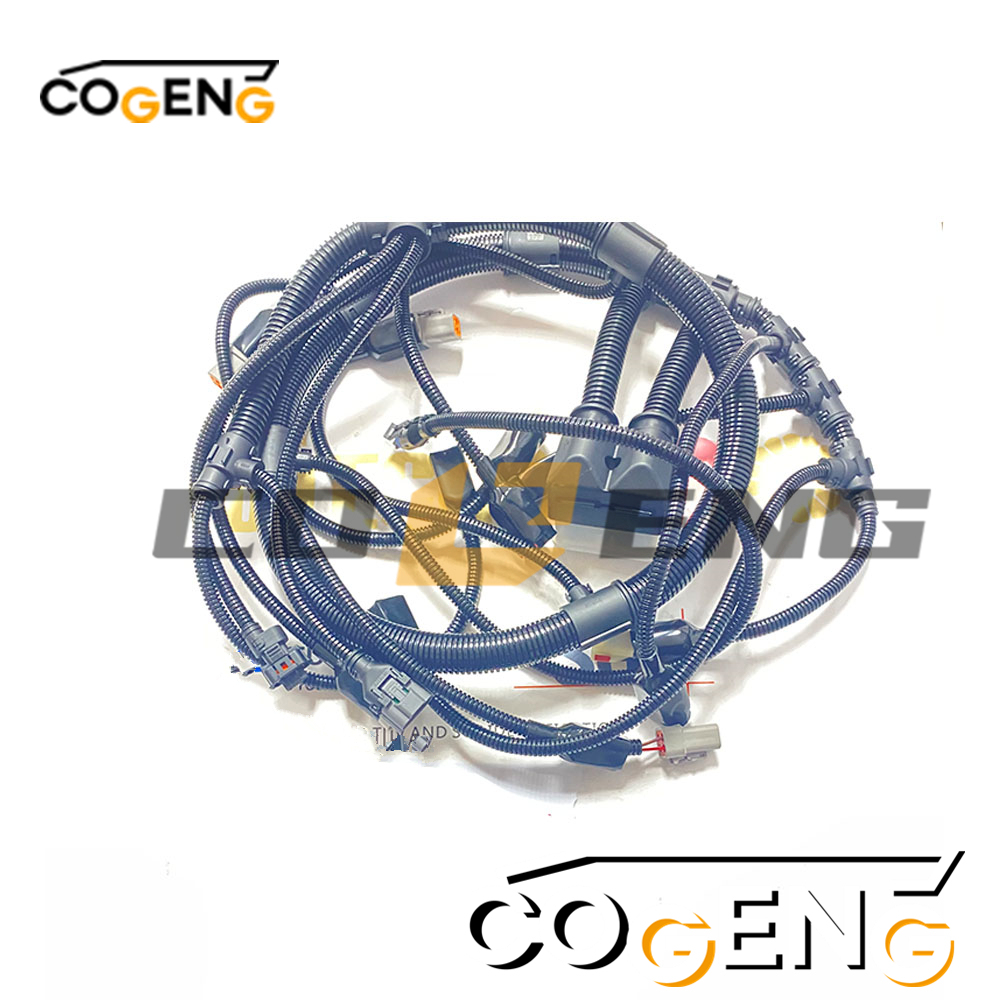

| Parameter | Specification |
|---|---|
| COGENG Part Number | LC14E00023F1 |
| OEM Equivalent | Kobelco LC14E00023F1 |
| Product Type | Wiring Harness Assembly |
| Application | Complete machine electrical system |
| Harness Type | Main harness (cab + engine + chassis) |
| Fitment | Model-specific (see compatibility list) |
| Brand | Part Number |
|---|---|
| COGENG | LC14E00023F1 |
| Kobelco | LC14E00023F1 |
| Interchange | LC14E00023F2, LC14E00023F3, YN13E01449P3 (select models) |
| Parameter | Specification |
|---|---|
| System Voltage | 24V DC (heavy-duty) |
| Current Capacity | Up to 50A (main power circuits) |
| Wire Gauge Range | 16AWG - 20AWG (signal) / 10AWG - 14AWG (power) / 4AWG-6AWG (battery) |
| Insulation Resistance | ≥100MΩ @ 500V DC |
| Dielectric Strength | 1500V AC/60s No Breakdown |
| Voltage Drop | <0.5V @ rated load |
| Temperature Rating | -40°C to +125°C |
| Component | Material Specification |
|---|---|
| Conductor | High-purity tinned copper (99.9%) |
| Wire Insulation | Heat-resistant XLPE / PVC (125°C rated) |
| Outer Wrapping | Automotive-grade cloth tape / Corrugated conduit |
| Connector Housings | OEM-grade Nylon 66 / PBT (UL94 V-0) |
| Terminals | Tin-plated / Gold-plated brass |
| Grommets/Bushings | EPDM Rubber (UV resistant) |
| Shielding | Aluminum foil + copper braid (sensor circuits) |
| Identification | Heat-shrink printed circuit labels |
| Parameter | Rating |
|---|---|
| Temperature Range | -40°C to +125°C |
| Ingress Protection | IP67 (engine connectors) / IP65 (chassis/cab) |
| Vibration Resistance | 15G @ 50-1000Hz |
| UV Resistance | 500+ hours weatherometer |
| Chemical Resistance | Resists oil, diesel, hydraulic fluid, coolant |
| Abrasion Resistance | Corrugated conduit in high-wear areas |
| Model | Series | Application | Notes |
|---|---|---|---|
| SK200-6E | Dash 6E | Main harness | Direct fit |
| SK200LC-6E | Dash 6E | Main harness | Direct fit |
| SK210-6E | Dash 6E | Main harness | Direct fit |
| SK210LC-6E | Dash 6E | Main harness | Direct fit |
| SK230-6E | Dash 6E | Main harness | Direct fit |
| SK230LC-6E | Dash 6E | Main harness | Direct fit |
| SK250-6E | Dash 6E | Main harness | Direct fit |
| SK250LC-6E | Dash 6E | Main harness | Direct fit |
| Model | Series | Compatibility Note |
|---|---|---|
| SK200-6 | Dash 6 | May require minor pinout verification |
| SK210-6 | Dash 6 | May require minor pinout verification |
| SK230-6 | Dash 6 | May require minor pinout verification |
| SK250-6 | Dash 6 | May require minor pinout verification |
| SK200-8 | Dash 8 | Different pinout – not compatible |
| SK210-8 | Dash 8 | Different pinout – not compatible |
| Feature | LC14E00023F1 |
|---|---|
| Primary Fitment | SK200/210/230/250 -6E series |
| Secondary Fitment | SK200/210/230/250 -6 series (verify) |
| Not Compatible | Dash 8, Dash 9, Dash 10 series |
| Engine Compatibility | Hino / Isuzu / Kobelco engines |
| Harness Layout | Model-specific pre-formed routing |
⚠️ IMPORTANT: This harness is model-specific for SK200-6E, SK210-6E, SK230-6E, and SK250-6E excavators. Verify compatibility with your equipment model and serial number before ordering. Contact COGENG with your machine details for exact application verification.

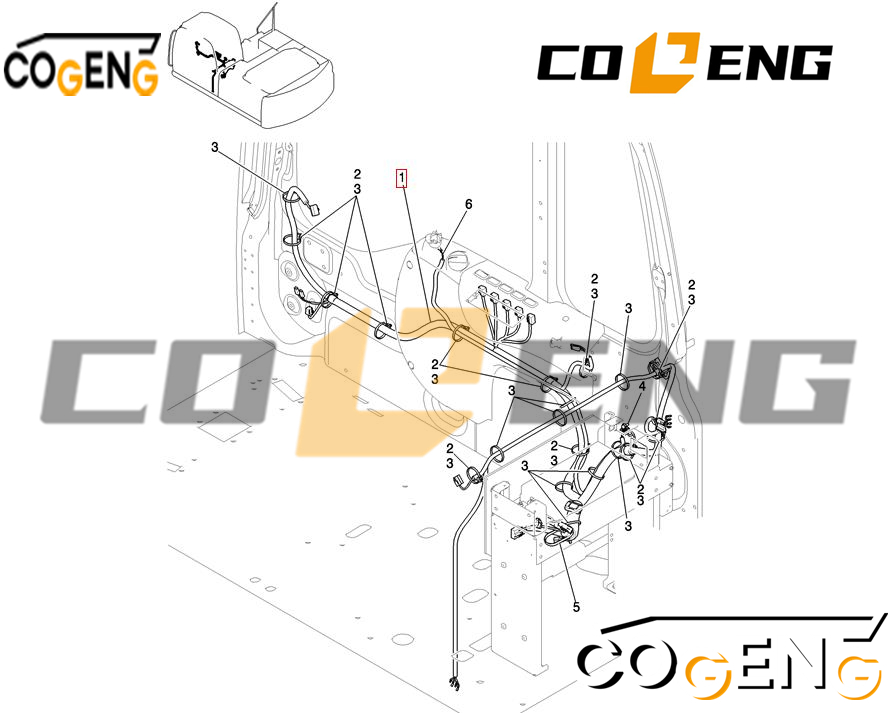

| Circuit Group | Components | Wire Specification |
|---|---|---|
| Main Power Distribution | Battery, alternator, fuse box, start relay | 4-6 AWG (battery) / 10-12 AWG (alternator) |
| Engine Control System | ECU, crank sensor, cam sensor, injectors | Shielded 18-20 AWG + 14 AWG (injectors) |
| Fuel System | Fuel pump, supply pump, pressure sensors | 16-18 AWG |
| Hydraulic Control System | Main pump solenoids, control valve, pressure sensors | 16-18 AWG (shielded sensors) |
| Swing System | Swing motor brake solenoid, swing sensors | 16-18 AWG |
| Travel System | Travel motor brake solenoids, travel sensors (L/R) | 16-18 AWG |
| Cab / Monitor System | Display unit, switch panel, meter panel, HVAC | 18-20 AWG (signal) + 14-16 AWG (power) |
| Joystick Control | Pilot control signals (L/R joysticks) | Shielded 20 AWG |
| Lighting System | Work lights (boom, chassis, cab), travel lights, beacon | 14-16 AWG |
| Safety Systems | Emergency stop, seat switch, seatbelt switch, backup alarm | 18-20 AWG |
| NO | Number | Name | Qty |
| 1 | LC14E00023F1 | Wiring Harness | 1 |
| YN14E01102P3 | WIRE HARNESS | 1 | |
| YN14F01102P3 | WIRE HARNESS | 1 | |
| YN14E01102P4 | WIRE HARNESS | 1 | |
| YN14E01102P4 | WIRE HARNESS | 1 | |
| 2 | YN13E01375P1 | CLIP | 11 |
| 3 | PY01P01043D3 | CLIP | 18 |
| PYD1P01043D3 | CLIP | 18 | |
| PY01P01043D3 | CLIP | 20 | |
| FY01P01043D3 | CLIP | 20 | |
| 4 | ZM73C06016 | BOLT | 1 |
| 5 | FY01P01043D8 | CLIP | 1 |
| 6 | YN14E01106P1 | WIRE HARNESS | 1 |
| YN14E01106P1 | WIRE HARNESS | 1 |
