| Parameter | Specification |
|---|---|
| COGENG Part Number | SV-CAT-4036-HR |
| Replaces OEM Number | 121-4036 |
| Product Type | High-Reliability Solenoid Valve |
| Voltage Rating | 12V DC Standard |
| Maximum Operating Pressure | 250 Bar (3,625 PSI) |
| Flow Capacity | 30 L/min (7.9 GPM) |
| Coil Insulation | Class F (155°C) |
| Body Material | Carbon Steel with Corrosion-Resistant Coating |
| Seal Material | High-Grade Nitrile (NBR) |
| Electrical Connection | OEM-Compatible Weatherproof Connector |
| Protection Rating | IP67 (Dust and Waterproof) |
| Service Life | 1,000,000+ cycles |

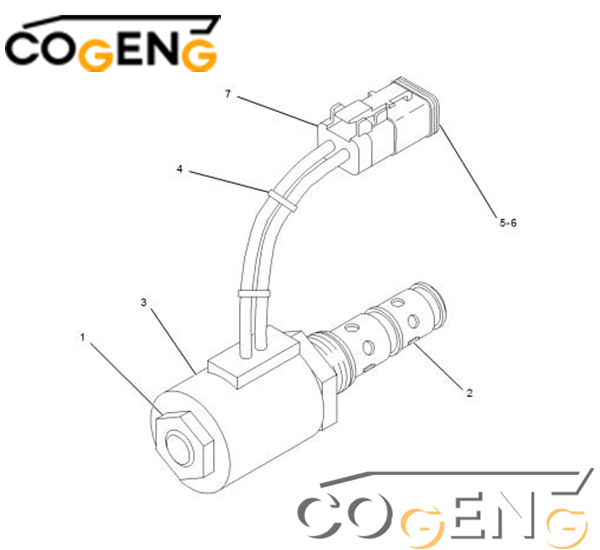

| NO | Number | Name | Qty |
| Grp | 121-4036 | VALVE GP-SOLENOID | 1 |
| 1 | 3J-9196 | NUT-JAM( 1/2-20-THD) | 1 |
| 2 | 122- 1672 | CARTRIDGE AS | 1 |
| 3 | 130-0013 | COIL AS | 1 |
| 4 | 1S-9593 | STRAP-CABLE WEDGE-PLUG LOCK | 2 |
| 5 | 3E-3362 | (2-PIN)SOCKET-CONNECTO | 1 |
| 6 | 186-3736 | ( 16-GA TO 18-GA)KIT-CONNECTING PLUG | 2 |
| 7 | 155-2270 | (2-PIN)(INCLUDES PLUG AS AVAILABLE REPAIR KIT | 1 |
| 122- 1135 | KIT-SEAL | 1 |
Completely depressurize hydraulic system before installation
Disconnect battery and main power sources
Clean work area thoroughly to prevent contamination
Use appropriate personal protective equipment
System Preparation:
Relieve all hydraulic system pressure
Clean valve and connection areas thoroughly
Disconnect electrical connector
Valve Replacement:
Remove old valve using proper tools
Install new seals lubricated with clean hydraulic fluid
Mount new COGENG solenoid valve
Torque fasteners to specification (18-22 Nm)
System Verification:
Reconnect electrical connector
Pressurize system and check for leaks
Test valve operation through full cycle
Verify proper system functionality
