| Specification Category | Details |
|---|---|
| COGENG Part Number | 114-0616 |
| Compatible OEM Part | Caterpillar® 114-0616 |

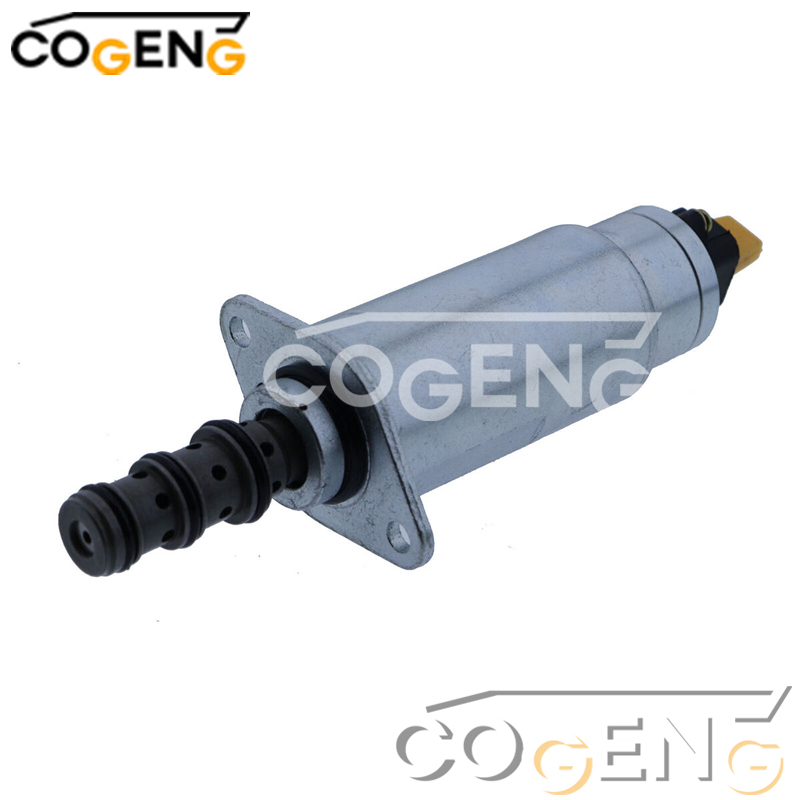

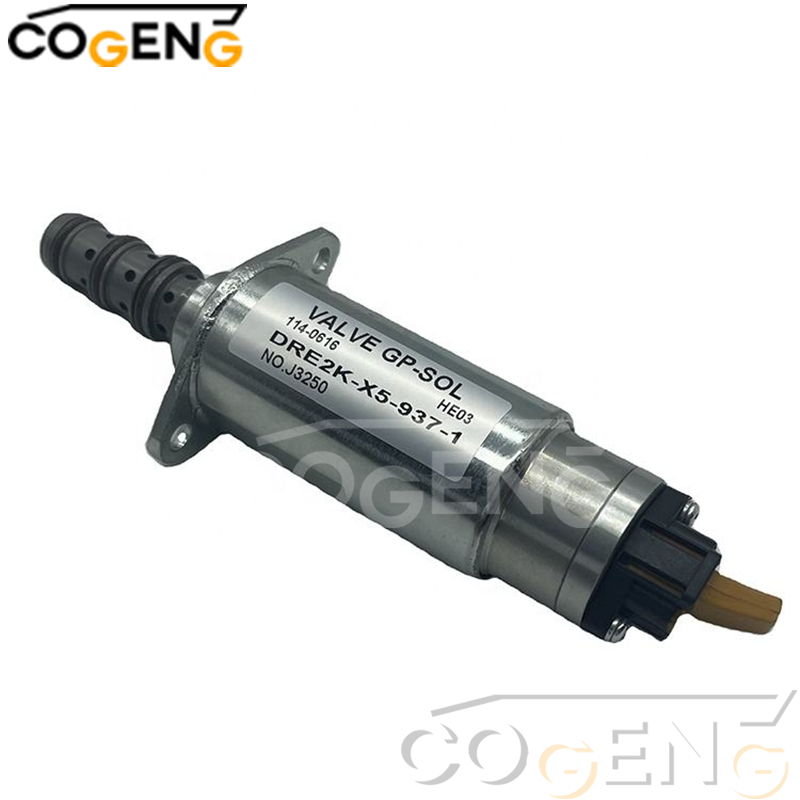

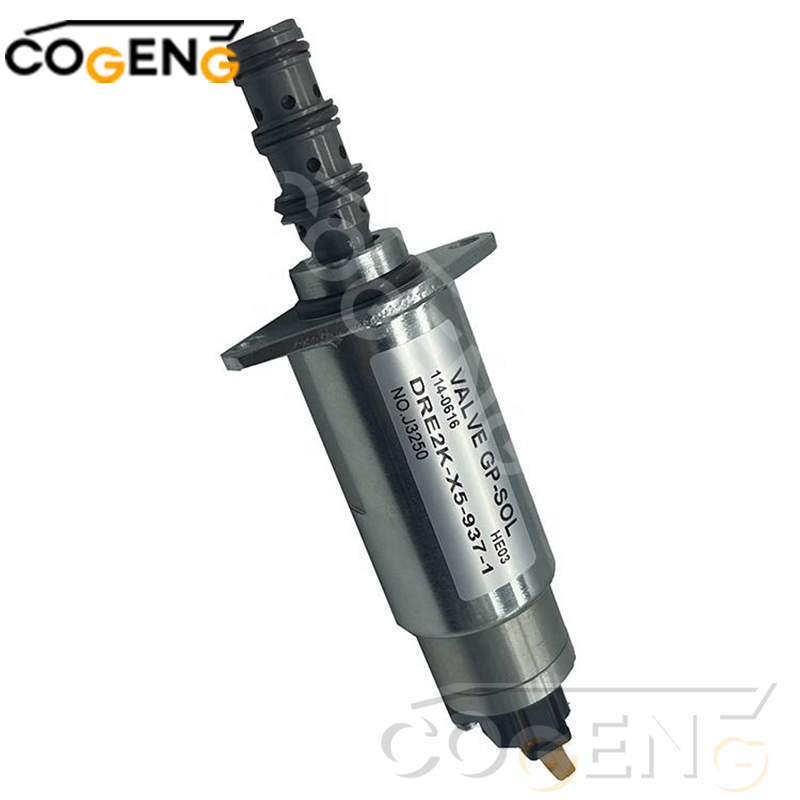

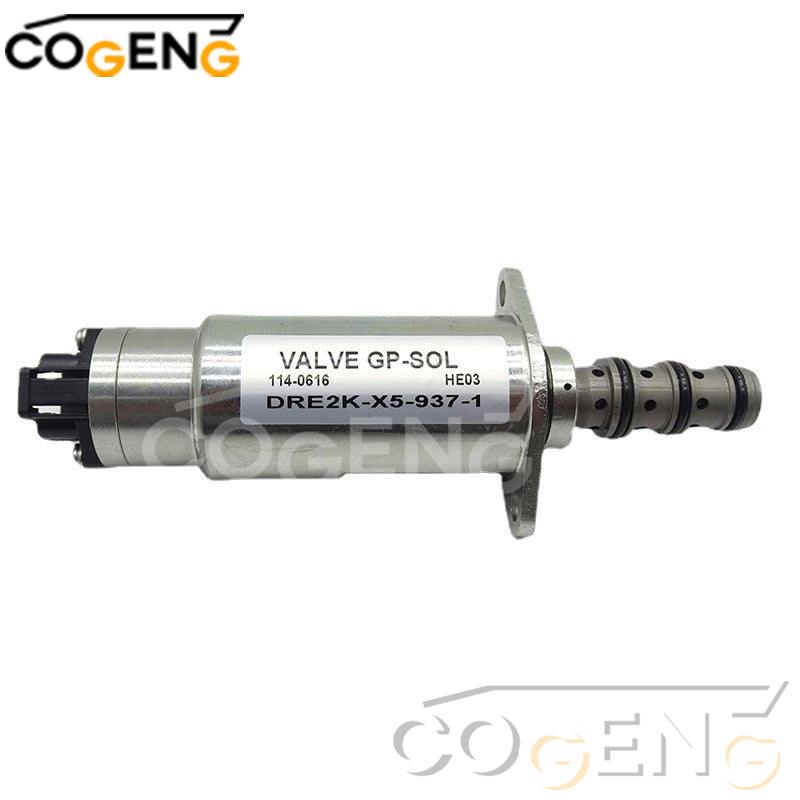

| Application | Control Valve Solenoid Cartridge (Pilot Control) |
| Compatible Models | 312B, 312BL, 315BL, 325BL, 330BL (Please verify specific machine serial number) |
| Voltage | 24V DC (Standard for these models) |
| Electrical Coil | High-Temperature Copper Windings |
| Insulation Class | Class H (or higher) |
| Housing Material | High-Strength Steel/Alloy |
| Seals | Buna-N (Standard) - Compatible with standard hydraulic oils |
| Operating Temperature | -40°C to +120°C (-40°F to +248°F) |
| Thread/Port Type | OEM-specific cartridge thread |
| Manufacturer | COGENG |
| Warranty | Limited 1-Year Warranty |
| NO | Number | Name | Qty |

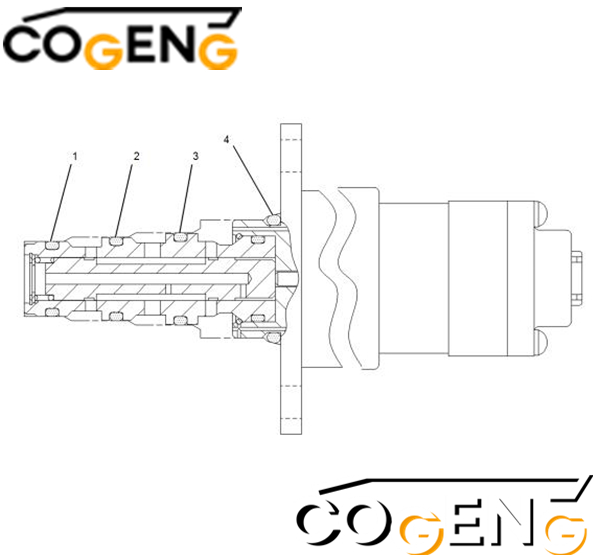

| 114-0616 | VALVE GP-SOLENOID | 1 | |
| 1 | 095-1750 | SEAL-O-RING | 1 |
| 2 | 6V-8398 | SEAL-O-RING | 1 |
| 3 | 095-1751 | SEAL-O-RING | 1 |
| 4 | 095-1586 | SEAL-O-RING | 1 |
Complete System Safeguarding:
Secure the Machine: Park the excavator on a firm, level surface. Lower the attachment fully to the ground. Stop the engine.
Depressurize the Hydraulic System: Slowly loosen the hydraulic tank cap to release any residual air pressure. Gently move all control levers (travel, swing, boom, stick, bucket) through their full range to relieve any trapped high-pressure oil in the circuits.
Disconnect All Power Sources: Disconnect the negative (-) battery terminal to prevent any electrical shock or accidental engine start.
Maintain Impeccable Cleanliness:
The main control valve is highly sensitive to contamination. Thoroughly clean the area around the solenoid mounting port on the valve body before disassembly.
Use clean plugs or caps to seal any open ports immediately after removing the old solenoid to prevent dirt ingress.
Careful Handling & Installation:
Document Wiring: Note the position and orientation of the electrical connector before disconnecting it from the old solenoid.
Proper Removal: Use the correct tools to carefully unthread and remove the faulty solenoid cartridge from the valve body.
Use New Seals: Always install the new O-rings or seals provided with the COGENG valve. Lubricate them with clean hydraulic oil before installation to prevent cutting or rolling.
Correct Torque: Install the new COGENG 114-0616 solenoid by hand to avoid cross-threading, then tighten to the manufacturer's specified torque using a torque wrench. Do not overtighten.
Post-Installation System Check:
Reconnect the battery.
Start the engine and let it run at low idle. Visually inspect the new solenoid for any signs of hydraulic leakage around the seal.
Slowly and carefully operate all excavator functions to purge air from the system. Listen for smooth operation and check for any hesitation.
Perform a full operational test to ensure all functions controlled by the solenoid are working correctly and responsively.
Q: What causes jerky or erratic hydraulic movements on a CAT 320 excavator?
A: This is often caused by a failing pilot control solenoid valve like the 114-0616. When the valve cannot regulate pilot pressure smoothly, it results in jerky boom, arm, or bucket movements, especially during fine grading operations.
Q: How to test a CAT 114-0616 solenoid valve?
A: Measure coil resistance (typically 8-12 ohms). Check for clean signal voltage from the ECM. Inspect the valve spool for contamination or sticking. A common failure mode is internal wear causing inconsistent pilot pressure regulation.
