| Specification Category | Details |
|---|---|

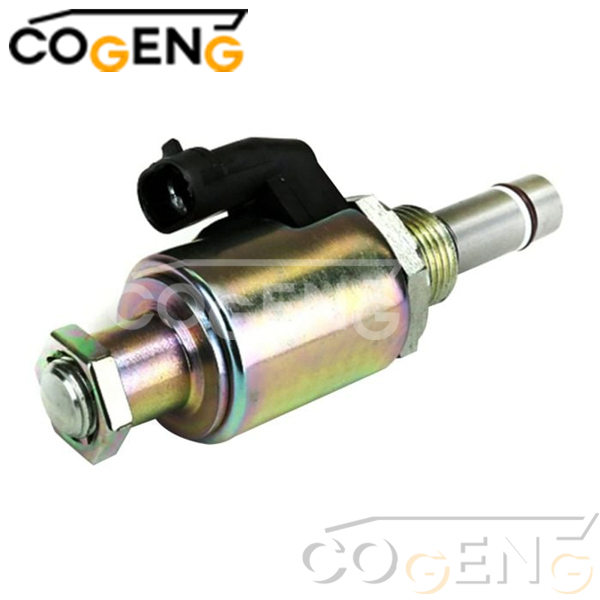

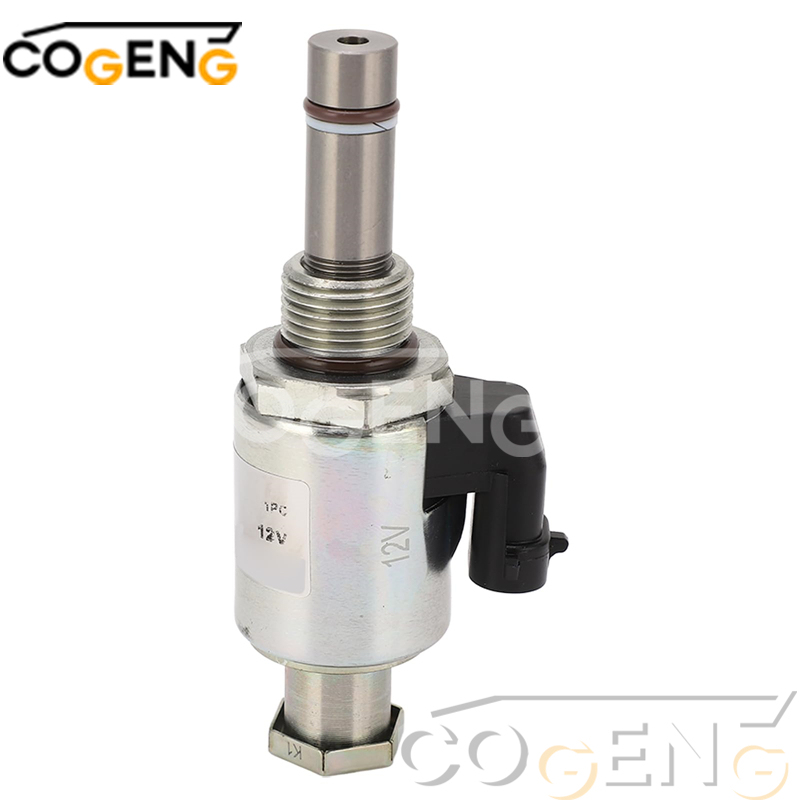

| COGENG Part Number | 107-0677 |
| Compatible OEM Part | Caterpillar® 07-0677 |
| Application | High-Flow Hydraulic Control Solenoid (Transmission/Implement/Brake) |
| Compatible Models | 69D, 769C, 769D, 773B, 773D, 773E, 775D, 775E, D10N, D10R, D8L, D9L, D9N, D9R |
| Voltage | 24V DC (Standard for these models) |
| Electrical Coil | Heavy-Duty, High-Temperature Copper Windings |
| Insulation Class | Class H or higher |
| Housing Material | High-Strength Steel Alloy |
| Seals | Buna-N or Polyurethane (Compatible with advanced hydraulic oils) |
| Operating Pressure | Rated for High-Pressure Hydraulic Systems |
| Operating Temperature | -40°C to +135°C (-40°F to +275°F) |
| Manufacturer | COGENG |
| Warranty | Limited 1-Year Warranty |

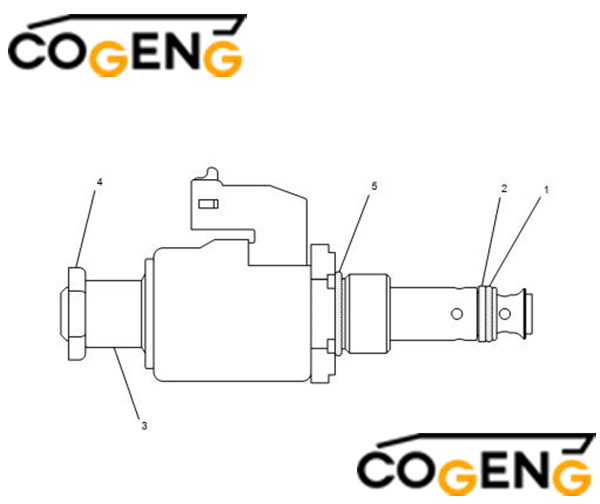

| NO | Number | Name | Qty |
| Grp | 107-0677 | VALVE GP-SOLENOID | 1 |
| R | 033-6039 | VALVE GP-SOL | 1 |
| 1 | 123-3132 | RING-BACKUP | 1 |
| 2 | 9X-5535 | SPACER-SPECIAL | 1 |
| 3 | 8C-6711 | NUT-RETAINER (1/2-20-THD) | 1 |
| 4 | 033-6028 | SEAL-O-RING | 1 |
| 5 | 9X-1484 | AVAILABLE REPAIR KIT(S) | 1 |
Complete System Safeguarding:
Secure the Machine: Park on a level, stable surface. For trucks, fully lower the dump body and engage the parking brake. For dozers, lower the blade and ripper. Stop the engine.
Depressurize the Hydraulic System: Slowly loosen the hydraulic tank cap to release residual pressure. Actuate all relevant control levers (with engine off) to relieve any trapped high-pressure oil. Be aware that some systems may remain pressurized; consult the service manual.
Isolate All Power: Disconnect the negative (-) battery terminal(s). On large machines, there may be multiple batteries; ensure all are disconnected.
Ultimate Cleanliness Protocol:
Contamination control is paramount. Thoroughly steam clean or pressure wash the area around the solenoid and its connections before beginning work.
Use certified clean plug kits to immediately seal ALL open hydraulic ports and hoses upon disconnection.
Heavy-Duty Installation Procedure:
Document Configuration: Note the routing of all wiring and hoses. Disconnect the electrical connector.
Safe Removal: Use properly sized tools to remove the mounting bolts and hydraulic lines. Be prepared for residual oil.
Use New Seals: Always install the new, heavy-duty O-rings or gaskets supplied with the COGENG valve. Lubricate them with clean hydraulic fluid.
Precise Torque: Install the new COGENG 07-0677 valve. Use a calibrated torque wrench to tighten all fasteners and fittings to the manufacturer's specified values. Overtightening can damage the valve body.
Post-Installation System Check:
Reconnect the battery(s).
Start the engine and run at low idle. Conduct a thorough visual and manual inspection for any hydraulic leaks.
Slowly cycle the related machine functions to purge air from the system. Observe gauges and listen for abnormal noises.
Perform a full operational test under controlled conditions to verify correct system function before returning the machine to full production.
Q: What are symptoms of a failing 107-0677 solenoid on a CAT D9R?
A: Common signs include harsh or delayed transmission shifting, specific gears failing to engage, the machine defaulting to neutral, or erratic brake engagement. This solenoid controls pilot pressure critical for transmission clutch and brake function.
Q: Does the 107-0677 fit both CAT dozers and trucks?
A: Yes, this solenoid valve is a common component shared across CAT D8L, D9R, D10R track-type tractors and the 773E off-highway truck. It is typically located on the transmission control valve body or brake pilot manifold
