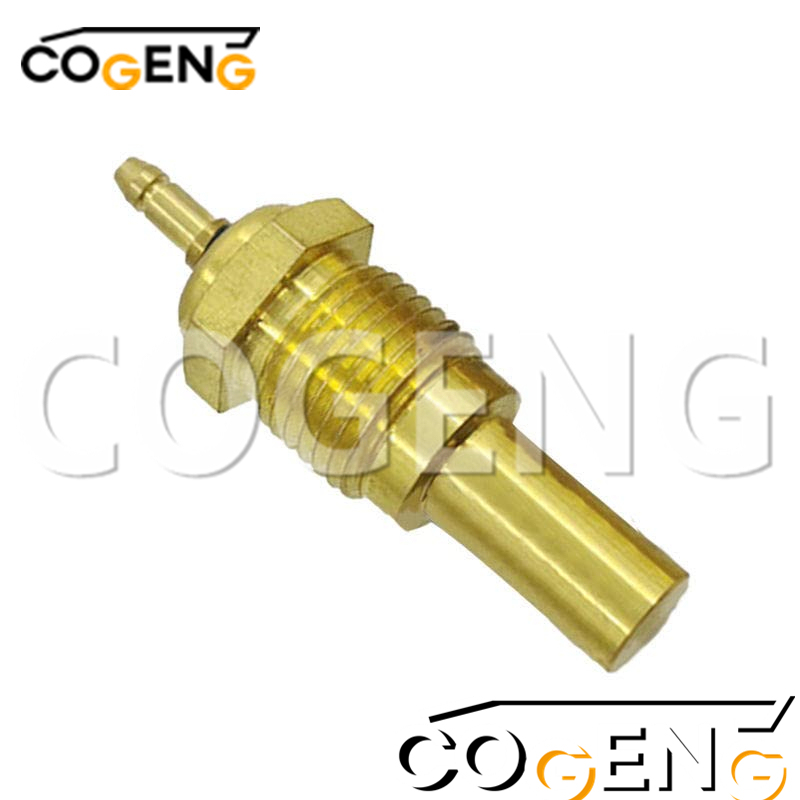

COGENG Premium Coolant Temperature Sensor - Direct Replacement for Komatsu 08620-0000 & 198-06-11940

Name: COGENG Premium Coolant Temperature Sensor - Direct Replacement for Komatsu 08620-0000 & 198-06-11940
Brand: Excavator Solenoid Valve | Excavator Pressure Switch | Excavator Revol
Availability: InStock
Rating: 5 (1 reviews)

Product name: KOMATSU Water Temp Sensor

Part No: 08620-0000 198-06-11940 086200000 1980611940

Model Number:For PC200 D85A-18 D85A-21B D75S-5 D80A-18 D65S-8

Material:Lron+Rubber

Packing:PP bag inside, carton box outside

Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P

MOQ:Acceptable trial order

Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)

Place of Origin:Guangdong, China

Brand name:COGENG

CertifiCATEEion:ISO9001

Supply :500PCS

GET A QUOTE

Add to Quote List View Quote List

Desciption

Parameter	Specification
COGENG Part Number	TS-KOM-OEM
Replaces OEM Numbers	08620-0000 198-06-11940
Sensor Type	NTC Thermistor
Electrical Connection	OEM 2-pin Weatherproof Connector
Thread Size	M12 x 1.5mm
Temperature Range	-40°C to +130°C
Resistance Values	5.79KΩ @ 20°C, 180Ω @ 100°C
Accuracy	±2°C across operating range
Body Material	Brass with Zinc Plating
Seal Type	Integrated Copper Washer
Response Time	<8 seconds (63% of final value)
Quality Standard	ISO 9001

Temperature vs Resistance Chart (NTC)

Temperature (°C)	Temperature (°F)	Resistance (Ω)	Gauge Reading
20	68	2000-3500	Low-normal
40	104	800-1300	Normal
60	140	400-700	Normal
80	176	200-400	High-normal
100	212	50-120	Overheat (red zone)

Mechanical Specifications

Parameter	Specification
Thread Size	3/8" BSPT
Hex Size	19 mm (3/4")
Housing Material	Zinc-plated steel / Brass
Sensing Element	Precision NTC thermistor (sealed)
Seal Type	Copper washer (included)
Weight	0.05 kg (0.11 lbs)

Torque Specification

Parameter	Value
Installation Torque	15-20 Nm (11-15 ft-lbs)
Caution	Do not overtighten; use new copper washer

COMPATIBLE KOMATSU ENGINES

The 198-06-11940 coolant temperature sensor is compatible with a wide range of Komatsu engines-1:

Engine Series	Specific Models
3D84 Series	3D84-1A, 3D84-1B, 3D84-1F
3D94 Series	3D94-2C, 3D94-2D
4D94 Series	4D94-2D
4D95 Series	4D95L-1Z, 4D95S-1H, 4D95S-1J, 4D95S-1J-T
4D95S-W Series	4D95S-W-1F-A, 4D95S-W-1F-AP, 4D95S-W-1F-P, 4D95S-W-1F-PL, 4D95S-W-1F-Q, 4D95S-W-1F-S, 4D95S-W-1F-T, 4D95S-W-1G-A, 4D95S-W-1G-AP, 4D95S-W-1G-AS, 4D95S-W-1G-BP, 4D95S-W-1G-E, 4D95S-W-1G-P, 4D95S-W-1G-PL, 4D95S-W-1G-Q, 4D95S-W-1G-S, 4D95S-W-1G-T
4D105 Series	4D105-5N, 4D105-5P
6D95 Series	6D95L-1AA, 6D95L-1AA-M, 6D95L-1AA-S, 6D95L-1AA-T, 6D95L-1AC-A, 6D95L-1AC-M, 6D95L-1AC-P, 6D95L-1AC-S, 6D95L-1AC-TC, 6D95L-1AC-TM, 6D95L-1AC-TR, 6D95L-1AC-TW, 6D95L-1AD, 6D95L-1VV
6D105 Series	S6D105-1P, S6D105-1Q
6D125 Series	S6D125-1AH, S6D125-1P, S6D125-1TT
S4D102 Series	S4D102E-1J, S4D102E-1J-2, S4D102E-1K, S4D102E-1K-2
S4D105 Series	S4D105-5K, S4D105-5L
SA6D110 Series	SA6D110-1G

COMPATIBLE KOMATSU EXCAVATORS

Model	Series	Application
PC10-1	Dash 1	Coolant temperature
PC20-3	Dash 3	Coolant temperature
PC20-5	Dash 5	Coolant temperature
PC20-6	Dash 6	Coolant temperature
PC30-1	Dash 1	Coolant temperature
PC30-3	Dash 3	Coolant temperature
PC30-5	Dash 5	Coolant temperature
PC30-6	Dash 6	Coolant temperatur
PC38UU-1	Dash 1	Coolant temperature
PC40-1	Dash 1	Coolant temperature
PC40-2	Dash 2	Coolant temperature
PC40-3	Dash 3	Coolant temperature
PC40-5	Dash 5	Coolant temperature
PC40-6	Dash 6	Coolant temperature
PC50UU-1	Dash 1	Coolant temperature
PC60-3	Dash 3	Coolant temperature
PC60U-3	Dash 3	Coolant temperature
PW20-1	Dash 1	Coolant temperature
PW30-1	Dash 1	Coolant temperature
PW30T-1	Dash 1	Coolant temperature
PW60-1	Dash 1	Coolant temperature

COMPATIBLE KOMATSU BULLDOZERS

Model	Series	Application
D150A-1	Dash 1	Coolant temperature
D155A-1	Dash 1	Coolant temperature
D355A-3	Dash 3	Coolant temperature
D455A-1	Dash 1	Coolant temperature
D80A-18	Dash 18	Coolant temperature
D80E-18	Dash 18	Coolant temperature
D80P-18	Dash 18	Coolant temperature
D85A-18	Dash 18	Coolant temperature
D85E-18	Dash 18	Coolant temperature
D85P-18	Dash 18	Coolant temperature

COMPATIBLE KOMATSU DUMP TRUCKS, WHEEL LOADERS & GRADERS

Equipment Type	Compatible Models
Dump Trucks	HD180-4, HD200-2, HD205-3, HD255-5, HD320-3, HD325-3, HD325-5, HD325-6, HD325-6W, HD465-2, HD465-3, HD465-5, HD680-2, HD785-1, HD785-1L, HD785-1S, HD785-2, HD785-3
Wheel Loaders	WA20-1, WA30-2, WA30-3, WA40-1, WA40-2
Motor Graders	GD705A-4A, GD705A-4A-N
Cranes	LW160-1, LW200L-1, LW250L-1H, LW250L-1NH, LW250L-1NX, LW250L-1X

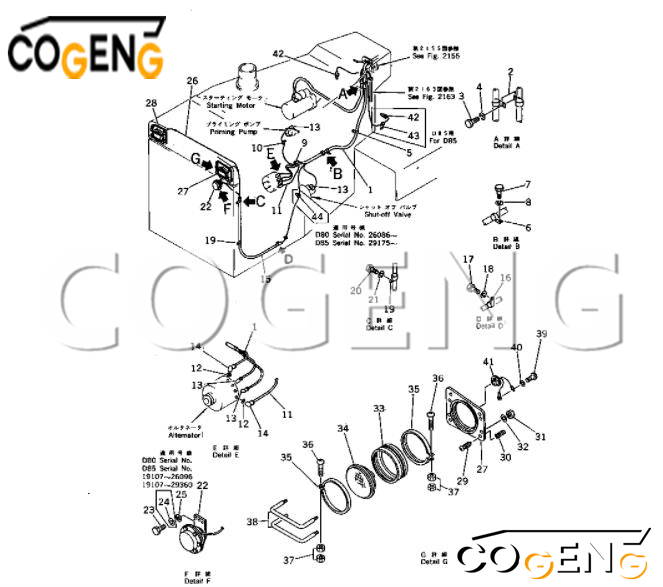

Decompose pictures

Parts list

NO	Number	Name	Qty
1	154-06-36725	WIRE ASS'Y	1
	154-06-36724	WIRE ASS'Y	1
	154-06-36722	WIRE ASS'Y	1
	154-06-36721	WIRE ASS'Y	1
2	08035-02510	CLIP	2
3	01010-31020	BOLT	1
	01010-31016	BOLT	1
4	01643-31032	WASHER	1
4	01602-01030	WASHER,SPRING	1
5	08035-02508	CLIP	1
6	08035-02510	CLIP	1
7	01010-31016	BOLT	1
8	01643-31032	WASHER	1
	01602-01030	WASHER,SPRING	1
9	08035-02510	CLIP	1
	08036-01414	CLIP	1
10	08036-10810	CLIP	1
	154-06-33110	CLAMP	1
11	175-06-39760	WIRE	1
12	154-06-36790	WASHER	2
13	140-06-18260	CAP	4
	08038-00518	CAP	4
14	08038-02027	CAP	2
15	154-06-36750	WIRE ASS'Y	1
16	08035-01510	CLIP	1
17	01010-31016	BOLT	1
18	01643-31032	WASHER	1
	01602-01030	WASHER,SPRING	1
19	08035-01512	CLIP	2
20	01010-31220	BOLT	2
21	01643-31232	WASHER	2
21	01602-01236	WASHER,SPRING	2
22	175-06-39170	HORN	1
23	01010-30820	BOLT	2
24	01602-00825	WASHER	2
25	01643-30823	WASHER	2
	01641-00812	WASHER	2
26	175-06-37391	WIRE	1
	154-06-36770	HEAD LAMP ASS'Y,L.H.	1
	154-06-36780	HEAD LAMP ASS'Y,R.H.	1
27	144-06-13131	• BASE,L.H.	1
28	144-06-13221	• BASE,R.H.	1
29	131-06-43230	• SCREW	4
30	144-06-13150	• SPRING	4
31	01580-00806	• NUT	4
32	01602-00825	• WASHER,SPRING	4
33	08128-00003	• HOLDER	1
34	08113-02480	• BULB, 80W	1
35	08128-00004	• BAND	2
36	01220-40420	• SCREW	2
37	01580-00403	• NUT	4
38	144-06-13120	• GUARD	2
39	01220-30408	• SCREW	1
40	01601-00410	• WASHER	1
41	175-06-23230	• SOCKET	1
42	08620-00000	SENSOR	2
	198-06-11940	SENSOR	2
43	08036-10814	CLIP	1
44	08036-10810	CLIP	1

Installation decomposition diagram

Safety Precautions:

Allow engine to cool completely before installation
Slowly release cooling system pressure before opening
Drain small amount of coolant to prevent spillage
Disconnect battery to prevent electrical hazards

Installation Procedure:

Locate sensor in engine block or thermostat housing
Disconnect electrical connector
Carefully unscrew old sensor using appropriate wrench
Clean threads in mounting port
Install new COGENG sensor with integrated copper washer
Torque to 12-15 Nm (9-11 ft-lbs)
Reconnect electrical connector securely
Top up coolant and bleed air from system
Start engine and check for leaks
Verify proper temperature gauge operation

Frequently Asked Questions

A. When will get the items after I place order?

Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?

A. If I only know the excavator model, but can not offer parts No.,what should I do ?

Q. If possible, you can send us pictures of old products, nameplate or the size for reference.

A. How can you guarantee the quality??

Q. We will 100% test the goods before delivery. We also support video inspection.

A. How long will it take to delivery to my address??

Q. The normal delivery time is 3-7 days, depending on which country you are in.?

A : Which delivery method will you choose?

Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.

A: What's package? Can you give me the package according my requirement??

Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.

A: Can the price be cheaper?

Q: Of course, you will be offered a good discount for a big amount.

A: Why should I choose to buy from you?

Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.

A : Which payment terms can you accept?

Q : Paypal. Western Union, Bank Transfer, T/T...
