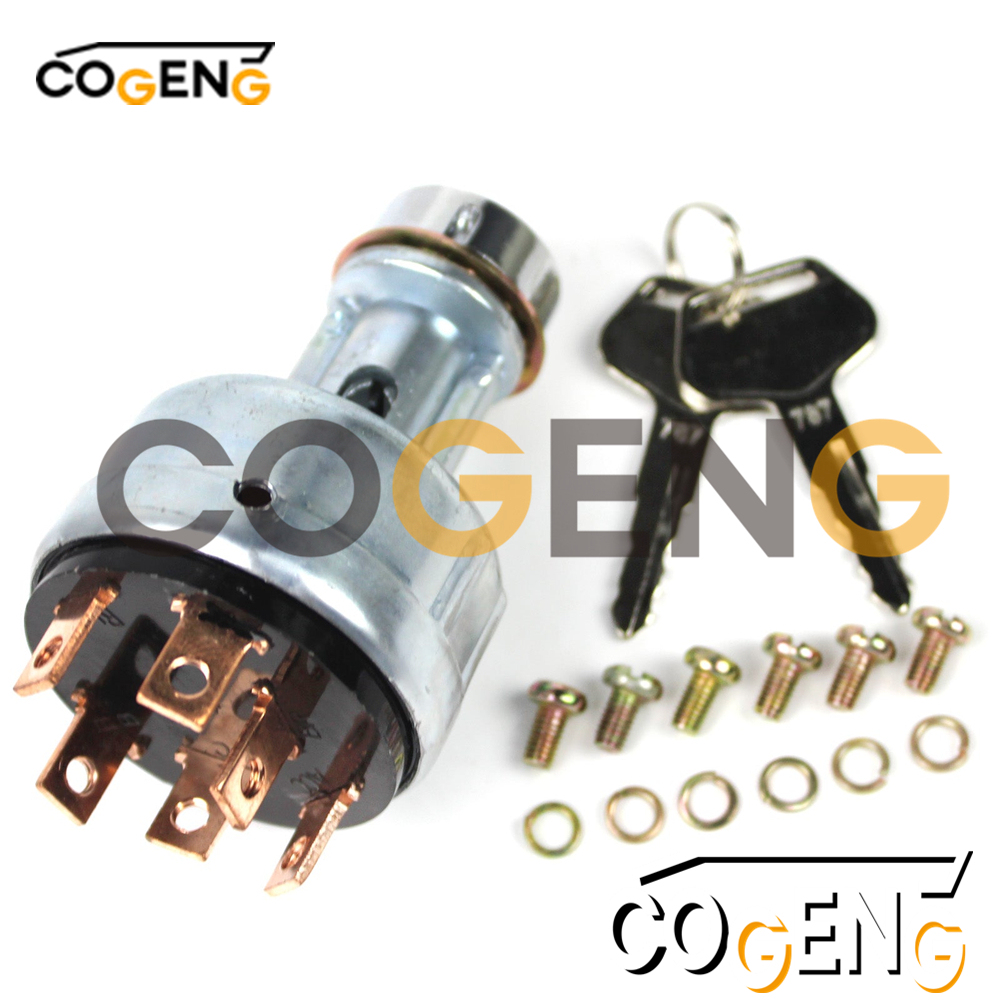

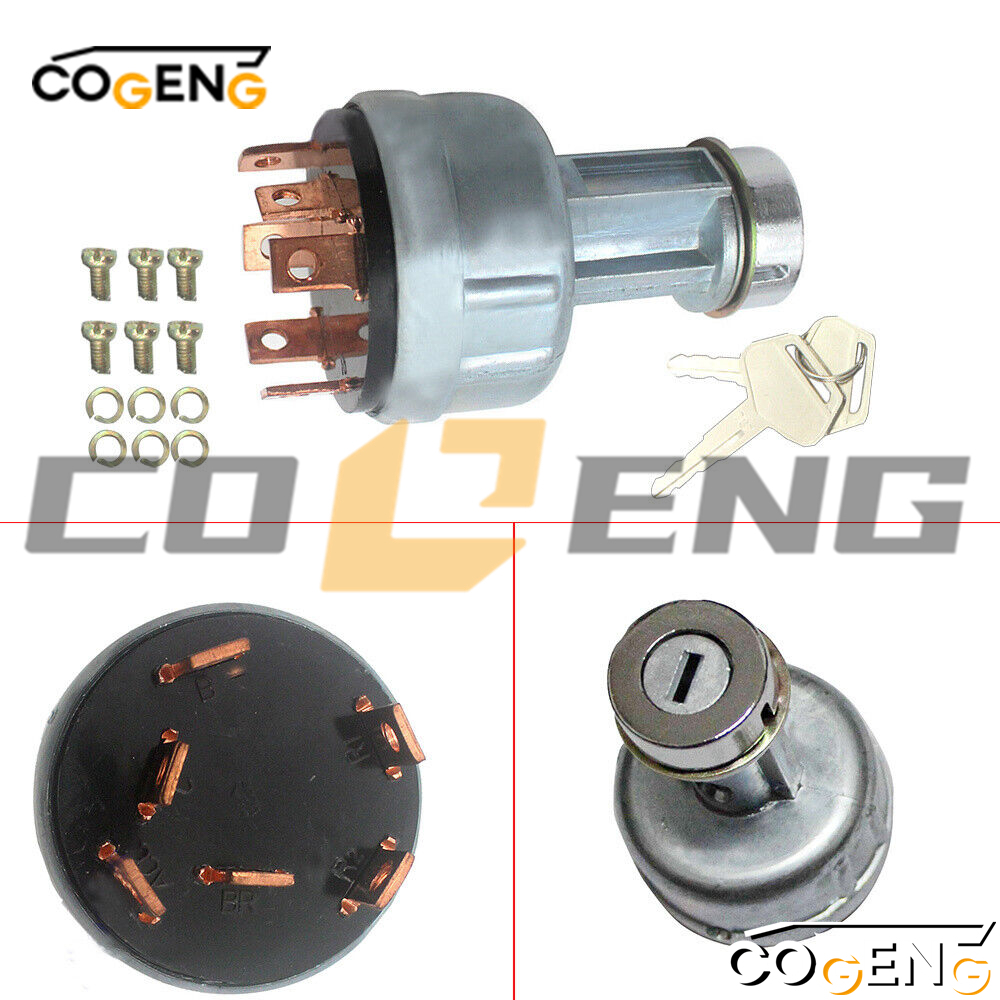

08086-10000 Komatsu Lgnition Switch
Product name: Komatsu Lgnition Switch
Part No: 08086-10000 0808610000
Model Number:For PC200-2 PC200-3 PC200-5 BC100-1 BF60-1 D20P-5A D20P-5 WA380-3 WA420-3
Material:Lron+Rubber
Packing:PP bag inside, carton box outside
Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P
MOQ:Acceptable trial order
Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.)
Place of Origin:Guangdong, China
Brand name:COGENG
CertifiCATEEion:ISO9001
Supply :500PCS
Decompose pictures
Parts list
| NO |
Number |
Name |
Qty |
| 1 |
11T-06-11611 |
DASHBOARD |
1 |
| 2 |
11T-06-11650 |
BRACKET |
1 |
| 3 |
11T-54-11910 |
BRACKET |
1 |
| 4 |
01010-31230 |
BOLT |
10 |
| 5 |
01010-31225 |
BOLT |
2 |
| 6 |
01643-31232 |
WASHER |
12 |
| 7 |
11T-06-11621 |
PLATE |
1 |
| 8 |
11T-06-11631 |
PANEL |
1 |
| 9 |
11T-06-11770 |
PANEL |
1 |
| 10 |
01220-30616 |
SCREW |
4 |
| 11 |
01643-30623 |
WASHER |
4 |
| 12 |
175-54-41420 |
SCREW |
12 |
| 13 |
175-54-41430 |
WASHER |
12 |
| 14 |
08687-22400 |
METER,SERVICE |
1 |
| 15 |
08655-04500 |
GAUGE,WATER TEMPERATURE |
1 |
| 16 |
113-06-22120 |
LAMP,PANEL |
1 |
| 17 |
08086-10000 |
Lgnition Switch |
1 |
| 18 |
11T-06-11760 |
SWITCH,HORN |
1 |
| 19 |
08061-60010 |
SWITCH,LAMP |
1 |
| 20 |
125-06-22220 |
LAMP,CHARGE |
1 |
| 21 |
125-06-22210 |
LAMP,OIL PRESSURE, ENGINE |
1 |
| 22 |
08147-22400 |
LAMP,WATER AND OIL TEMPERATURE |
1 |
| 23 |
08061-40000 |
SWITCH |
1 |
| 24 |
08043-04000 |
BOX |
1 |
| 25 |
08040-01000 |
FUSE, 10A |
2 |
| 26 |
08040-02000 |
FUSE, 20A |
2 |
| 27 |
206-54-15540 |
ASHTRAY |
1 |
| 28 |
01220-30416 |
SCREW |
4 |
| 29 |
01601-00410 |
WASHER |
4 |
| 30 |
01010-30616 |
BOLT |
2 |
| 31 |
01602-00619 |
WASHER |
2 |
| 32 |
09415-00506 |
CAP |
3 |
| 33 |
09415-01610 |
CAP |
1 |
| 34 |
08037-02512 |
GROMMET |
1 |
Installation decomposition diagram
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
