| Category | Specification |
|---|---|
| COGENG Set Number | CG-HIT-SET-0004911-0004912 |
| OEM References | 0004911 & 0004912 |
| Compatible Models | ZX200, ZX240, ZX250 |
| Machine Weight Range | 20-25 Ton Excavators |
| Generation | Early ZX Series |
| Wire Insulation | Oil-Resistant XLPE |
| Connector Rating | IP66 (Water & Dust Resistant) |
| Temperature Range | -40°C to 125°C |
| Voltage Rating | 24V DC System |
| Design Feature | Classic Model Specific Routing |
| Quality Validation | 100% Paired Circuit Testing |
| Warranty Coverage | 18-Month Limited Warranty |
| Parameter | Specification |
|---|---|
| Product Name | Hitachi Excavator Main Chassis / Engine Wiring Harness |
| Primary Part Number | 0004911 |
| Brand | COGENG (Premium Aftermarket Replacement) |
| Condition | Brand New, 100% Continuity & Dielectric Withstand Tested |
| Machine Model Compatibility | Hitachi ZAXIS 200 Hydraulic Excavator |
| Material | Copper Conductor Core, XLPE Wire Insulation, Rubber-Sealed Connectors, High-Temperature Nylon Protective Conduit, Rubber-Lined Metal P-Clips |
| Harness Type | Complete Engine & Main Chassis Interconnect Harness — ECM Interface, Full Sensor & Actuator Network, Injector Control, CAN Bus Machine Communication |
| Wire Insulation | Cross-Linked Polyethylene (XLPE) with High-Temperature PTFE in Critical Heat Zones; SAE J1128 Type SXL/GXL; Rated -40°C to +125°C Continuous |
| Connector Systems | Deutsch DT, Deutsch DTM, Sumitomo Sealed Series, Integrated ECM Connectors with Gold-Plated Contacts |
| Protective Sheathing | High-Temperature Corrugated Nylon Split-Loom Conduit; Self-Fusing Silicone Tape at All Branch Junctions; Adhesive-Lined Dual-Wall Heat Shrink Boots at All Connector Backshells |
| Voltage Rating | 24V DC System, 600V Insulation Rating |
| Environmental Sealing | IP67 / IP69K Rated Mated Connectors with Silicone Interfacial Seals and Peripheral Gaskets |
| Chemical & Abrasion Resistance | Resistant to Diesel Fuel, Engine Oil, Hydraulic Fluid, Engine Coolant, and Commercial Degreasing Solvents; Exceeds SAE J1128 Abrasion Standards |
| Quality Assurance | 100% Automated Pin-to-Pin Continuity Mapping Against OEM Schematic; 1000V AC HiPot Dielectric Withstand Test; Computer-Monitored Crimp Force Recording on Every Terminal; 10x Magnification Visual Inspection |
| Certification | ISO 9001 Certified Manufacturing Facility |
| Place of Origin | Guangdong, China |
| Supply Capacity | 500 Pieces per Month (Larger Quantities Available on Request) |
| Minimum Order Quantity | Acceptable Trial Order — Single Unit Orders Welcome |
| Shipping Weight | 3.3 kg (Gross, approximate) |
| Package Dimensions | 58 x 46 x 15 cm (Coiled and Flat-Packed in Protective Carton) |
| Packing | Inner: PP Bag with Anti-Static Protection; Outer: Heavy-Duty Export-Grade Corrugated Carton Box with Custom-Cut Protective Foam |
| Payment Terms | Western Union, L/C (Letter of Credit), T/T (Telegraphic Transfer), MoneyGram, D/A (Documents against Acceptance), D/P (Documents against Payment) |
| Shipping Mode | By Air, By Sea, By Express (FedEx, UPS, DHL, TNT, etc.) — Optimized Based on Cargo Situation and Destination |
| Return Policy | Non-Returnable / Non-Exchangeable (Comprehensive DOA Guarantee Included) |
Decompose pictures

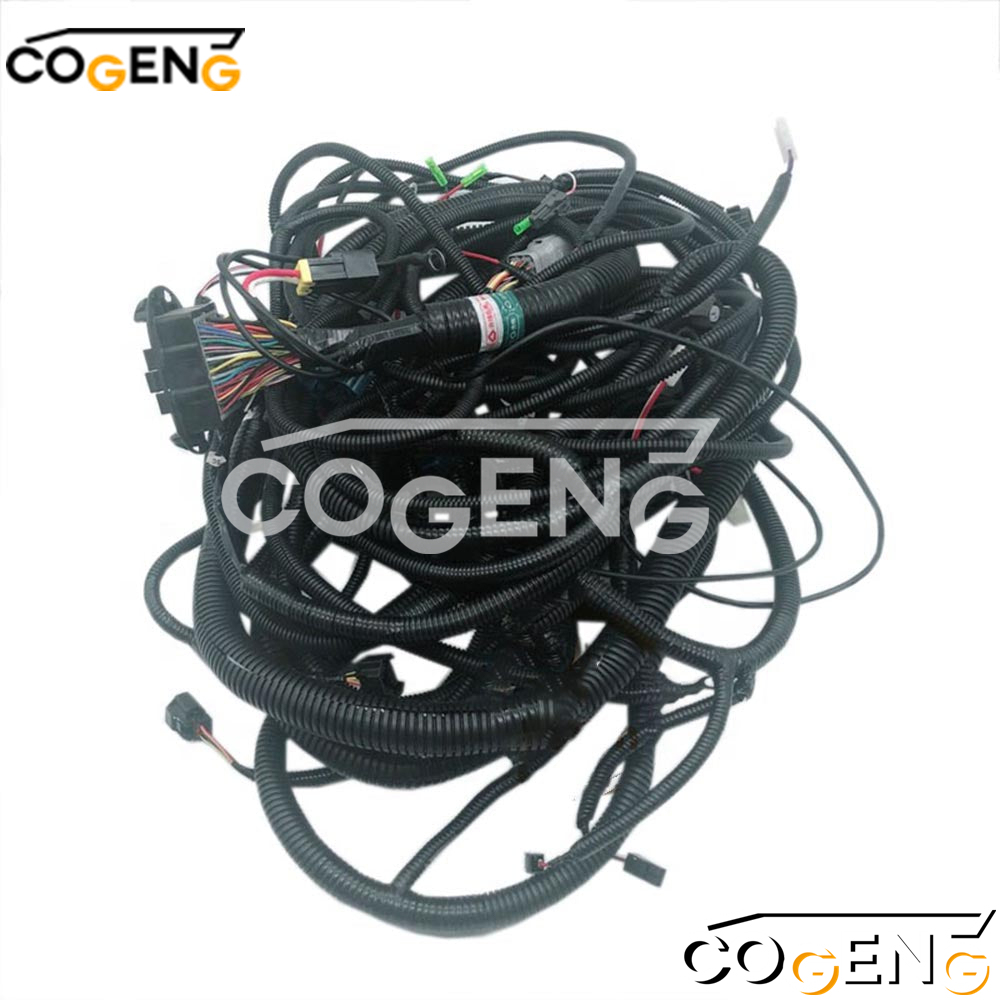

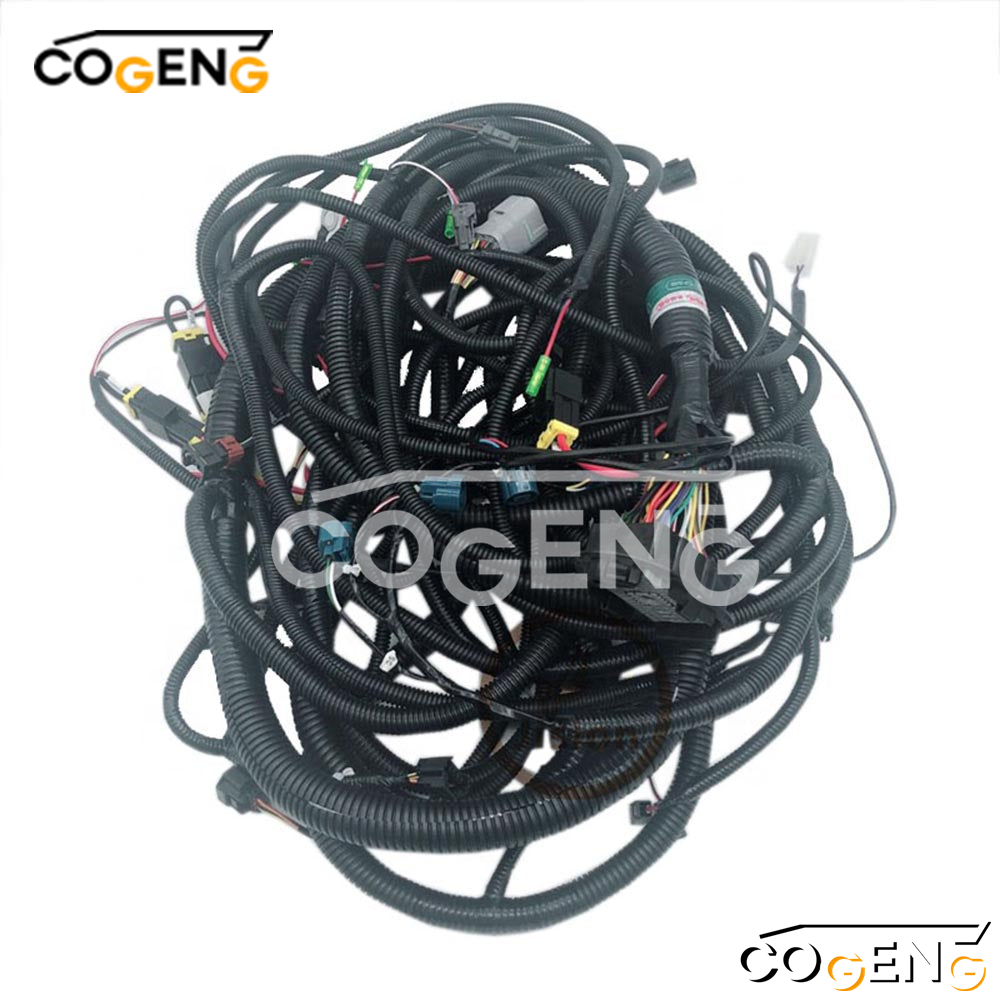

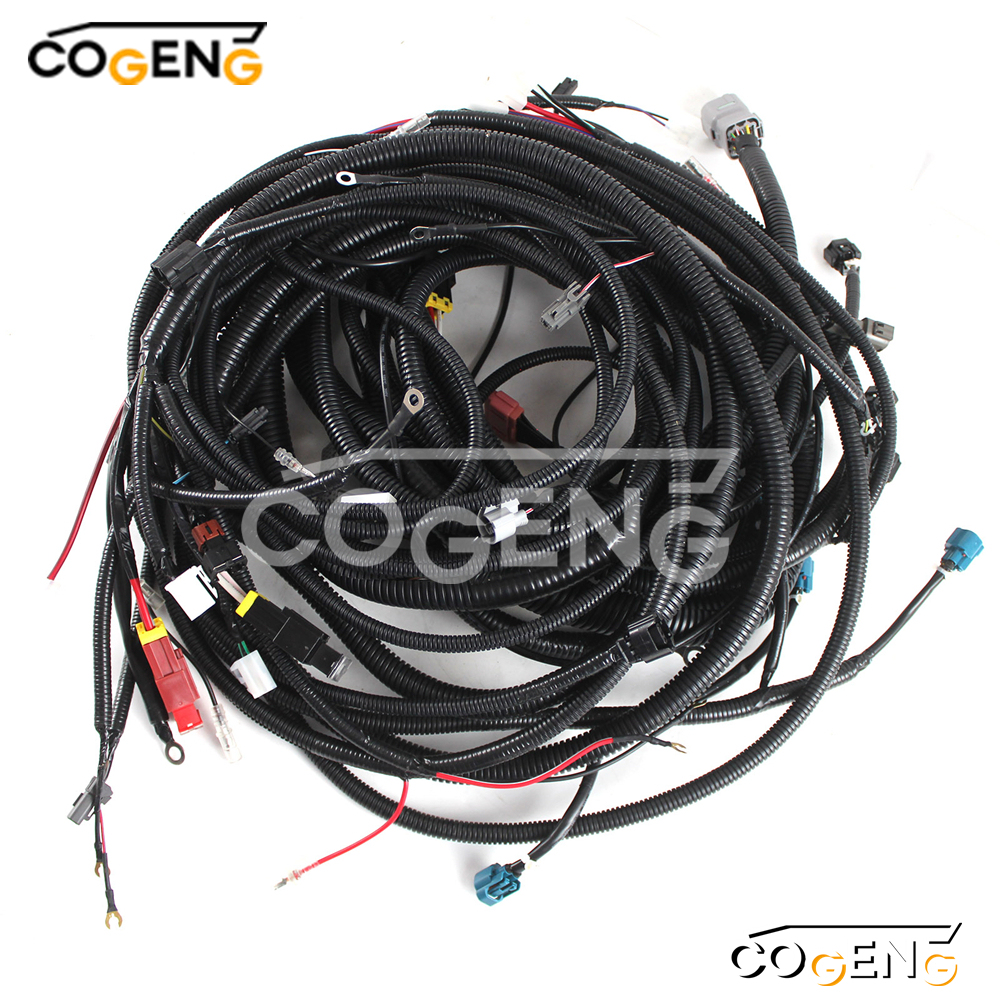

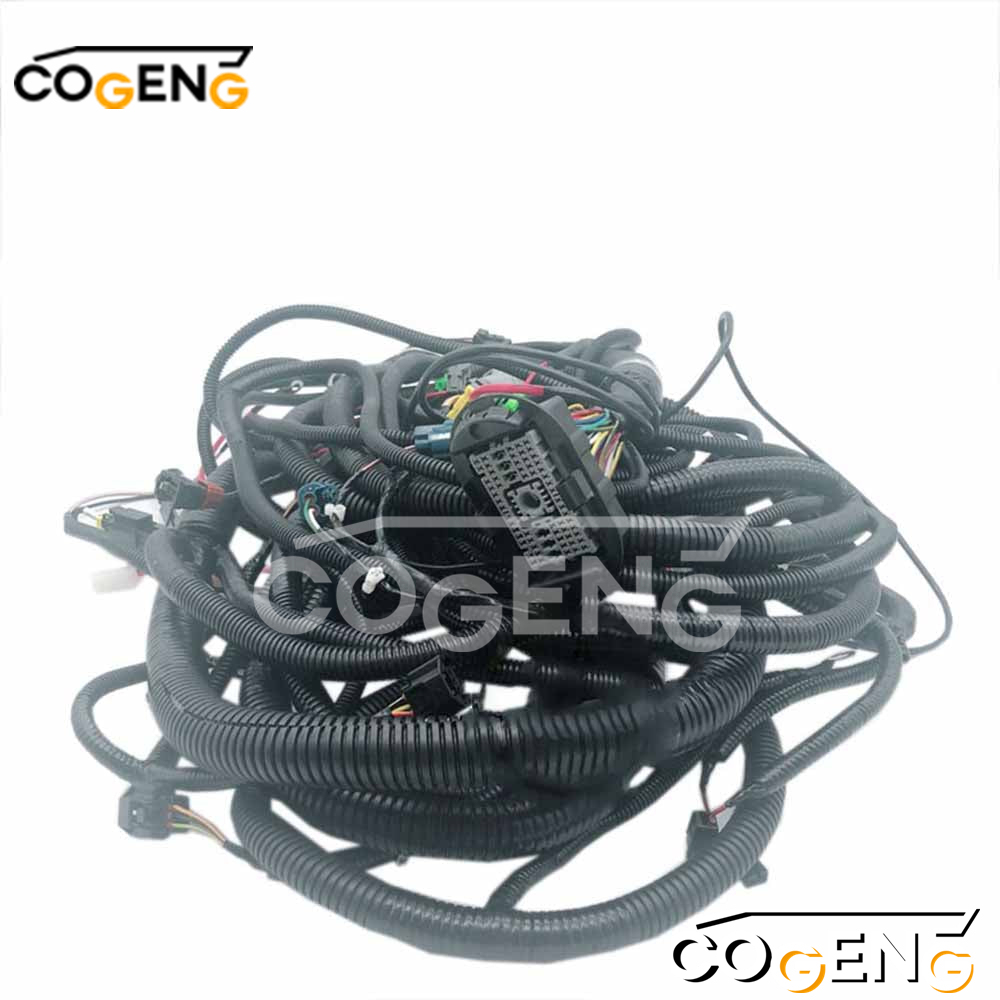

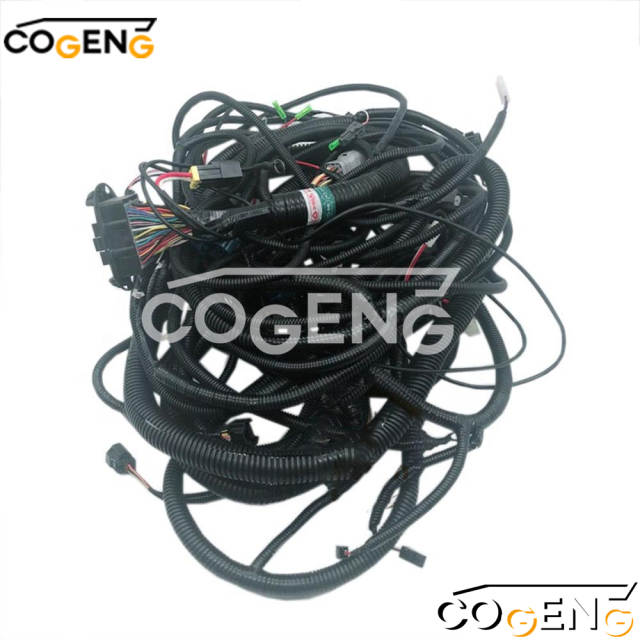

The 0004911 harness is specifically designed for the Hitachi ZAXIS 200 excavator platform. Always provide your complete machine serial number for final compatibility verification.
| Brand | Model | Machine Class |
|---|---|---|
| Hitachi | ZAXIS 200 | 20-Ton Hydraulic Excavator |

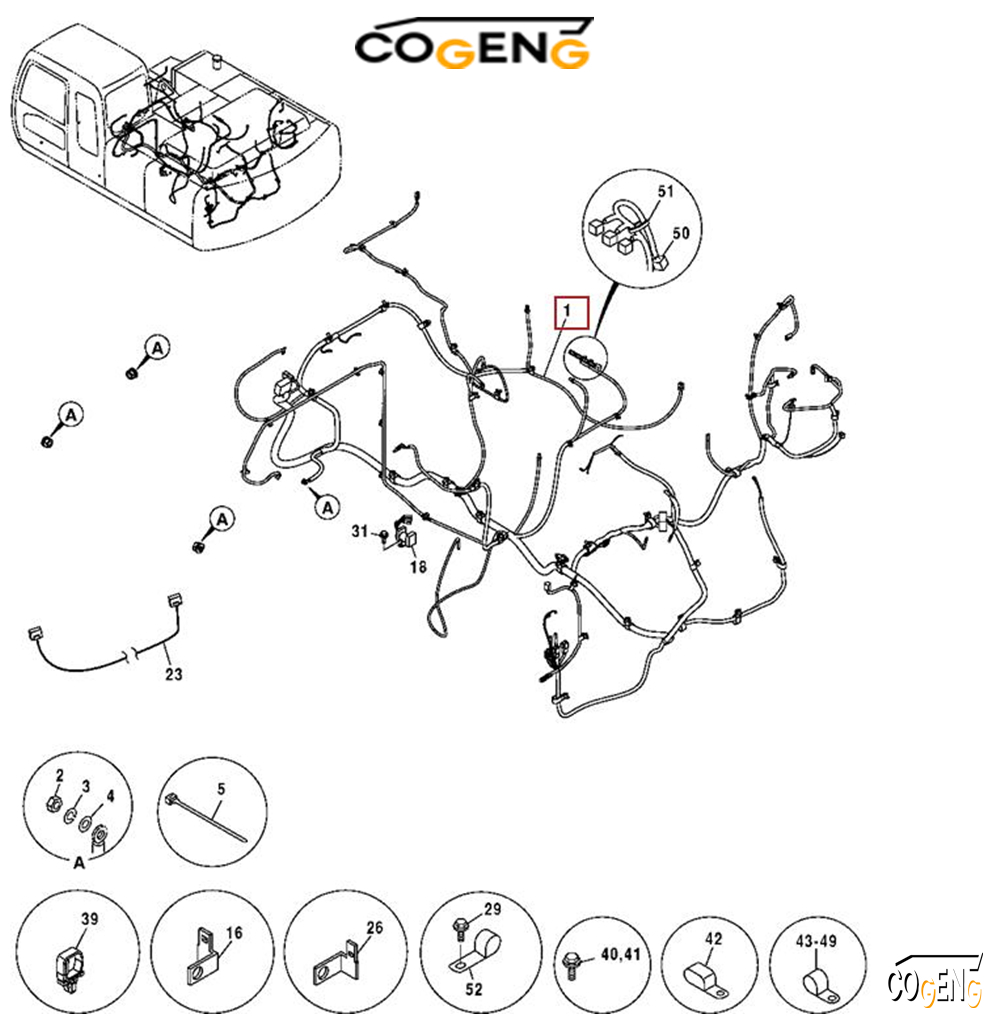

| NO | Number | Name | Qty |
| 1 | 0004911 | Wiring Harness | 1 |
| 1 | 0004912 | Wiring Harness | 1 |
| 1 | 4487830 | Wiring Harness | 1 |
| 1A | 4270554 | FUSE | 2 |
| 1B | 4287670 | FUSE | 1 |
| 1C | 4315323 | FUSE | 1 |
| 1D | 4315324 | LINK | 1 |
| 2 | 14M7274 | NUT | 4 |
| 3 | 12M7066 | LO CK WASHER | 4 |
| 4 | 24M7028 | WASHER | 4 |
| 5 | H77698 | Tie Band | 13 |
| 16 | 4257159 | BRACKET | 1 |
| 23 | AT303736 | Wiring Harness | 1 |
| 26 | 4418301 | BRACKET | 1 |
| 29 | 12M7006 | LOCK WASHER | 3 |
| 29 | 19M8425 | Cap Screw | 3 |
| 31 | 19M7932 | Cap Screw | 2 |
| 31 | 12563400 | WASHER | 2 |
| 39 | 4449250 | CLIP | 7 |
| 40 | 19M7662 | Cap Screw | 1 |
| 40 | 12M7066 | LO CK WASHER | 1 |
| 41 | 19M7938 | Cap Screw | 25 |
| 41 | 12M7066 | LO CK WASHER | 25 |
| 42 | T32854 | CLAMP | 4 |
| 43 | 4190261 | CLIP | 5 |
| 44 | T28949 | CLAMP | 7 |
| 45 | 4190275 | CLAMP | 1 |
| 46 | R72659 | CLAMP | 1 |
| 49 | AT121321 | HOSE CLAMP | 5 |
| 52 | T78787 | CLAMP | 3 |
Exact OEM Fit: Direct replacement for Hitachi part numbers 0004911 and 0004912, ensuring seamless integration.
High-Quality Materials:
Conductors: Oxygen-free copper for superior conductivity.
Insulation: Heat-resistant PVC or cross-linked polyethylene (XLPE) for abrasion and chemical resistance.
Connectors: OEM-style terminals with corrosion-resistant plating.
Durability: Reinforced shielding against vibrations, moisture, and extreme temperatures (-40°C to +105°C).
Plug-and-Play Design: Pre-assembled with labeled connectors for hassle-free installation.
Models: Compatible with Hitachi ZX200, ZX240, and ZX250 excavators (verify exact machine serial numbers with COGENG).
Replaces: OEM Part Numbers 0004911 (ZX200/ZX240) and 0004912 (ZX250).
Integrates with the excavator’s electrical systems, including:
Engine control unit (ECU) and sensors.
Hydraulic control valves and solenoids.
Dashboard instrumentation and warning lights.
Lighting, ignition, and auxiliary circuits.
Reliability: Rigorously tested for continuity, insulation resistance, and mechanical stress.
Cost-Effective: Competitive pricing compared to genuine Hitachi parts.
Warranty: Backed by COGENG’s quality assurance policy.
Wire Gauge: Ranges from 18 AWG (sensors) to 10 AWG (power lines).
Voltage Rating: 12V/24V DC systems.
Protection: IP67-rated connectors where applicable.
Standards: Complies with ISO 6722, SAE J1128.
Disconnect the battery to prevent short circuits.
Remove the old harness, noting routing paths and clip positions.
Install the new harness using OEM routing guides; avoid sharp edges or heat sources.
Secure all connectors firmly and test systems before operation.
COGENG’s 0004911 / 0004912 Wiring Harness provides a dependable, OEM-quality solution for Hitachi excavators, minimizing downtime and ensuring long-term electrical performance.
Installation decomposition diagramComplete machine power shutdown required before installation
Install both harnesses as matched set for optimal system performance
Follow early ZX series specific routing diagrams
Ensure proper connector engagement with classic components
Verify compatibility with existing electrical components
Perform comprehensive system diagnostics after installation
| Detail | Description |
|---|---|
| Shipping Methods | By Air: Cost-effective for medium-weight orders to international airports. By Sea: Most economical for bulk orders and containerized freight. By Express (FedEx, UPS, DHL, TNT): Fastest priority door-to-door service for machine-down emergencies. The specific method is optimized based on cargo situation and destination. |
| Estimated Delivery Time | Express Courier: 4-8 business days. Air Freight: 8-15 days. Sea Freight: 30-45 days. Transit times are carrier-dependent. The arrival date on the official tracking portal is authoritative. Tracking provided within one business day of dispatch. |
| Packing | Inner: PP bag with anti-static protection to prevent electrostatic discharge and moisture ingress. Outer: Heavy-duty, export-grade corrugated carton box with custom-cut high-density protective foam. The double-layer system ensures the harness arrives in factory-fresh condition. |
| Payment Terms | Flexible terms to suit your business: Western Union, L/C (Letter of Credit), T/T (Telegraphic Transfer), MoneyGram, D/A (Documents against Acceptance), D/P (Documents against Payment). Standard terms: 30% T/T deposit, 70% balance before shipment. |
| Minimum Order Quantity | Acceptable Trial Order — Single unit orders are welcomed and encouraged for first-time customers to verify quality and fit. |
| Policy Point | Terms |
|---|---|
| Merchant Return Policy | All sales are final. No returns or exchanges. A wiring harness is a critical electronic component. Once departed from our controlled quality environment, we cannot verify it has not been partially installed, contaminated, or damaged. This ensures every customer receives a brand-new, untouched product. |
| DOA Quality Guarantee | Complete replacement for manufacturing defects reported within 7 calendar days of delivery. Harness must be in original, uninstalled condition. Physical damage from cutting, stretching, crushing, or incorrect installation voids the guarantee. |
| Pre-Shipment Confirmation | We send high-resolution photos of your exact harness laid out on our jig board for your written approval. No shipment is released without your explicit confirmation. |
Q1: What are the symptoms of a failing 0004911 main chassis harness on my ZAXIS 200?
A: Common symptoms include multiple unrelated fault codes appearing simultaneously, intermittent ECM or pump controller communication loss, specific hydraulic functions becoming slow or unresponsive, the monitor display flickering or showing erratic data, random engine derate or shutdown, visible chafing or melted insulation, green corrosion at connector backshells, and sensor values dropping out during a wiggle test with diagnostic software connected.
Q2: Is this harness compatible with the ZAXIS 200LC long carriage model?
A: In most cases, yes. The ZAXIS 200 and ZAXIS 200LC share the same upper structure and electrical architecture. The main chassis harness is typically identical. We will verify using your machine's complete serial number during pre-shipment confirmation.
Q3: What is the relationship between part numbers 0004911 and 0004912?
A: These are closely related part numbers within the Hitachi ZAXIS harness family. The 0004911 is specifically for the ZAXIS 200 platform, while the 0004912 is for the larger ZAXIS 230LC/270 machines. Our technical team will confirm the correct number for your specific machine.
Q4: Do you accept a trial order of a single harness?
A: Yes, absolutely. We welcome and encourage trial orders for single units. We understand the importance of verifying product quality, fit, and performance before committing to larger quantities.
Q5: What certifications does COGENG hold?
A: COGENG is an ISO 9001 certified manufacturer. Our quality management system ensures consistent manufacturing processes, rigorous multi-stage inspection protocols, and complete batch traceability for every harness produced.
For pricing, machine-down emergency support, trial order arrangements, bulk quantity discounts, or pre-purchase compatibility verification, contact your COGENG supplier today.
Sales Price: Contact COGENG sales customer service directly for the most current competitive pricing. Trial orders are welcome. Request a personalized quotation.
Shipping Method & Cost: We will provide a tailored shipping quotation—by air, by sea, or by express courier—based on your location, urgency, and budget. DDP shipping terms available for select countries.
Estimated Delivery Time: Based on the selected carrier's service standards. Tracking number provided within one business day of dispatch.
✅ Direct OEM Replacement — Jig-Built for Guaranteed Perfect Fit, Zero Modification Required.
✅ Hitachi ZAXIS 200 Harness — Specifically Validated for the 20-Ton Class Industry Standard Excavator.
✅ ISO 9001 Certified Manufacturing — Consistent Quality, Full Traceability, 500 PCS Monthly Supply Capacity.
✅ Trial Orders Welcome — Single Unit Orders Accepted and Encouraged for First-Time Customer Evaluation.
✅ In Stock & Ready to Ship — Minimize Your ZAXIS 200 Downtime with Immediate Worldwide Dispatch.
Critical Action Required: To ensure 100% compatibility, please provide your Hitachi ZAXIS 200's complete serial number and a clear photo of your existing harness identification label and ECM connector face. Our technical team will cross-reference your exact machine configuration and provide written confirmation before your order is processed.
Merchant Return Policy: All products shipped are not returnable or exchangeable. Full compatibility verification is a shared responsibility. Please complete all pre-purchase checks to ensure a successful first-time installation.
* Details Return Sales*
MerchantReturnPolicy:
The products shipped are not returnable or exchangeable.This is a single-use product and must not be resold.
