COGENG 0003647 & 0004770 Hitachi Wiring Harness | Direct OEM Replacement for ZX110 ZX120 ZX130

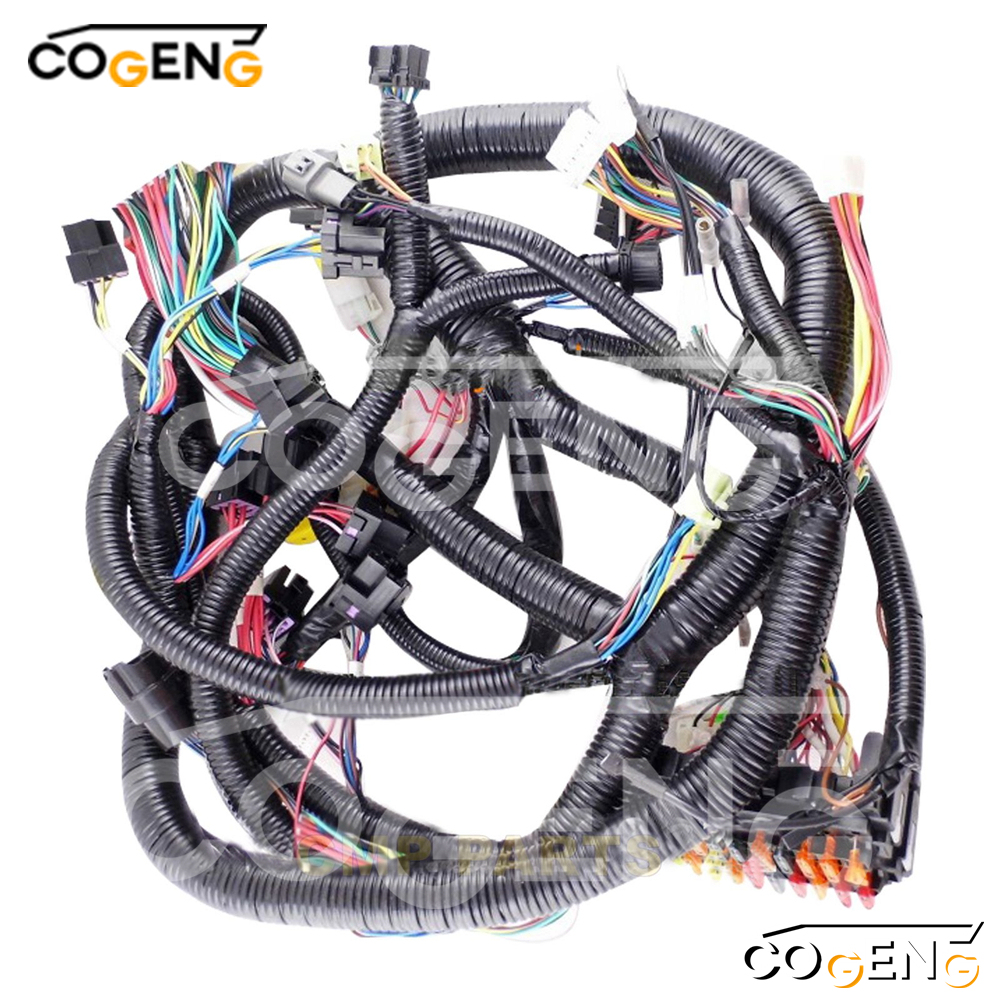

Hitachi External Wiring Harnesses (P/N: 0003647 & 0004770) for  ZAXIS-1 Excavators
Restore the primary electronic communication systems on your mid-sized Hitachi ZAXIS-1 series excavator with these robust replacement External Wiring Harnesses, identified by part numbers 0003647 and 0004770. Manufactured and supplied by COGENG, these harnesses are essential for maintaining the operational reliability and precision control of models such as the ZAX110-1, ZAX120-1, ZAX130-1, and ZAX180-1.

P/N 0003647 & 0004770: Main Exterior Electrical Systems

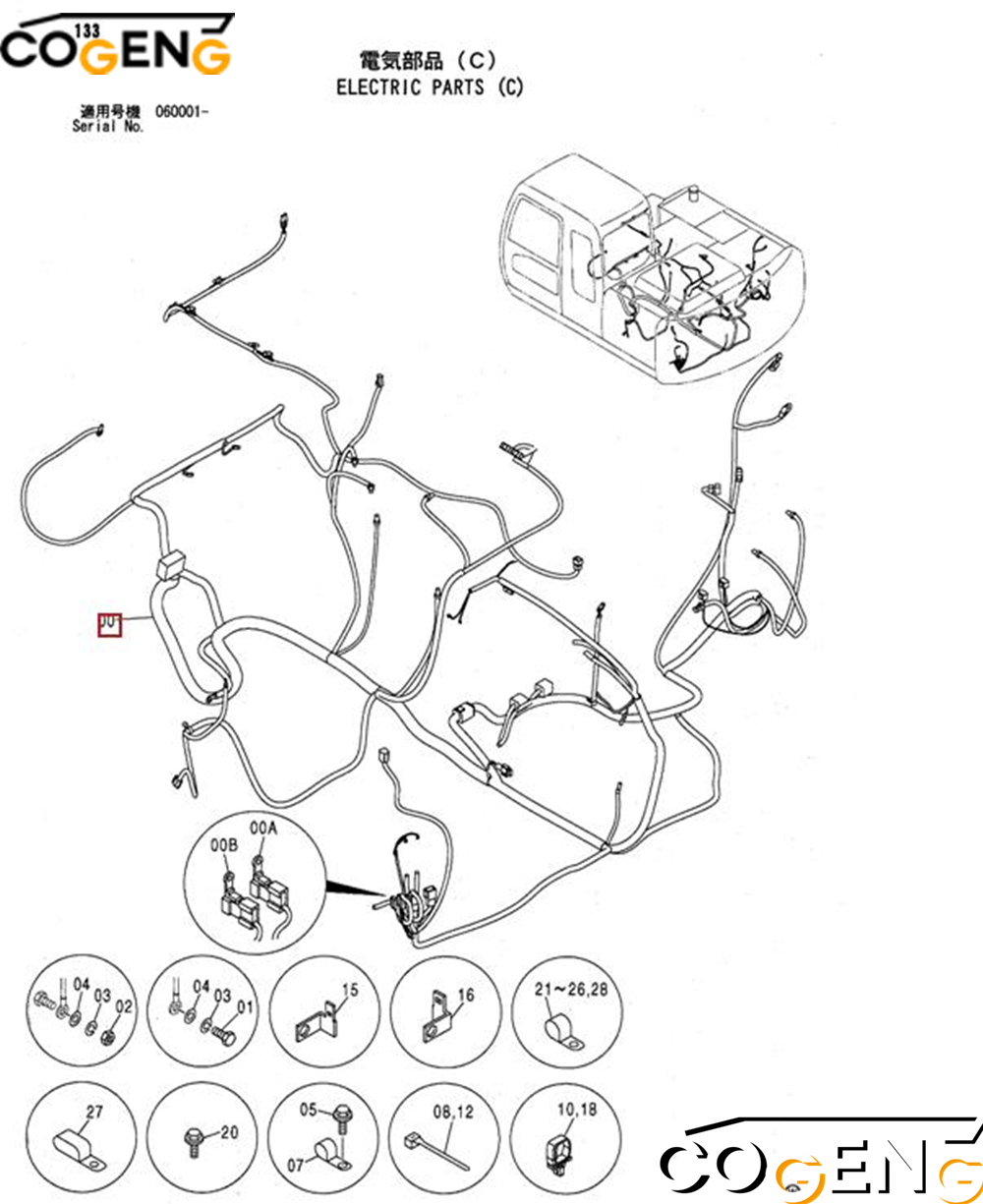

hese two part numbers are generally interchangeable or complementary main external wiring harnesses, often referred to as the "Outer Cable" or "Main Exterior Harness." This assembly is responsible for conveying power and complex data signals between the main electrical controller in the cab and the key components mounted on the engine and frame.

Their function is paramount for any job site, ensuring:

• Engine Management Communication: The harness transmits critical signals from the main ECU to the engine’s electronic control unit (ECM), sensors (like pressure and temperature), and fuel injection components. A failure here can lead to unstable engine performance, difficult starts, or complete power loss.

• Hydraulic Control Link: It establishes the electrical connection between the cabin controls and the main hydraulic pump's solenoids and pressure sensors. This link is vital for the excavator’s smooth, proportional, and rapid movement, directly influencing digging and lifting efficiency.

• System Power Distribution: The harness manages power distribution to various high-draw external peripherals, including the throttle motor, relays, and specific travel/swing control components.

Due to their location on the machine's exterior frame, these harnesses are constantly subjected to immense heat, moisture, vibration, and abrasion, making them common failure points over years of service.

Designed by Cogeng for Extreme Durability

Cogeng understands the harsh realities of heavy equipment operation. The replacement harnesses (0003647 and 0004770) are engineered with specifications that meet or exceed the original factory requirements for durability:

• High-Temperature and Abrasion Resistance: The bundle is wrapped in a heavy-duty polymer sheathing formulated to resist high thermal loads from the engine compartment, as well as physical damage from rubbing and exposure to corrosive fluids like hydraulic oil and diesel.

• Sealed, OEM-Spec Connections: All multi-pin connectors are precision-molded to achieve an IP-rated seal, protecting the sensitive copper pins from water ingress and dust. This ensures the clean, low-resistance electrical pathway necessary for accurate sensor readings and reliable control signals.

• Perfect Fitment Guarantee: Designed as direct replacement assemblies, the harnesses feature the correct length, pin-out configuration, and mounting points to seamlessly integrate into the ZAXIS-1 chassis, eliminating the need for splicing or modification during installation.

By proactively replacing aging or damaged harnesses with the Cogeng P/N 0003647/0004770, owners of Hitachi ZAXIS 110-1 through 180-1 excavators can maximize their machine's operational lifespan and eliminate the risk of unexpected electrical system failures on the job site.
