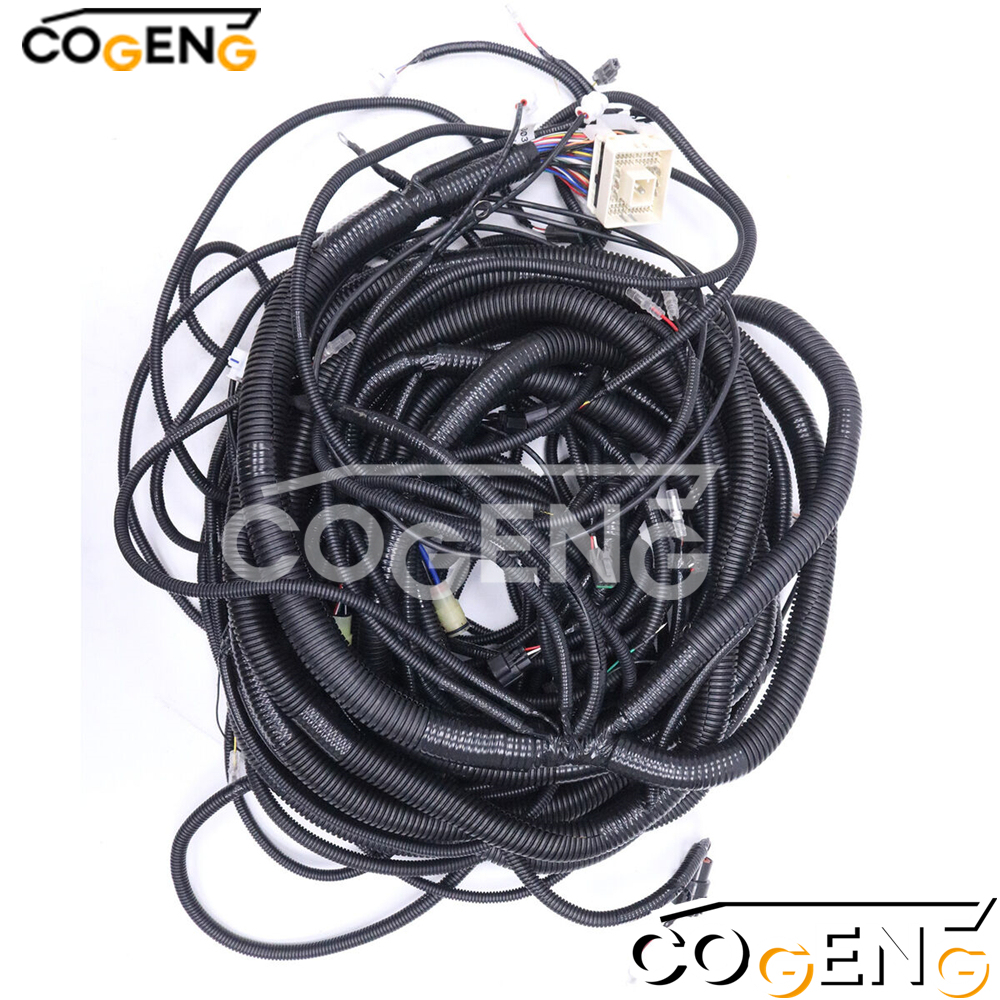

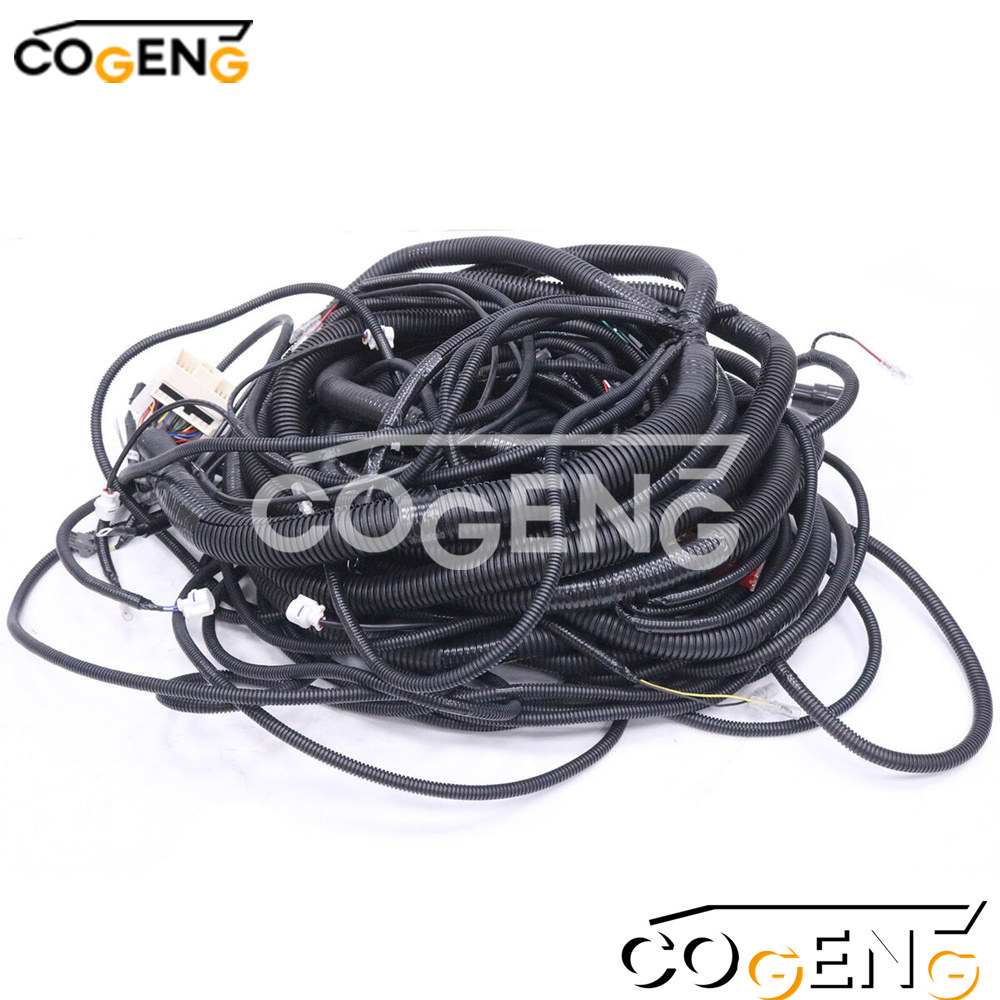

Product name: Hitachi Wiring Harness Part No: 0001302 0001303 Model Number:For EX400-3 Material:Lron+Rubber Packing:PP bag inside, carton box outside Payment Terms:Western Union, L/C, T/T, MoneyGram, D/A, D/P MOQ:Acceptable trial order Shipping Mode:By air, by sea, by express(Fedex, UPS, DHL, TNT, etc.) Place of Origin:Guangdong, China Brand name:COGENG CertifiCATEEion:ISO9001 Supply :500PCS
Category
Specification
COGENG Kit Number
CG-HIT-SET-008
OEM Part Numbers
0001302 (Primary Main Harness) • 0001303 (Secondary Control Harness)
Compatible Models
Hitachi Excavators (Specific models require validation via serial number)
Wire Standard
Oil/Temperature-Resistant TXL Grade
Connector Rating
IP67 (Fully Waterproof & Dustproof)
Key Applications
Engine Control • Sensor Circuits • Hydraulic System • Cab Operations
Quality Assurance
100% Electrically Tested • 18-Month Warranty
Decompose pictures The wiring harness includes various clips, bolts, fusible links, and other components
Parts list
NO
Number
Name
Qty
01
4190261
CLIP(10)
17
02
4190275
CLIP(14)
10
03
4190273
CLIP(18)
3
04
4190274
CLIP(20)
3
05
4190263
CLIP(25)
5
06
J011020
BOLT
57
11
0001302
HARNESS
1
0001303
HARNESS
1
11A
4315323
.FUSIBLE-LINK
1
11B
4315324
FUSIBLE-LINK
1
12
4295913
HARNESS
1
15
4190276
CLIP(6)
2
16
4190271
CLIP(8)
4
17
4192035
CLIP(28)
14
18
4192034
CLIP(25X2)
3

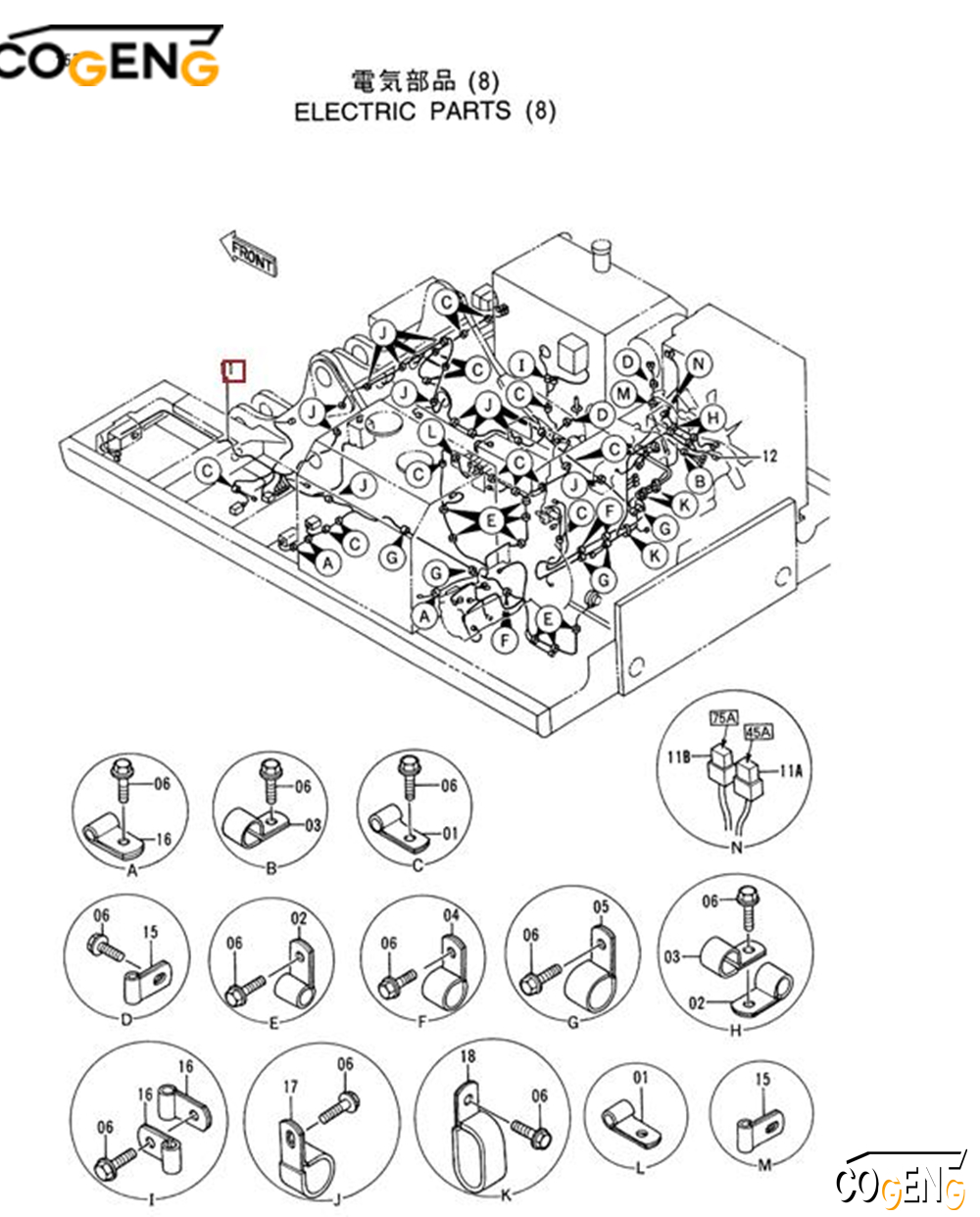

Installation decomposition diagram
These two part numbers correspond to Hitachi excavator wiring harnesses for the EX400-3 model (which also covers EX400LC-3 and EX400-3C).
The key difference between the two part numbers is their location:
0001302 Hitachi Wiring Harness: This is the Inner (or Internal/Cabin) wiring harness.
0001303 Hitachi Wiring Harness: This is the External (or Outer/Main) wiring harness, often associated with the hydraulic pump outside connectors.
Both are critical electrical components for the Hitachi EX400-3 series excavators.
If you're looking to purchase one of these, you should confirm the exact model and series of your excavator to ensure compatibility.
Do you need help finding a supplier, or are you looking for more technical information about these harnesses?
Frequently Asked Questions
A. When will get the items after I place order?
Q. Once your payment is confirmed,? ?we will arrange the goods within 1~4 days; if not in stock, we will inform you before placing the order?
A. If I only know the excavator model, but can not offer parts No.,what should I do ?
Q. If possible, you can send us pictures of old products, nameplate or the size for reference.
A. How can you guarantee the quality??
Q. We will 100% test the goods before delivery. We also support video inspection.
A. How long will it take to delivery to my address??
Q. The normal delivery time is 3-7 days, depending on which country you are in.?
A : Which delivery method will you choose?
Q : By sea, air or express(DHL,Fedex,TNT, UPS, EMS etc.)，Sometimes we will arrange as the customer's demand.
A: What's package? Can you give me the package according my requirement??
Q. We usually packed by standard exported box or carton. And yes we can pack as per your requirement.
A: Can the price be cheaper?
Q: Of course, you will be offered a good discount for a big amount.
A: Why should I choose to buy from you?
Q:Our advantages: 100% quality assurance, develop and manufature follow original ones;Quick response within 24 hours; Small order allowed;Reasonable stock and timely delivery;Neutral packing, customized packing are allowed. Positive customer feedback from abroad market;Excellent after-sales service.
A : Which payment terms can you accept?
Q : Paypal. Western Union, Bank Transfer, T/T...
